No. 1 Any Warning / Indicator Lights Do Not Illuminate When Ignition Switch Turned To On Position

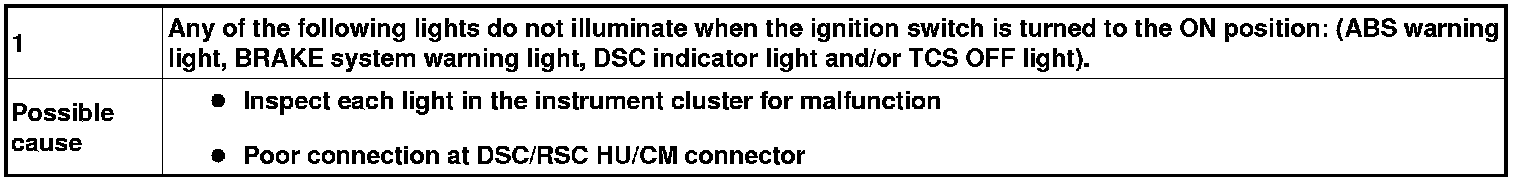

NO.1 ANY OF THE FOLLOWING LIGHTS DO NOT ILLUMINATE WHEN IGNITION SWITCH TURNED TO ON POSITION: (ABS WARNING LIGHT, BRAKE SYSTEM WARNING LIGHT, DSC INDICATOR LIGHT AND/OR TCS OFF LIGHT) [DSC/RSC]

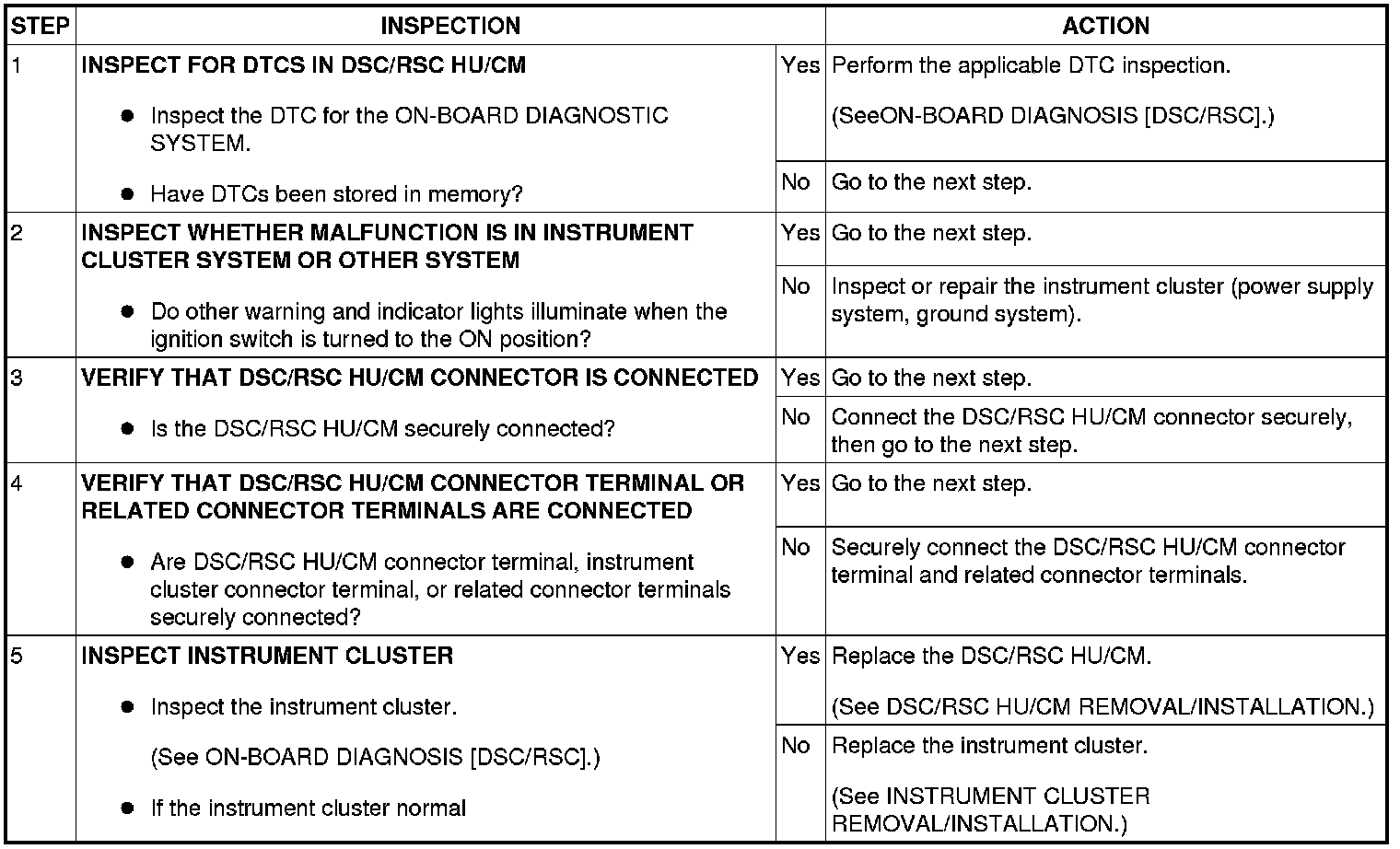

Diagnostic procedure
