Door Lock Cylinder: Service and Repair

FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door speaker Front Door Speaker Removal/Installation

d. Front door glass Service and Repair

e. Front door module Front Door Module Panel Removal/Installation

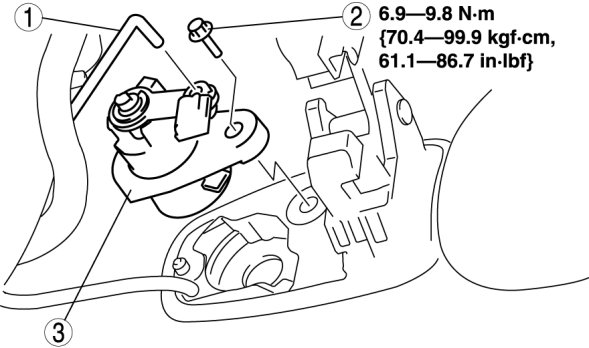

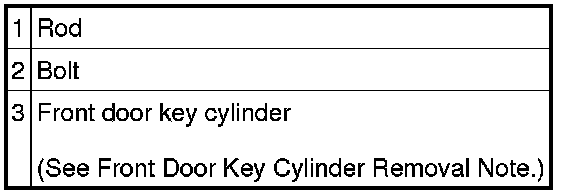

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

Front Door Key Cylinder Removal Note

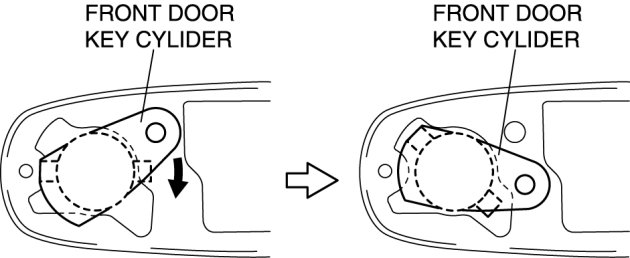

1. Remove the front door key cylinder by turning it in the direction shown by the arrow.
