Roof Side Trim Removal/Installation

ROOF SIDE TRIM REMOVAL/INSTALLATION

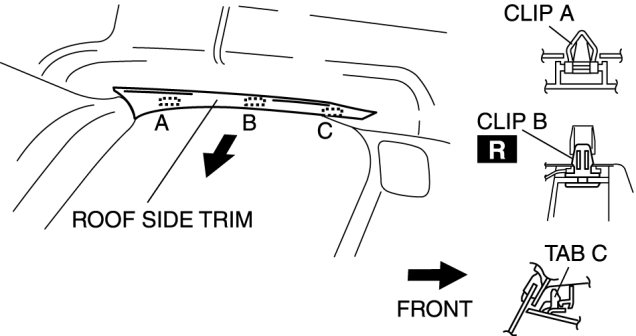

1. Detach clip A and B, and tab C by pulling them in the direction of the arrow.






2. Remove the roof side trim.

3. Install in the reverse order of removal.
