Overhaul

DASHBOARD DISASSEMBLY/ASSEMBLY

1. Remove the following parts:
a. Information display Service and Repair

b. GPS antenna GPS Antenna Removal/Installation

c. Dashboard garnish Dashboard Garnish Removal/Installation

d. Bluetooth unit Service and Repair

e. Passenger-side air bag module Two-Step Deployment Control System Standard Deployment Control System

f. Front speaker (Vehicles With Bose(R)) Front Speaker Removal/Installation

g. Tweeter (Vehicles Without Bose(R)) Tweeter Removal/Installation

h. Center speaker Center Speaker Removal/Installation

i. Keyless receiver Service and Repair

j. Keyless antenna Keyless Antenna Removal/Installation

k. keyless control module Service and Repair

l. Auto light-off control module (Vehicles without auto light/wiper system) Auto Light-OFF Control Module Removal/Installation

m. Auto light/wiper control module (Vehicles with auto light/wiper system) Auto Light/Wiper Control Module Removal/Installation

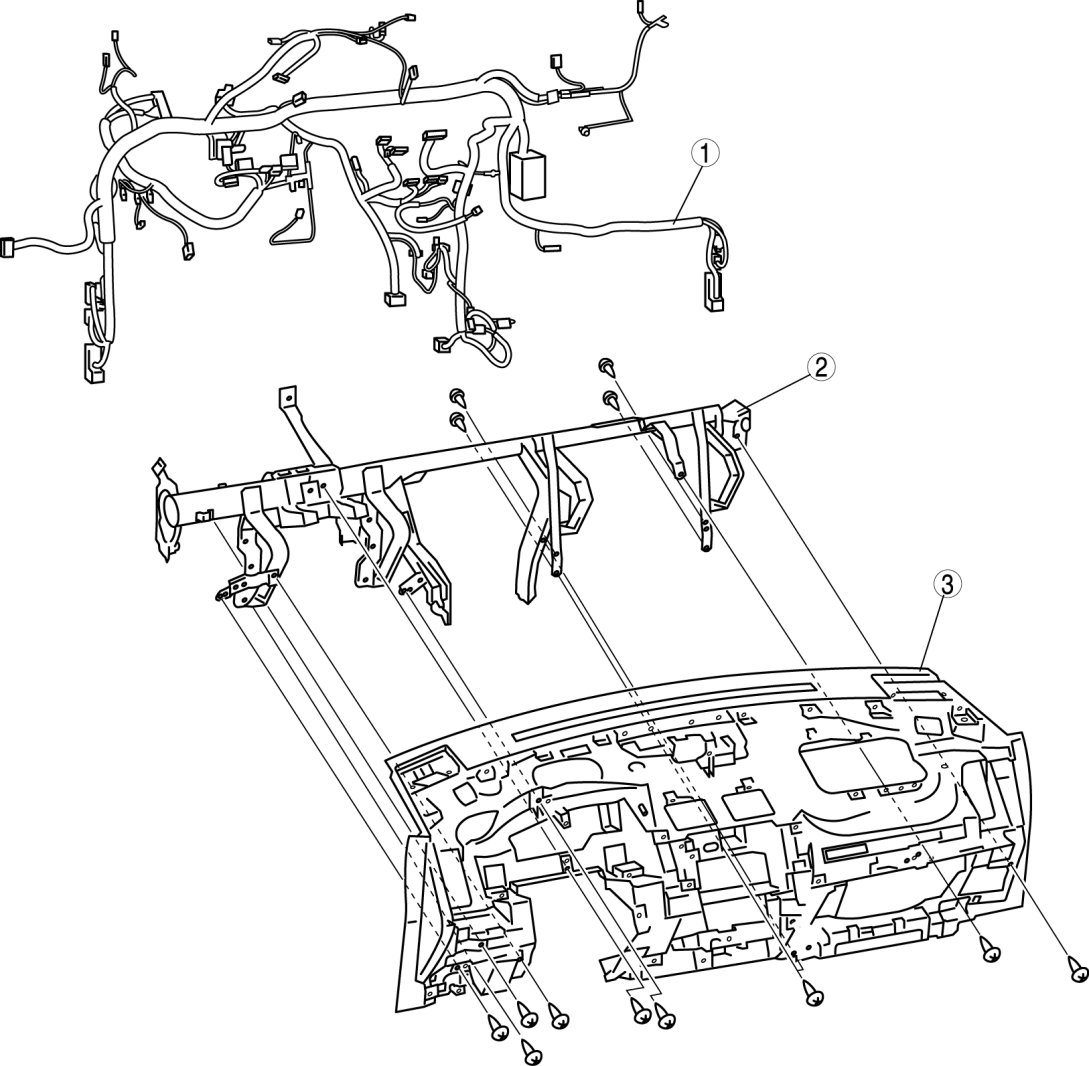

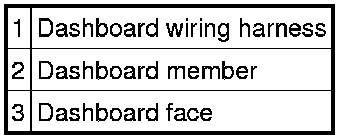

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.
