Trunk / Liftgate Striker: Service and Repair

LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION

1. Remove the trunk box.

2. Remove the seat side box. Seat Side Box Removal/Installation

3. Remove the trunk end trim. Service and Repair

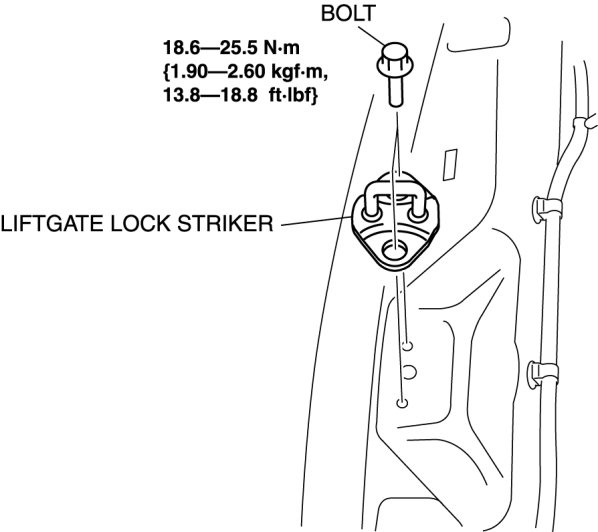

4. Remove the bolts, then remove the liftgate lock striker.






5. Install in the reverse order of removal.

6. Adjust the liftgate. Adjustments
