Tweeter Inspection





TWEETER INSPECTION

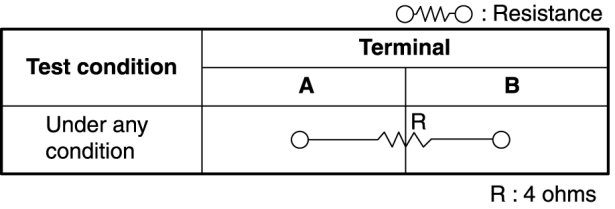

1. Verify the resistance between tweeter terminals.






- If the resistance is not within the specification, replace the tweeter.
