Bass-Box Inspection

BASS-BOX INSPECTION

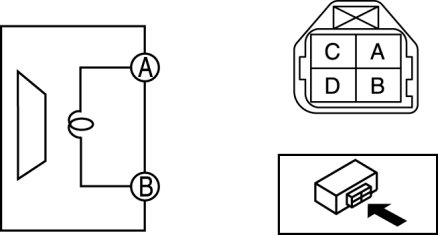

1. Verify the resistance between bass-box terminals.






- If the resistance is not within the specification, replace the bass-box.

Resistance
- 4 ohms

2. Connect a 1.5 V battery to the bass-box and verify that noise is heard from the bass-box.

- If no noise is heard, replace the bass-box.
