SUPPLIER IDENTIFICATION PROCEDURE [AUDIO]

NOTE:
- The supplier can vary with the unit. When asking the supplier (service center) for repair or replacement, identify the supplier and fill in the Audio Repair Order Form with the following procedures.

Identification Using the Label or Inscribed Lettering

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front console box mat Front Console Box Mat Removal/Installation

b. Indicator panel Indicator Panel Removal/Installation

c. Decoration panel Decoration Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Center panel Center Panel Removal/Installation

f. Audio unit Audio Unit Removal/Installation

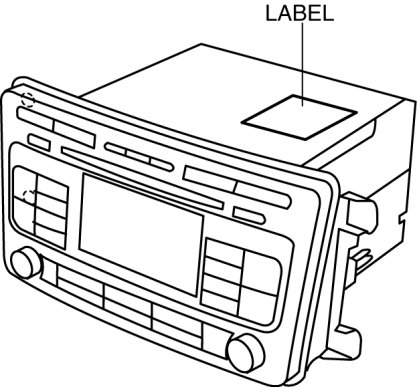

3. Verify the supplier by referring to the label attached to each unit.






Verify Using the Diagnostic Assist Function

With display

1. Turn the ignition switch to the ACC or ON position.

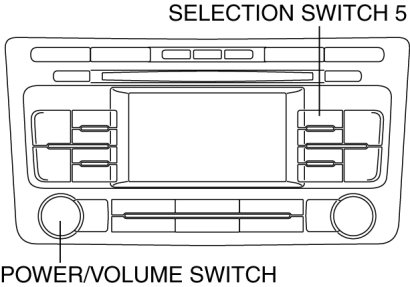

2. While pressing the POWER/VOLUME switch, simultaneously press the Selection switch 5 for 3 s or more.

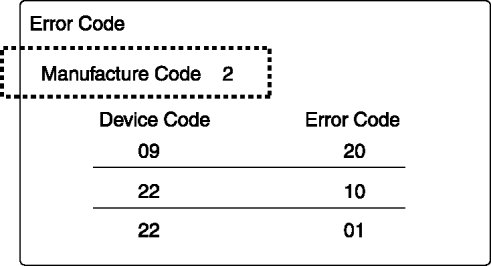

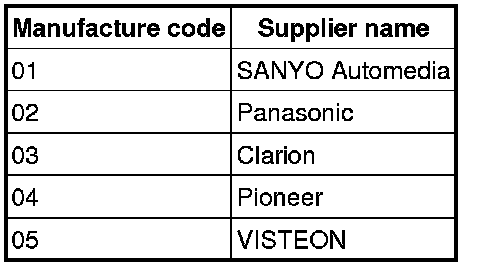

3. Identify the manufacture code by referring to the display.










NOTE:

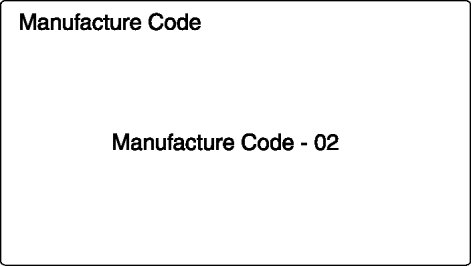

- The manufacture code can also be identified from the DTC displays screen.






4. Cancel the diagnostic assist function by turning the ignition switch to the LOCK position.

Without display

1. Turn the ignition switch to the ACC or ON position.

2. Turn the audio unit power to on.

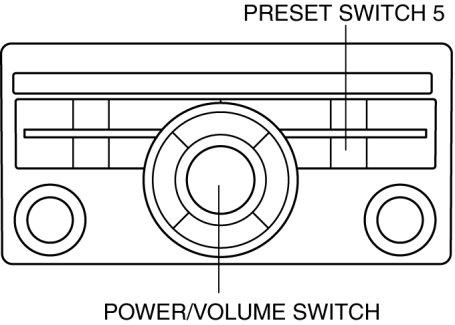

3. While pressing the POWER/VOLUME switch, simultaneously press the Preset switch 5 for 3 s or more.

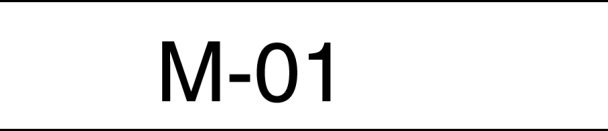

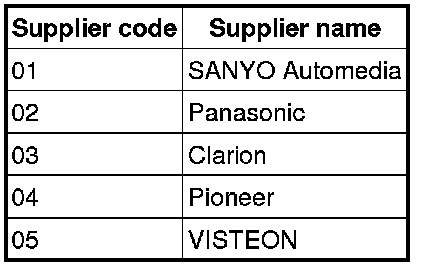

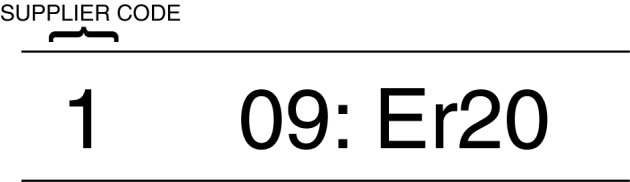

4. Identify the supplier code by referring to the display.










NOTE:
- The supplier code can also be identified from the DTC displays screen.






5. Cancel the diagnostic assist function by turning the ignition switch to the LOCK position.
