Antenna: Testing and Inspection

GLASS ANTENNA INSPECTION

AM/FM

1. Inspect the glass antenna for damage visually.

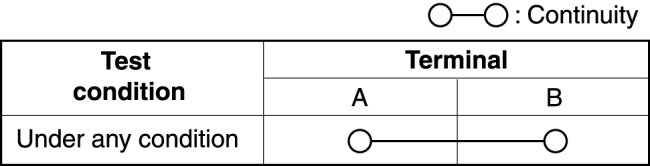

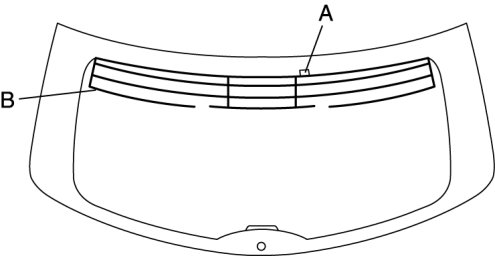

2. Inspect for continuity between the glass antenna terminals using an ohmmeter.






- If not as specified, repair the glass antenna. Service and Repair
