Error Code 21

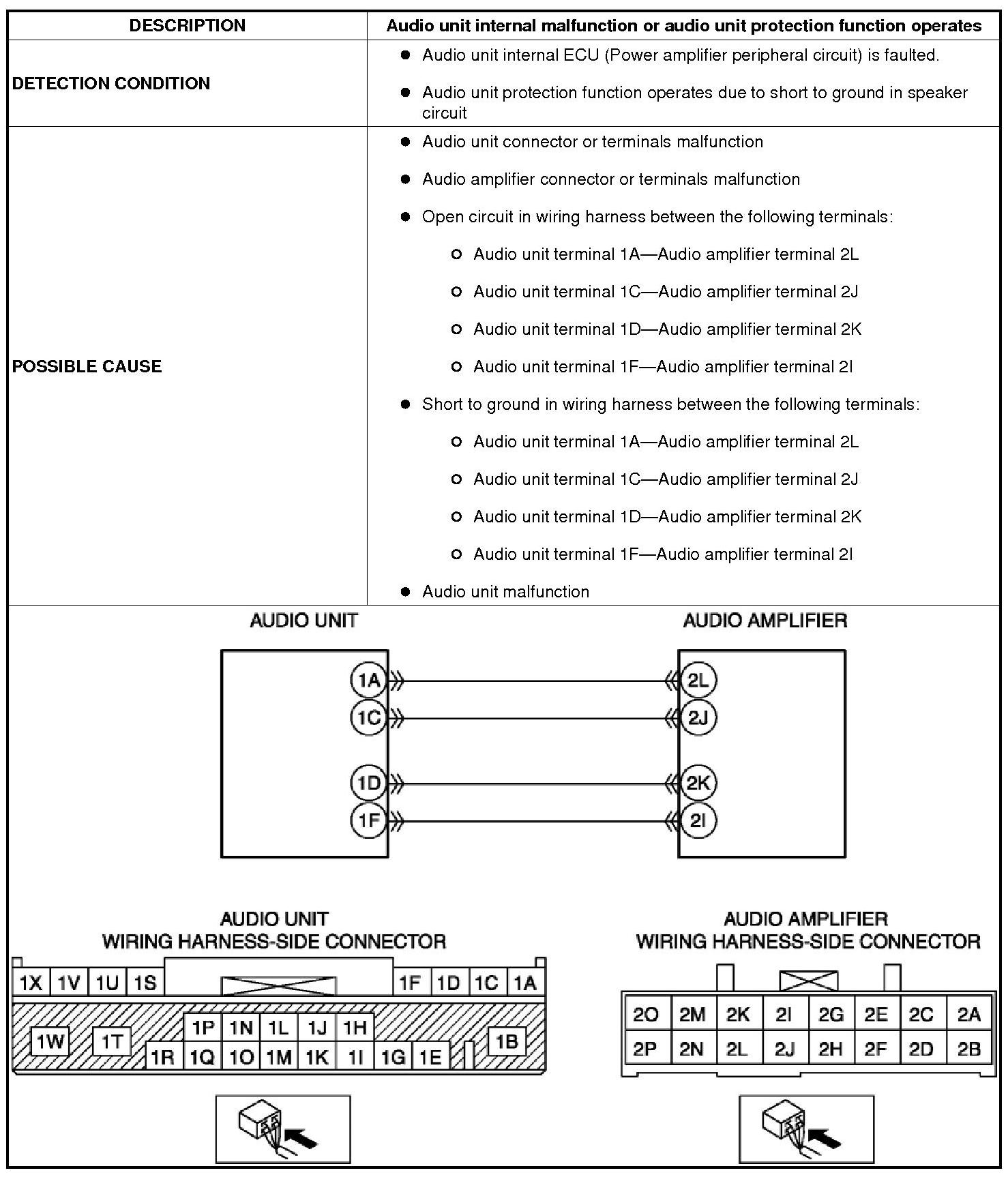

DTC: U3000:09, 09:Er21, DEVICE CODE 09 / ERROR CODE 21 [AUDIO]

Without Bose(R)

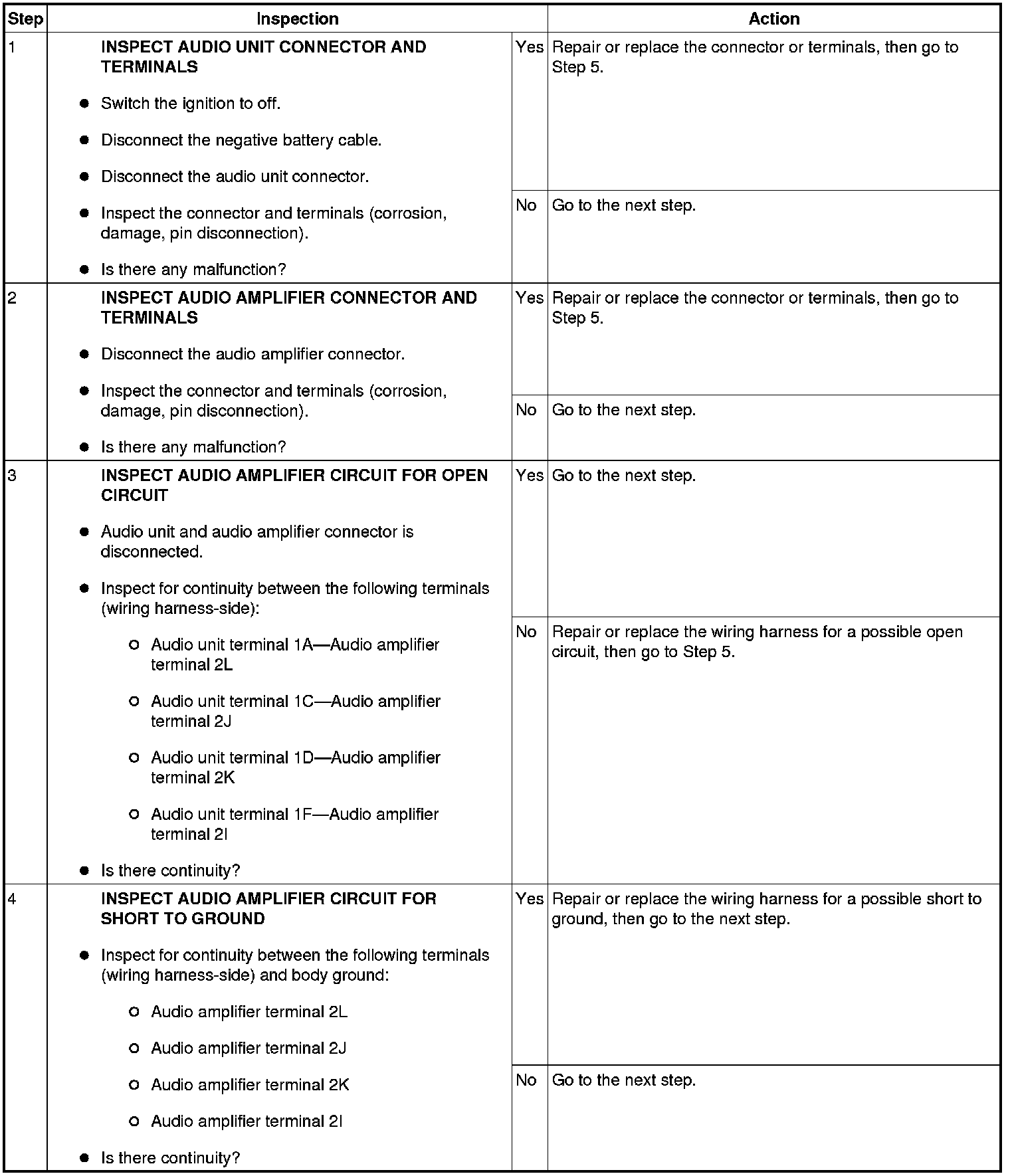

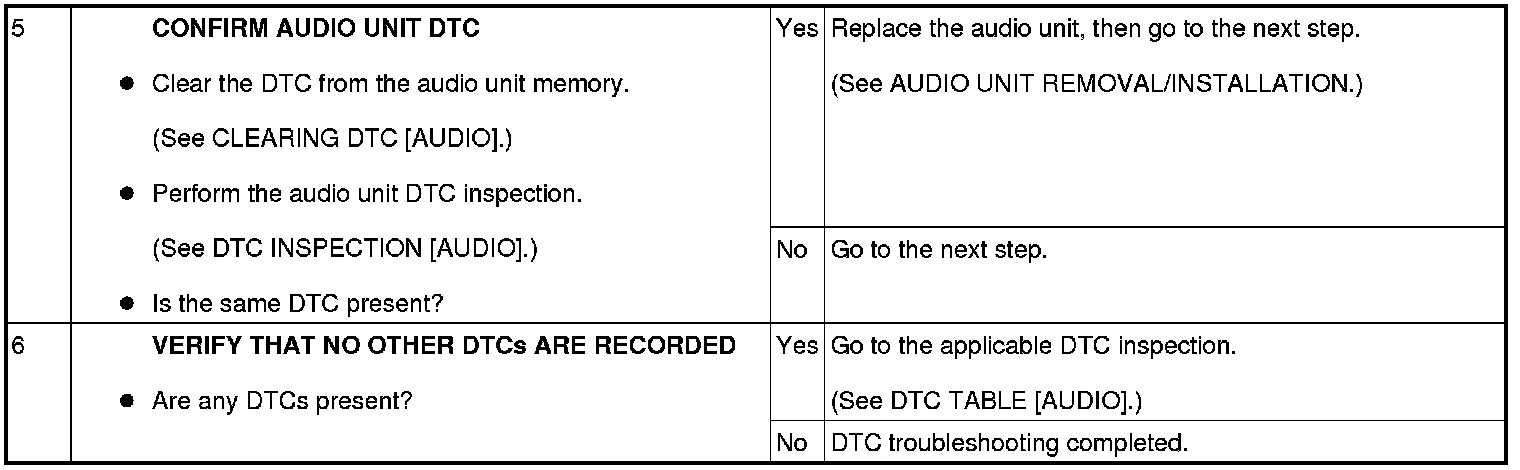

Diagnostic Procedure

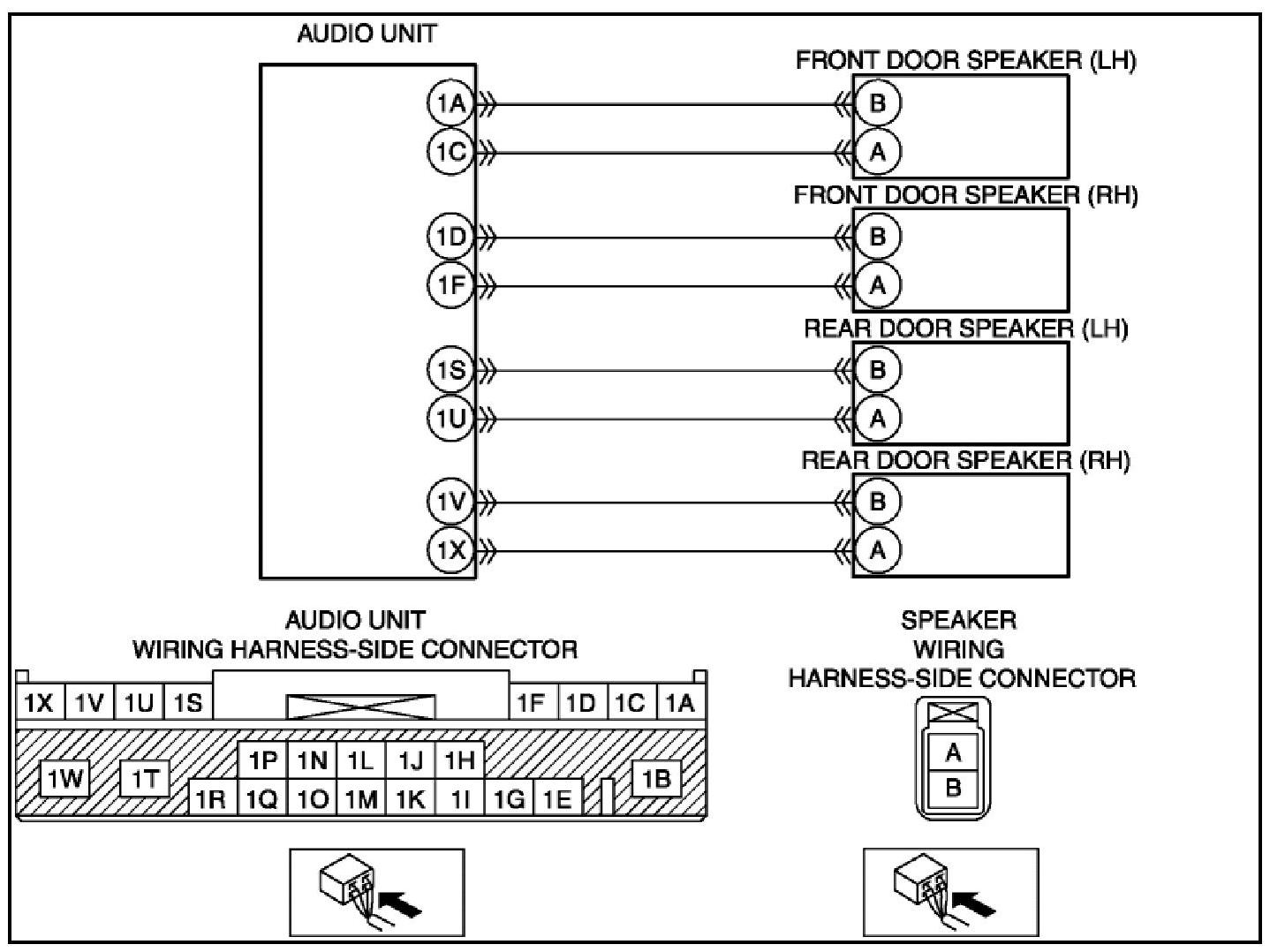

With Bose(R)

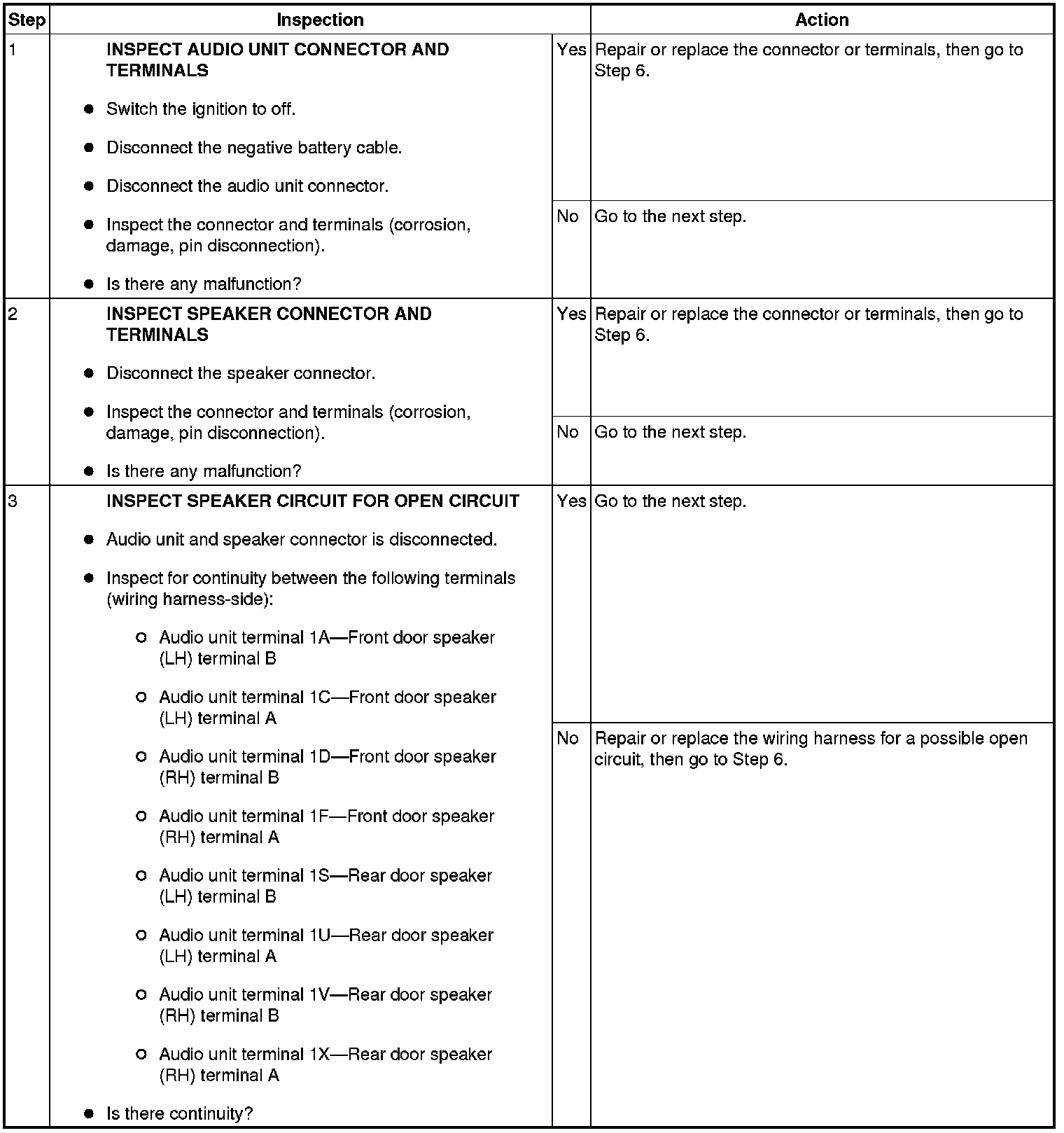

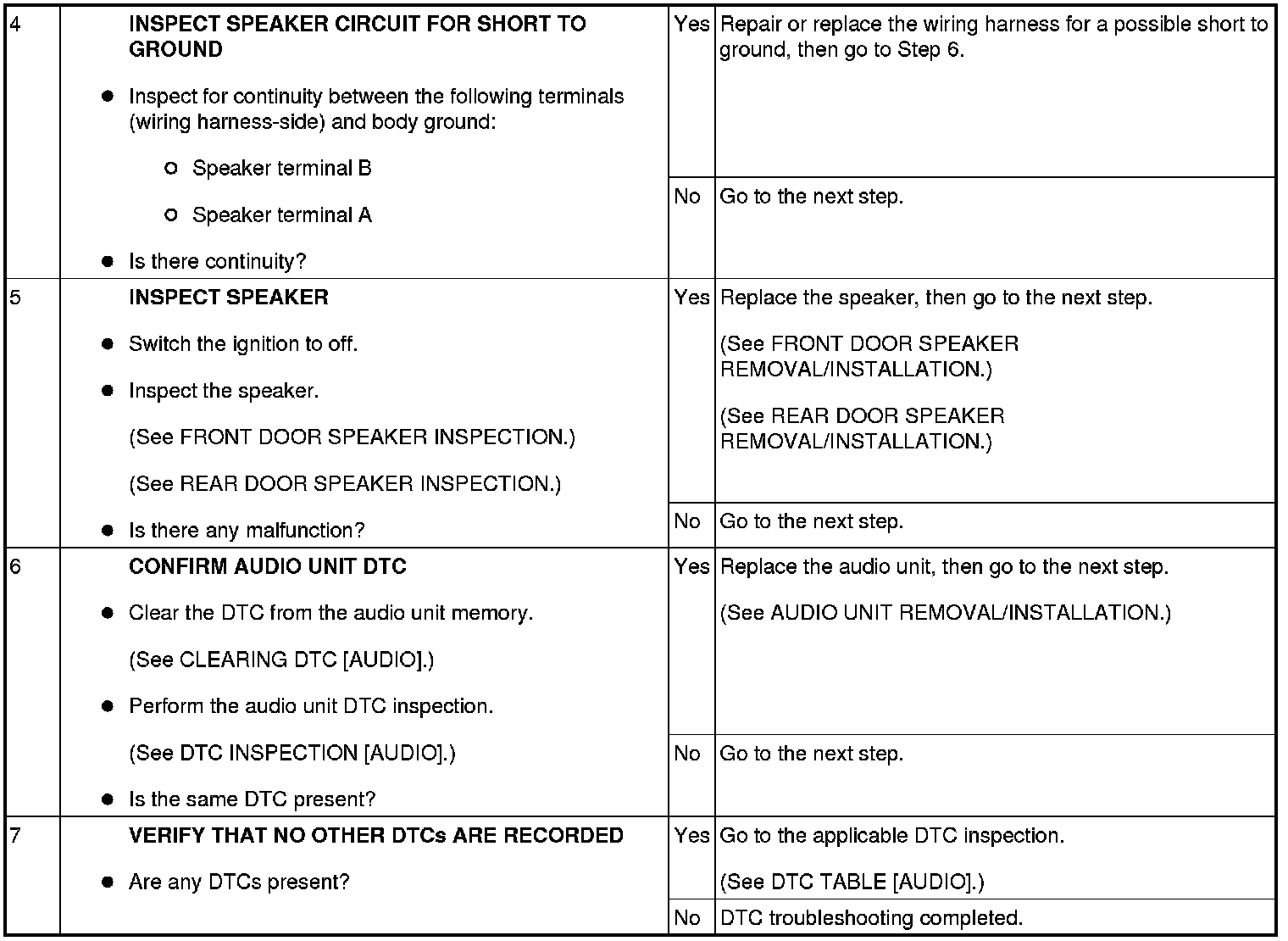

Diagnostic Procedure
