Mazda Truck
>>
2012
>>
CX-9 AWD V6-3.7L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Device Code 09
>>
Error Code 20
Error Code 20

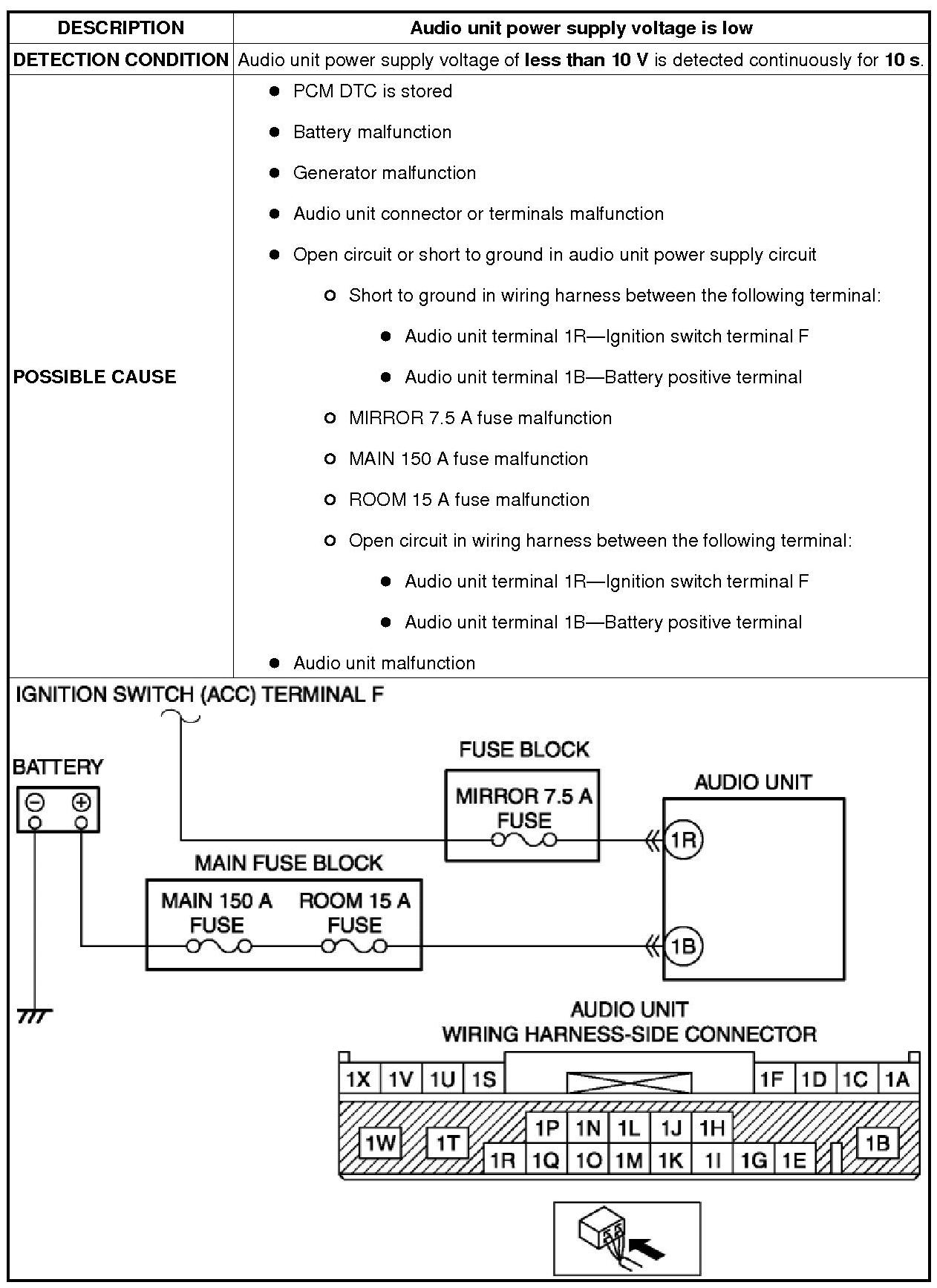

DTC: U3003:16, 09:Er20, DEVICE CODE 09 / ERROR CODE 20 [AUDIO]

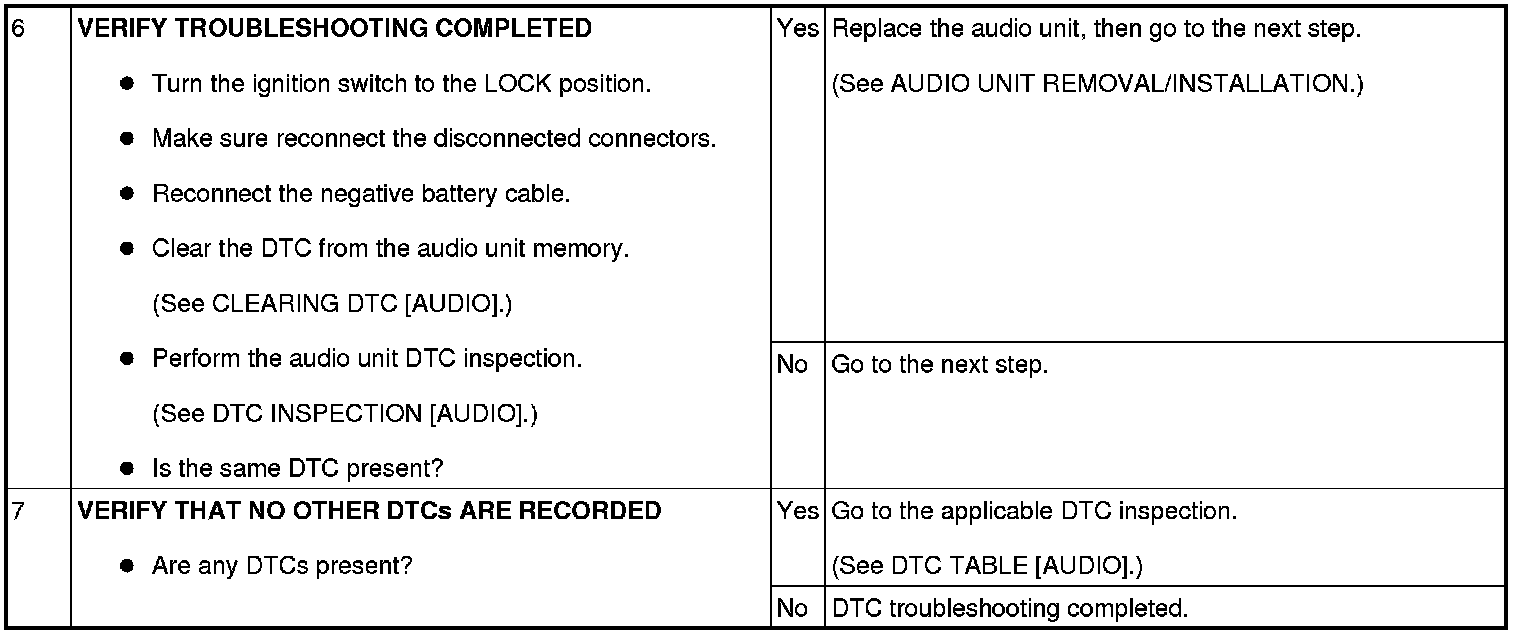

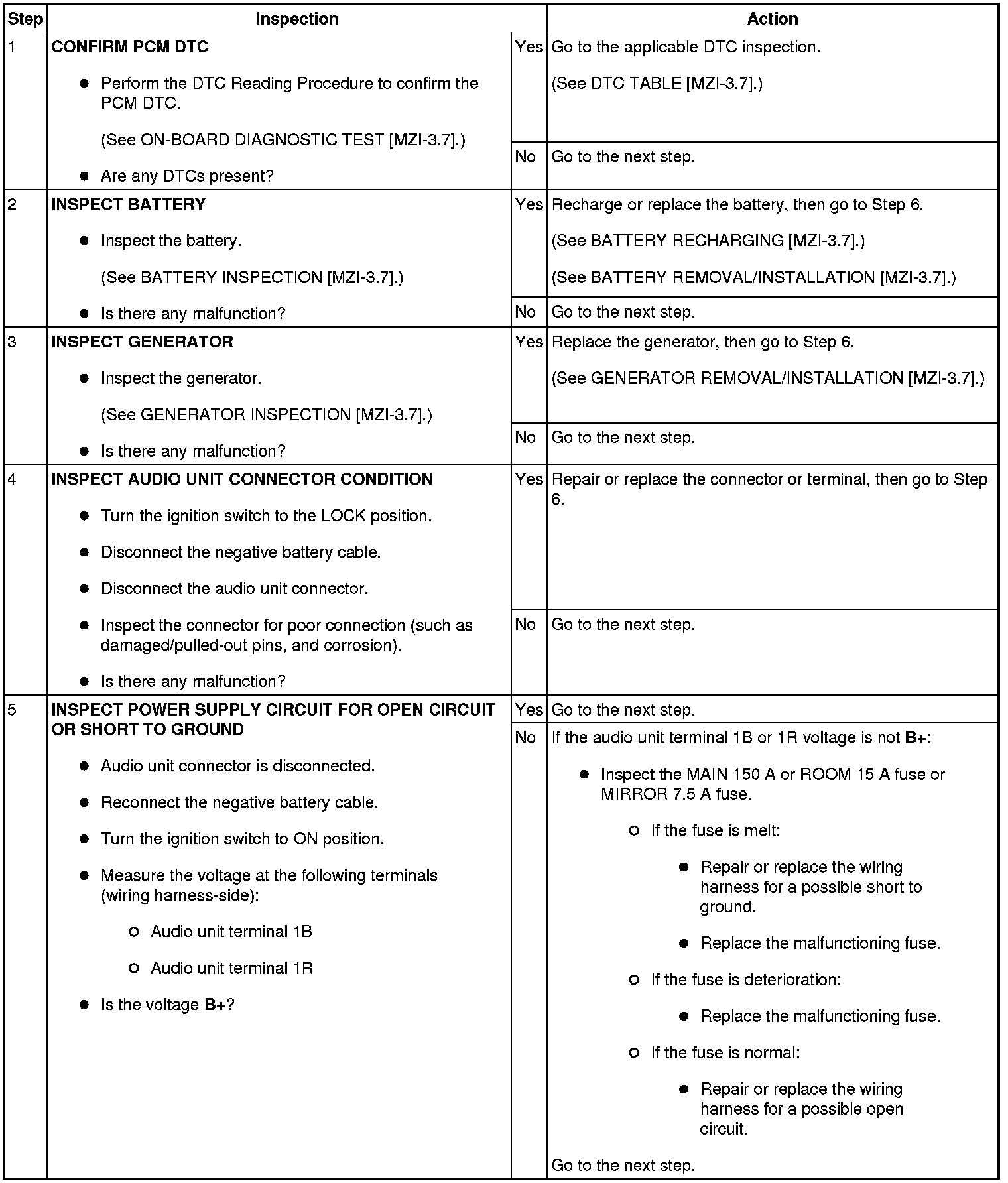

Diagnostic Procedure
