Joint Shaft Assembly

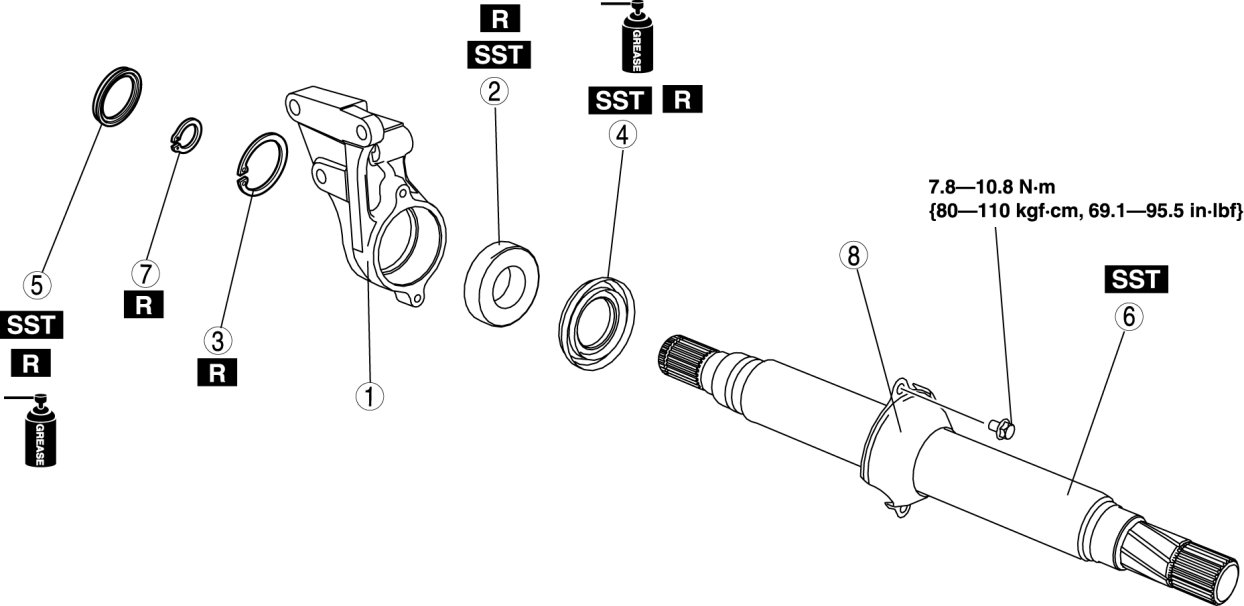

JOINT SHAFT ASSEMBLY [2WD]

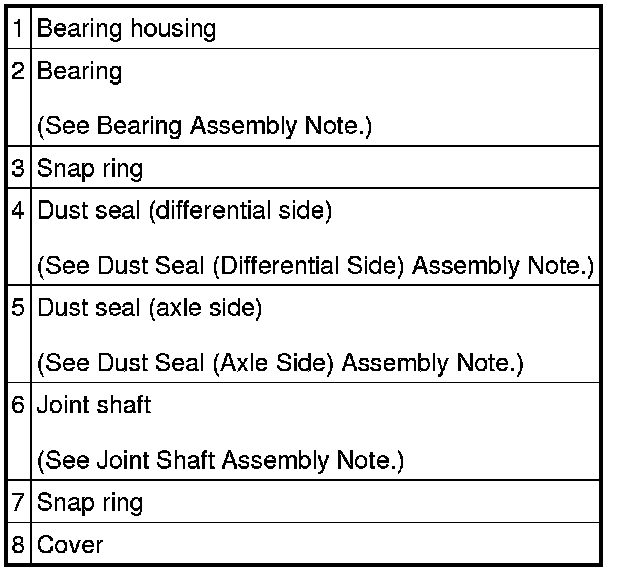

1. Assemble in the order indicated in the table.









Bearing Assembly Note

1. Install the new bearing using a press and the SSTs.






Substitution SST
- 49 B025 004
Outer diameter: 61 mm {2.4 in}
Inner diameter: 46 mm {1.8 in}

Dust Seal (Differential Side) Assembly Note

1. Apply grease to the new dust seal lip.

2. Install the dust seal (differential side) using a press and the SSTs.






Substitution SST
- 49 B025 004
Outer diameter: 58-59.8 mm {2.2-2.3 in} or less
Inner diameter: 53 mm {2.1 in} or more
Inner depth: 7.5 mm {0.30 in} or more

Dust Seal (Axle Side) Assembly Note

1. Apply grease to the new dust seal lip.

2. Install the dust seal (axle side) using a press and the SSTs.






Substitution SST
- 49 G028 203
Outer diameter: 64 mm {2.5 in} or more
Inner diameter: 57.6-59.0 mm {2.27-2.32 in}
Inner depth: 6.8 mm {0.27 in} or more
- 49 W034 301
Inner diameter: 67.5-72.0 mm {2.66-2.83 in}
Inner depth: 8.5 mm {0.33 in} or more
Plate thickness: 1 mm {0.04 in} or more

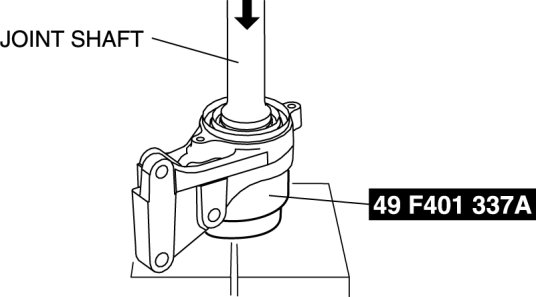

Joint Shaft Assembly Note

1. Install the joint shaft using a press and the SST.






Substitution SST
- 49 F401 337A
Outer diameter: 39-42 mm {1.5-1.6 in}
Inner diameter: 35.2 mm {1.4 in} or more
Inner depth: 48.5 mm {1.91 in} or more
