Rear Suspension - Lower Arm Removal/Installation

REAR LOWER ARM REMOVAL/INSTALLATION

1. Remove the middle pipe. Service and Repair

2. Remove the rear stabilizer. Rear Suspension - Stabilizer Removal/Installation

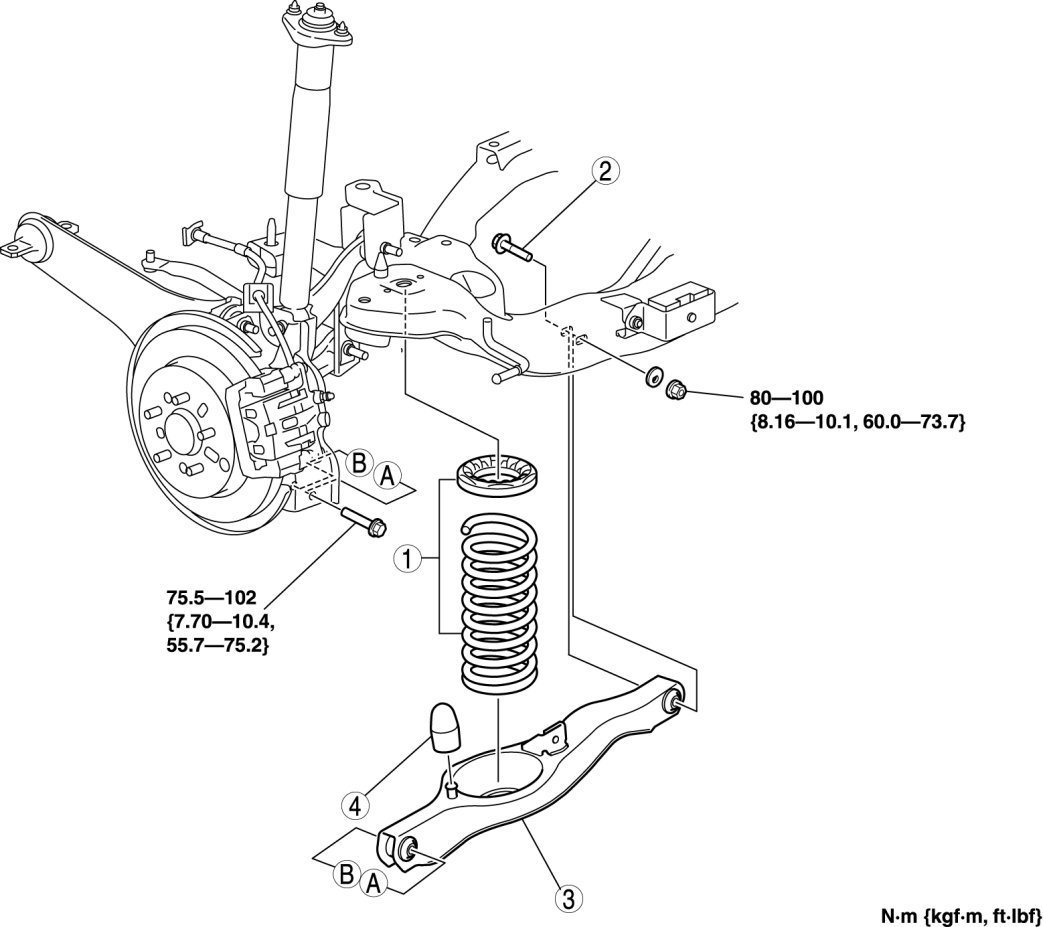

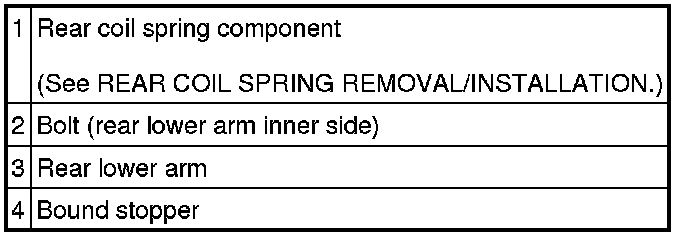

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. Inspect the rear wheel alignment. Rear Wheel Alignment
