Seat Belt Height Adjuster: Service and Repair

ADJUSTER ANCHOR REMOVAL/INSTALLATION

WARNING:
- The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the lower part of the B-pillar.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation

b. Front scuff plate inner Front Scuff Plate Removal/Installation

c. Rear scuff plate inner Rear Scuff Plate Removal/Installation

d. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

e. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

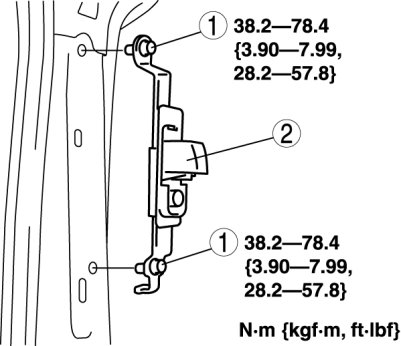

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
