Wheel Stud / Lug Nut: Service and Repair

FRONT WHEEL HUB BOLT REPLACEMENT

1. Remove the brake caliper component from the steering knuckle and suspend it out of the way using a cable.

2. Remove the disc plate.

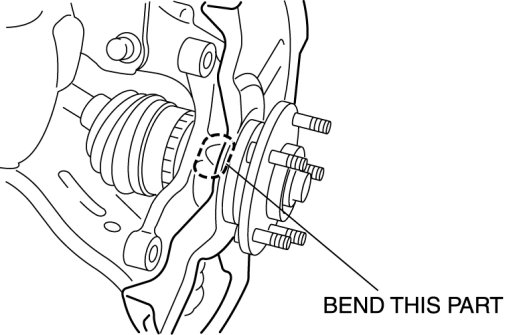

3. Tap the dust cover (the part shown in the figure) with a chisel lightly and bend the processing point back to the steering knuckle side.

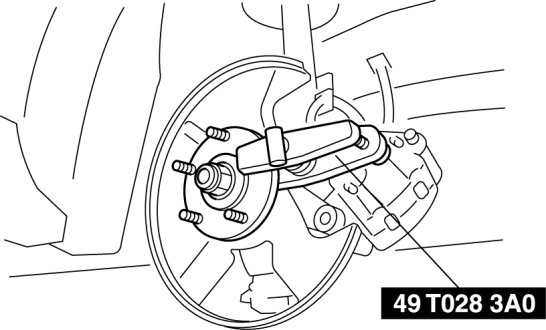

4. Remove the wheel hub bolt using the SST as shown in the figure.






5. Place a new wheel hub bolt in the wheel hub.

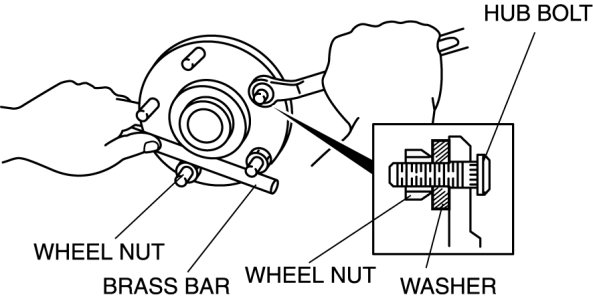

6. Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.
