Mazda Truck
>>
2012
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Audio Unit
>>

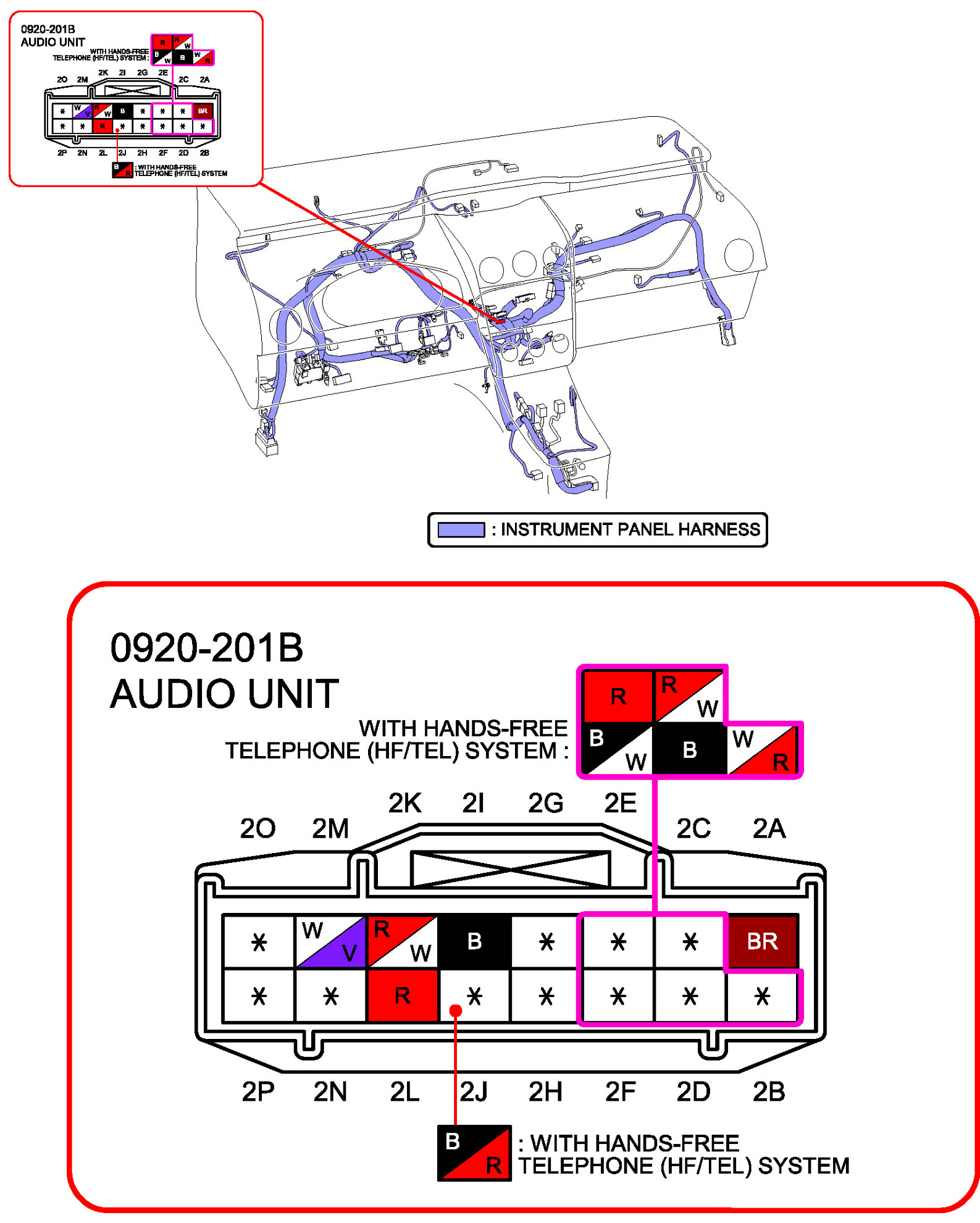

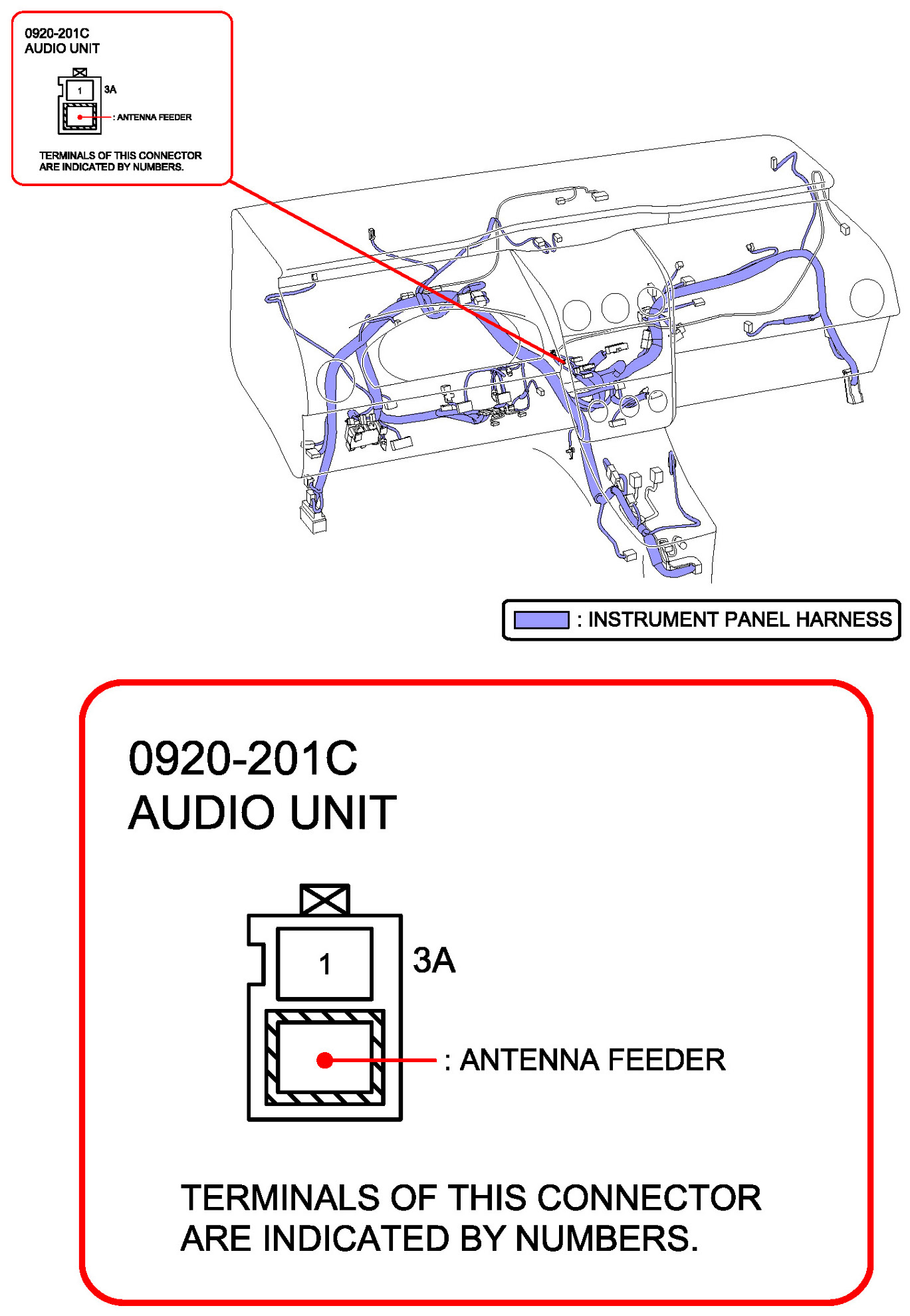

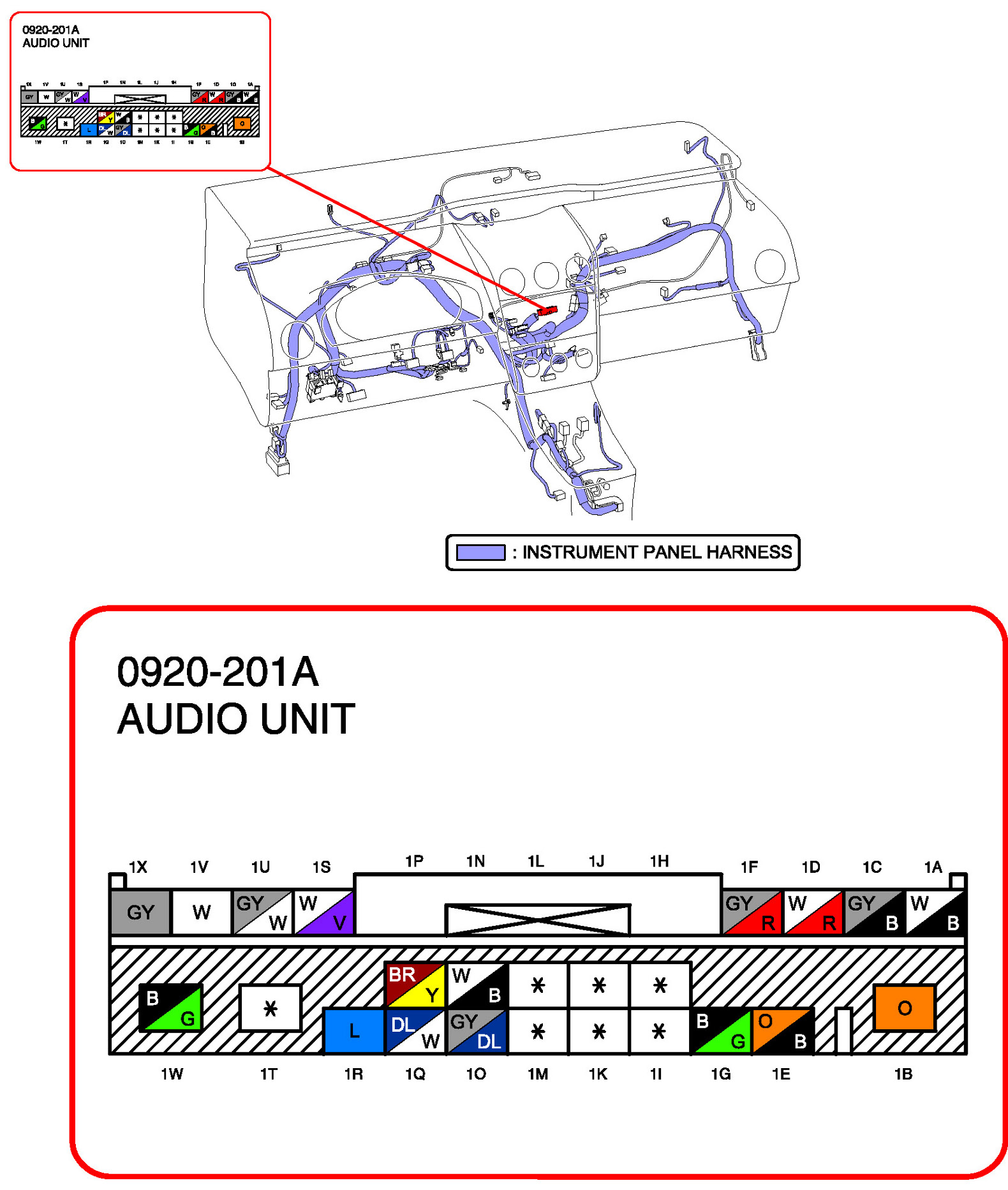

Standard Type Audio (Without Car-Navigation System)
Standard Type Audio (Without Car-Navigation System)
