Vacuum Brake Booster: Service and Repair

POWER BRAKE UNIT REMOVAL/INSTALLATION

CAUTION:
- Once the brake switch clearance has automatically been adjusted, it cannot be adjusted again. Therefore, replace the switch with a new one when replacing the power brake unit or performing any procedure that changes the pedal stroke.

1. Remove the battery and battery tray. Removal and Replacement

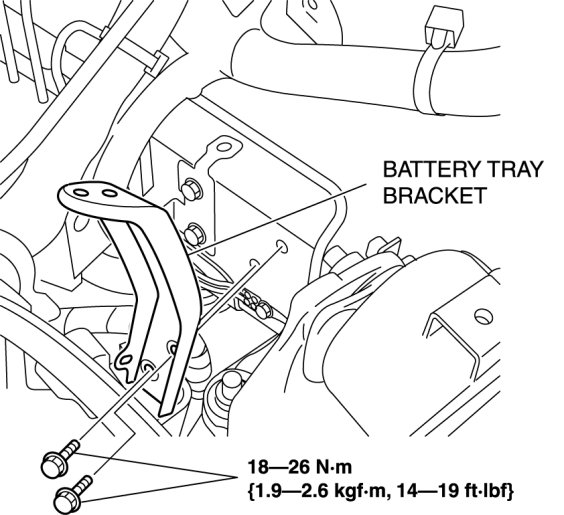

2. Remove the battery tray bracket as shown in the figure.






3. Remove the master cylinder component. Service and Repair

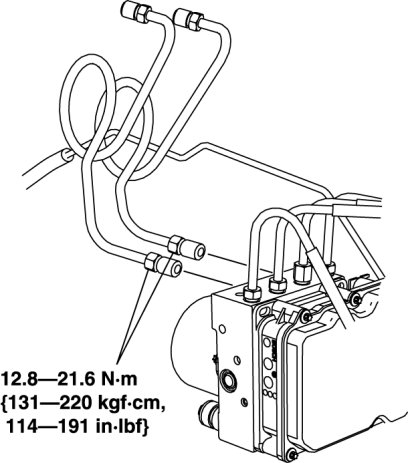

4. Remove the brake pipe as shown in the figure.






5. Remove the dashboard under cover.

6. Remove the accelerator pedal. Service and Repair

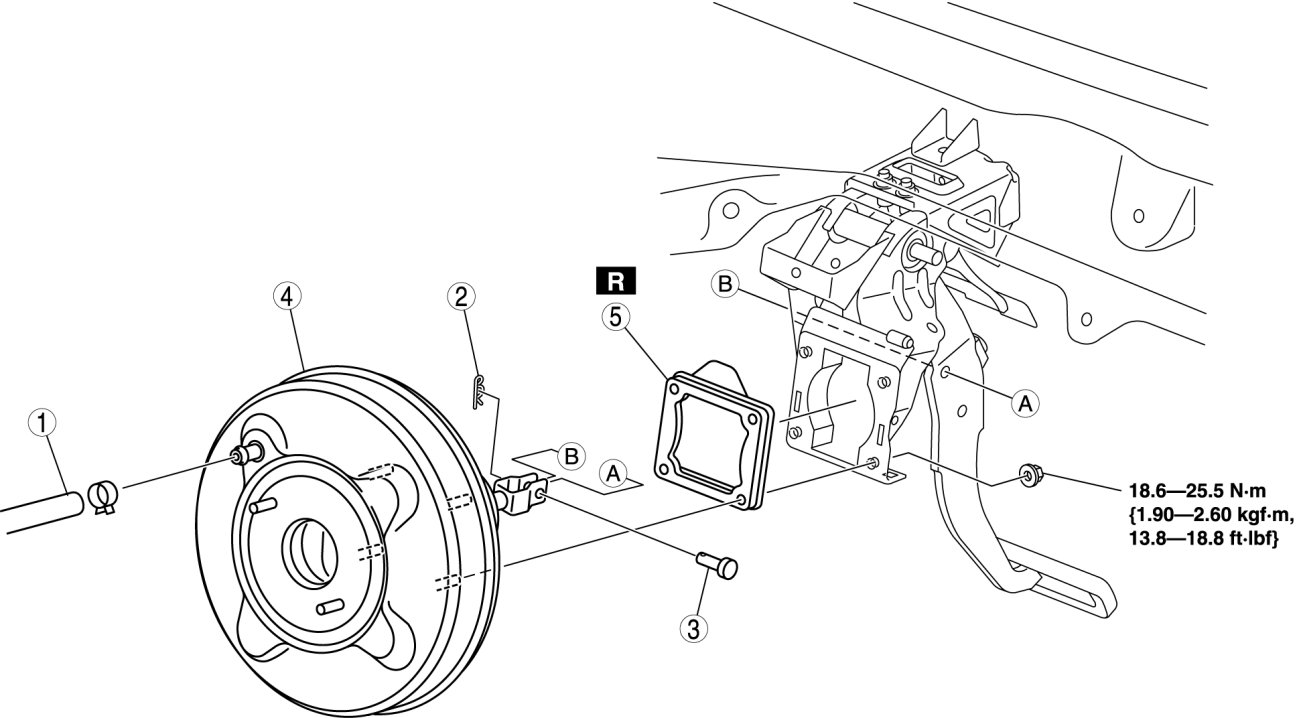

7. Remove in the order indicated in the table.

8. Remove the brake switch. Service and Repair

9. Install in the reverse order of removal.

10. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. Service and Repair

11. Inspect the brake pedal. Testing and Inspection
