Amplifier: Service and Repair

AUDIO AMPLIFIER REMOVAL/INSTALLATION

NOTE:
- Some vehicles are equipped with the audio amplifier cover depending on the vehicle production period.

1. Disconnect the negative battery cable.

2. Remove the sub trunk box. Sub Trunk Box Removal/Installation

3. Fold the second-row seat backs forward.

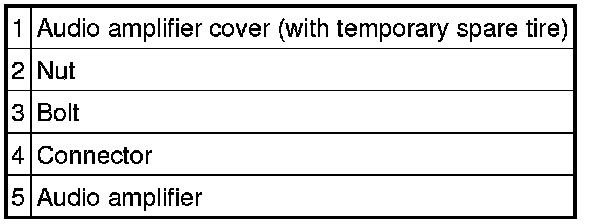

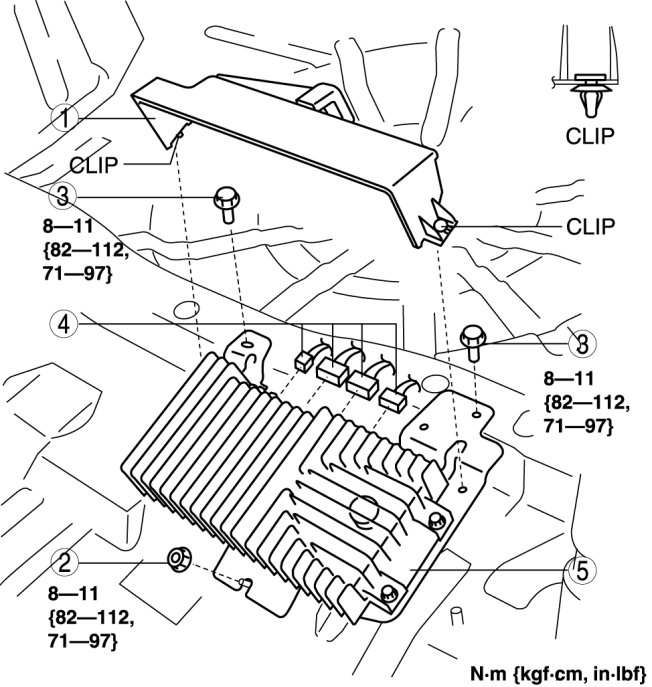

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

6. Perform the audio amplifier configuration after replacing the audio amplifier. Programming and Relearning

CAUTION:
- Perform the audio amplifier configuration after replacing the audio amplifier to assure that the audio system operates correctly.
