Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda Truck
>>
2012
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2477
>>
Multi Information Display
Multi Information Display

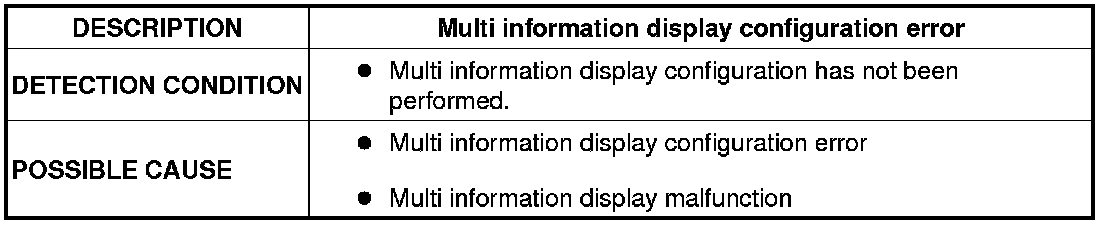

DTC B2477 [MULTI INFORMATION DISPLAY]

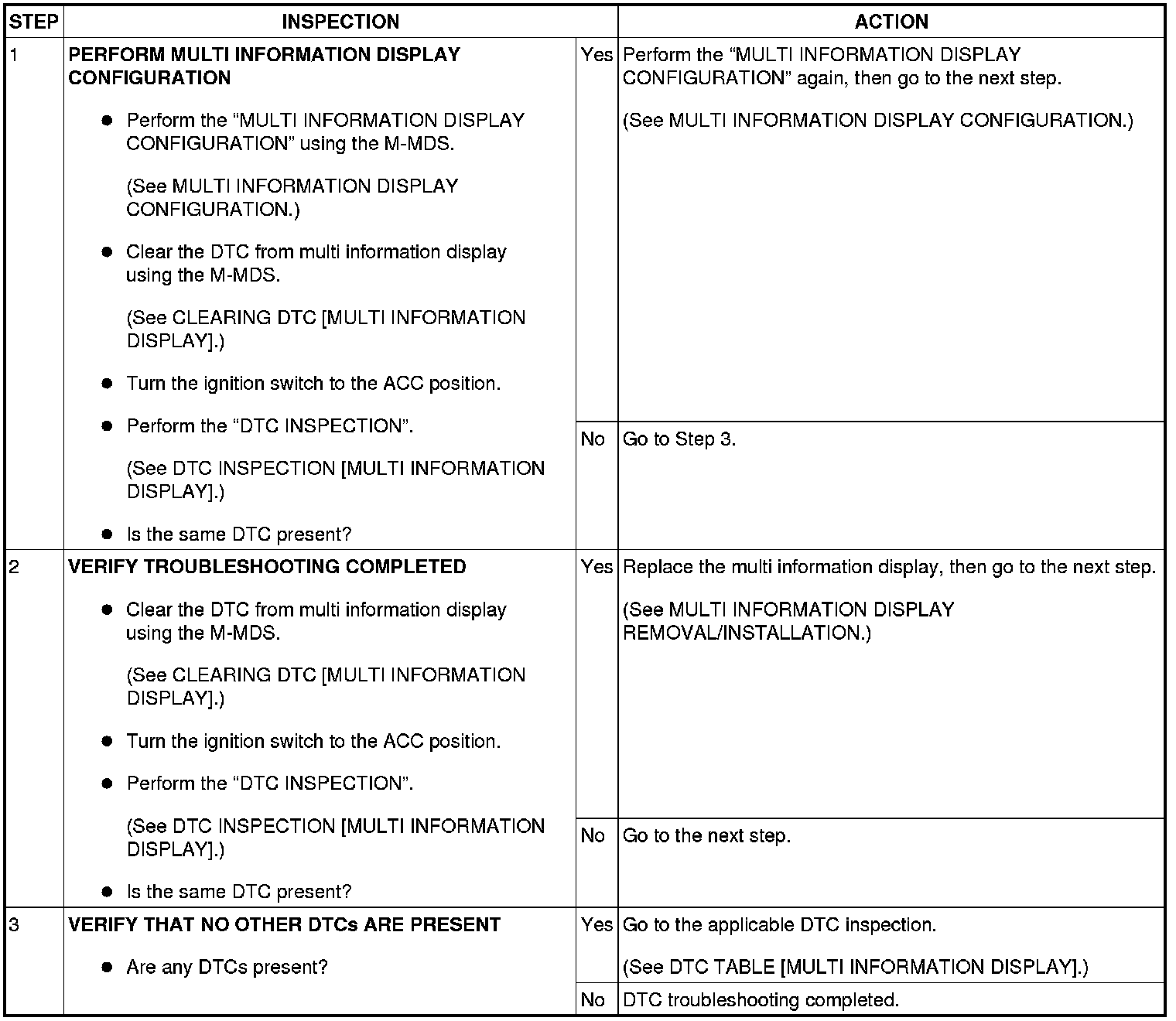

Diagnostic Procedure
