Canister Purge Solenoid: Service and Repair

PURGE SOLENOID VALVE REMOVAL/INSTALLATION [L3 WITH TC]

1. Disconnect the negative battery cable.

2. Remove the charge air cooler duct.

3. Disconnect the purge solenoid valve connector.

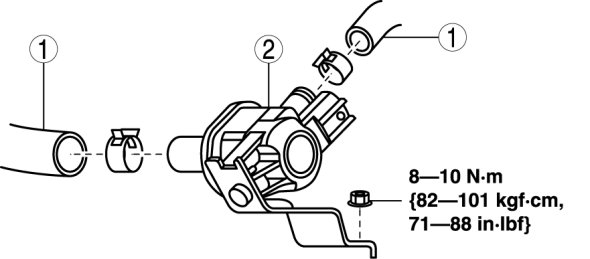

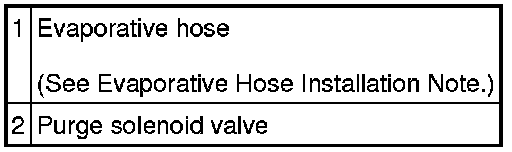

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

Evaporative Hose Installation Note

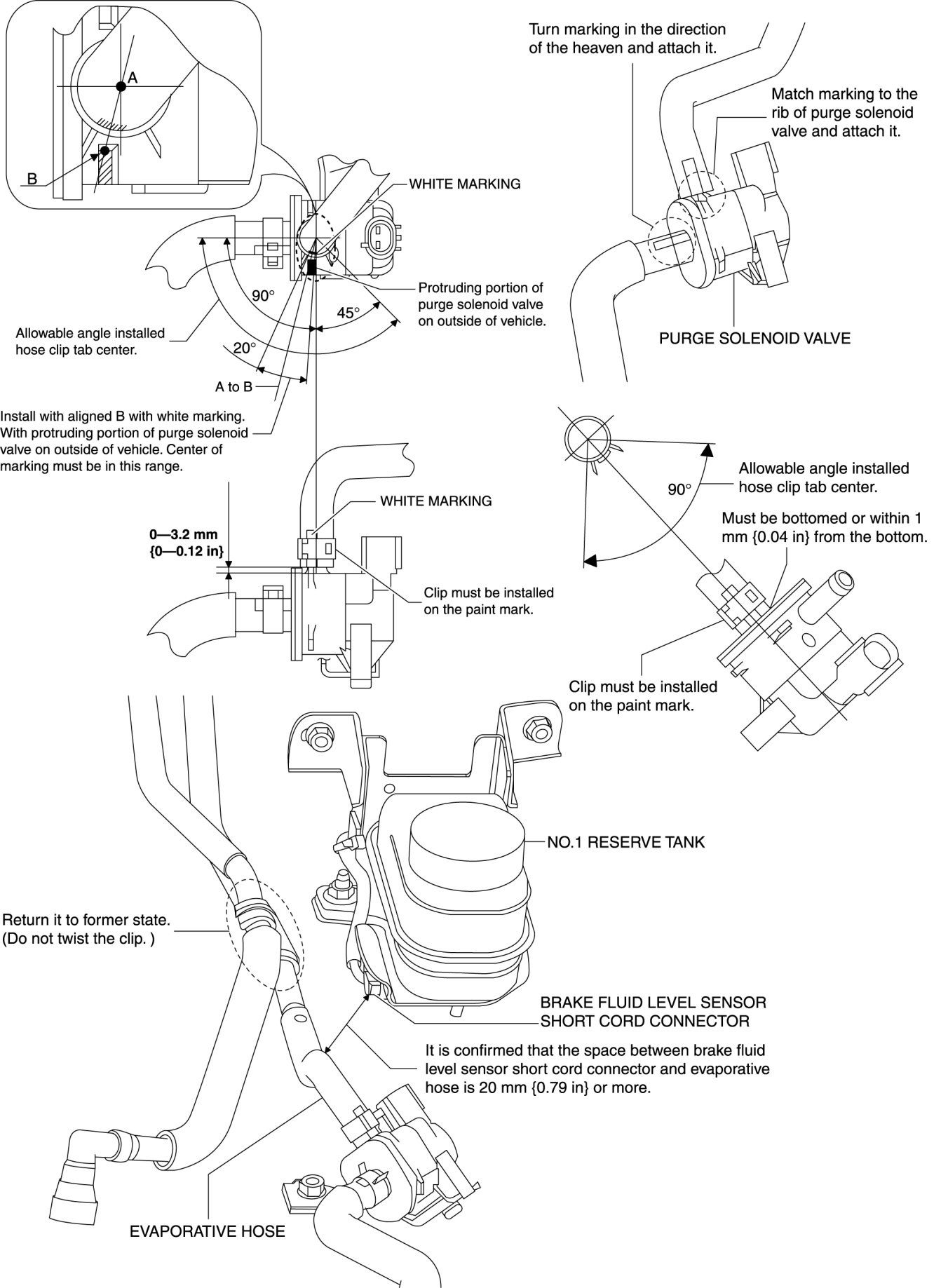

1. Install the evaporative hose as shown in the figure.
