Pinpoint Test 3: Unusual Starter Noise

PINPOINT TEST 3: UNUSUAL STARTER NOISE

Possible Causes

- Loose starter motor mounting bolts or brackets
- Worn or damaged flexplate or flywheel ring gear
- Worn or damaged starter motor drive gear

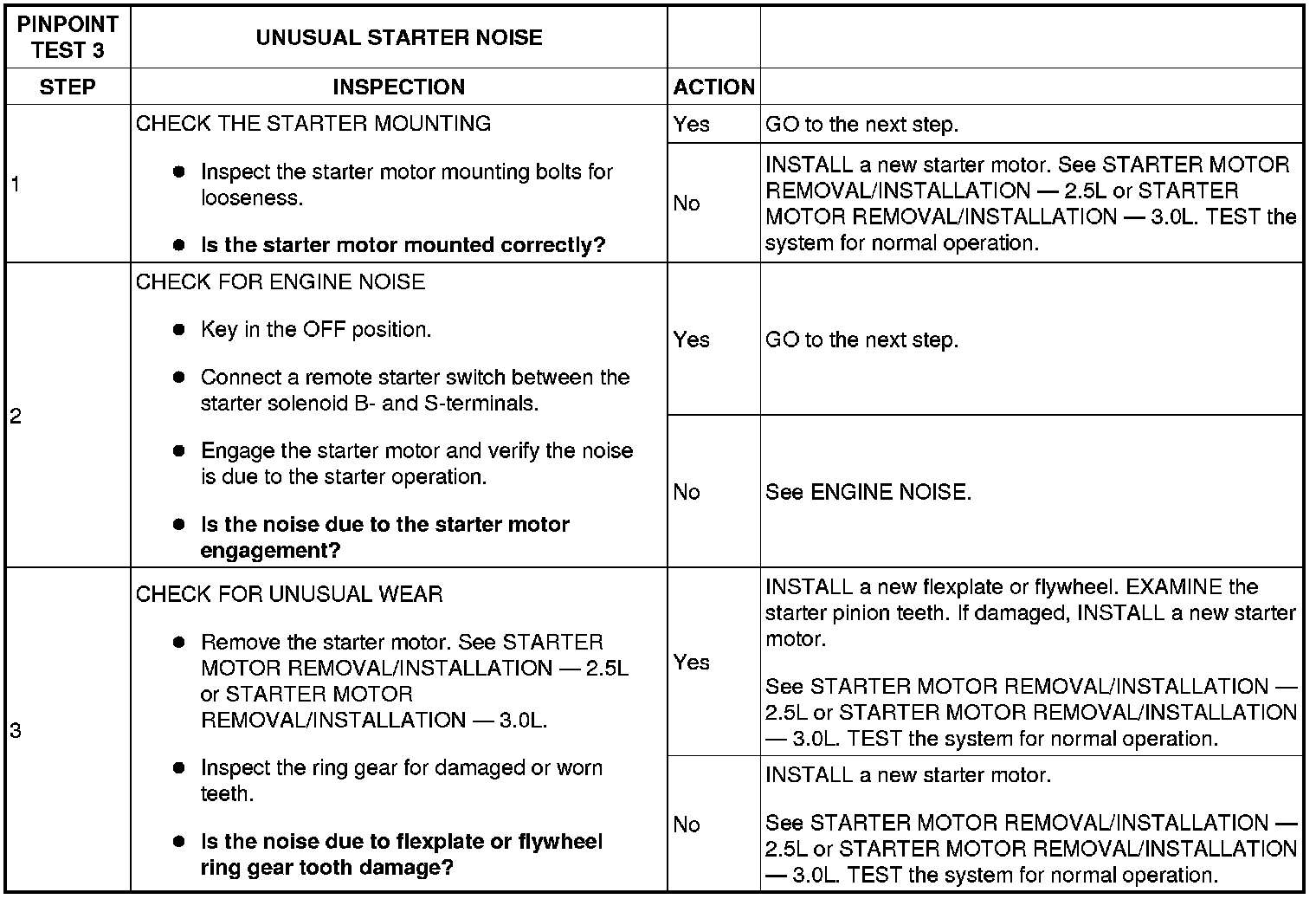

Diagnostic Procedure
