Air Conditioning Clutch (A/CC) Relay Circuit

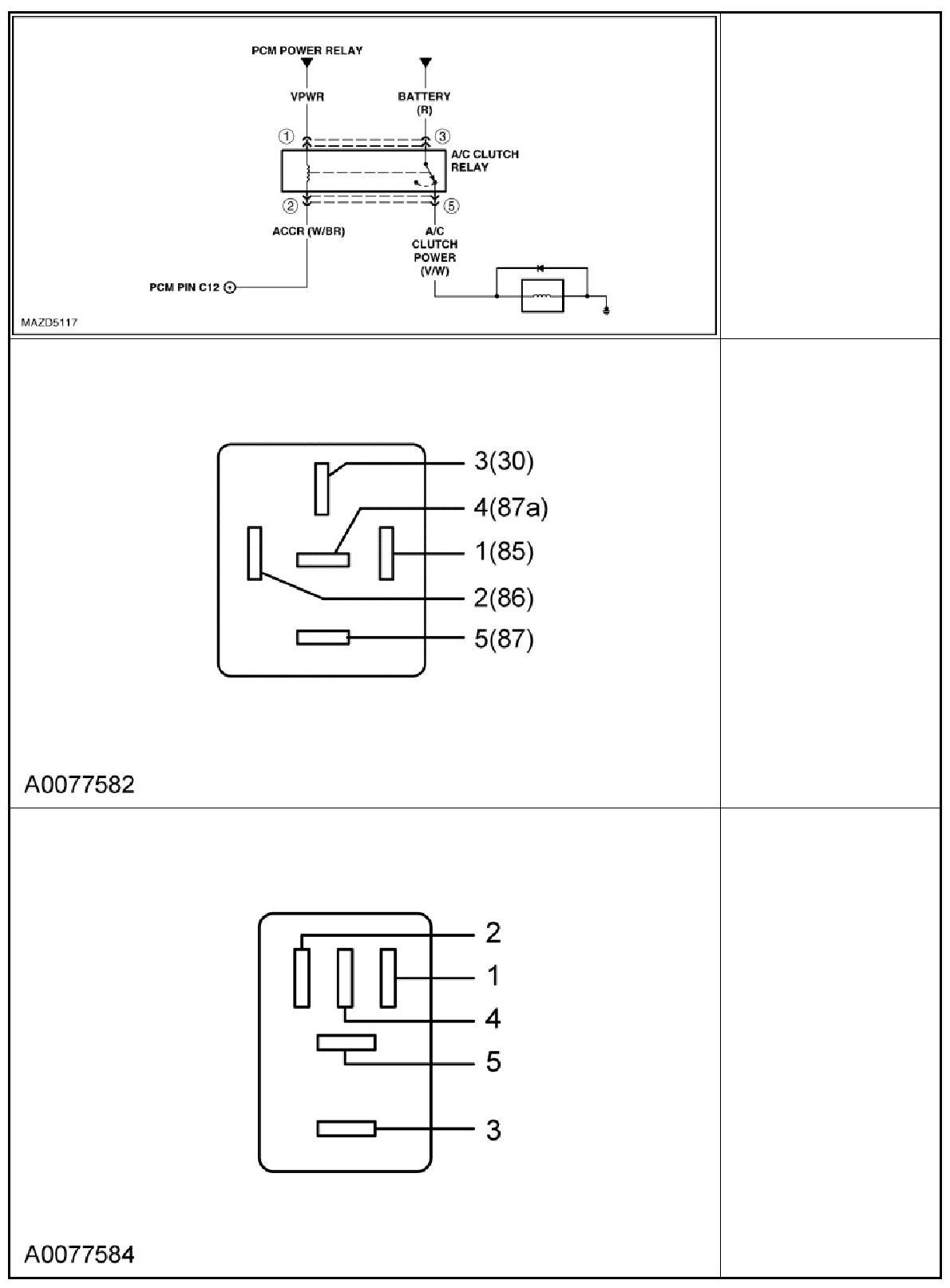

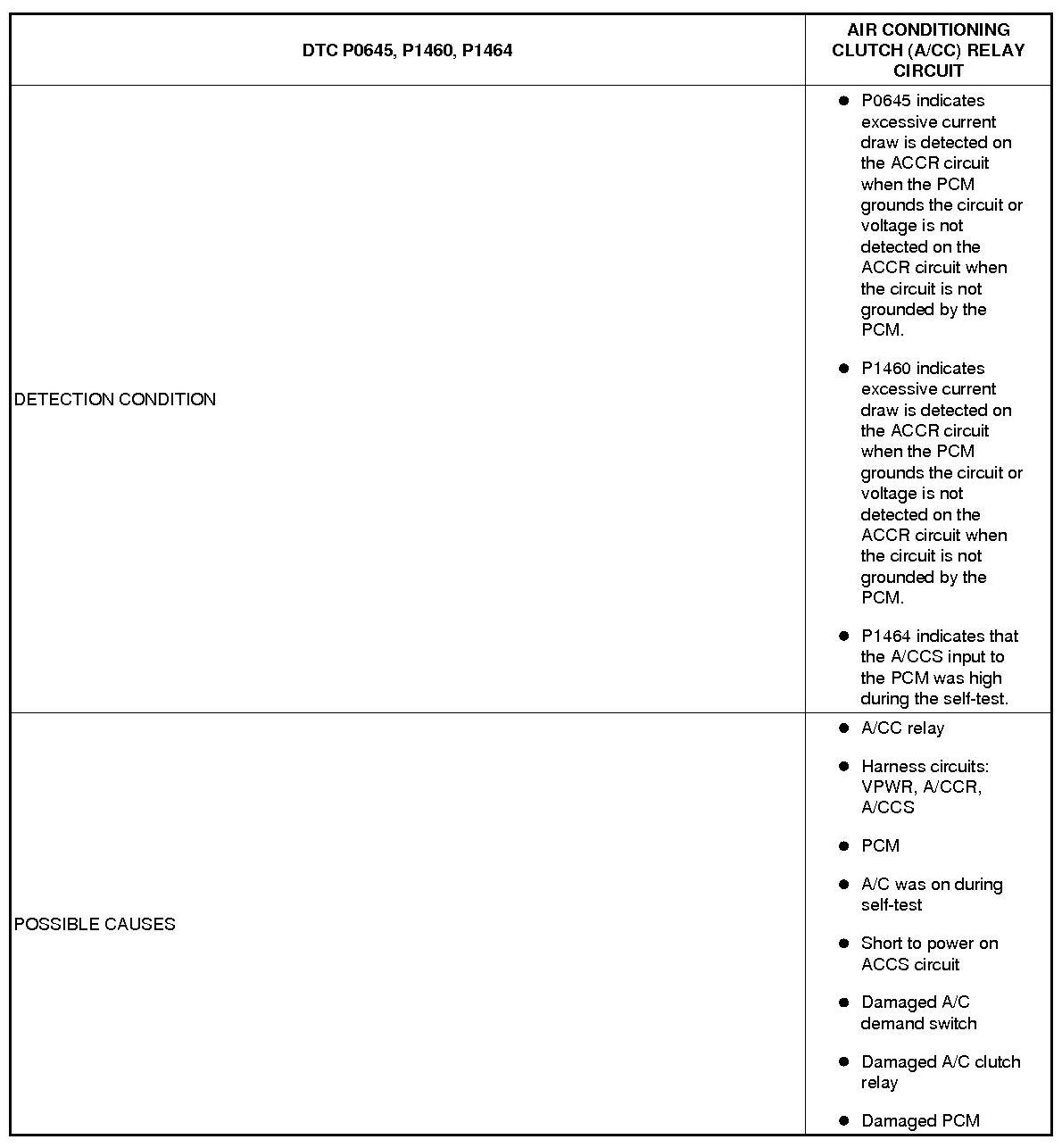

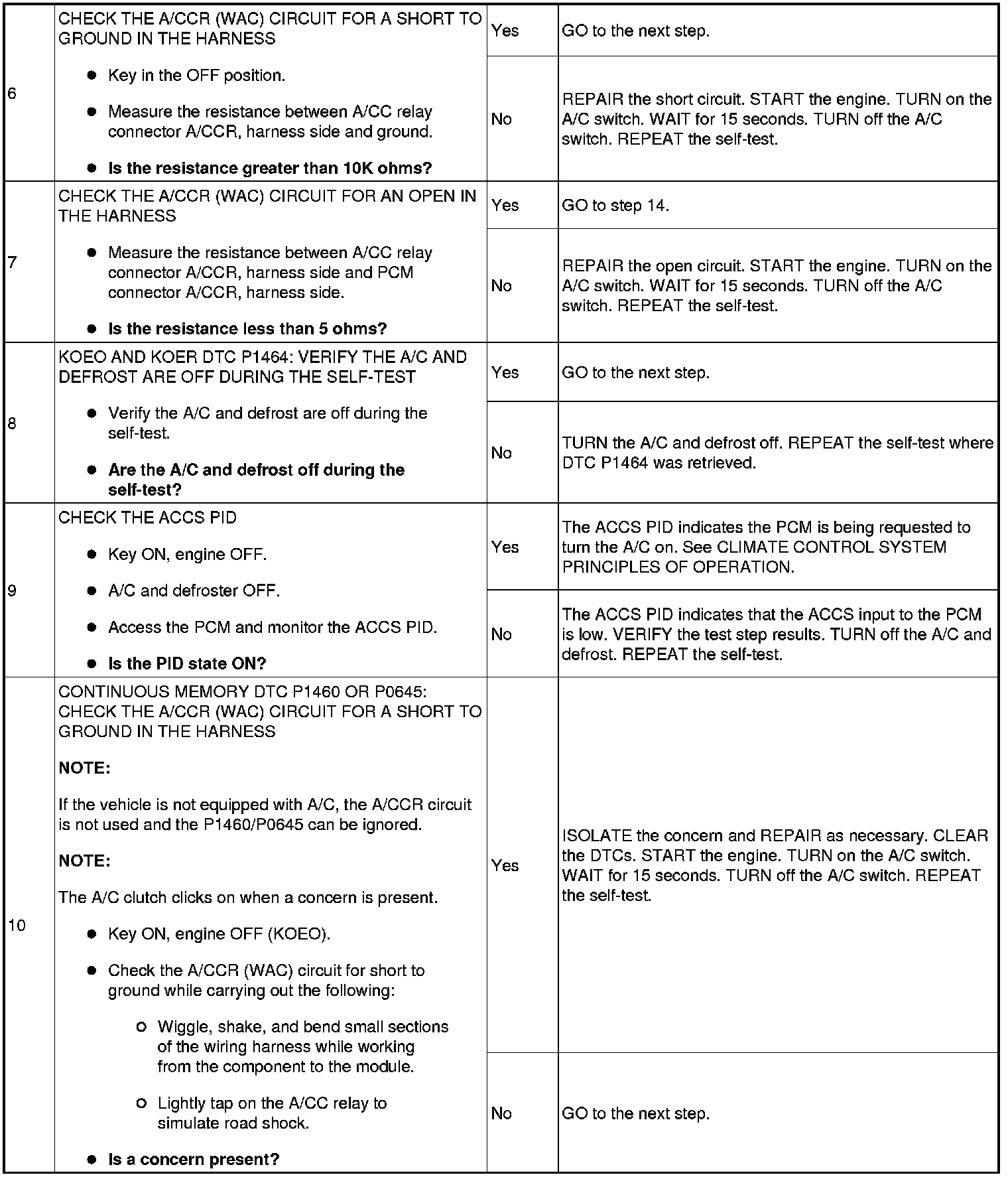

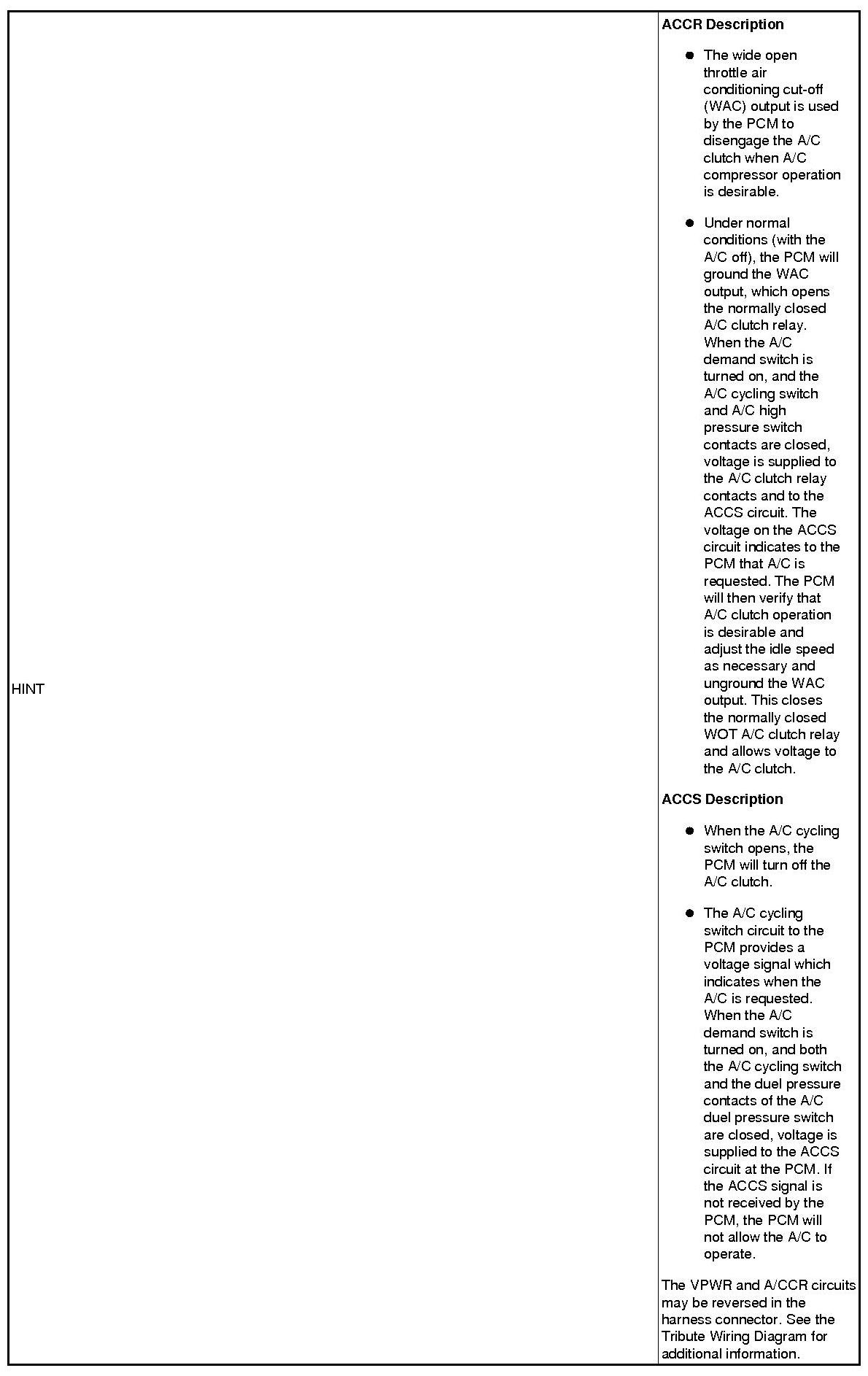

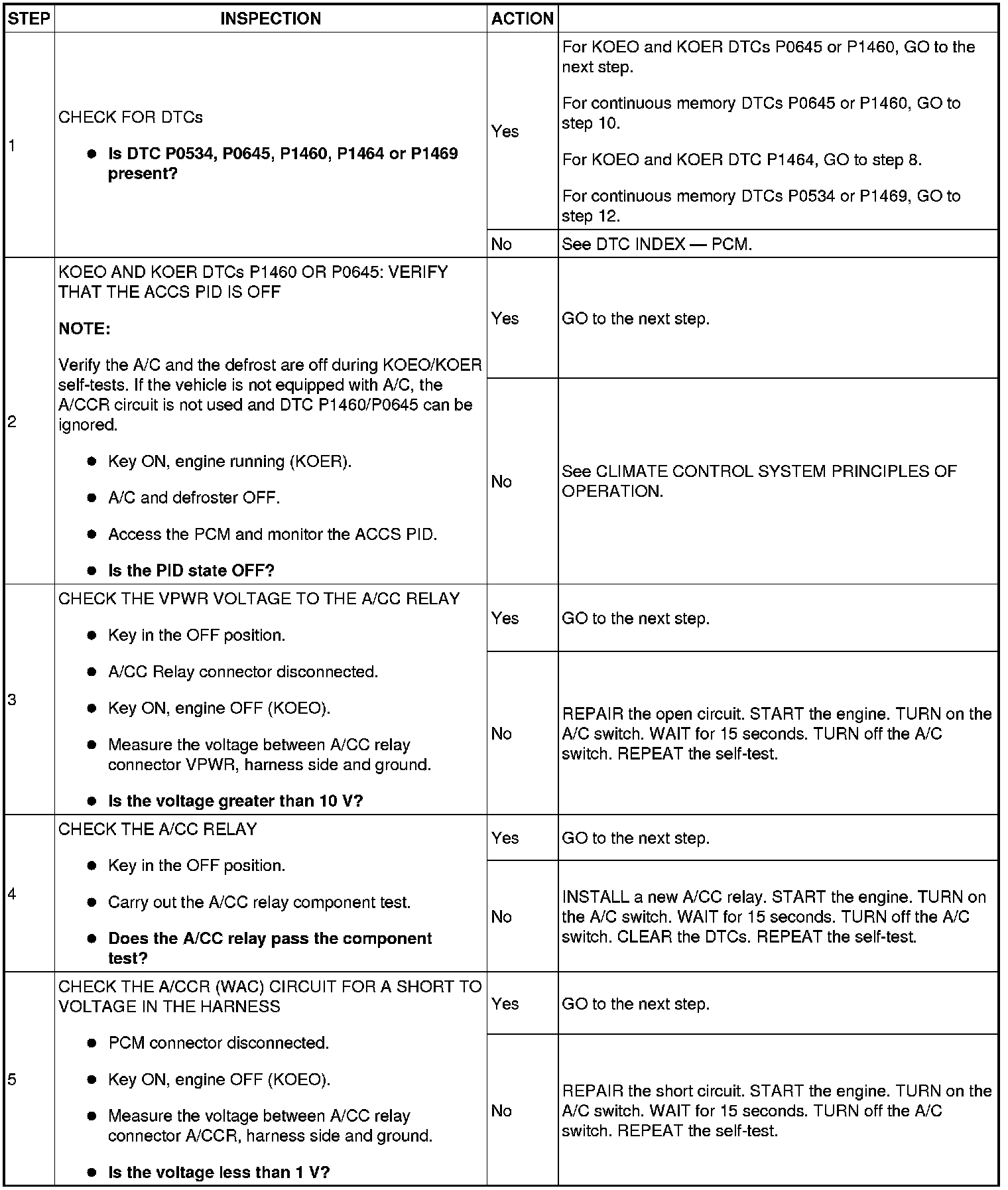

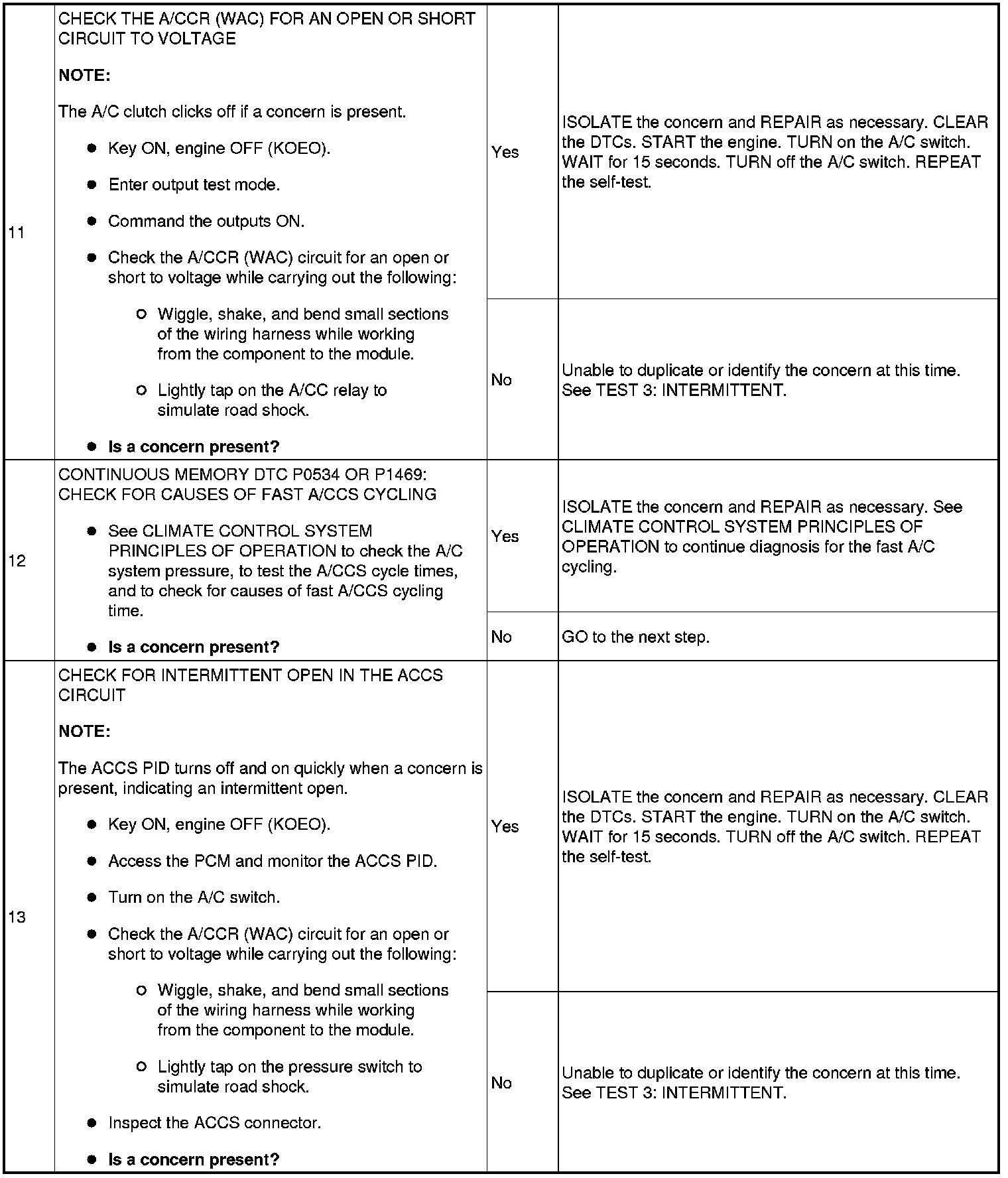

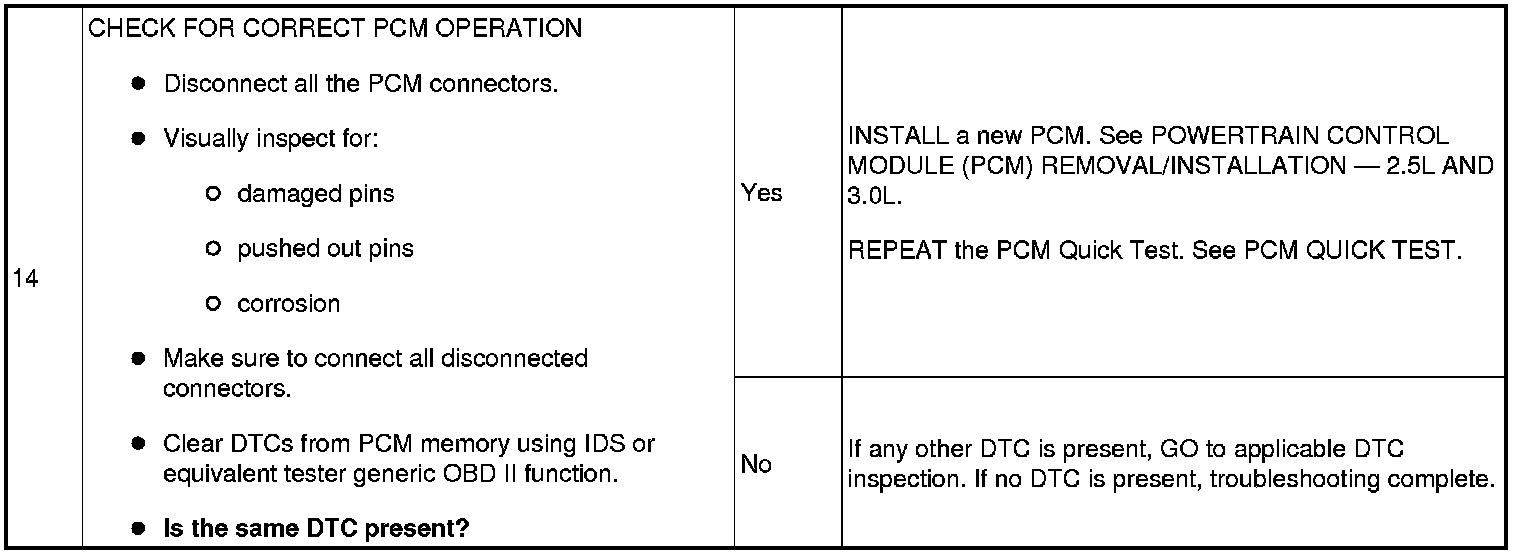

AIR CONDITIONING CLUTCH (A/CC) RELAY CIRCUIT

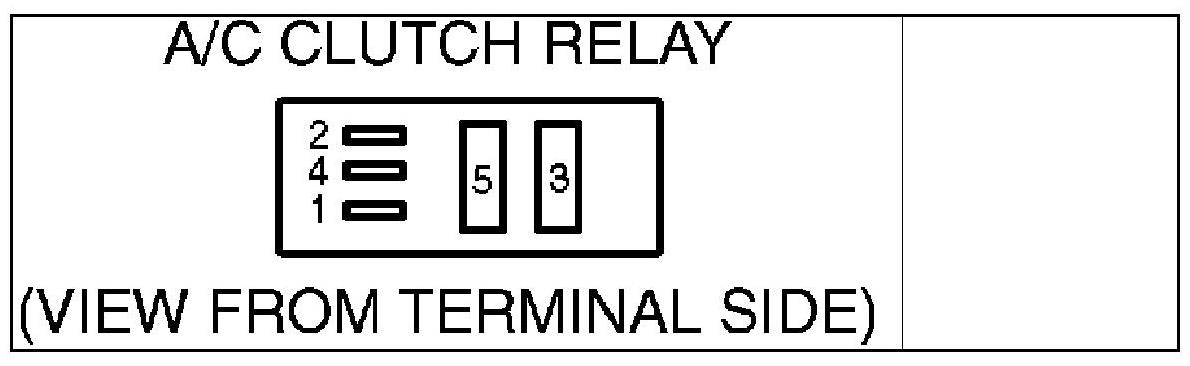

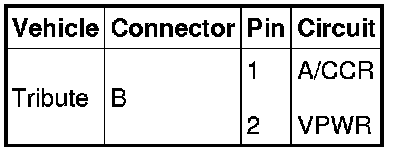

For PCM connector views or reference values, see Tribute wiring diagrams.PCM Connector
