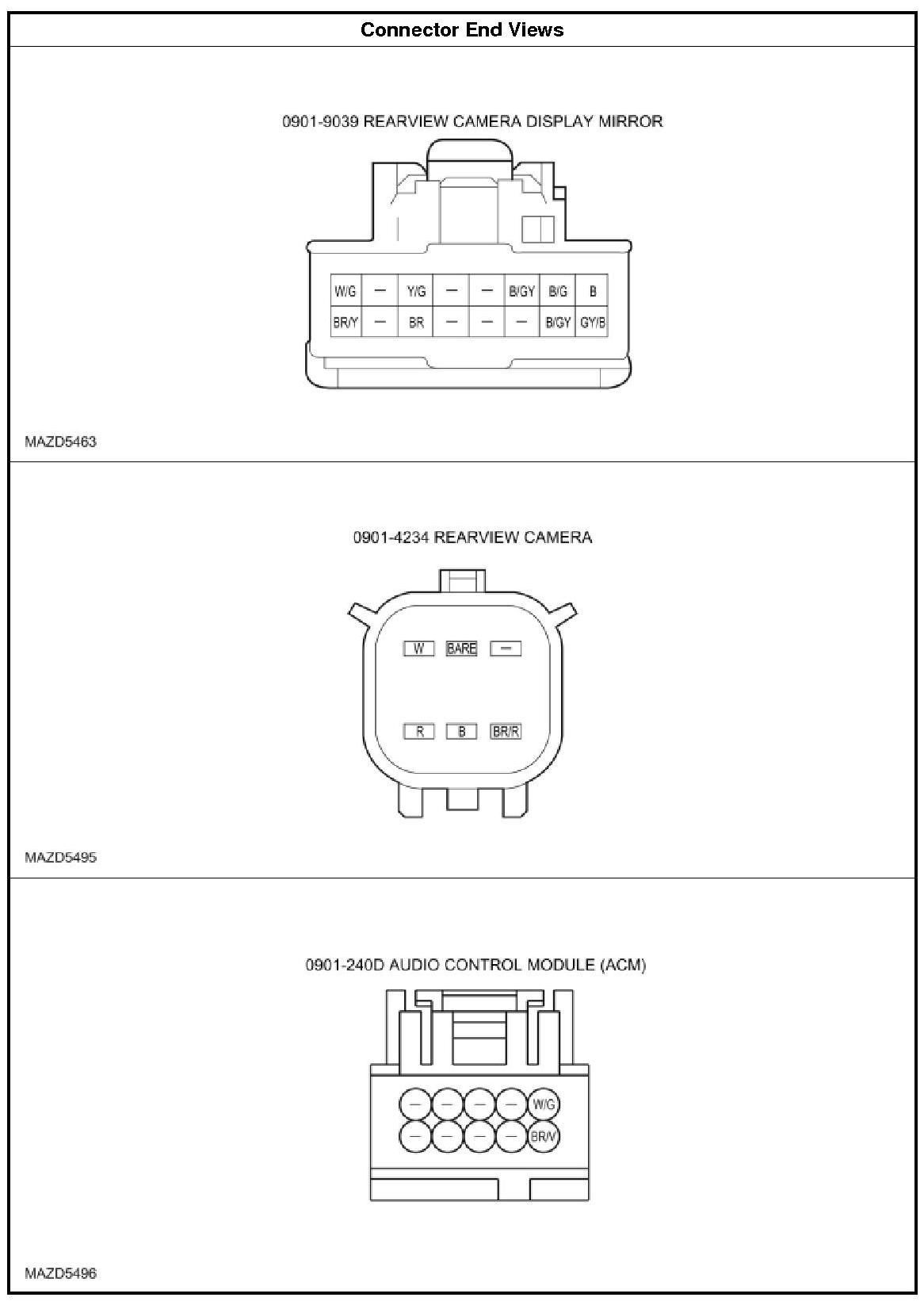

Connector End Views - Rear Video Camera
Connector End Views - Rear Video Camera
CONNECTOR END VIEWS - REAR VIDEO
CAMERA
