Rear Vision Camera: Service and Repair

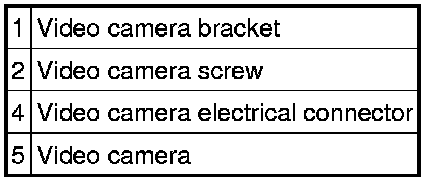

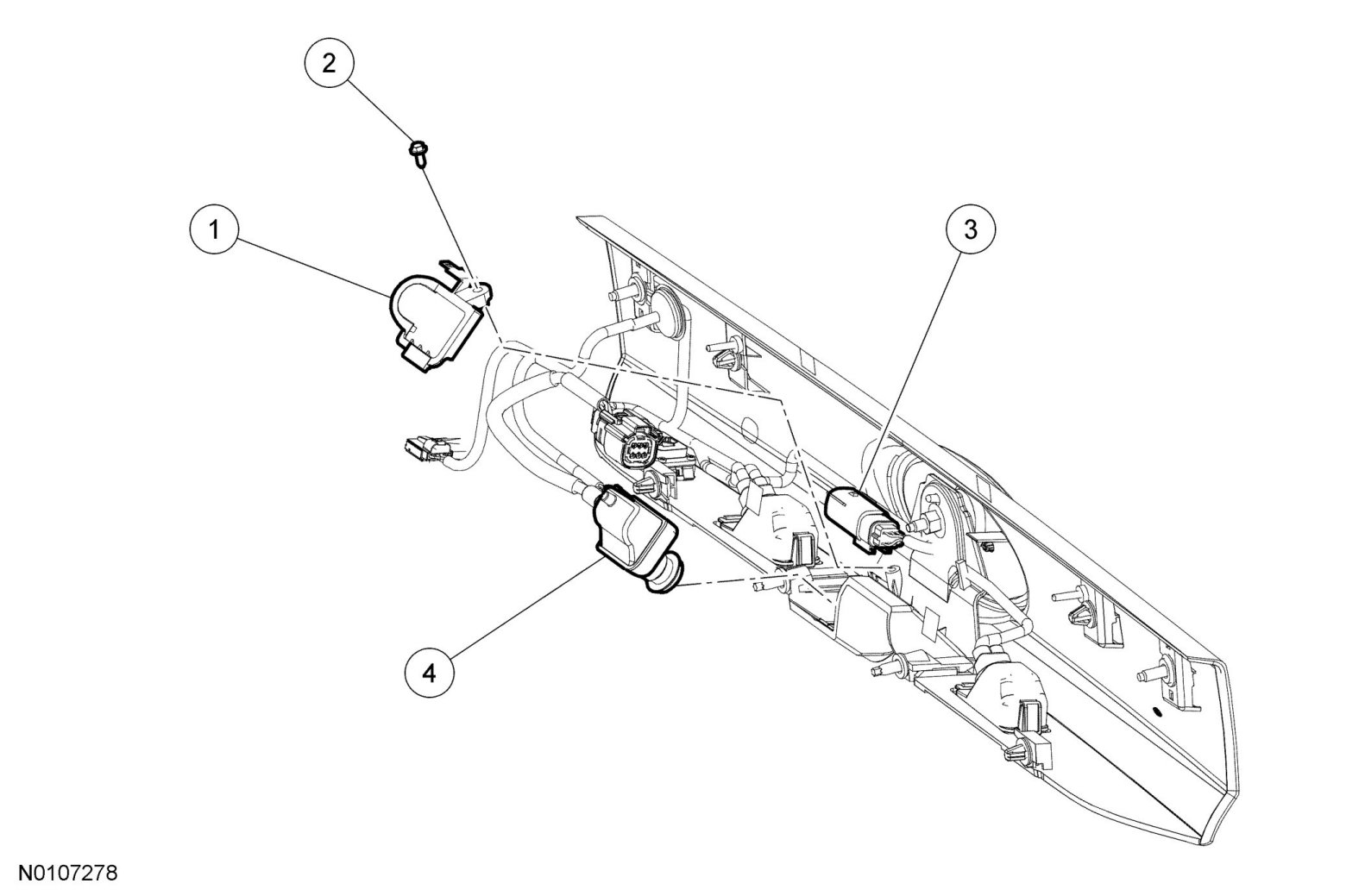

VIDEO CAMERA REMOVAL/INSTALLATION









1. Remove the license plate housing. See Service and Repair.

2. Disconnect the electrical connector.

3. Remove the video camera screw.

4. Remove the video camera bracket and camera from the license plate lamp housing.

5. To install, reverse the removal procedure.
