Steering System - DTC Charts




DTC CHARTS - STEERING SYSTEM

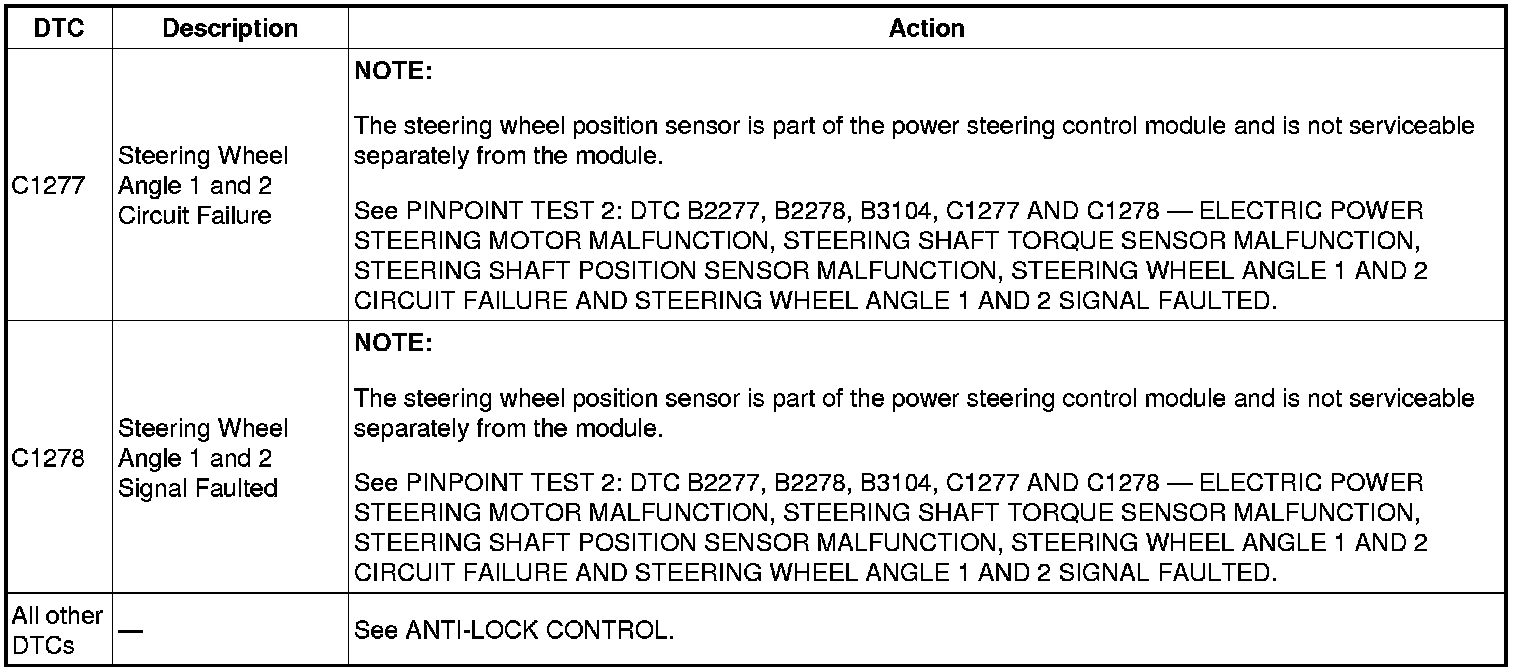

Power Steering Control Module DTC Chart





Anti-Lock Brake System (ABS) Module DTC Chart
