Seats HVAC Module - DTC Chart

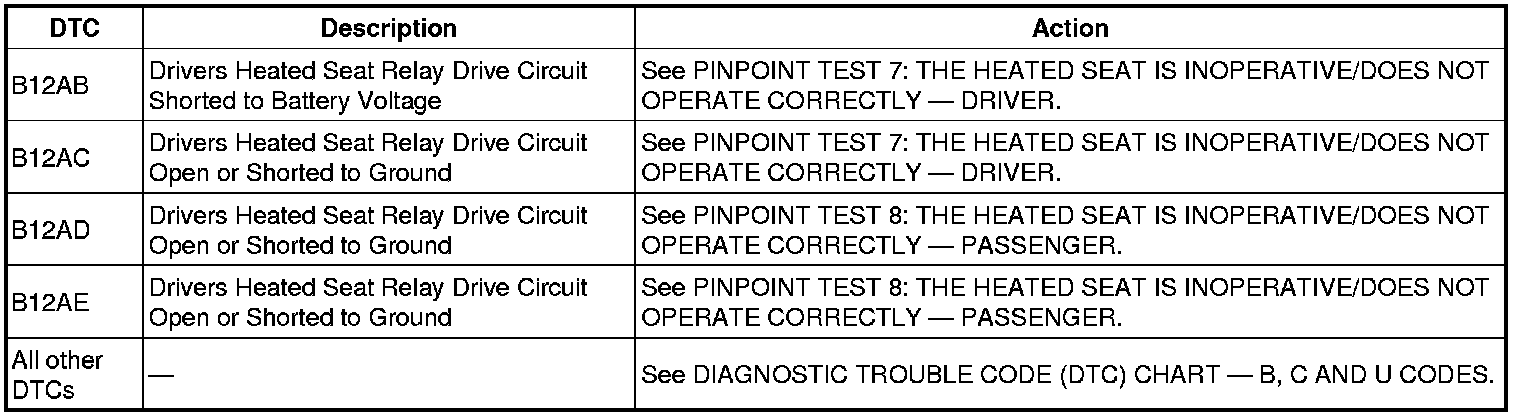

SEATS - HVAC MODULE DTC CHART

NOTE:Only the heated seat system related DTCs are listed. For all other HVAC module DTCs, see - Diagnostic Trouble Code (DTC) Chart - B, C And U Codes.
