HVAC Electronic Manual Temperature Control (EMTC) Module - DTC Chart

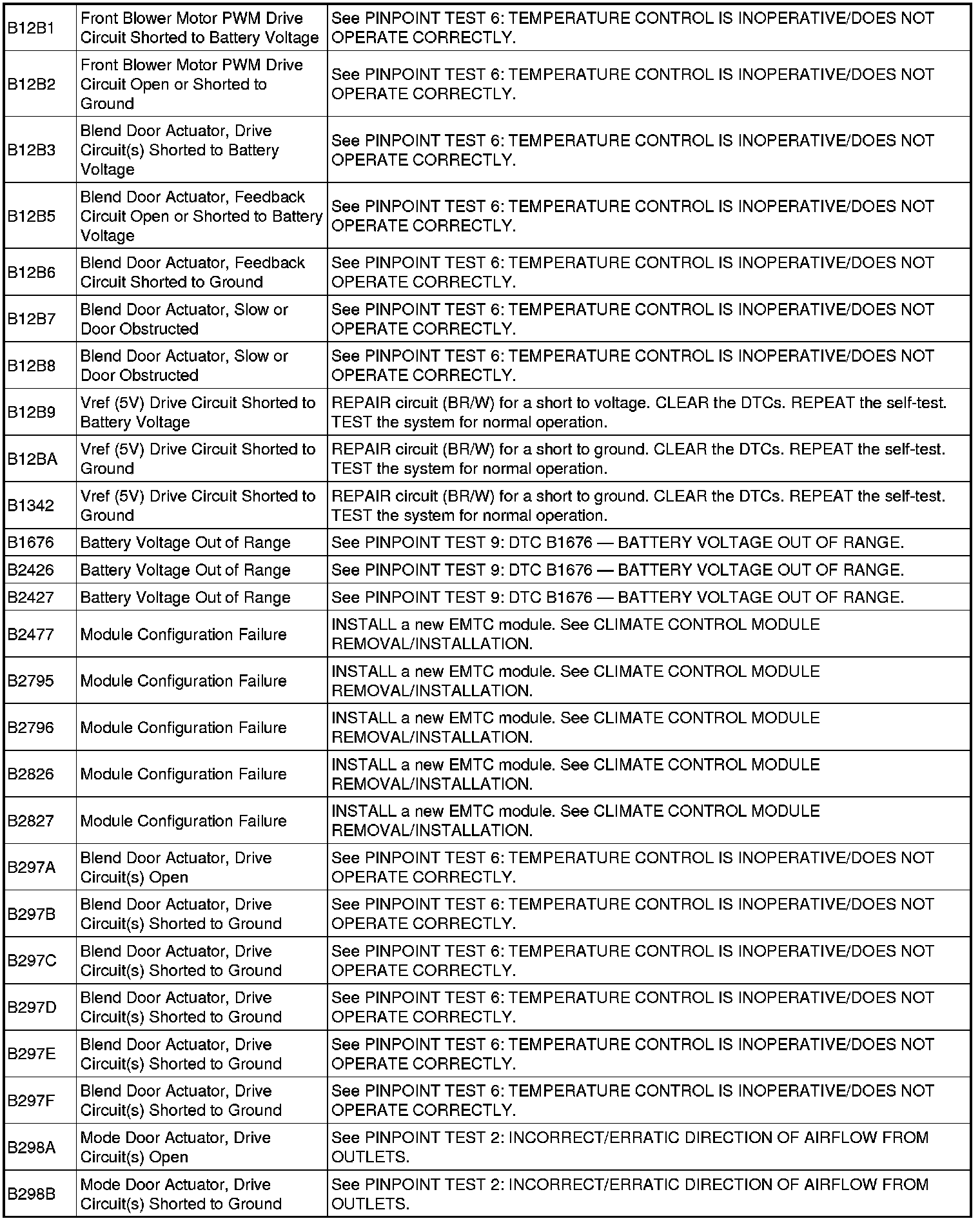

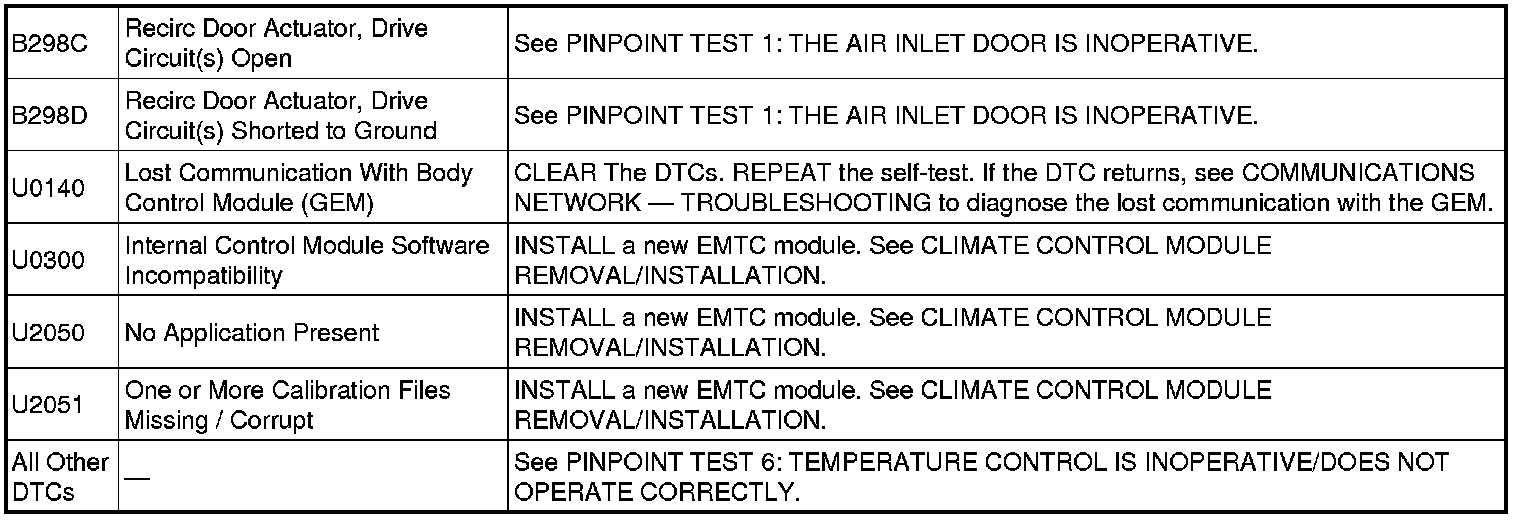

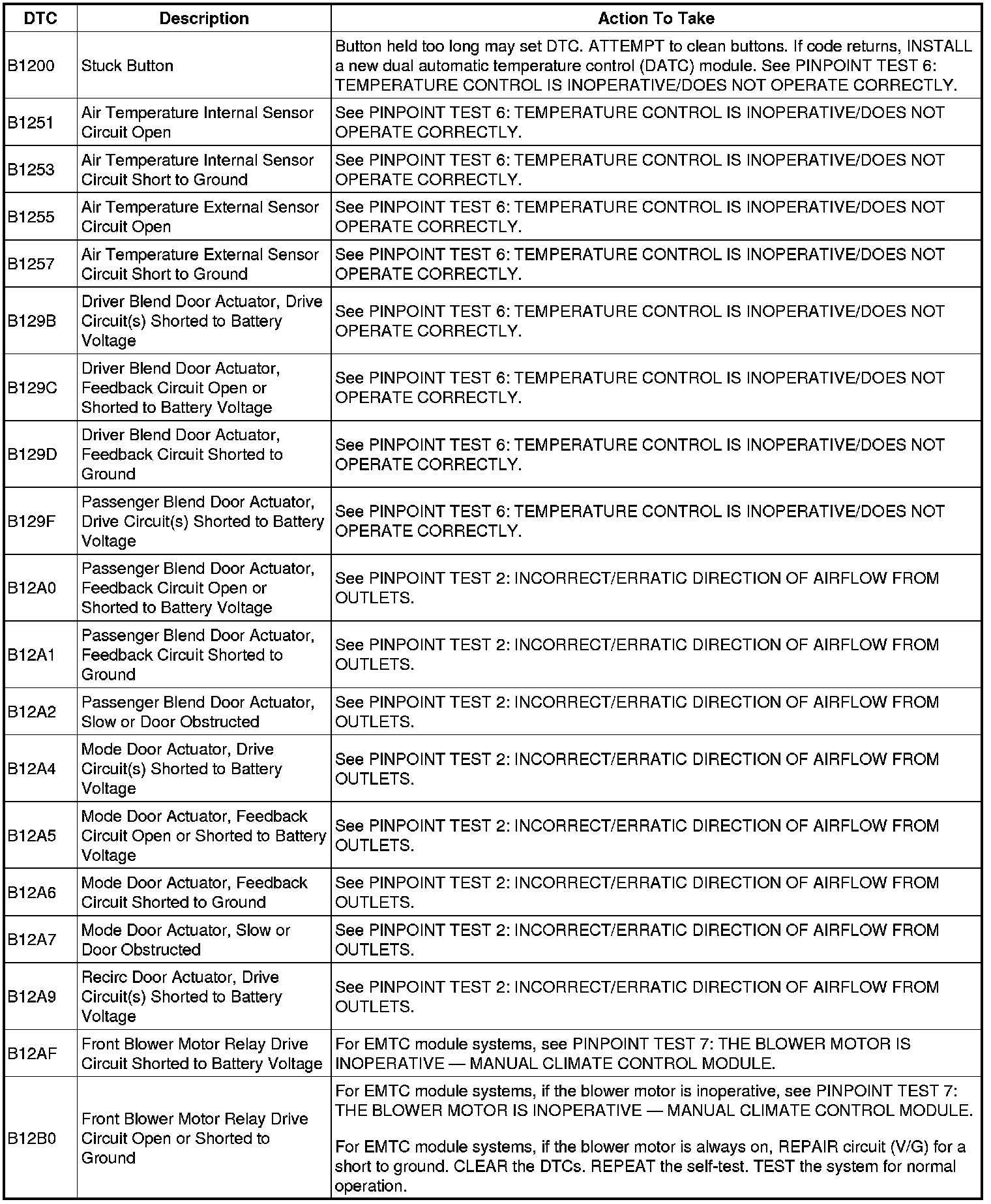

ELECTRONIC MANUAL TEMPERATURE CONTROL (EMTC) MODULE DTC CHART

See the Tribute Wiring Diagram for schematic information.
NOTE:Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first.
