Engine B, C, P And U Codes - DTC Chart

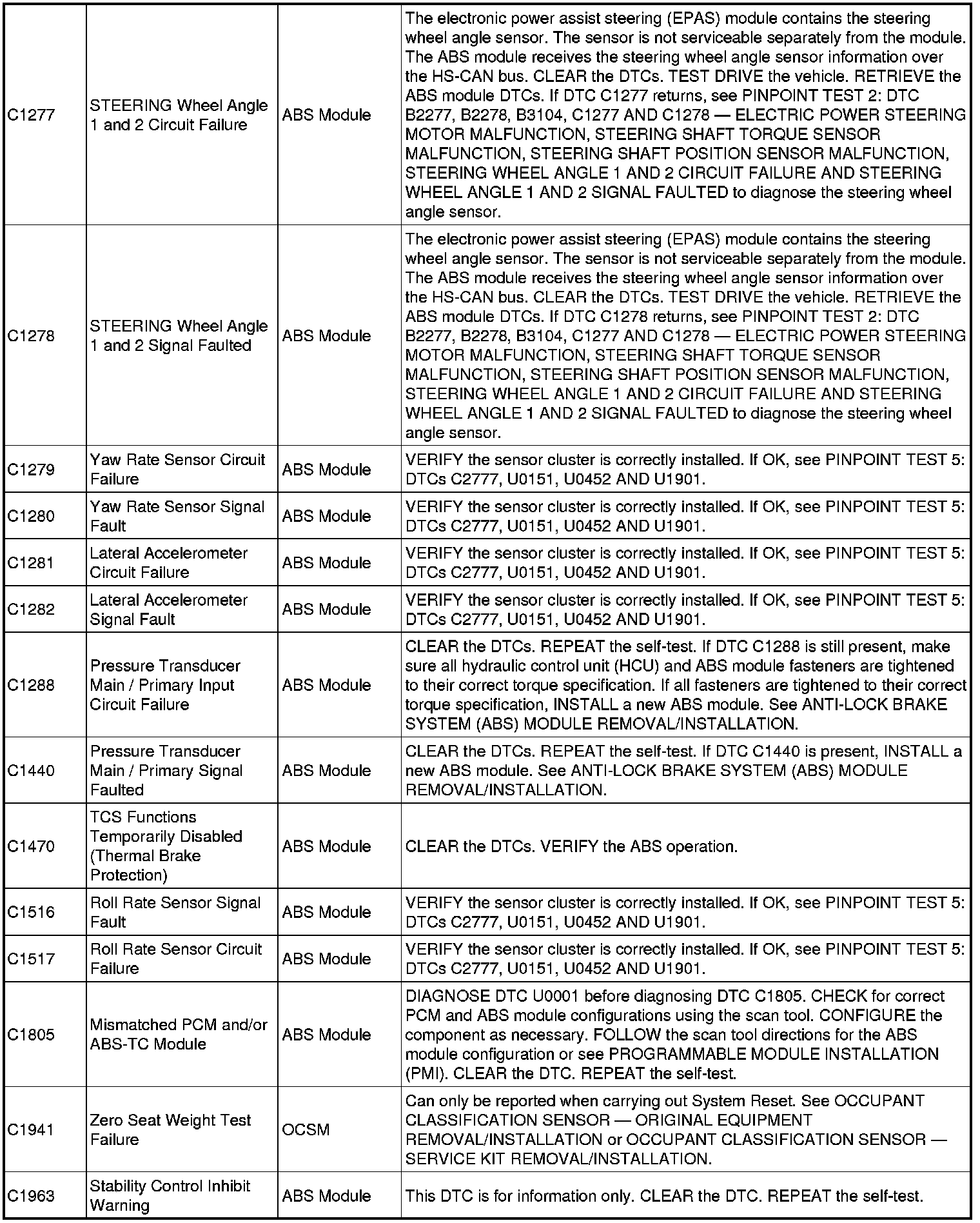

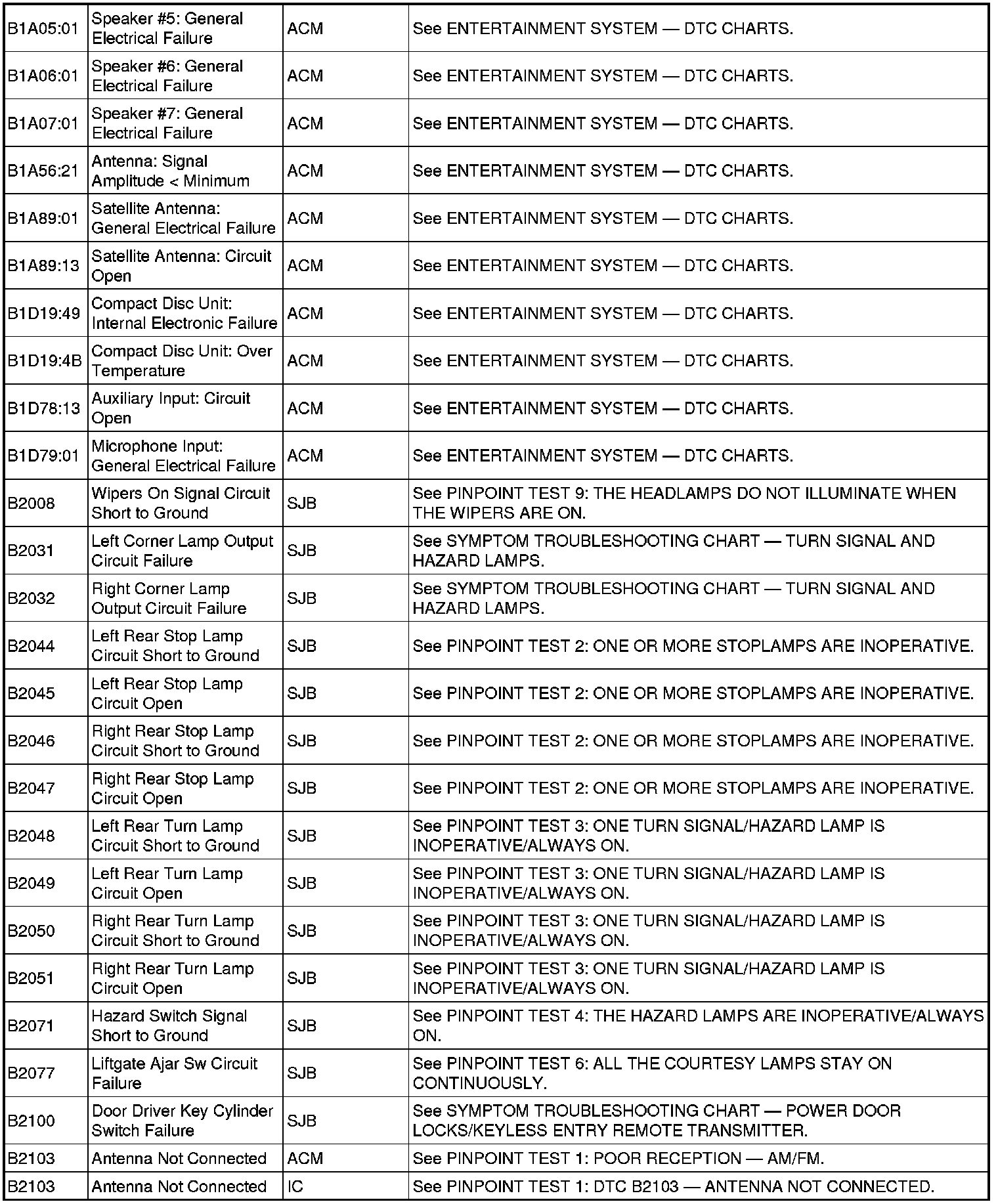

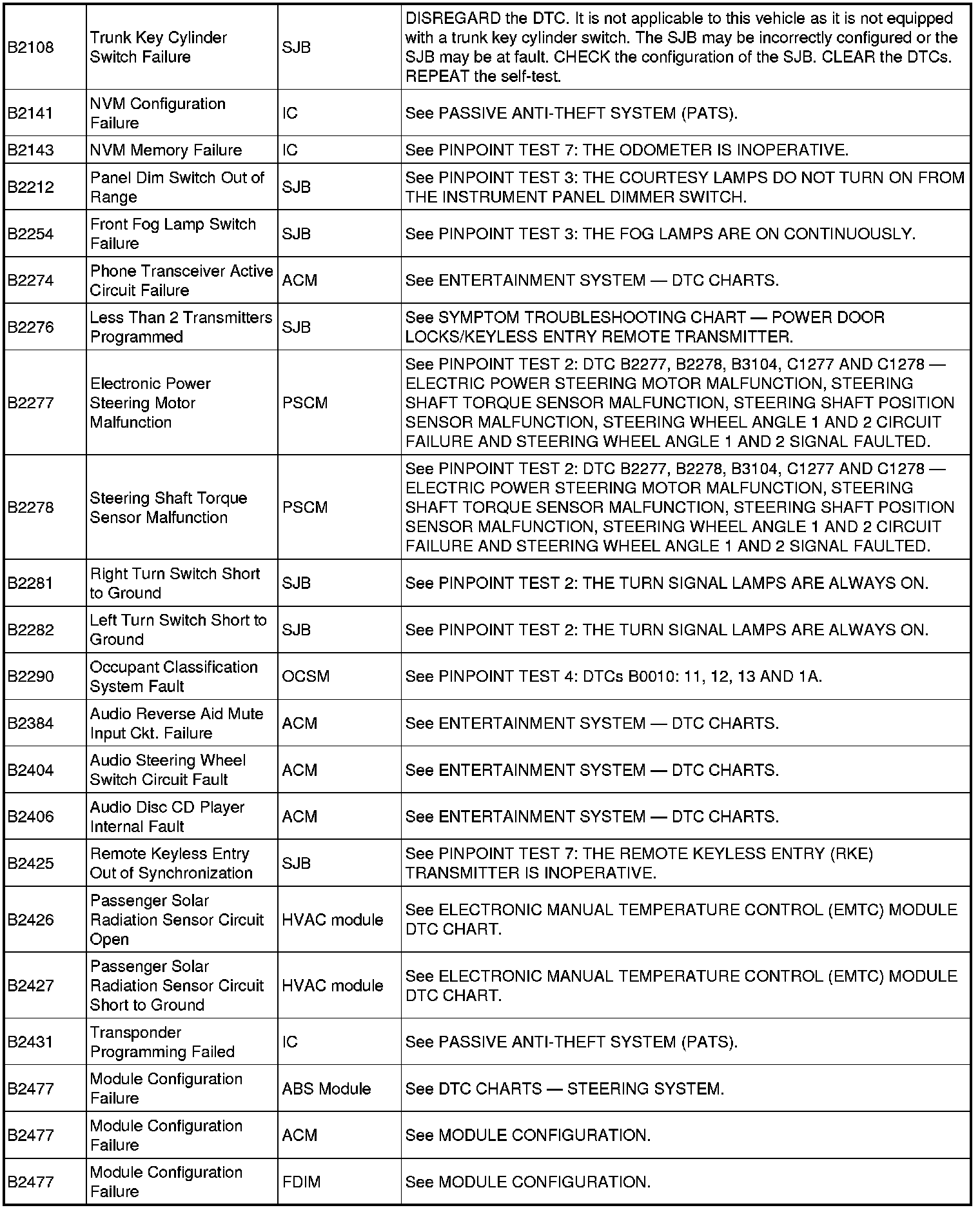

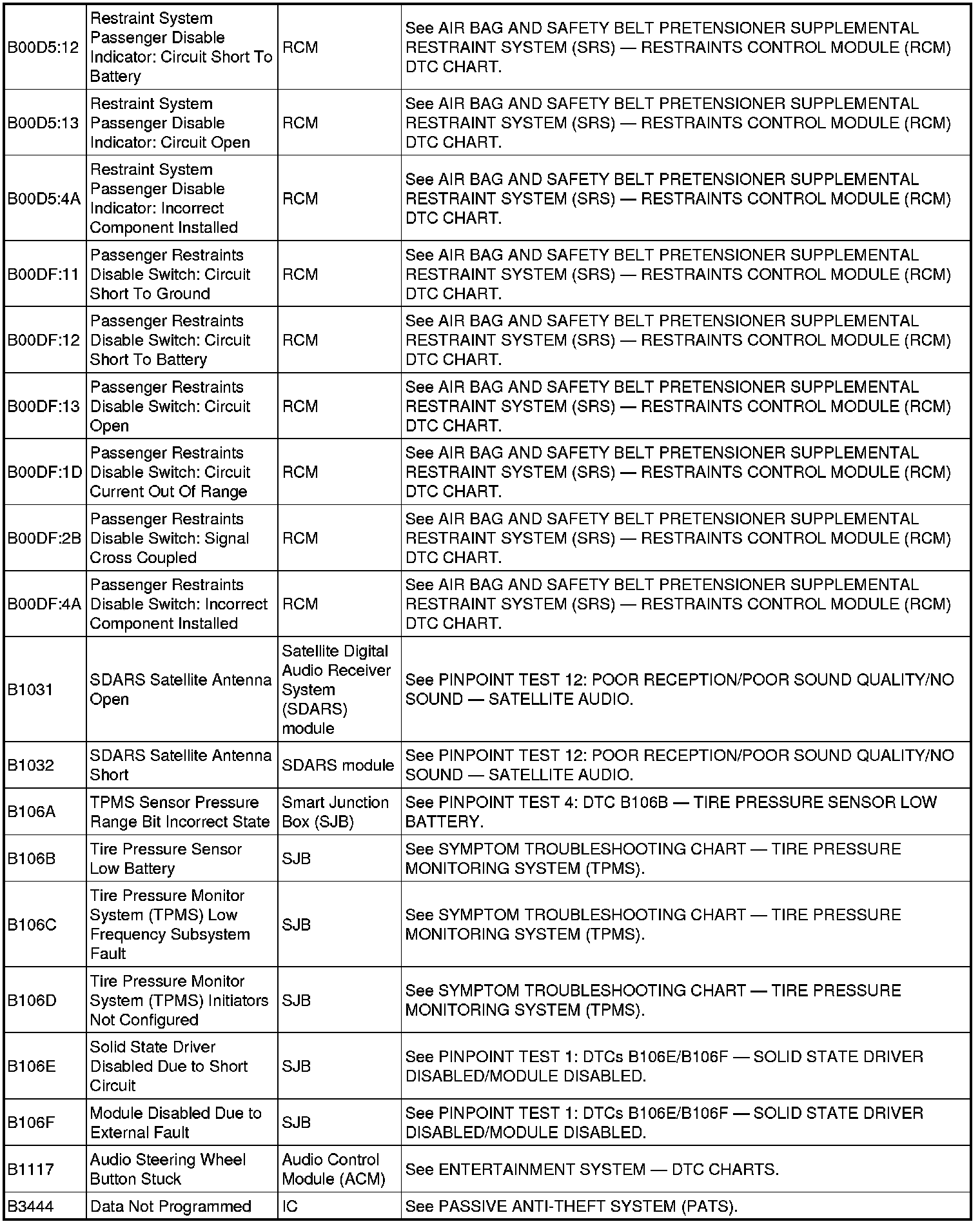

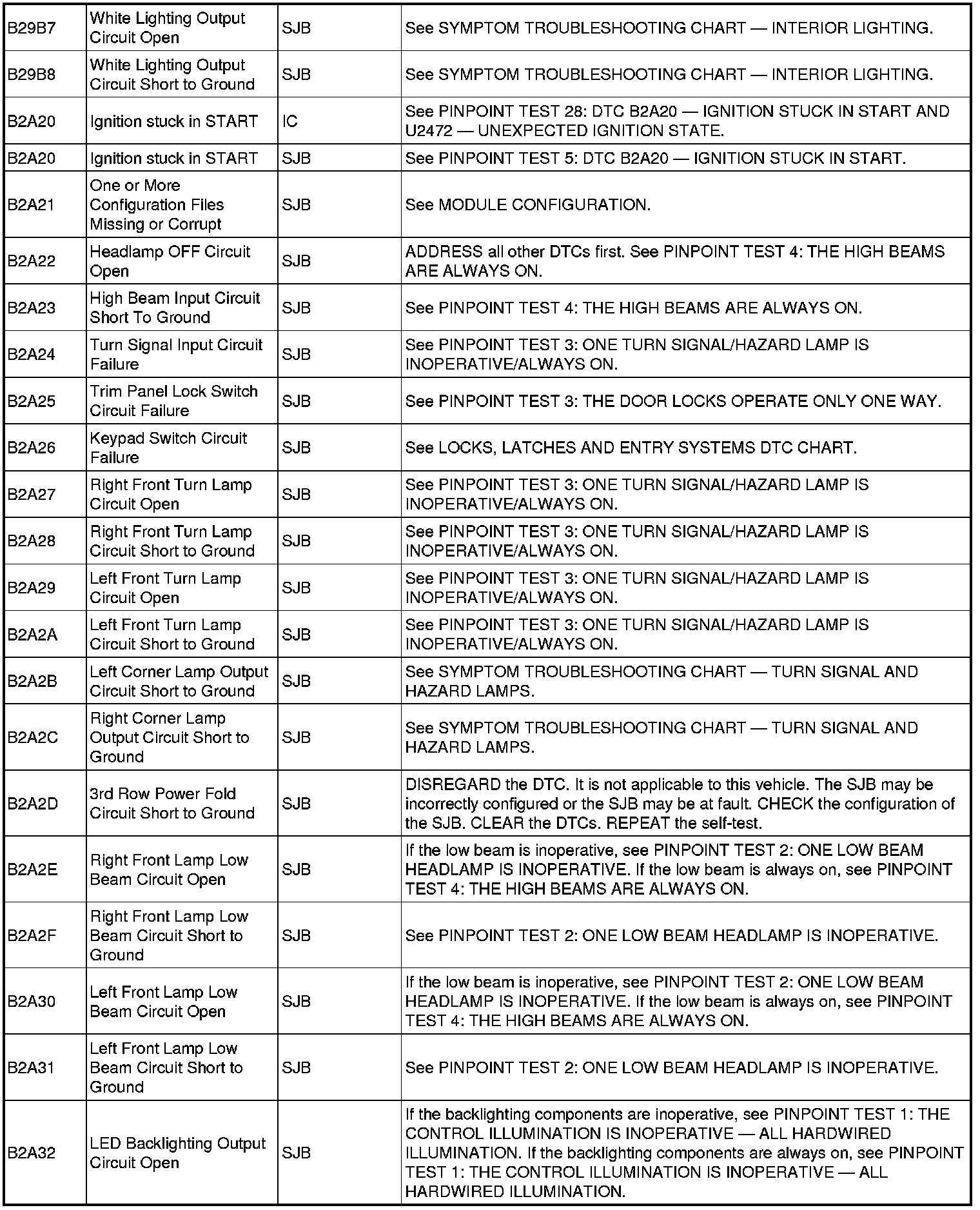

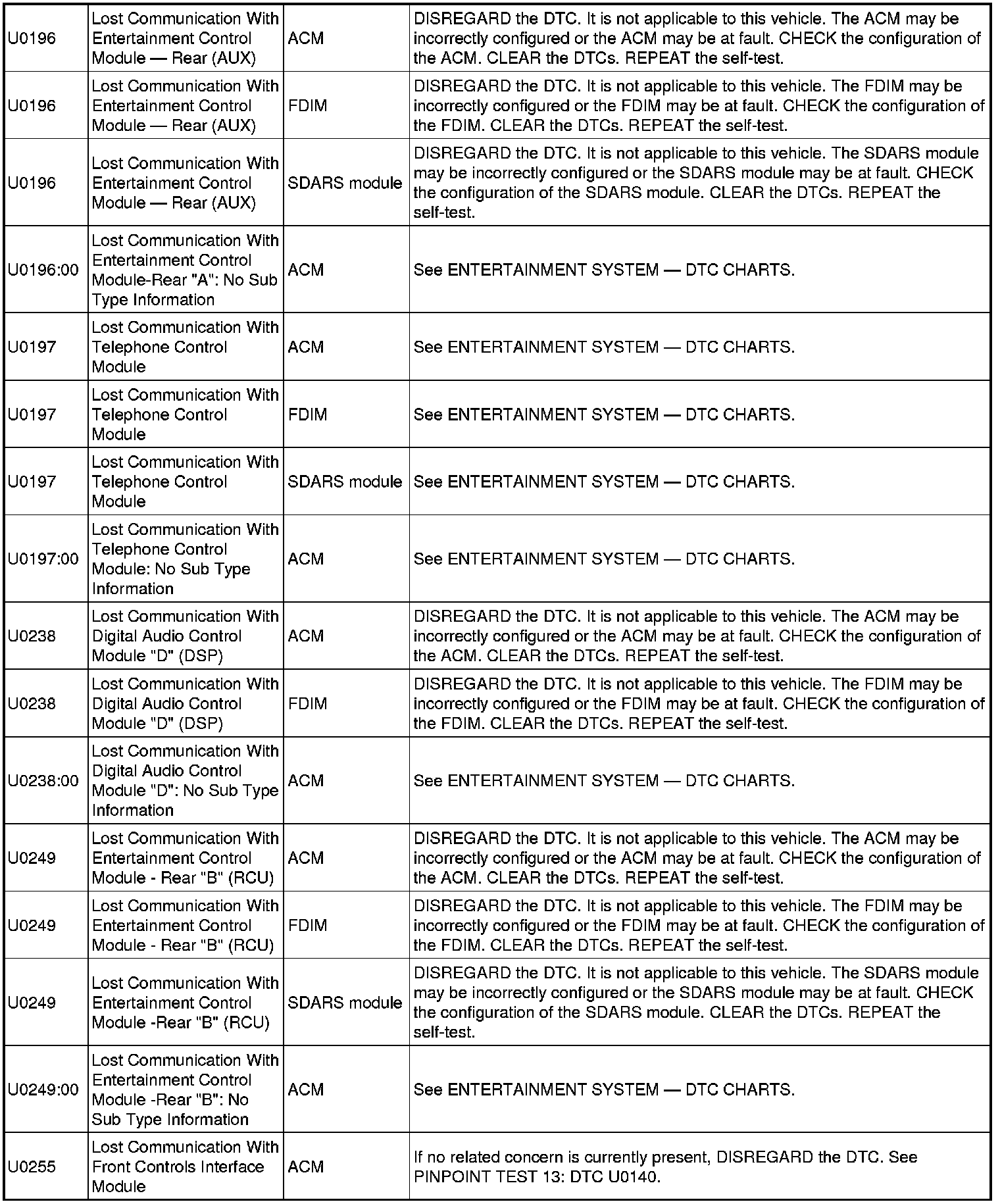

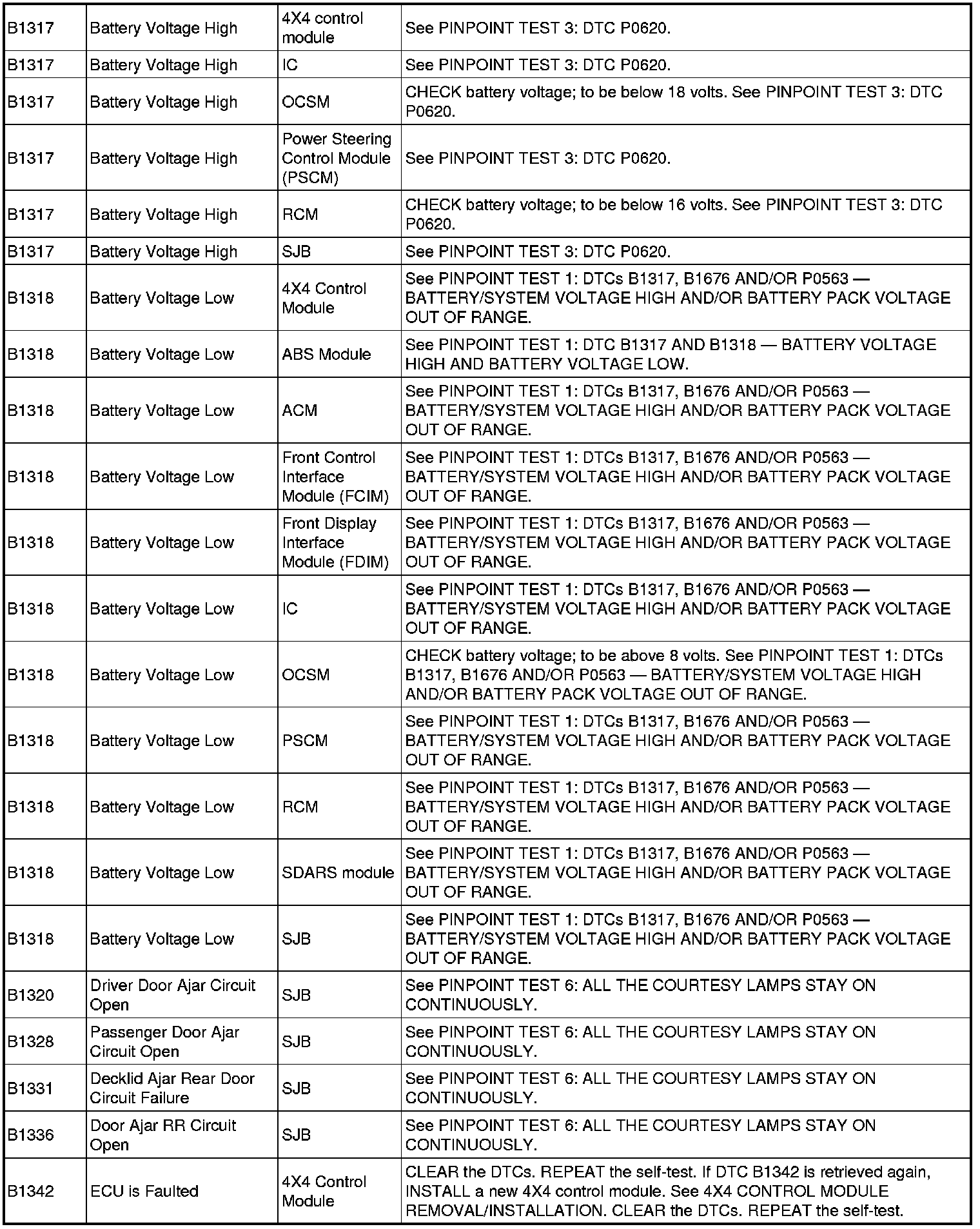

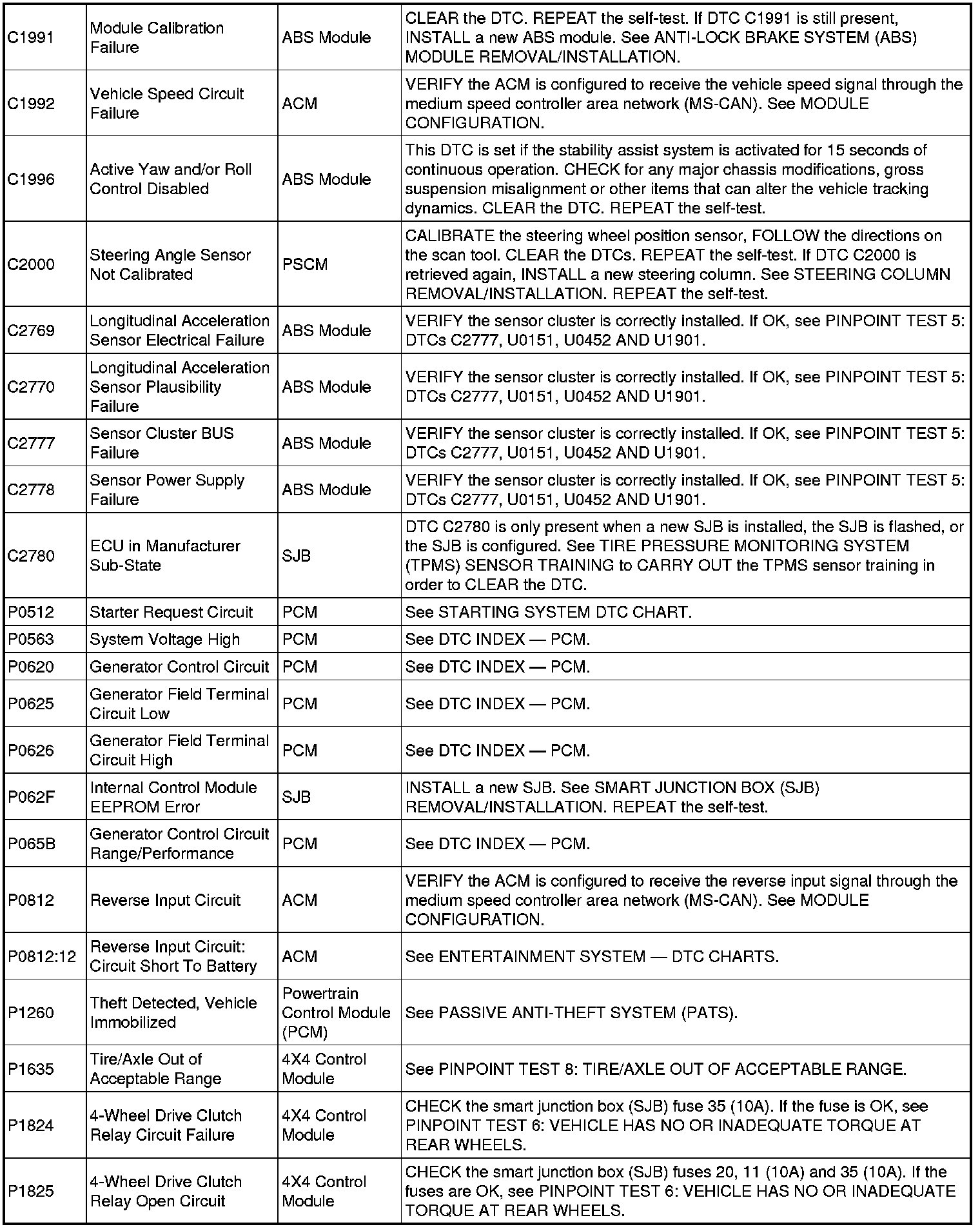

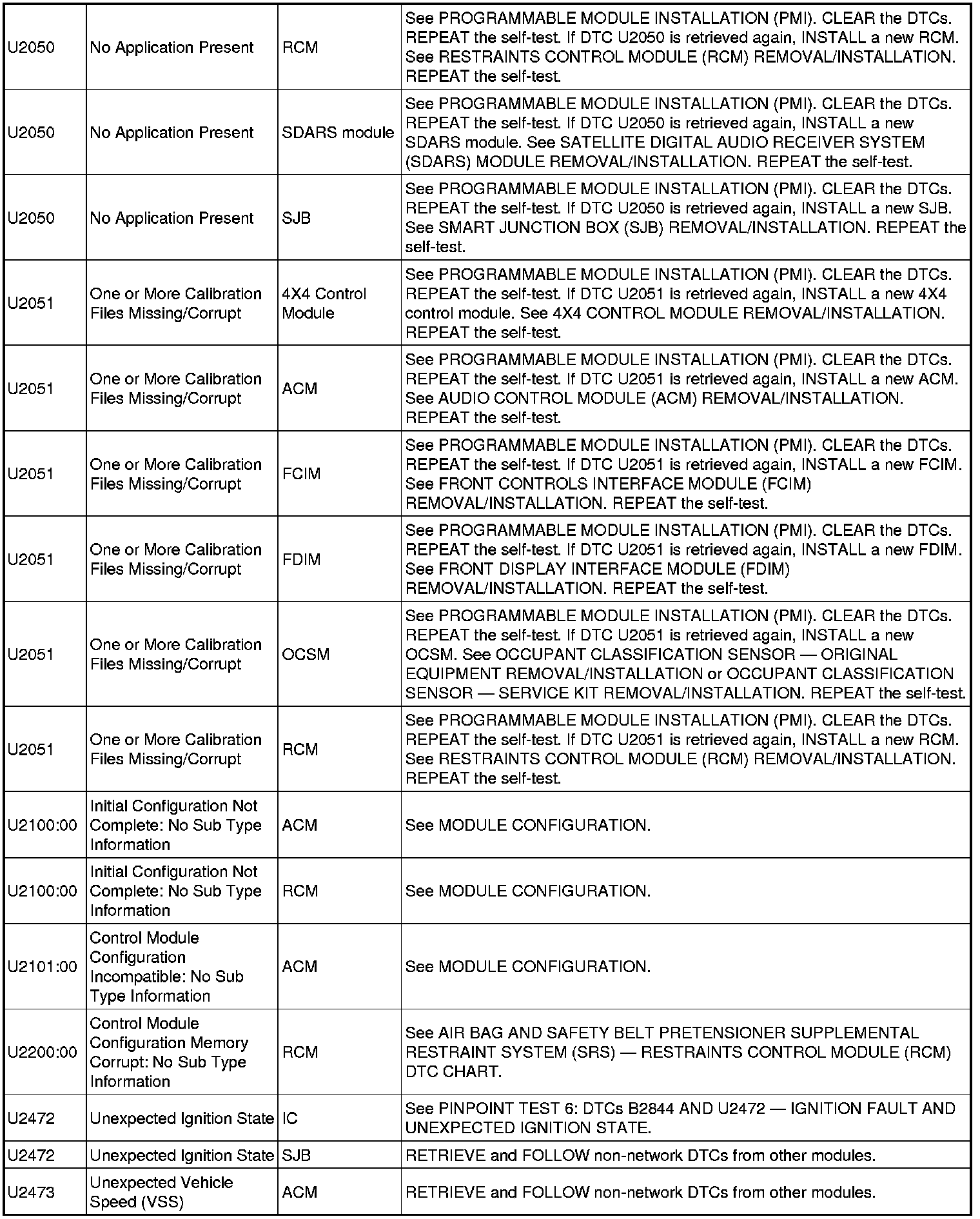

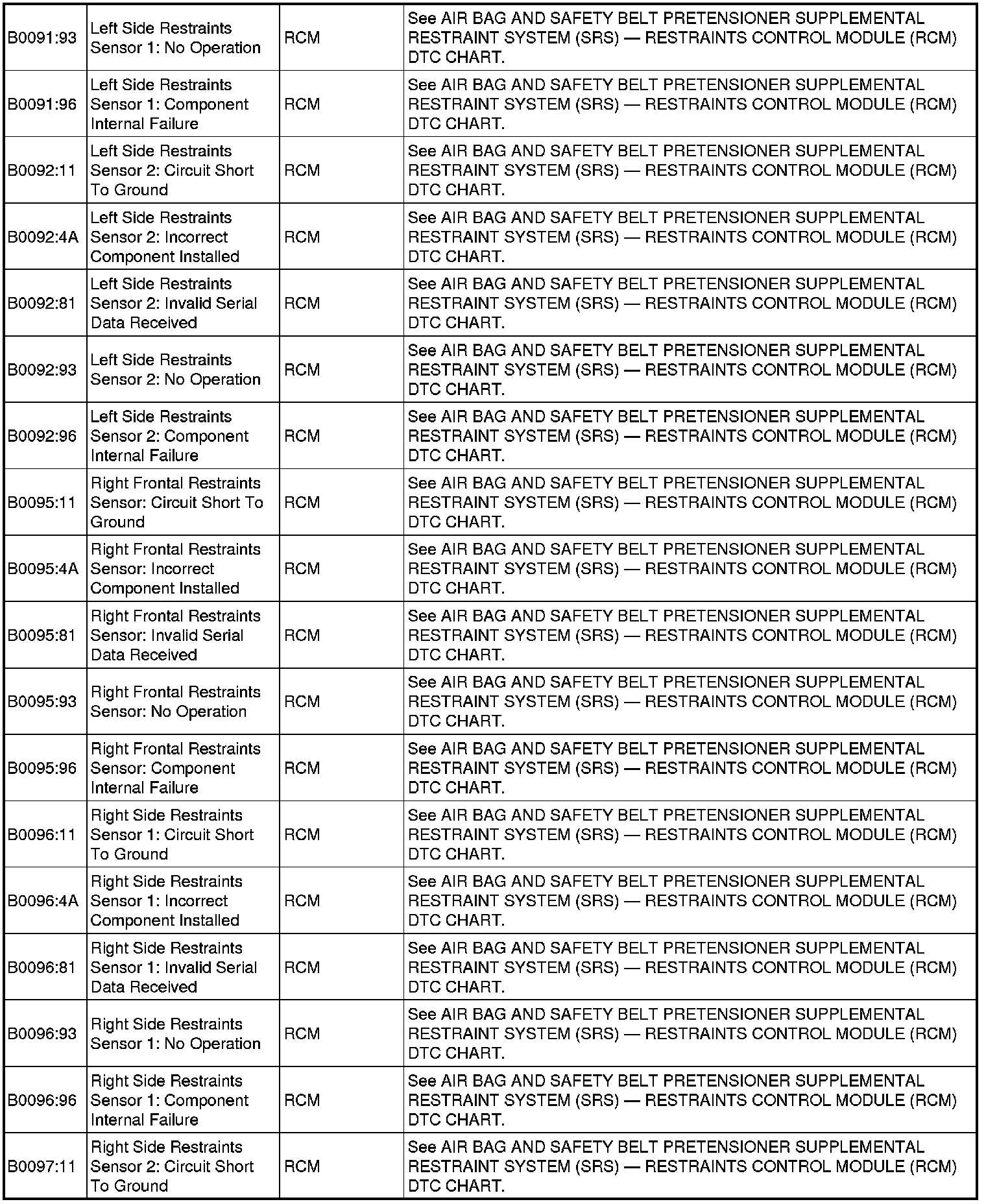

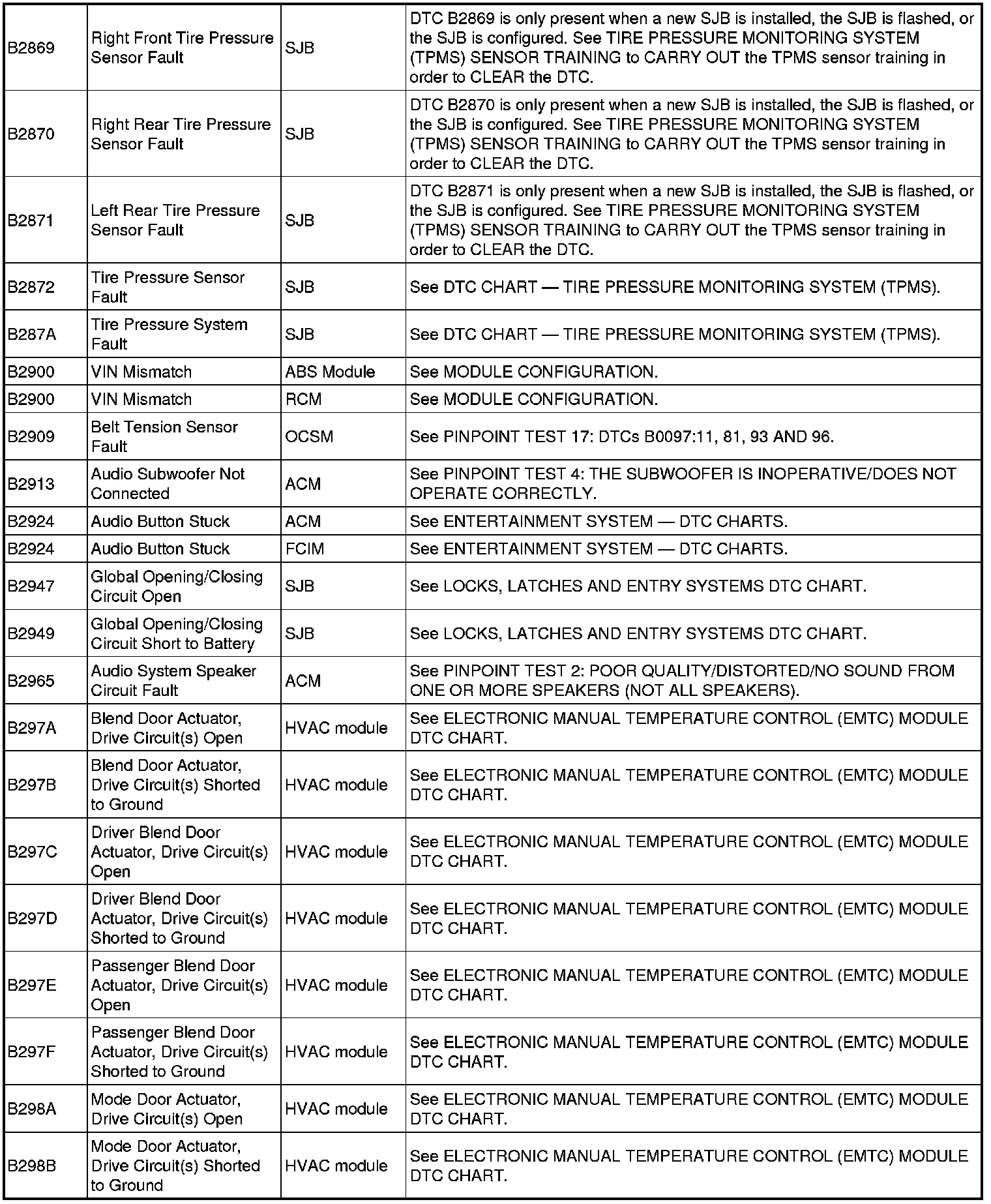

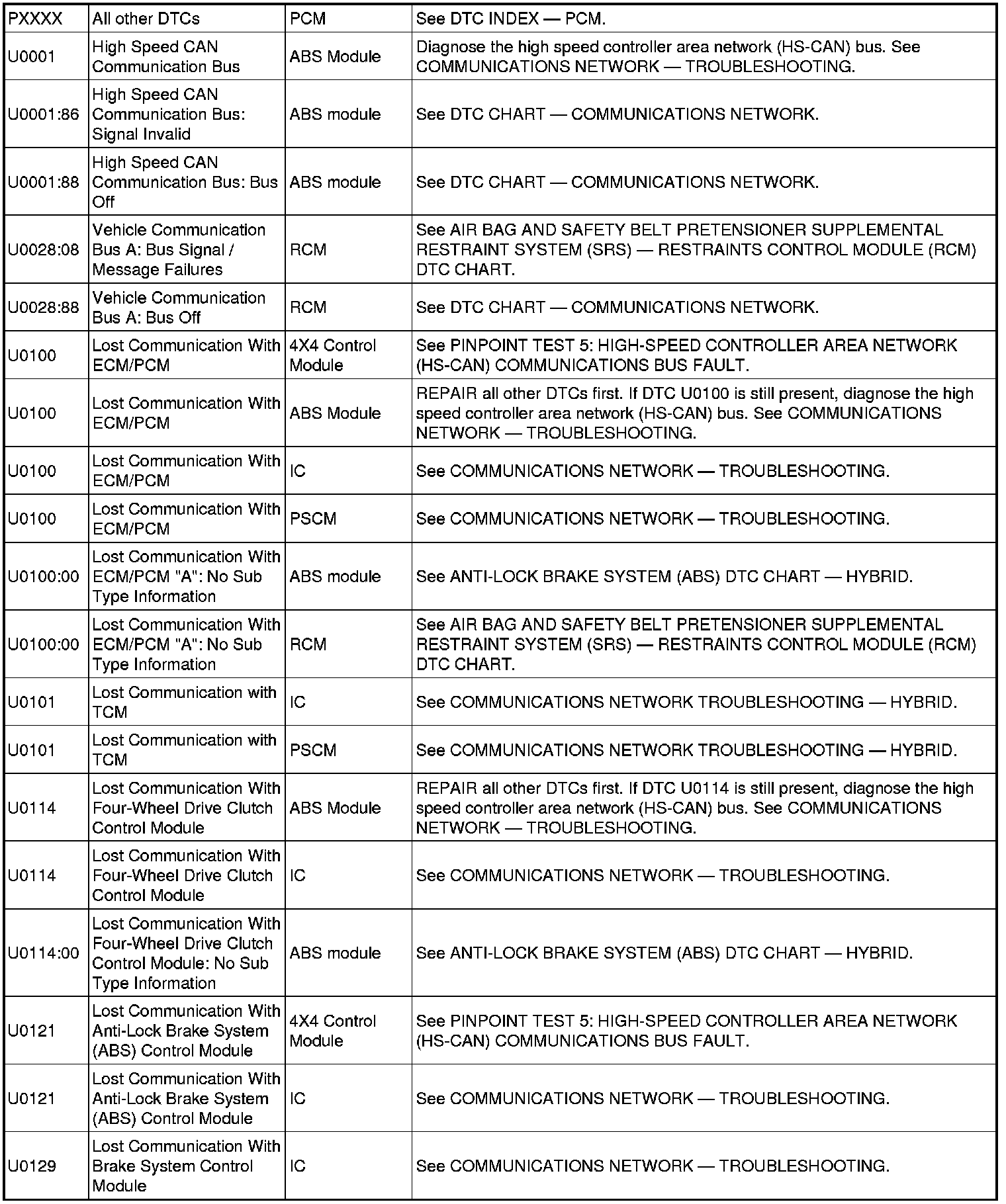

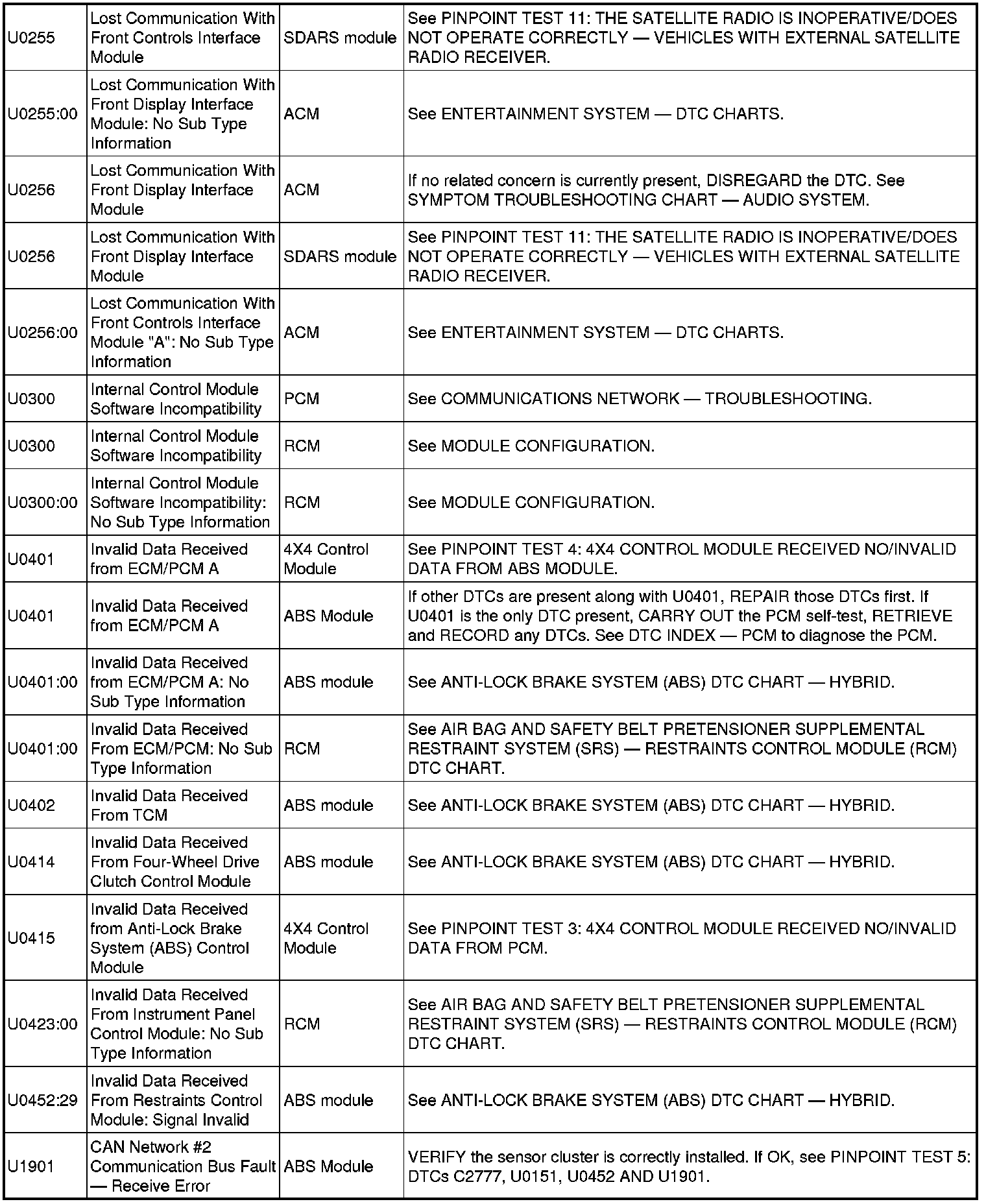

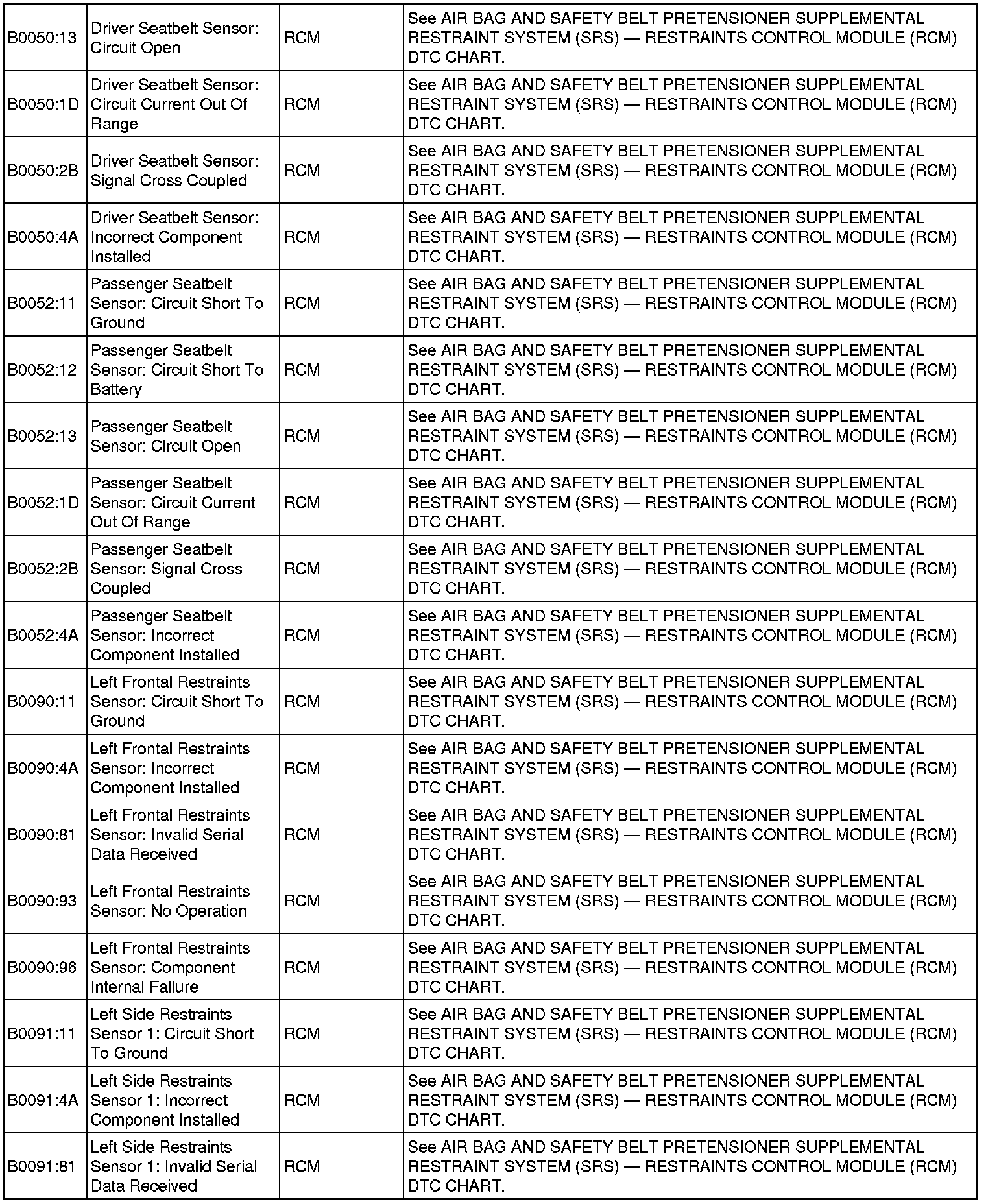

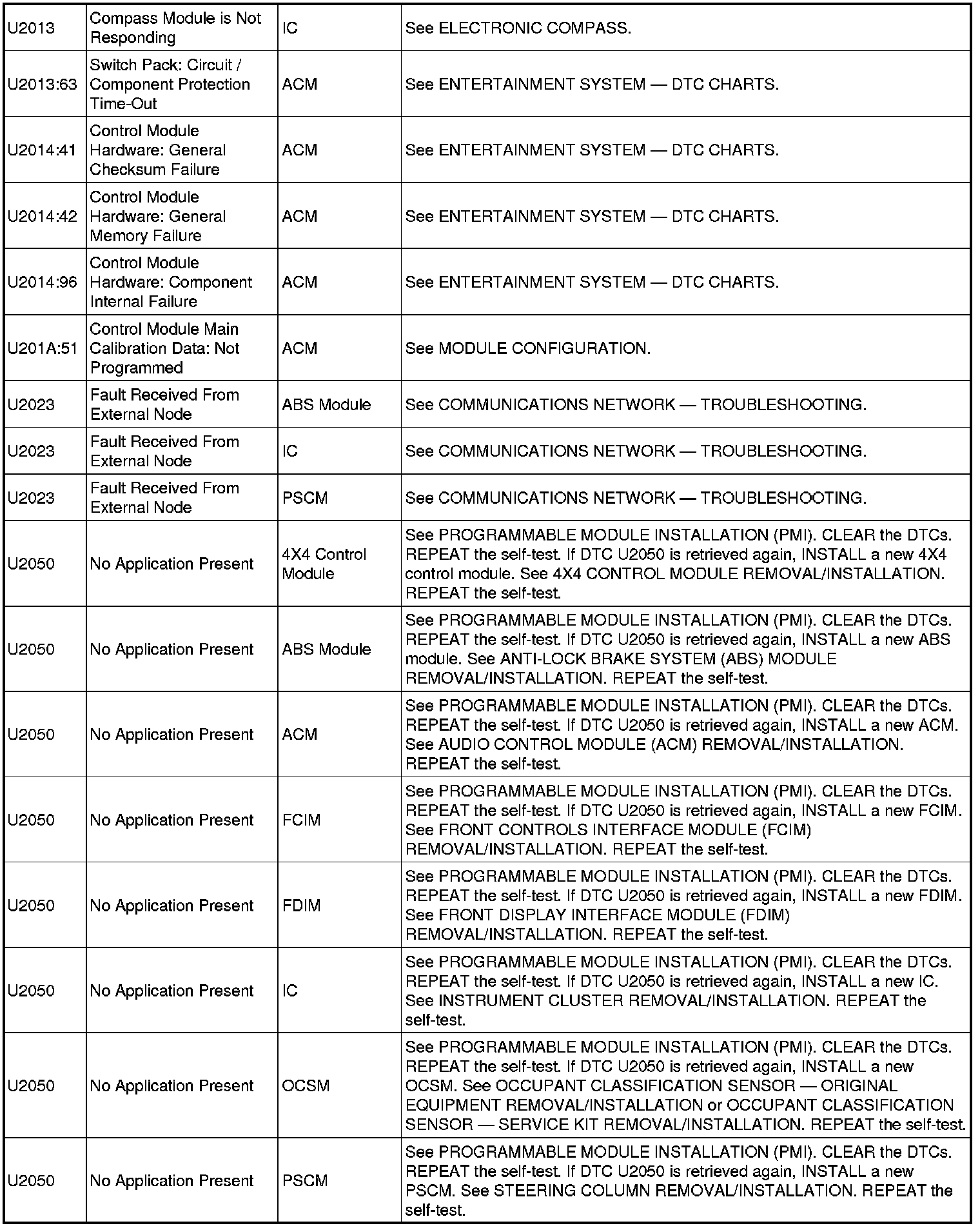

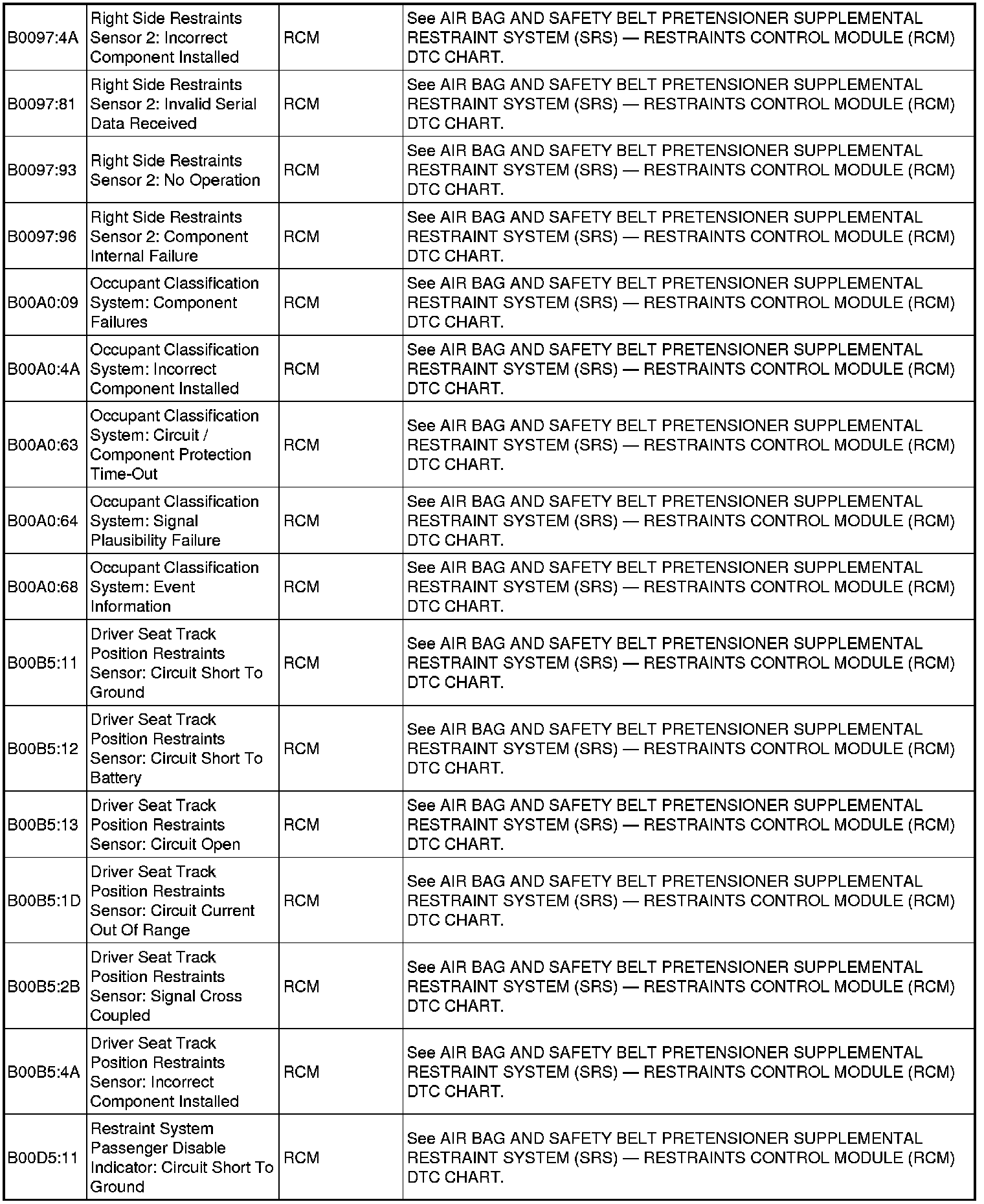

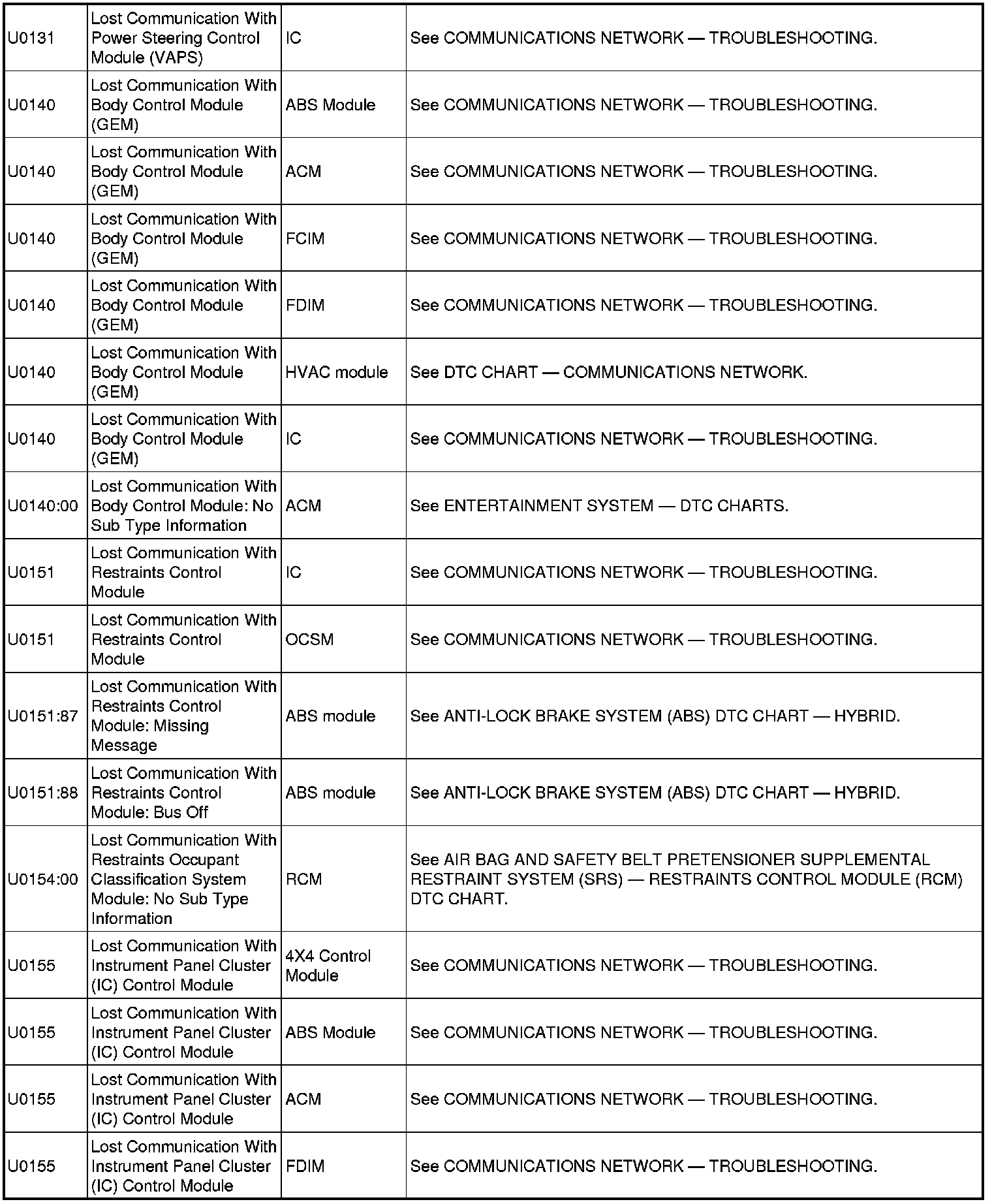

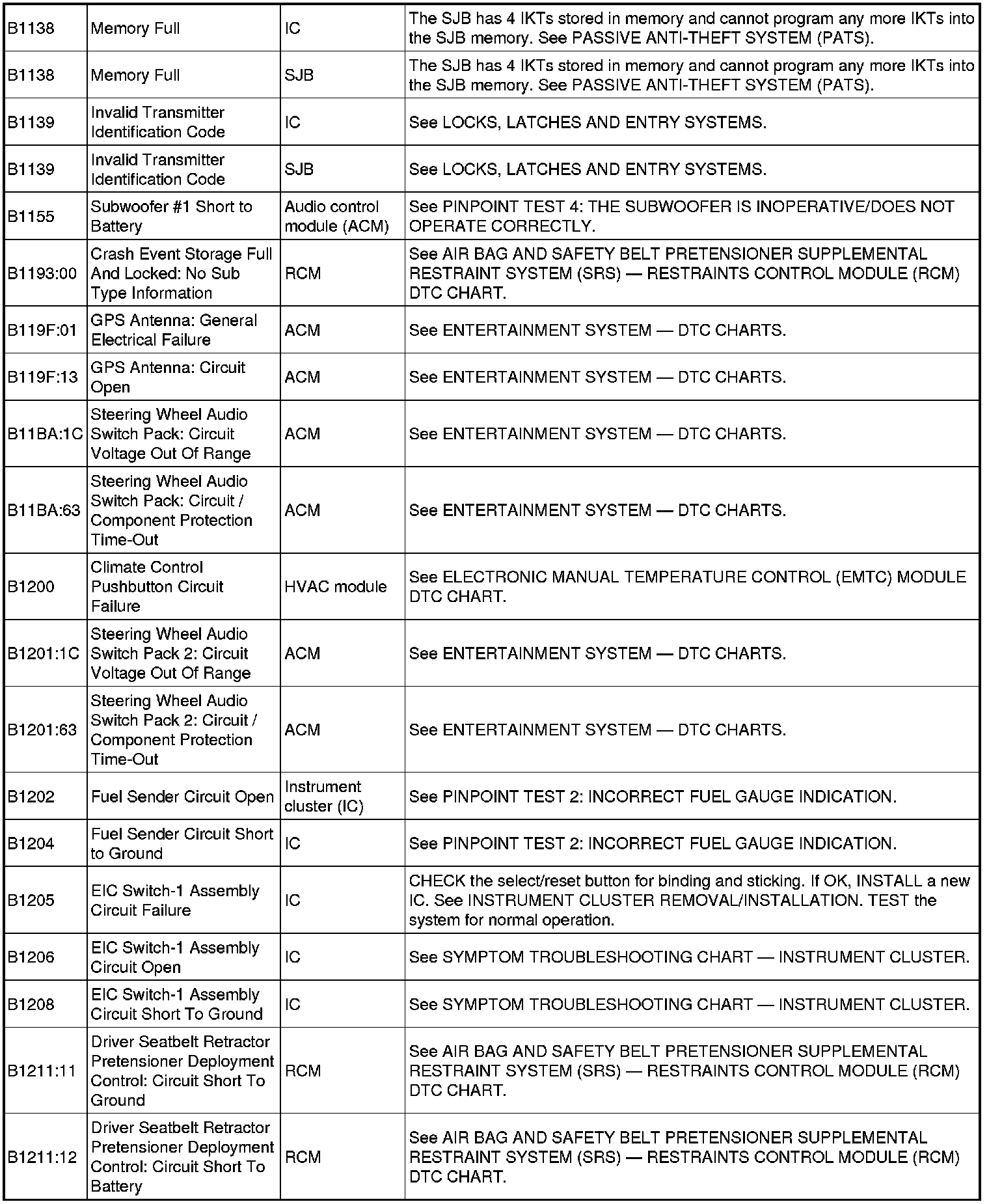

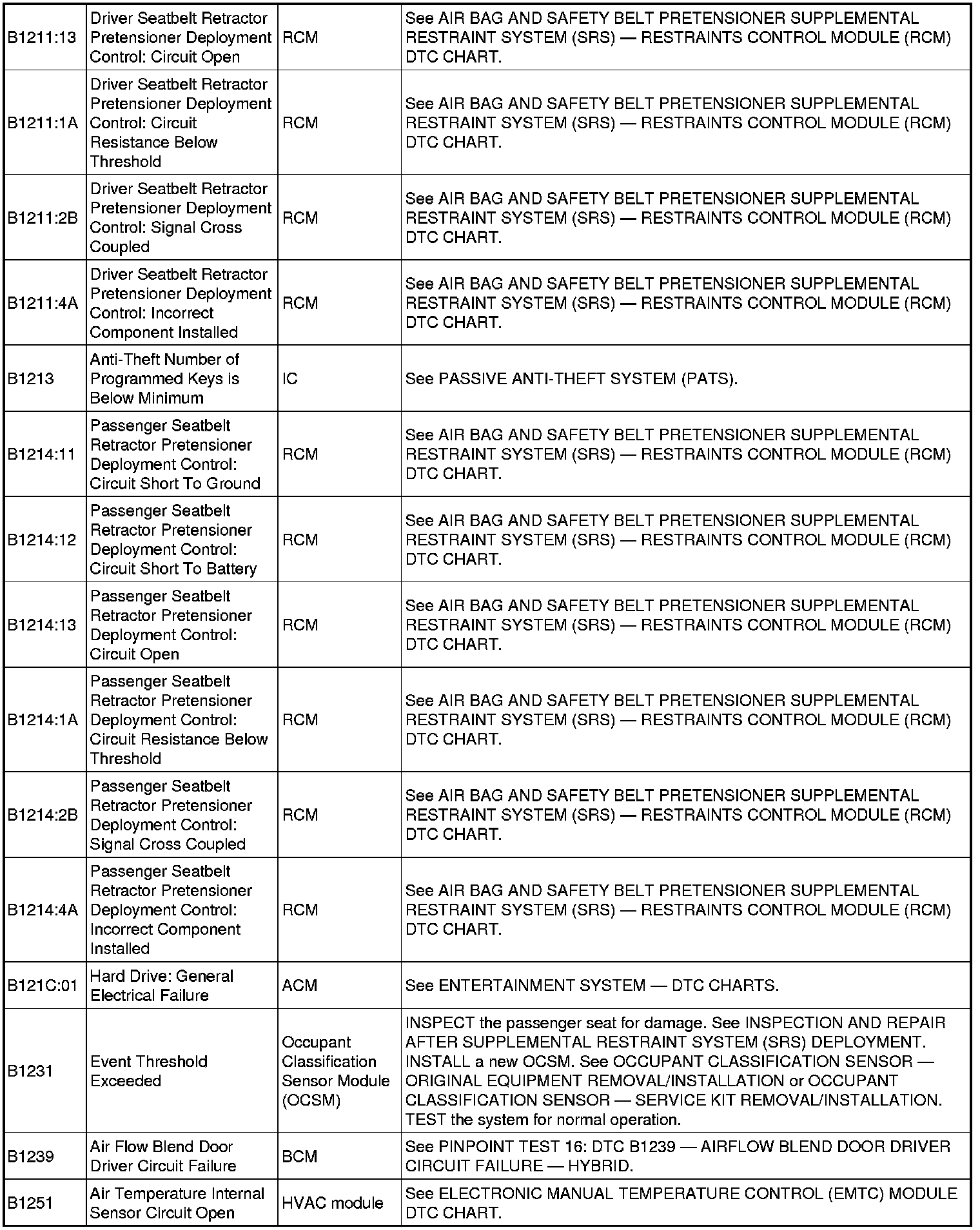

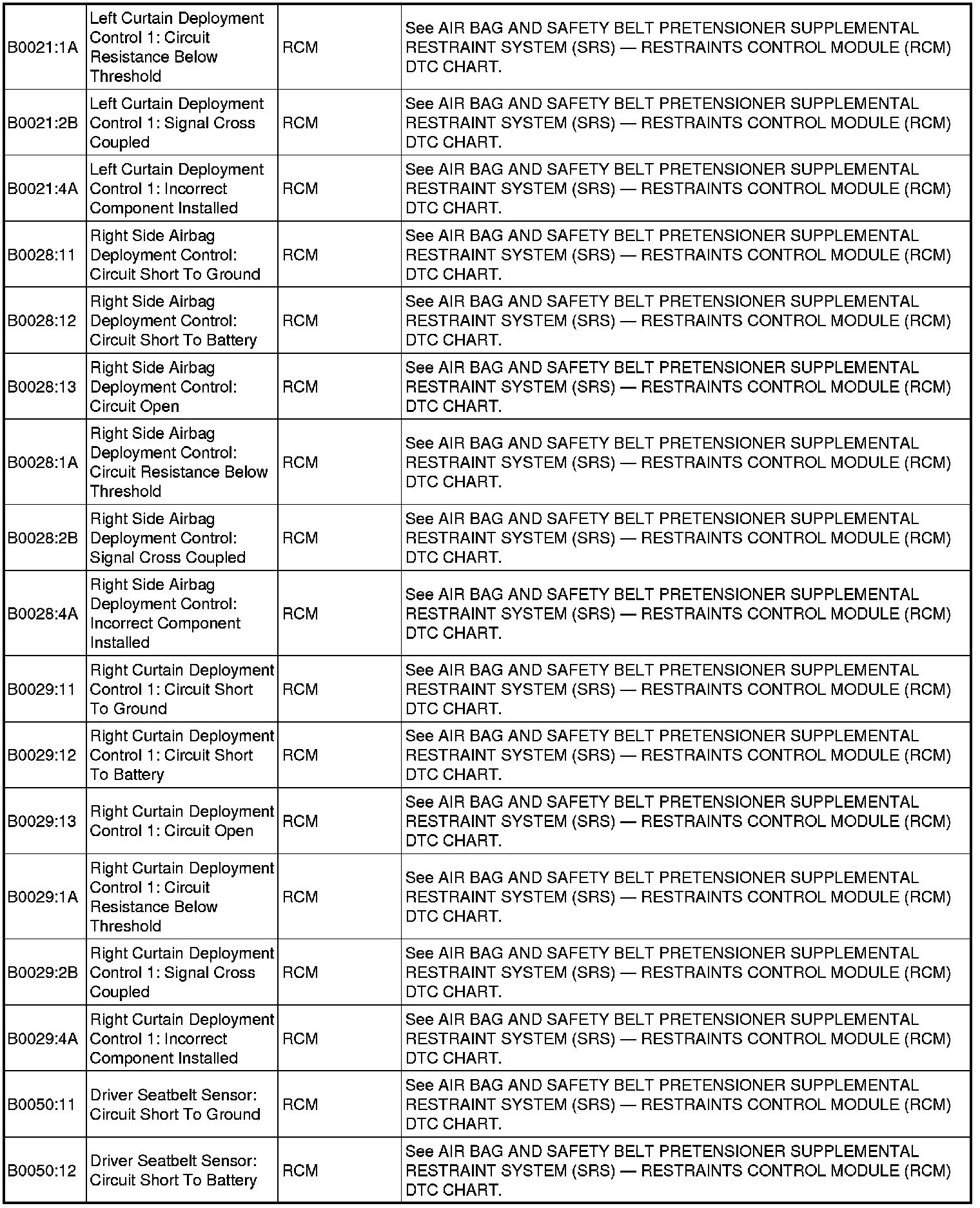

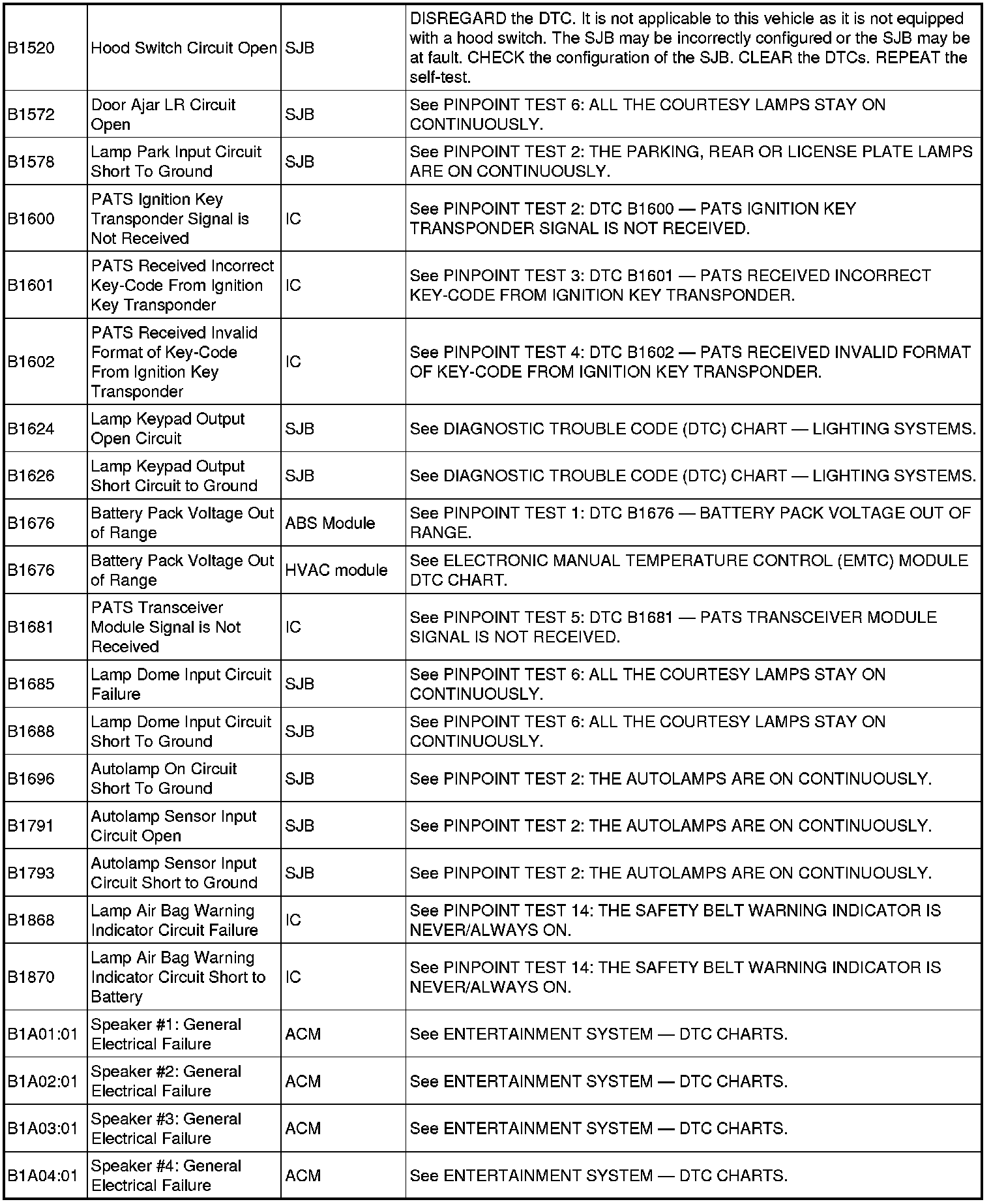

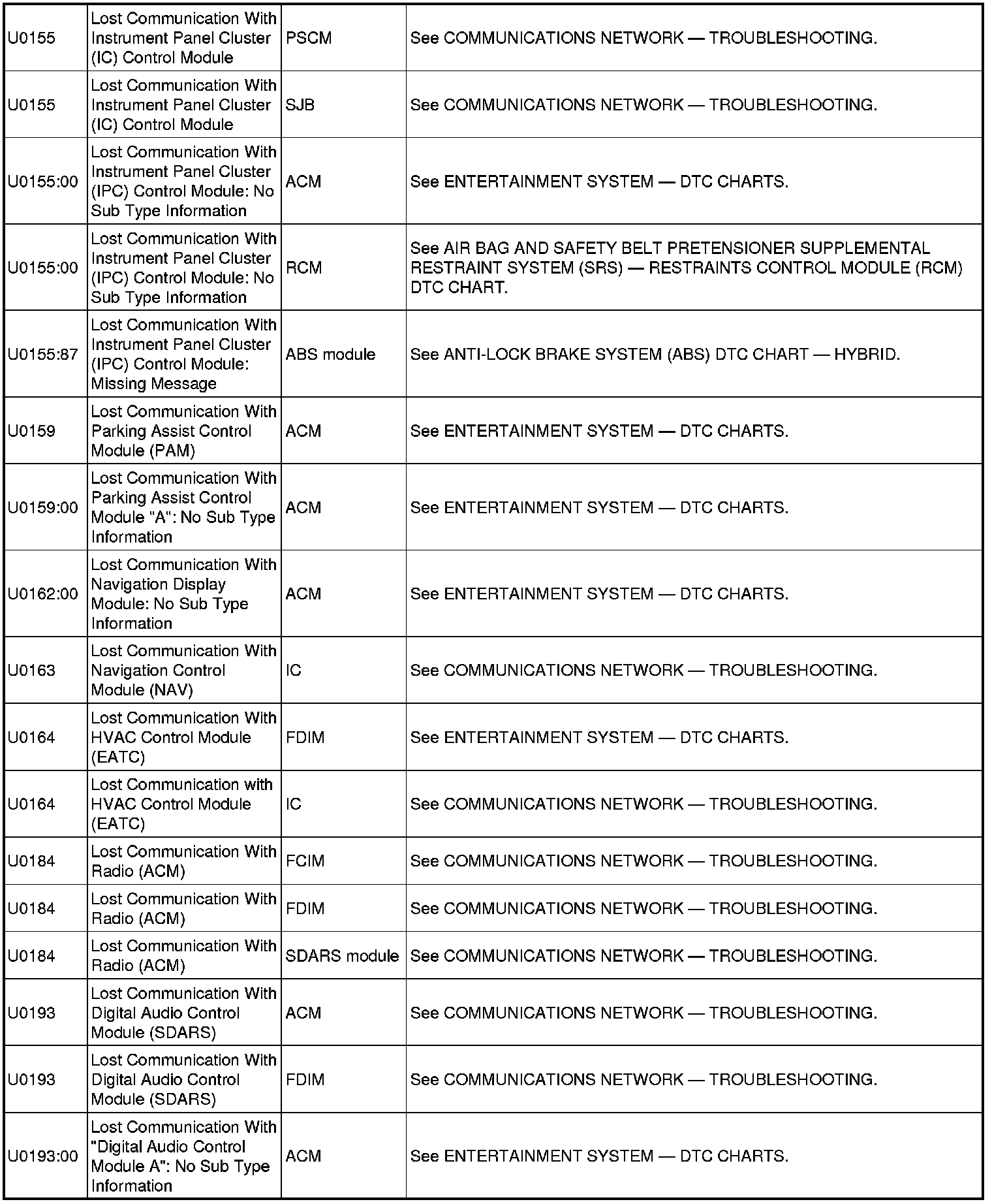

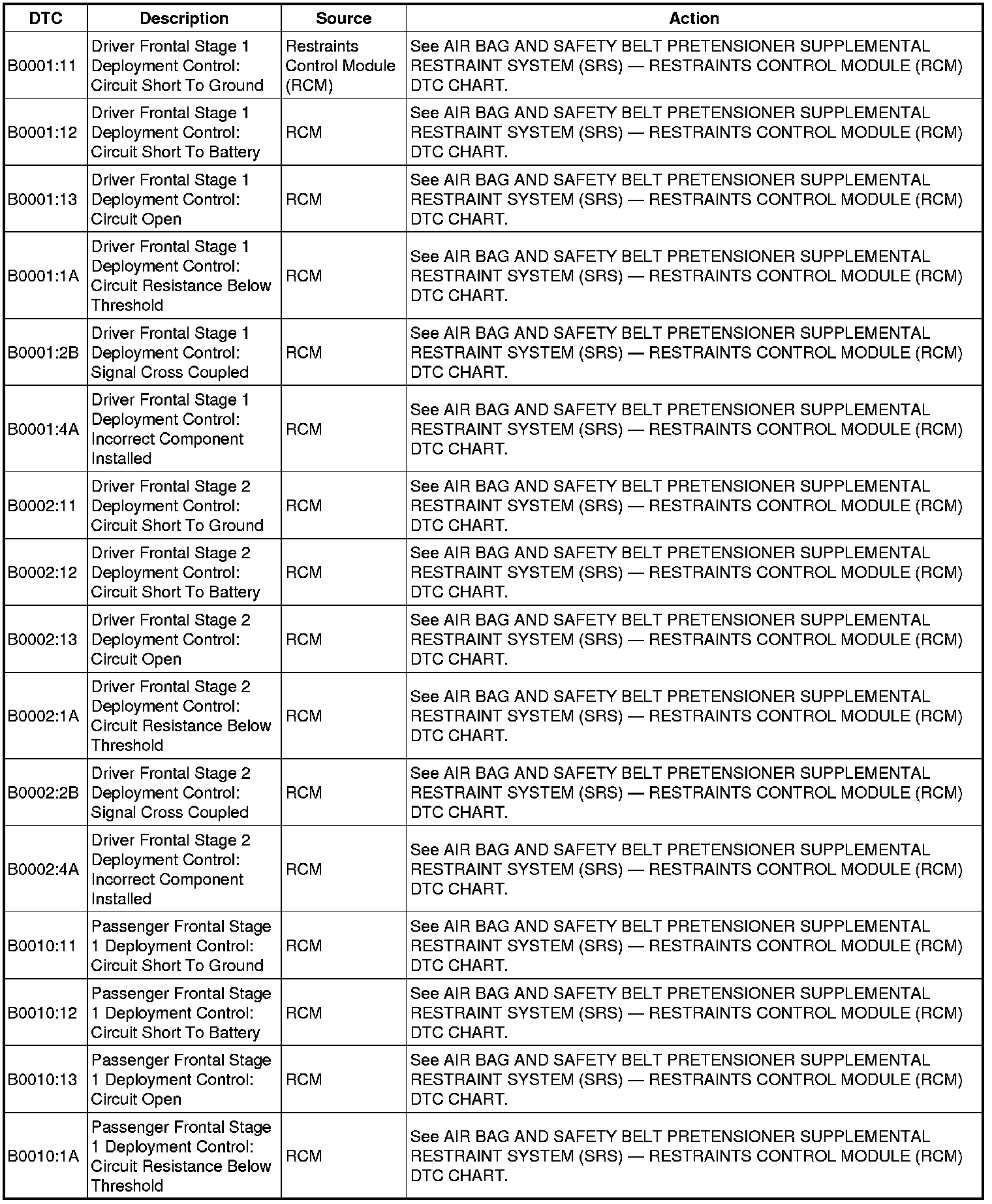

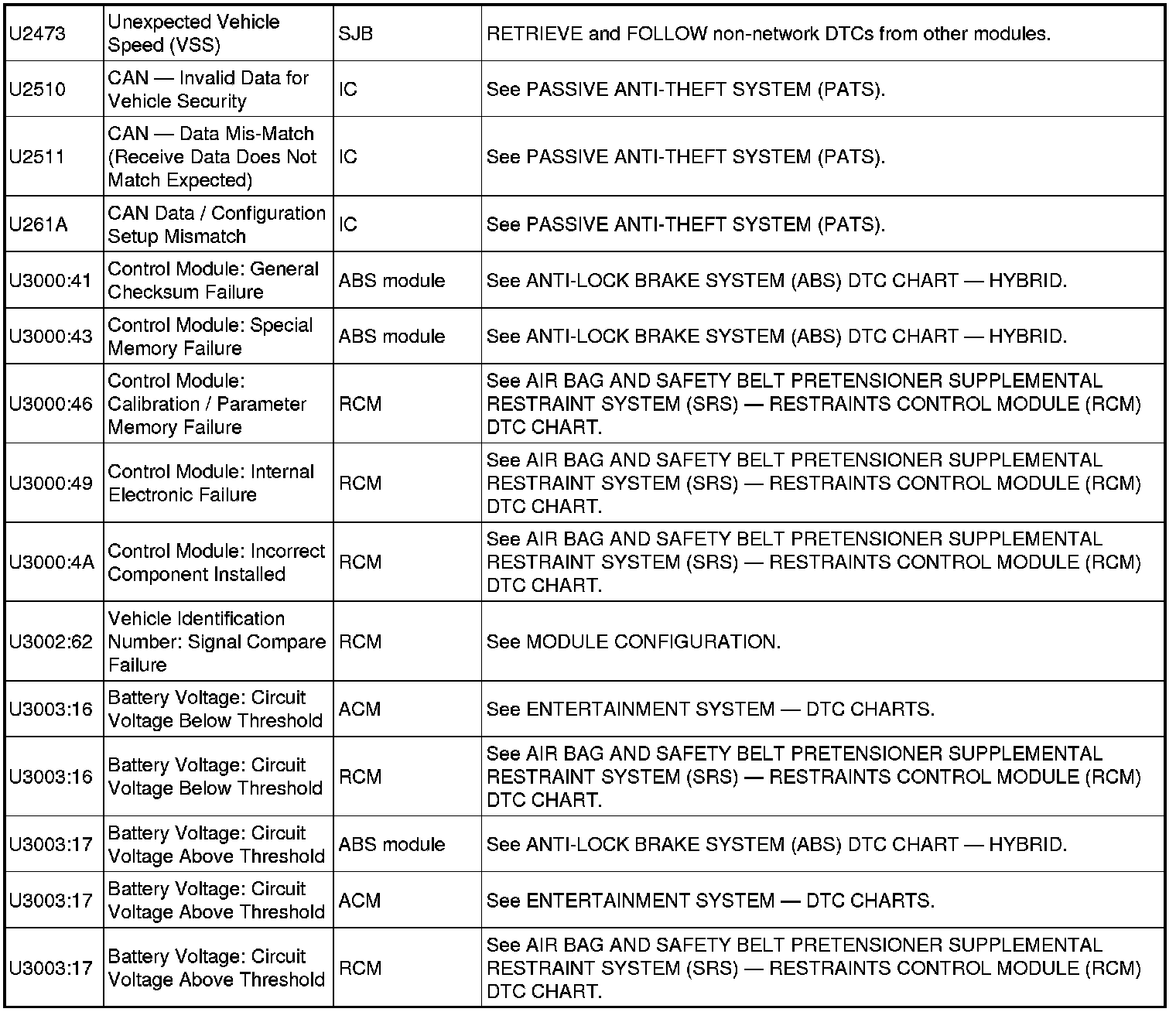

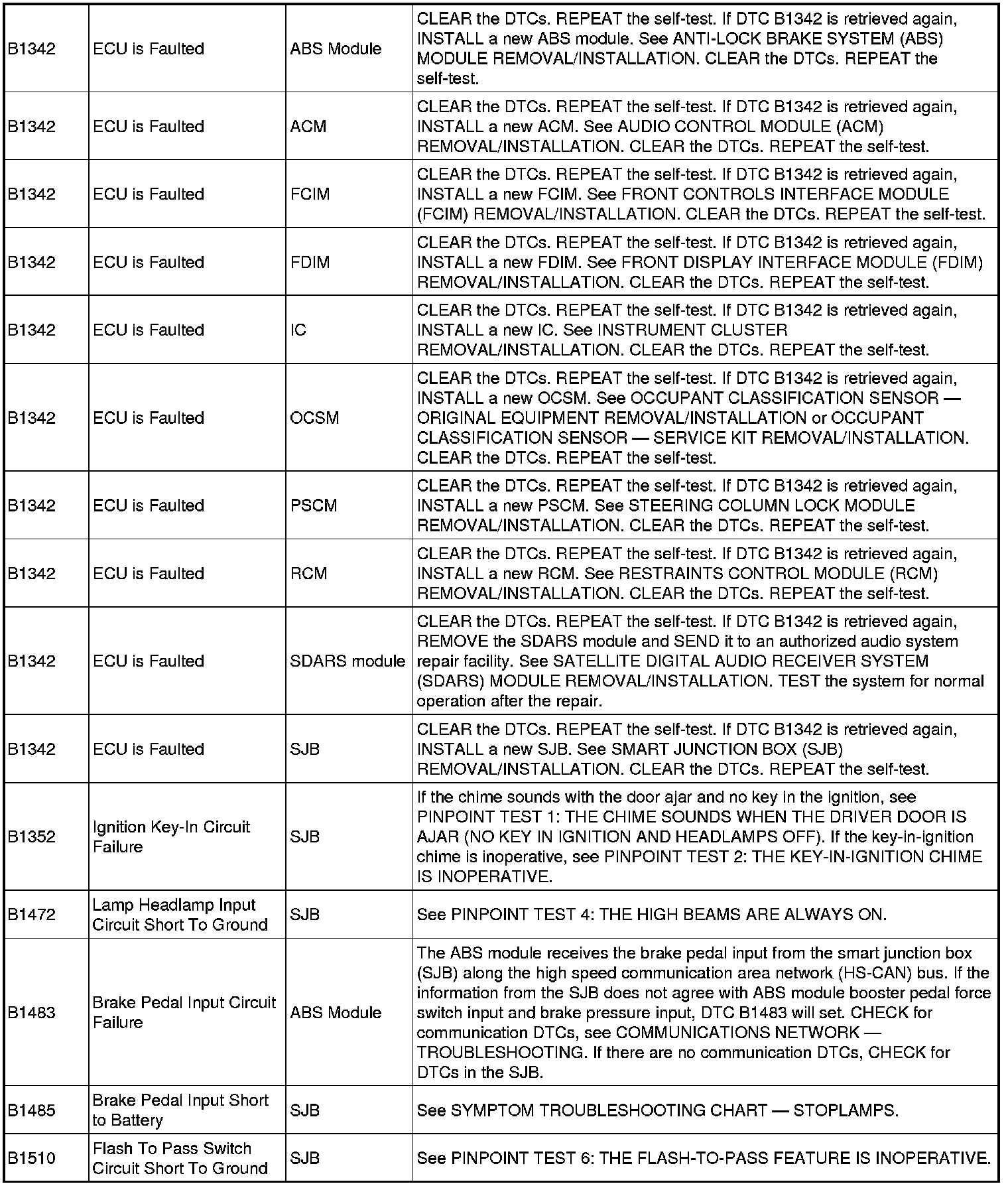

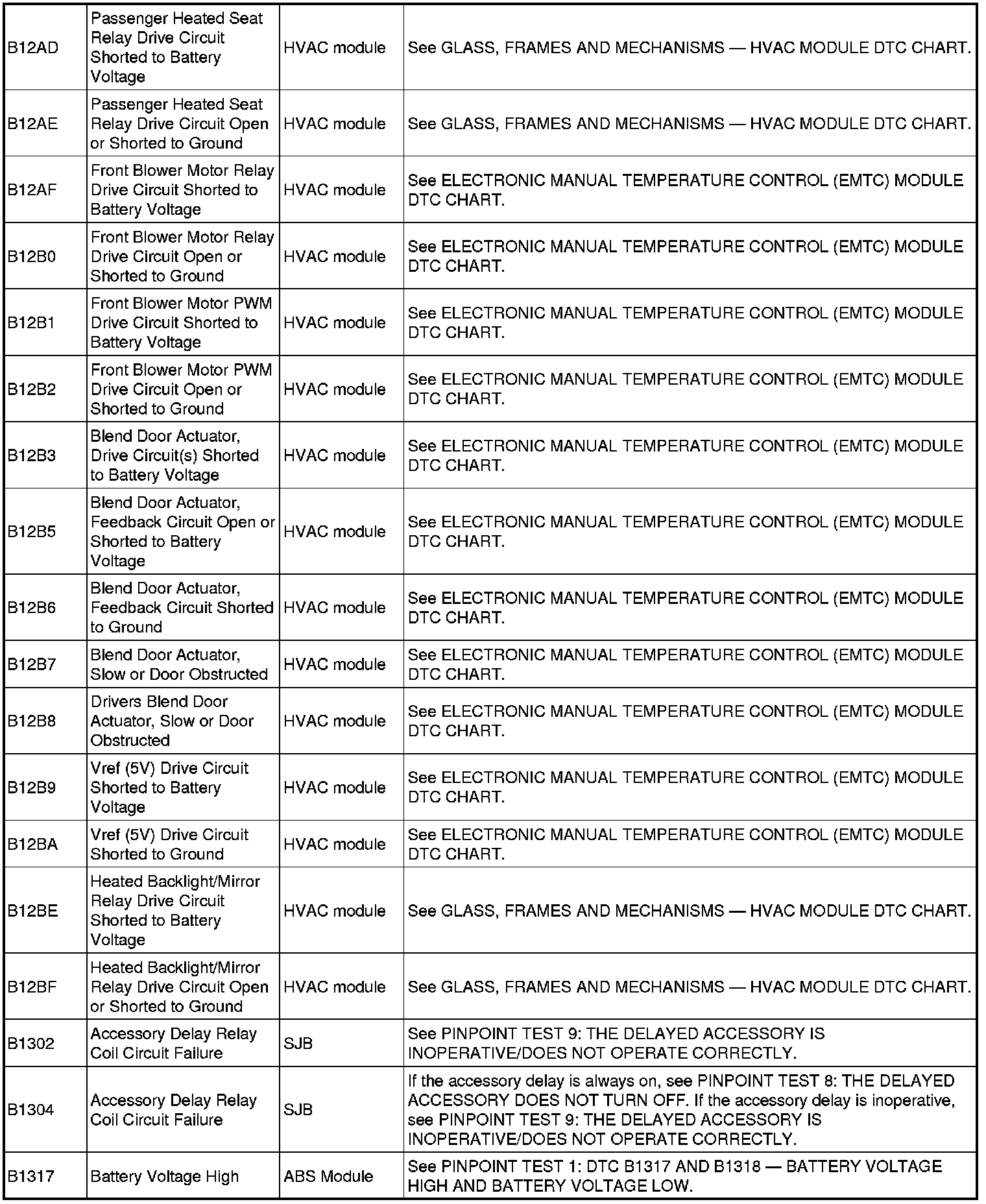

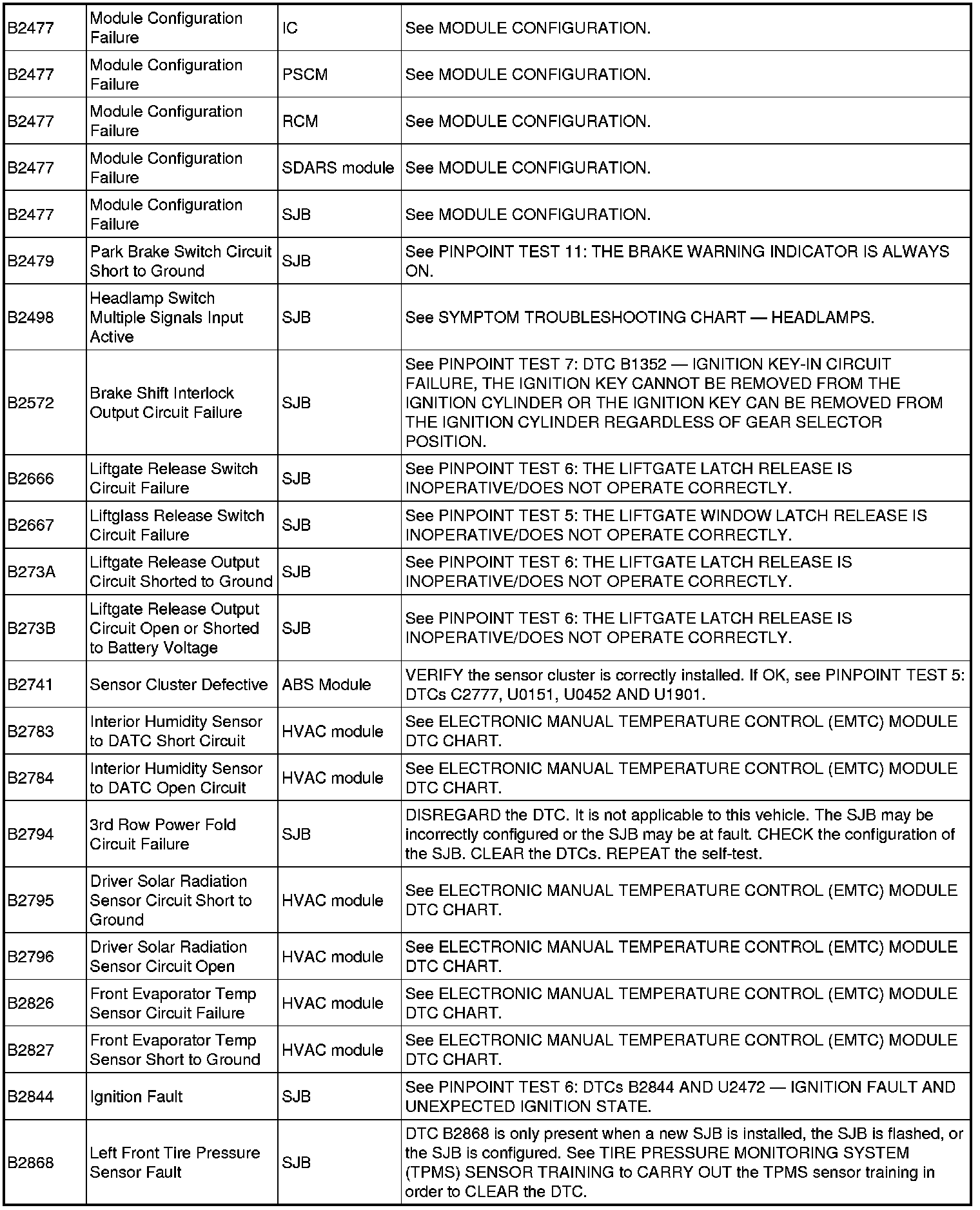

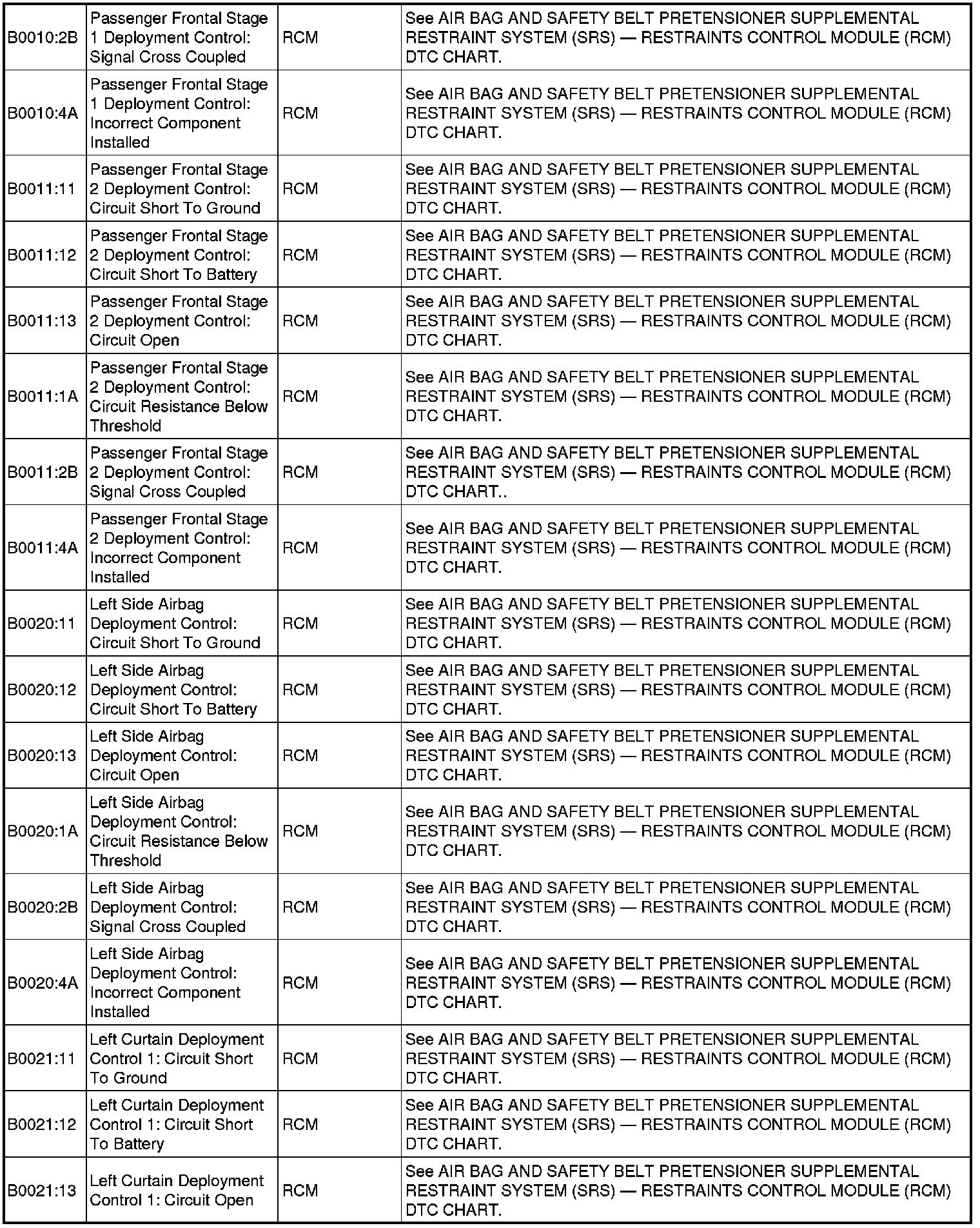

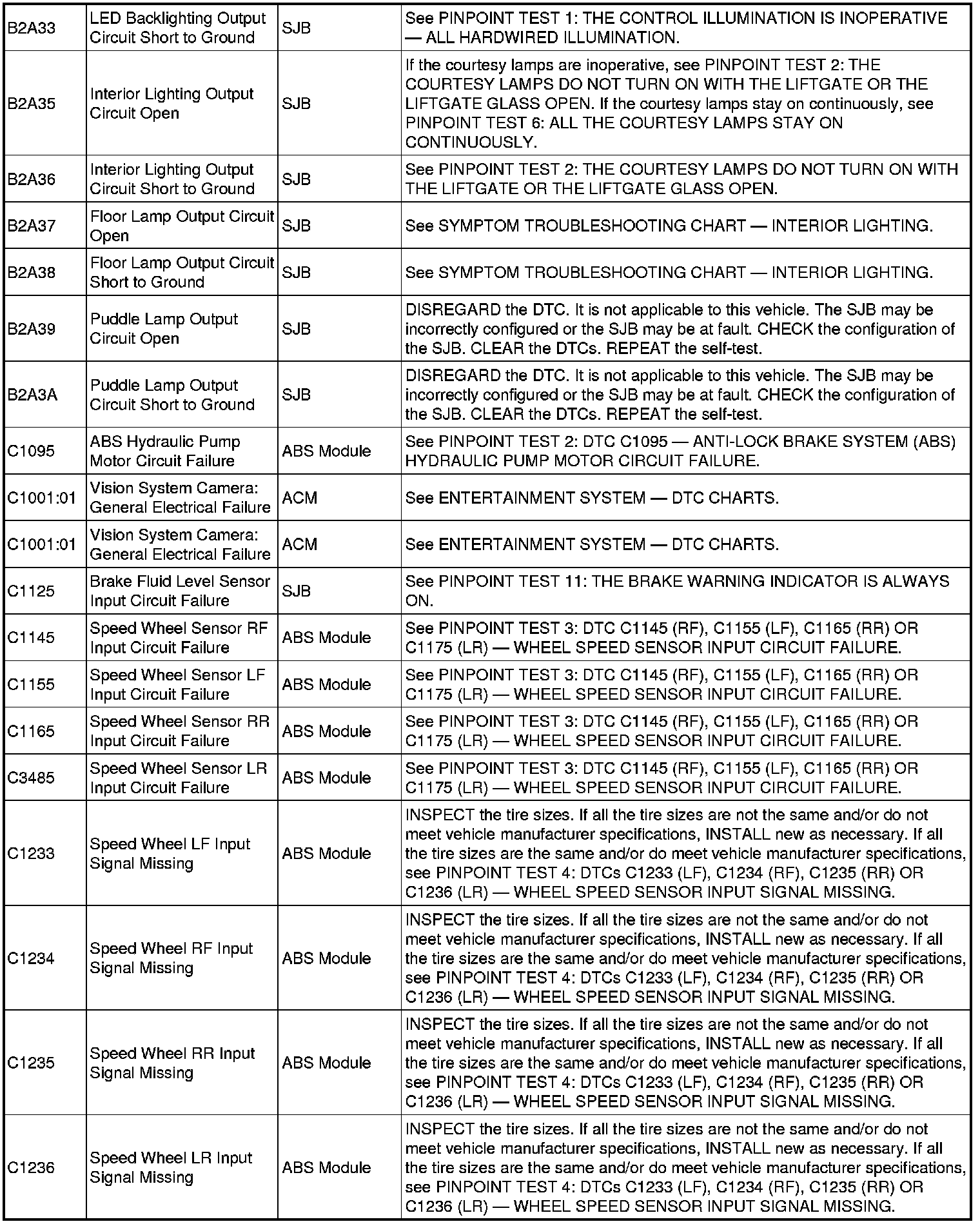

DTC CHART - B, C AND U CODES

NOTE:If the P-code retrieved is not listed below, see - PCM - DTC Index to continue diagnostics.
NOTE:The scan tool identifies the smart junction box (SJB) as the GEM. The acronym GEM is defined as generic electronic module.
