Transaxle Support Insulator - Lower, Rear Removal/Installation

TRANSAXLE SUPPORT INSULATOR - LOWER, REAR, 3.0L DOHC REMOVAL/INSTALLATION









1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.





2.

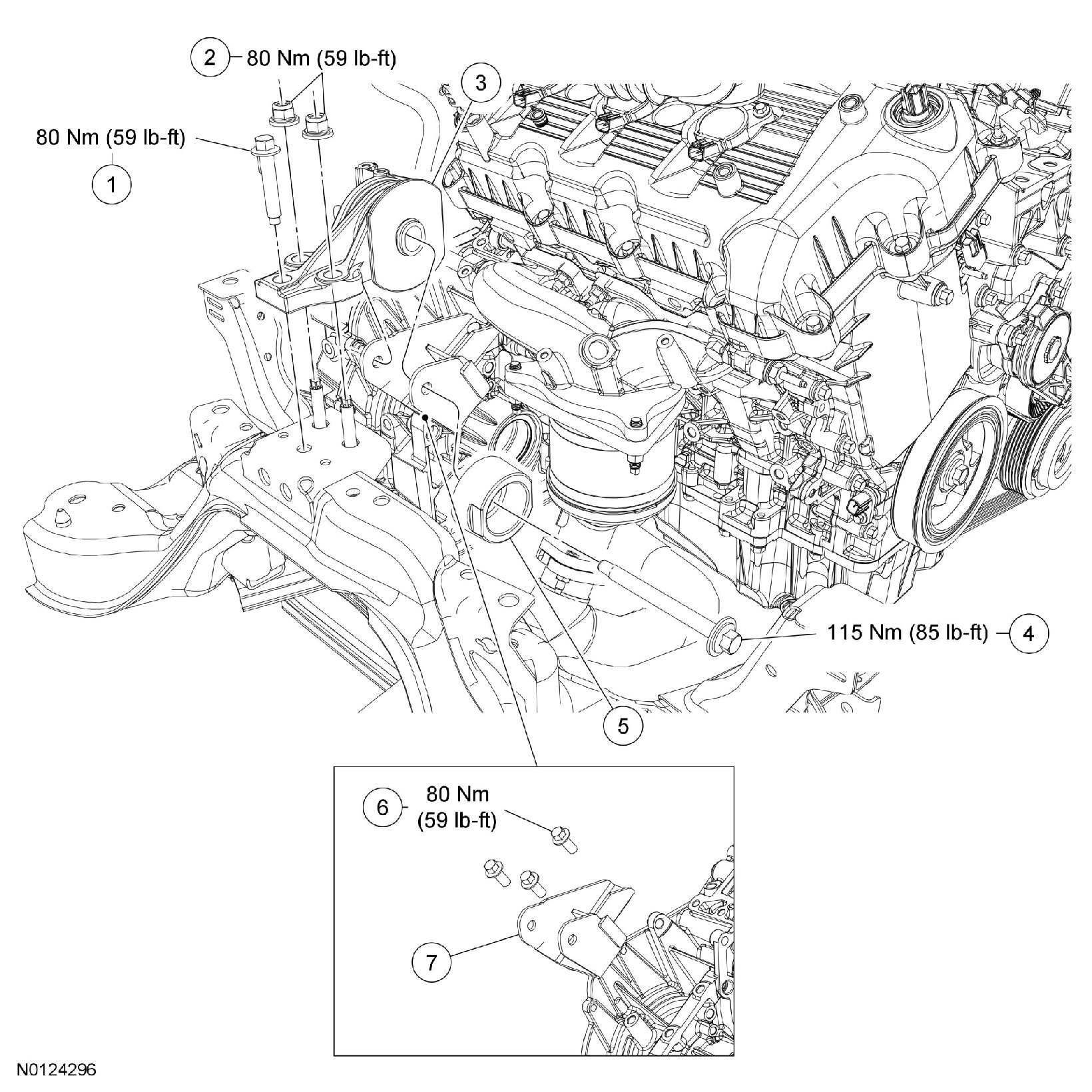

NOTE:All-Wheel Drive (AWD) shown, Front Wheel Drive (FWD) similar. Vehicles equipped with AWD have a damper that is held on by the through bolt.

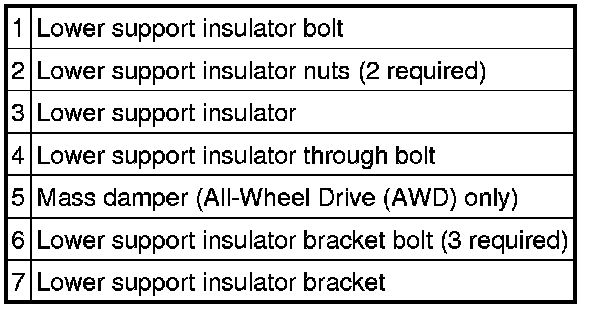

Remove the lower support insulator.

- Remove the lower support insulator through bolt.

- Tighten to 115 Nm {11.7 kgf-m, 85 ft-lbf}.

- Remove the lower support insulator bolt and 2 nuts.

- Tighten to 80 Nm {8.1 kgf-m, 59 ft-lbf}.

- Remove the lower support insulator.

3. If necessary, remove the 3 bolts and the lower support insulator bracket.

- To install, tighten to 80 Nm (59 lb-ft).

4. To install, reverse the removal procedure.
