Flywheel (MTX), Drive Plate (ATX) Assembly Note

Flywheel (MTX), Drive Plate (ATX) Assembly Note

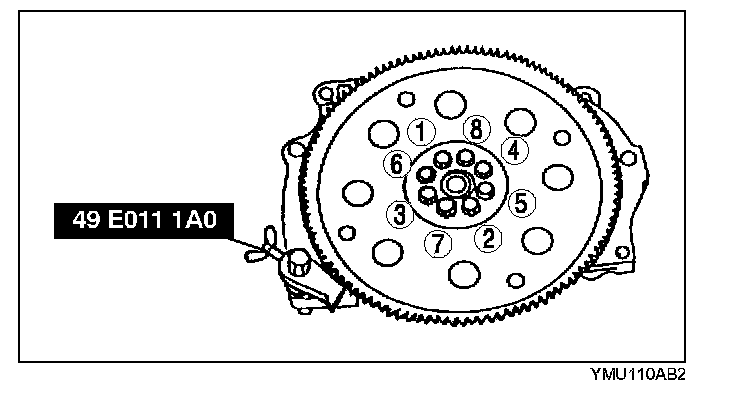

1. Hold the flywheel (MTX) or the drive plate (ATX) using the SST.





2. Tighten the bolts in the order indicated in the figure in several passes.
