Overhaul

CYLINDER HEAD DISASSEMBLY/ASSEMBLY - 3.0L









Disassembly

CAUTION:If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for locations. If not installed in their original positions, severe engine damage may occur.

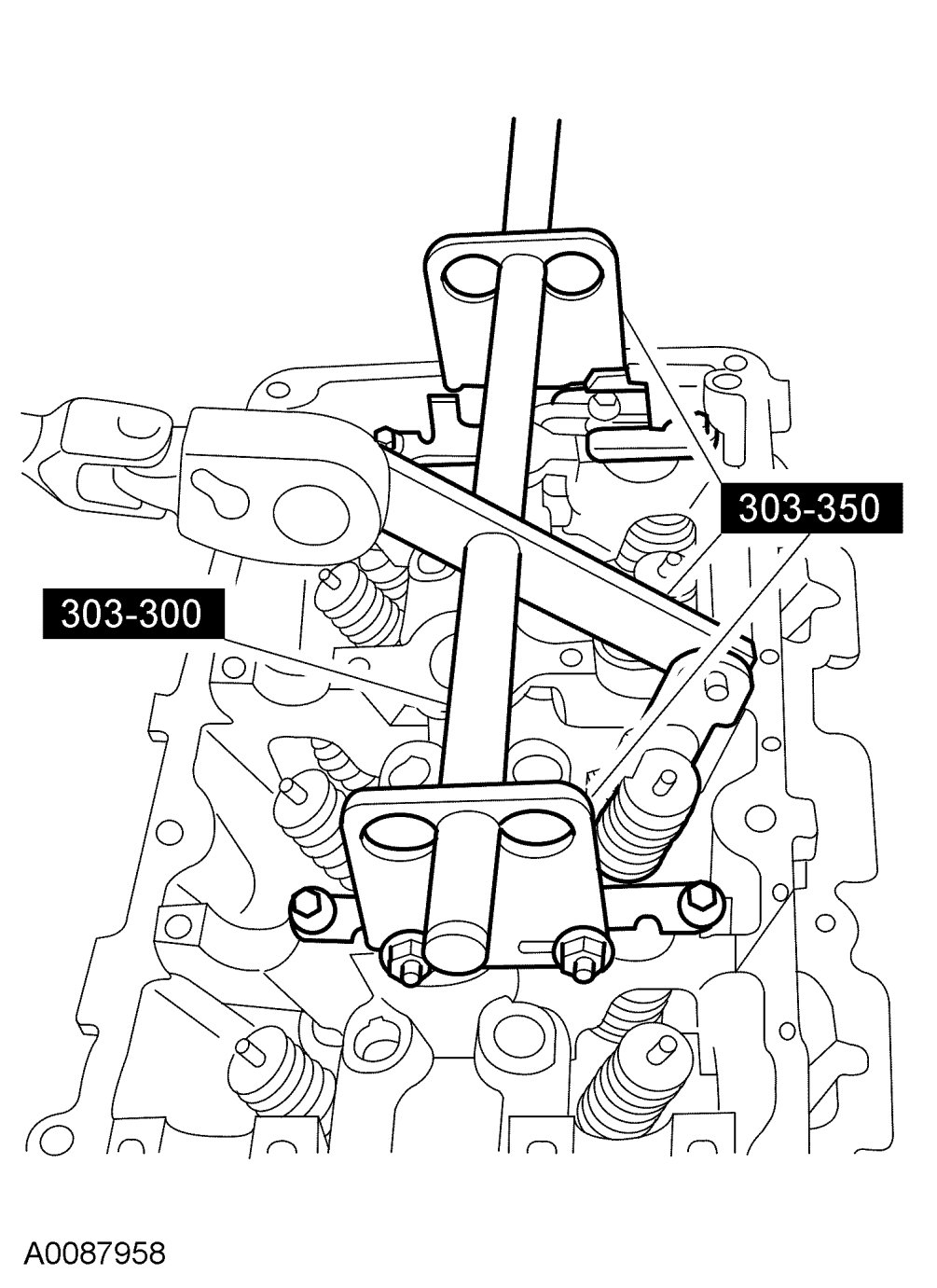

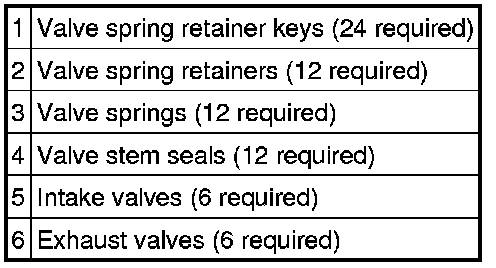

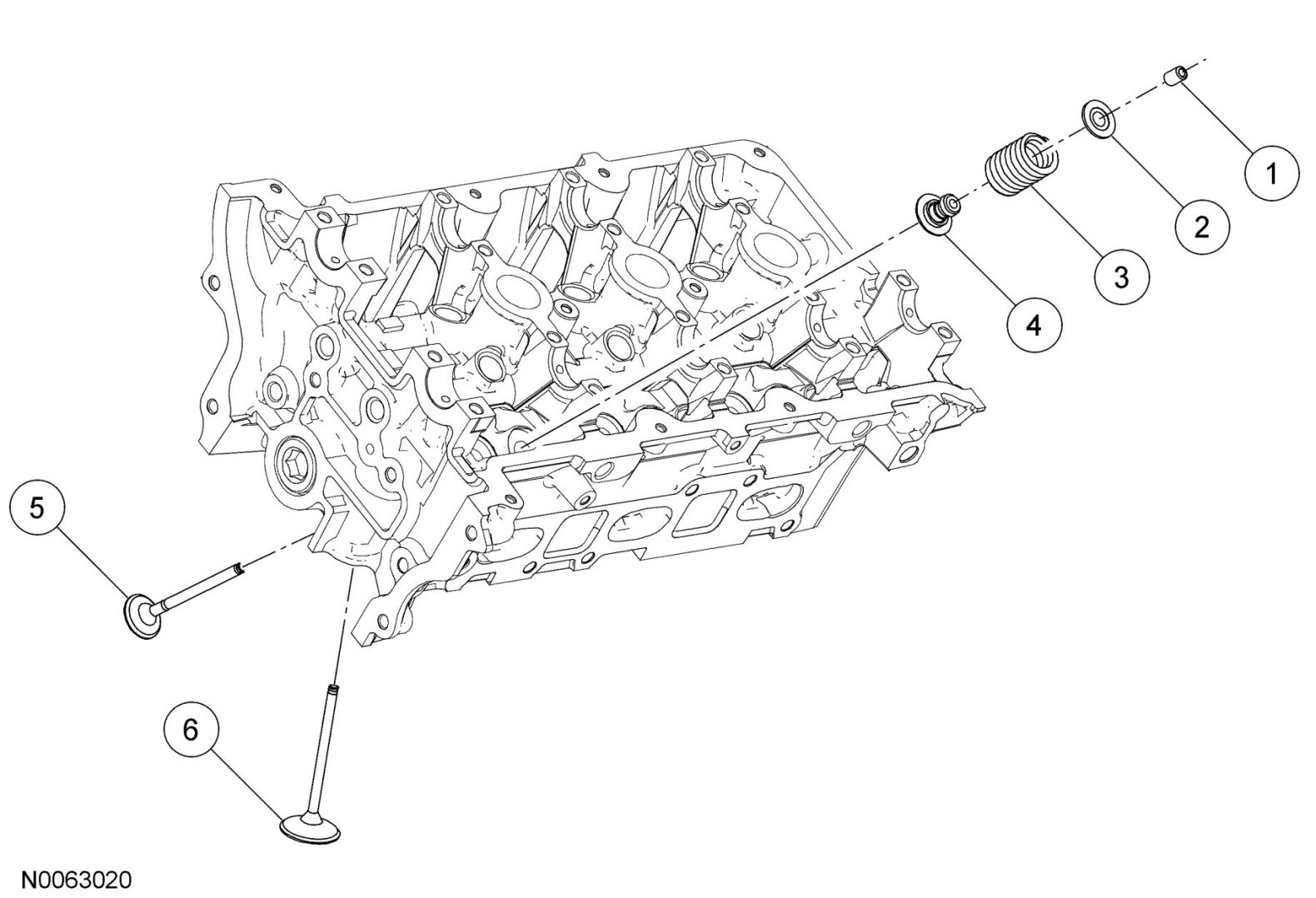

1. Using the special tools, remove the keys, retainer, and spring.

2. Remove the valve from the cylinder head.

3. Remove the valve stem seal.

Assembly

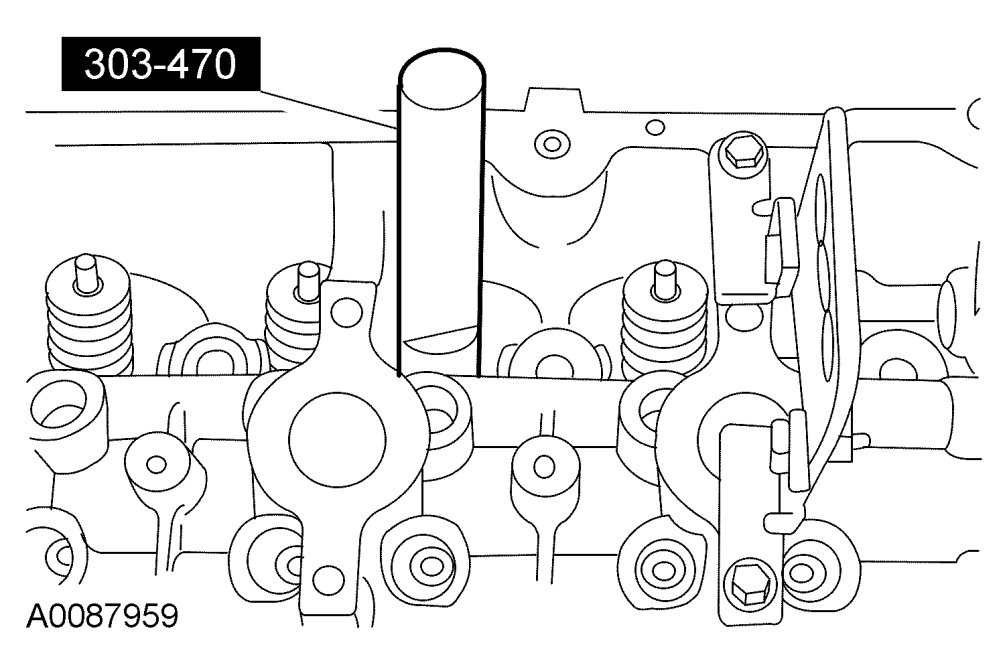

1. Using the special tool, install the valve stem seal.

2. Install the valve.





3. Using the special tools, install the valve spring, retainer and key.
