Pinpoint Test 6: Hard Shifting

PINPOINT TEST 6: HARD SHIFTING

Normal Operation

Clutch pedal movement is transmitted by fluid pressure to the slave cylinder, which in turn presses the release bearing against the clutch diaphragm spring. This force causes the spring to pull the pressure plate away from the clutch disc.The manual transaxle is controlled by a floor-mounted gearshift lever located in the floor console. Connection between the floor-mounted gearshift lever and the manual transaxle gearshift control assembly is made through 2 gearshift cables.When the operator moves the floor-mounted gearshift lever, that movement is transmitted through 2 gearshift cables routed through the body to the transaxle. The 2 gearshift cables are attached to the transaxle at the gearshift control assembly. The gearshift control assembly transfers the movement of the gearshift cables to the shift rods and shift forks located inside the transaxle.

Possible Causes
- Fluid level
- Clutch pressure plate
- Shift linkage

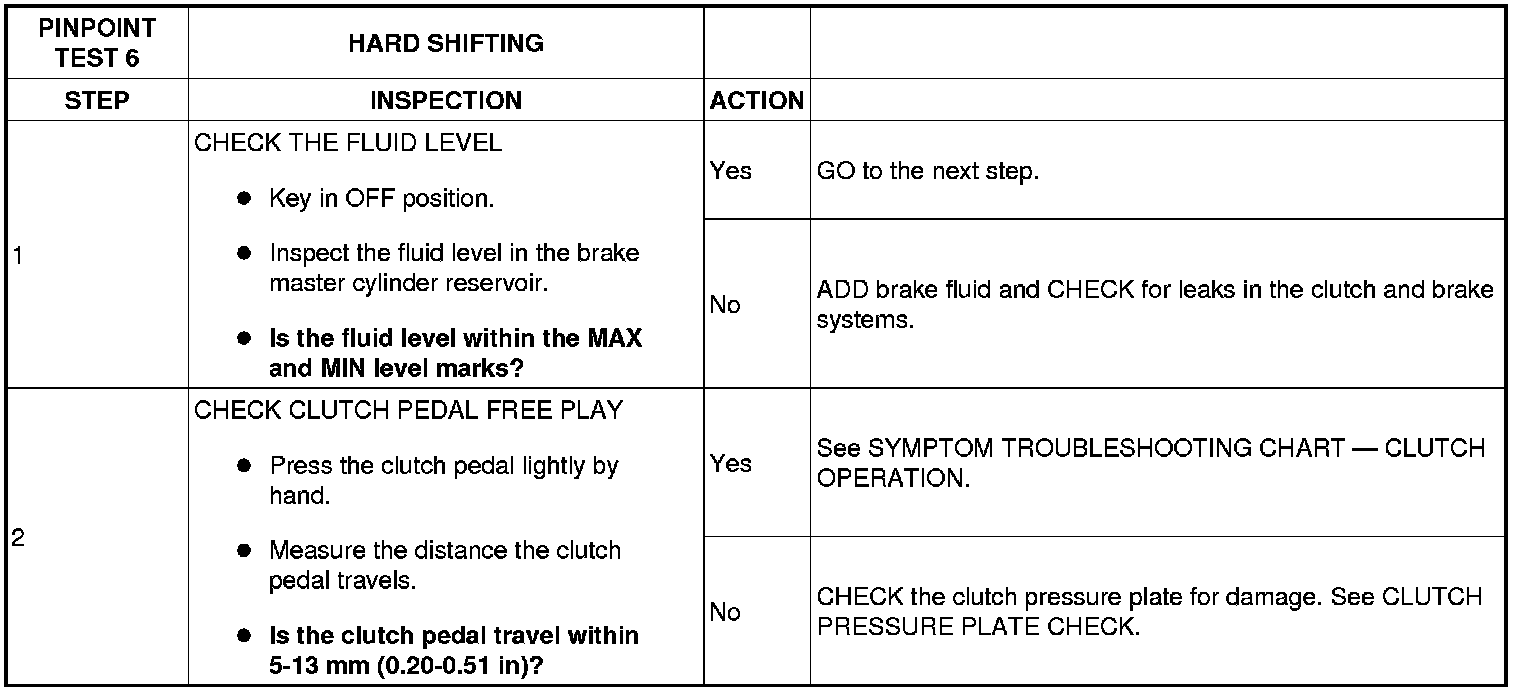

Diagnostic Procedure
