Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL REMOVAL/INSTALLATION

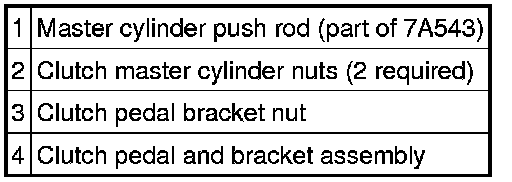

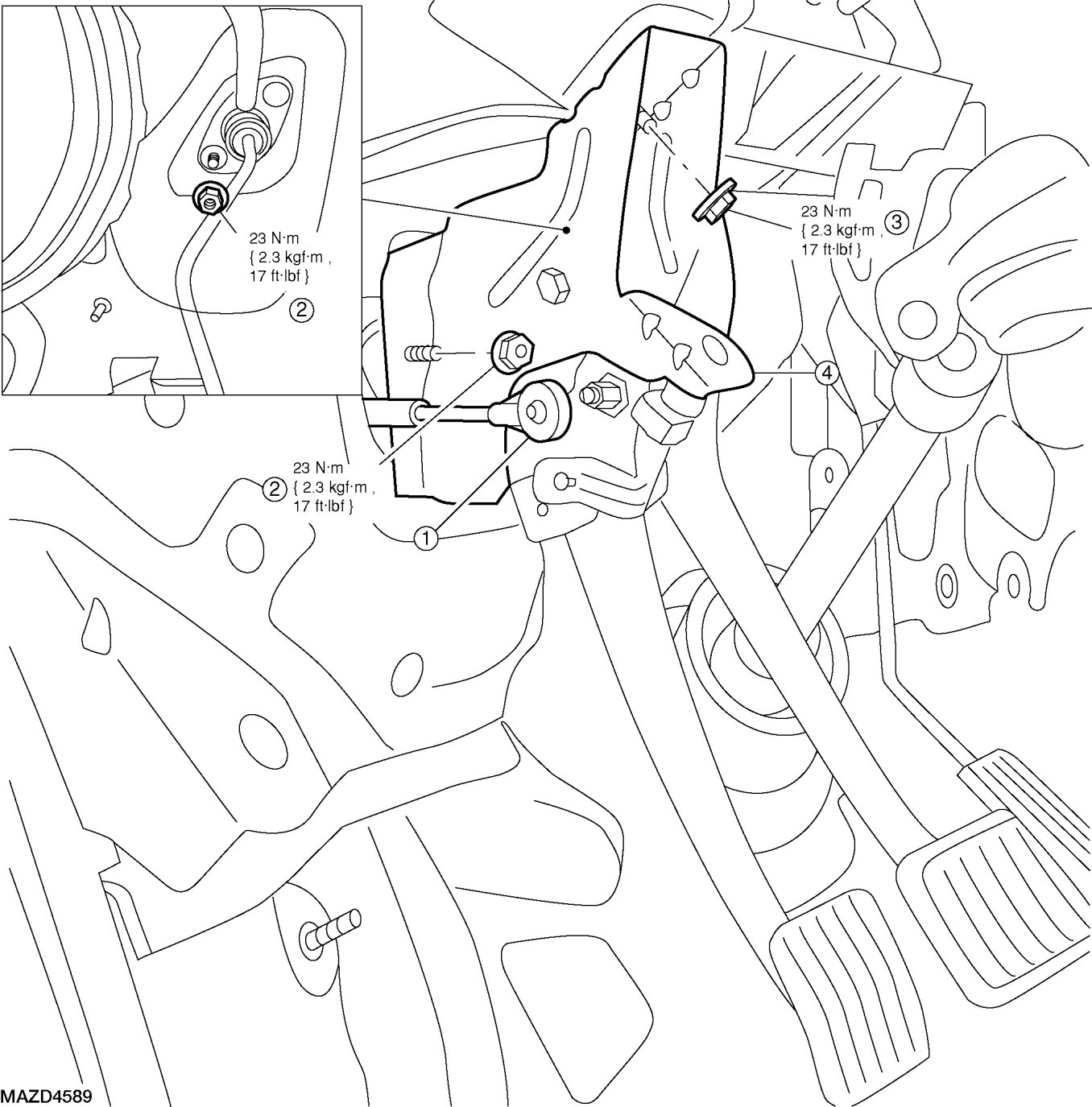

1. Disconnect the master cylinder push rod.

2. Remove the 2 clutch master cylinder nuts.

- To install, tighten to 23 Nm {2.3 kgf-m, 17 ft-lbf}.

3. Remove the clutch pedal and bracket assembly nut.

4. Disconnect the clutch master cylinder rod from the clutch pedal.

- To install, tighten to 23 Nm {2.3 kgf-m, 17 ft-lbf}.

5. Remove the clutch pedal and bracket assembly.

6. To install, reverse the removal procedure.
