Transaxle Support Insulator - Lower, Front Removal/Installation

TRANSAXLE SUPPORT INSULATOR - LOWER, FRONT REMOVAL/INSTALLATION









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.





2. Remove the LH splash shield.





3. Remove the 4 bolts and the rear cross brace.





4. Remove the lower front insulator through bolt and the 2 cross brace bolts.





5. Remove the cross brace nut and remove the brace.

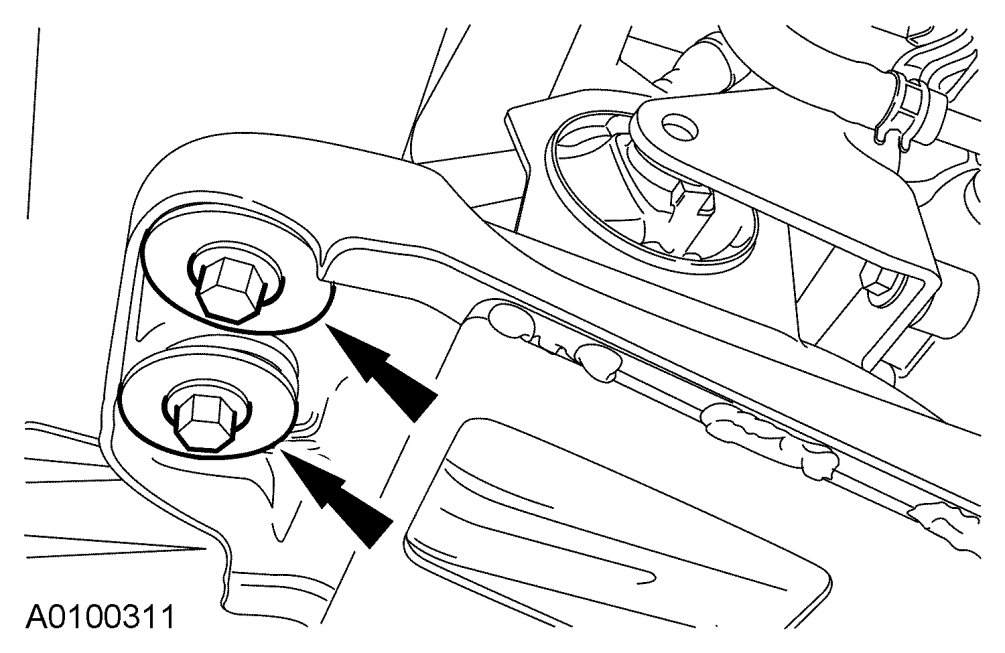

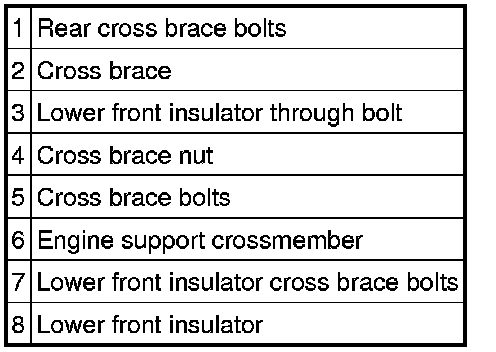

6. Remove the 2 bolts from the lower front insulator and remove the lower front insulator.

Installation

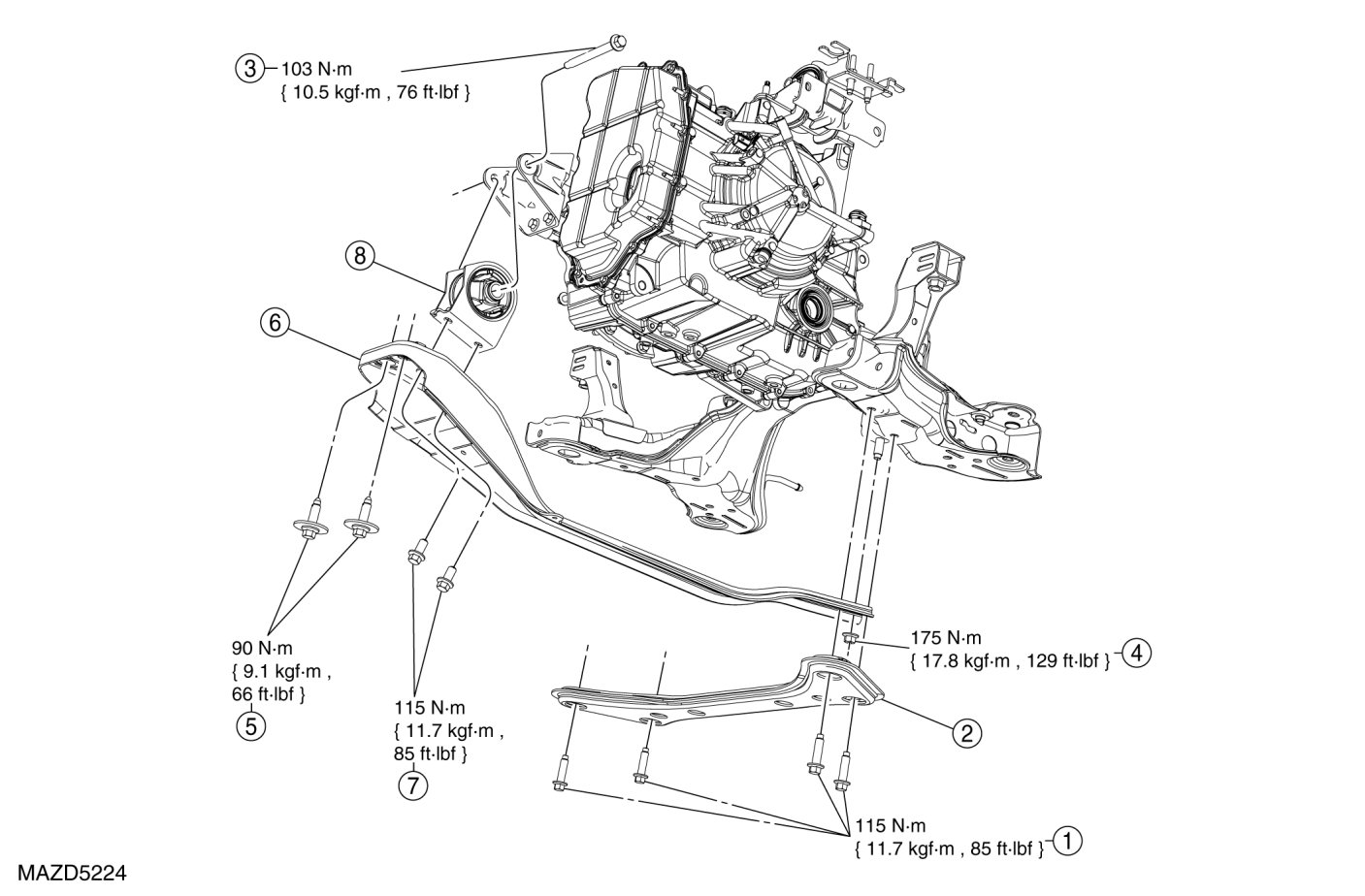

1. Install a new lower front insulator onto the cross brace and install the lower front insulator cross brace bolts.

- Tighten to 115 Nm {11.7 kgf-m, 85 ft-lbf}.





2. Position the cross brace in place and install the nut.

- Tighten to 175 Nm {17.8 kgf-m, 129 ft-lbf}.





3. Install the 2 bolts for the cross brace.

- Tighten to 90 Nm {9.1 kgf-m, 66 ft-lbf}.





4. Install the lower front support insulator through bolt for the mount.

- Tighten to 103 Nm {10.5 kgf-m, 76 ft-lbf}.





5. Install the rear cross brace and the 4 bolts.

- Tighten to 115 Nm {11.7 kgf-m, 85 ft-lbf}.





6. Install the LH splash shield and the retainers.
