Noise, Vibration And Harshness (NVH)

SYMPTOM TROUBLESHOOTING CHART - NVH

NOTE:NVH symptoms should be identified using the service tools that are available. For a list of these tools, see Tools and Equipment. Since it is possible any one of multiple systems may be the cause of a symptom, it may be necessary to use a process of elimination type of diagnostic approach to pinpoint the responsible system.

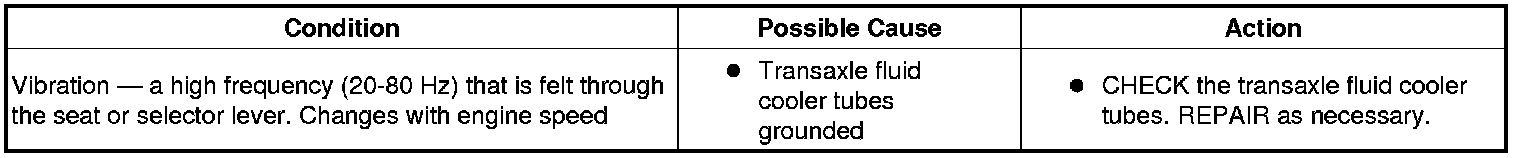

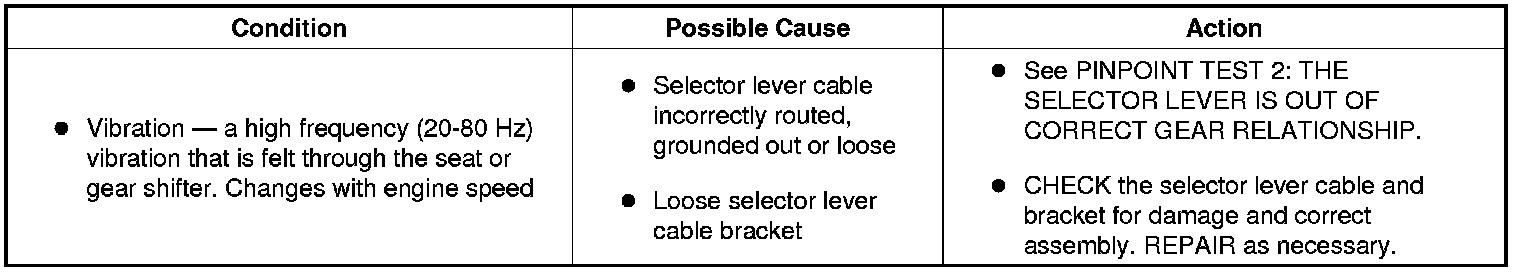

SYMPTOM TROUBLESHOOTING CHART - NOISE, VIBRATION AND HARSHNESS (NVH)
