Pinpoint Test 6: Turbine Shaft Speed (TSS) Sensor

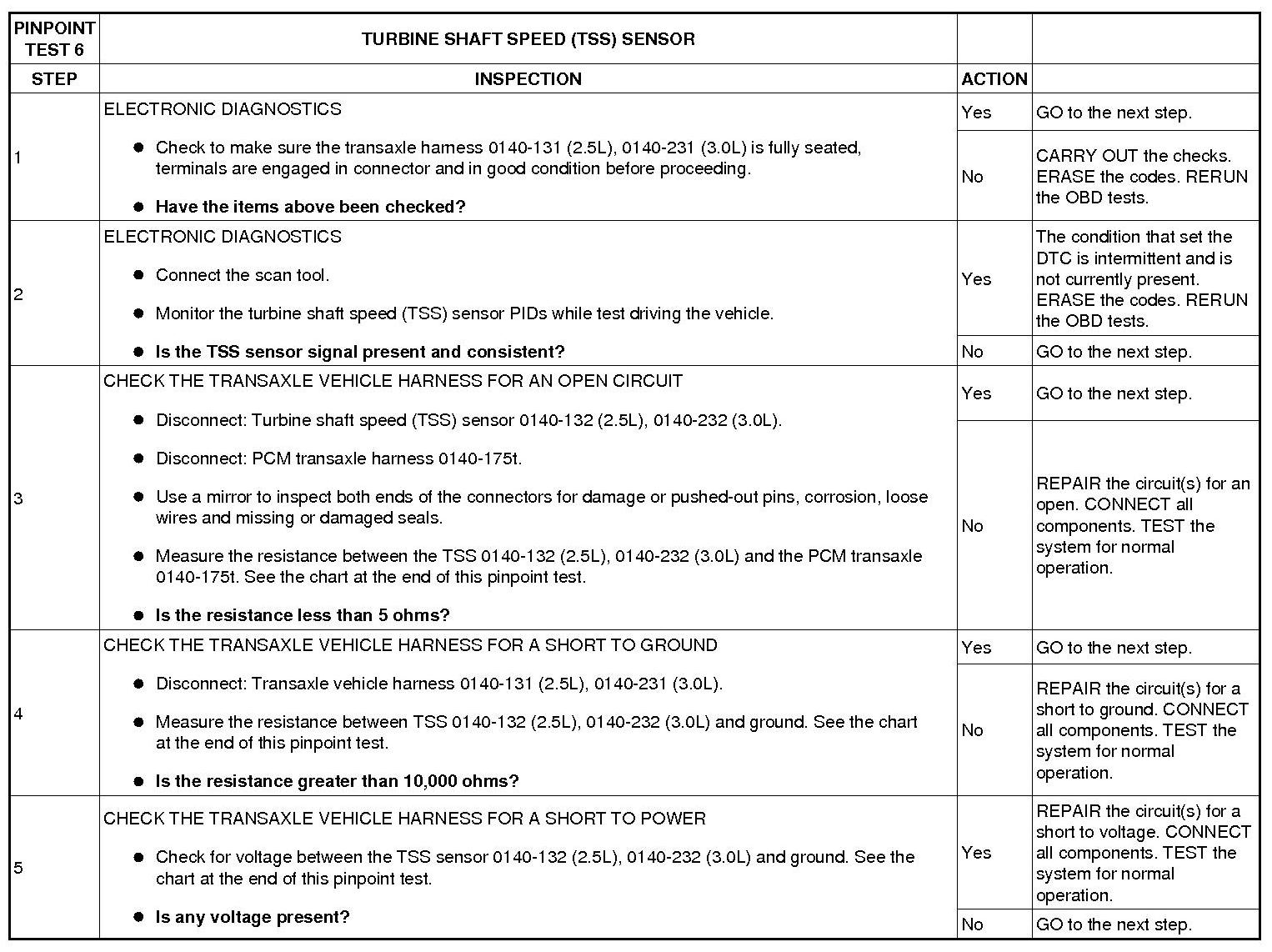

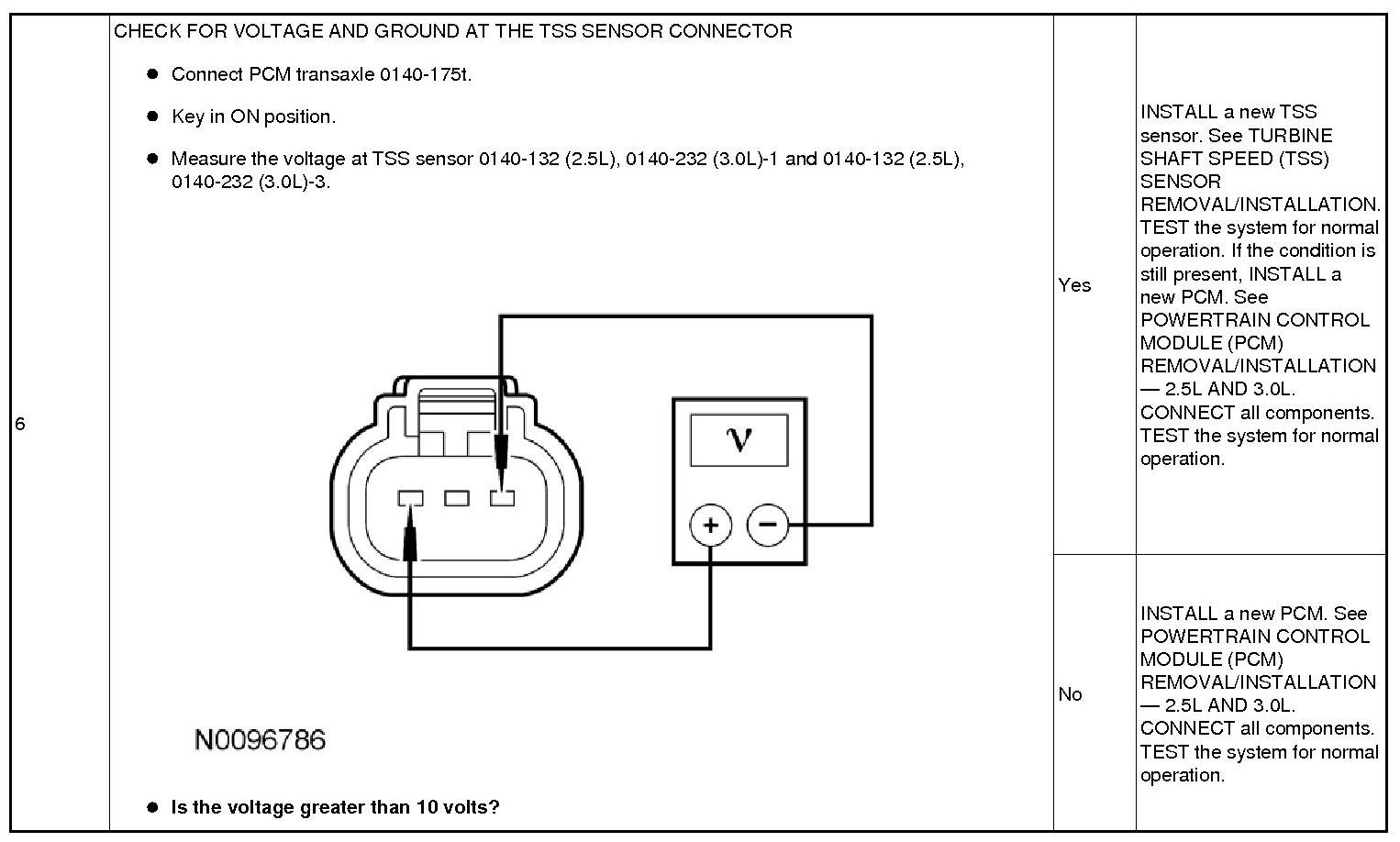

PINPOINT TEST 6: TURBINE SHAFT SPEED (TSS) SENSOR

NOTE:Refer to the transaxle connector illustrations and solenoid body leadframe internal wiring diagrams preceding these pinpoint tests. See [1][2]Automatic Transmission/Transaxle.
NOTE:TSS codes may be a result of bad power and ground circuits shared between the TR sensor, OSS sensor and TSS sensor.

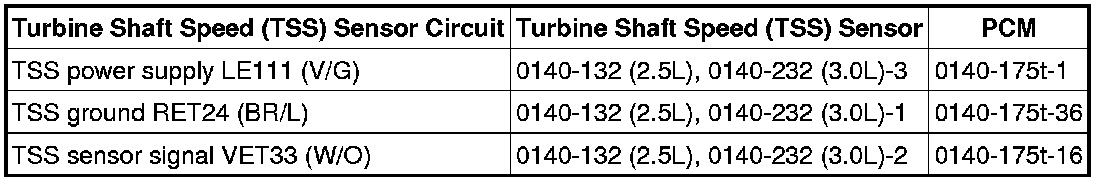

Turbine Shaft Speed (TSS) Sensor Circuit, Turbine Shaft Speed (TSS) Sensor and PCM

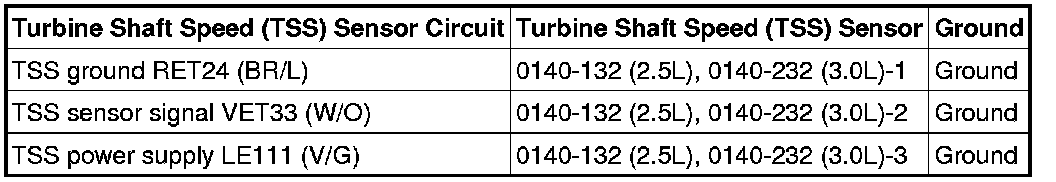

Turbine Shaft Speed (TSS) Sensor Circuit, Turbine Shaft Speed (TSS) Sensor and Ground
