Pinpoint Test 5: Transaxle Solenoid Pressure Control Circuit

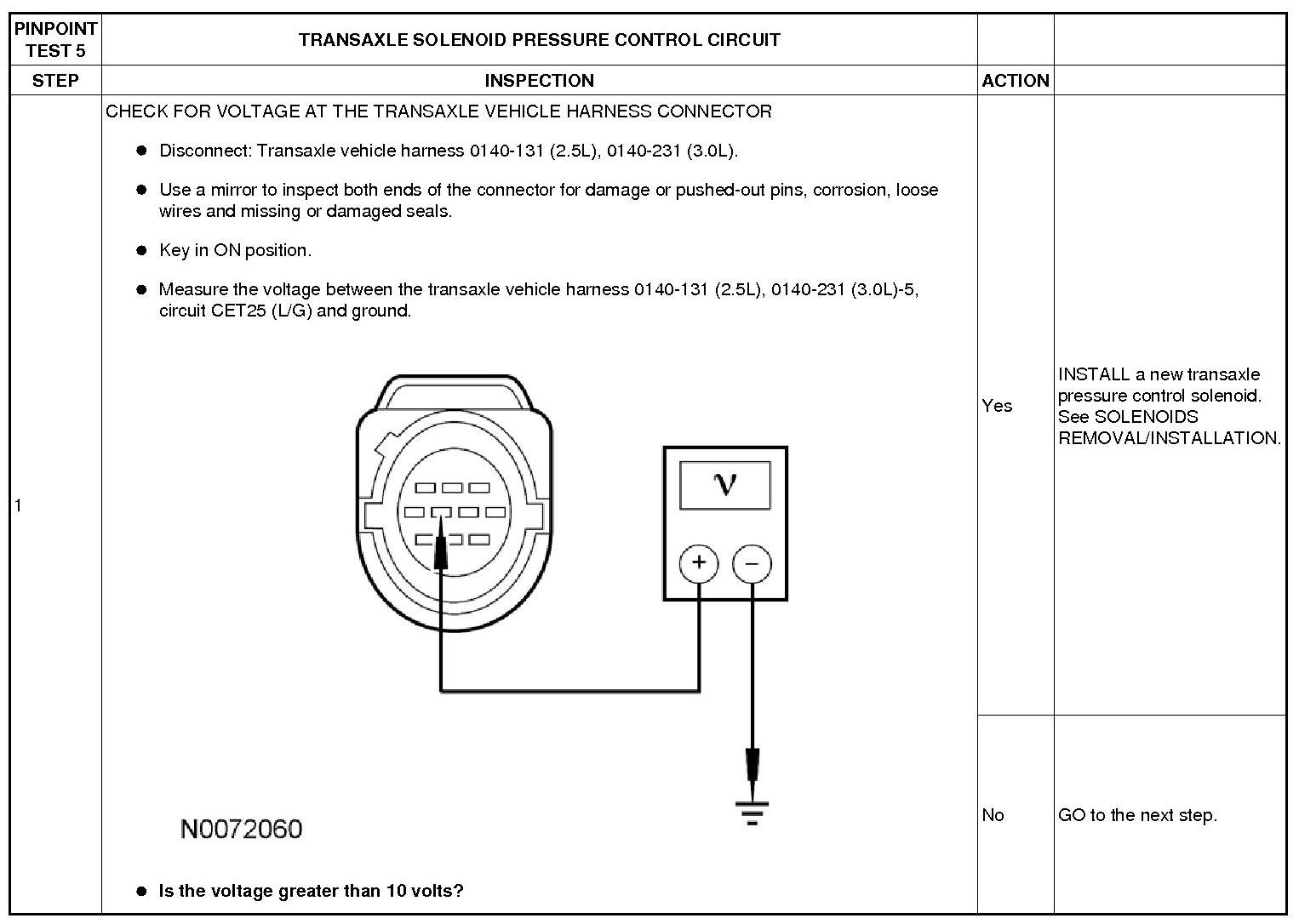

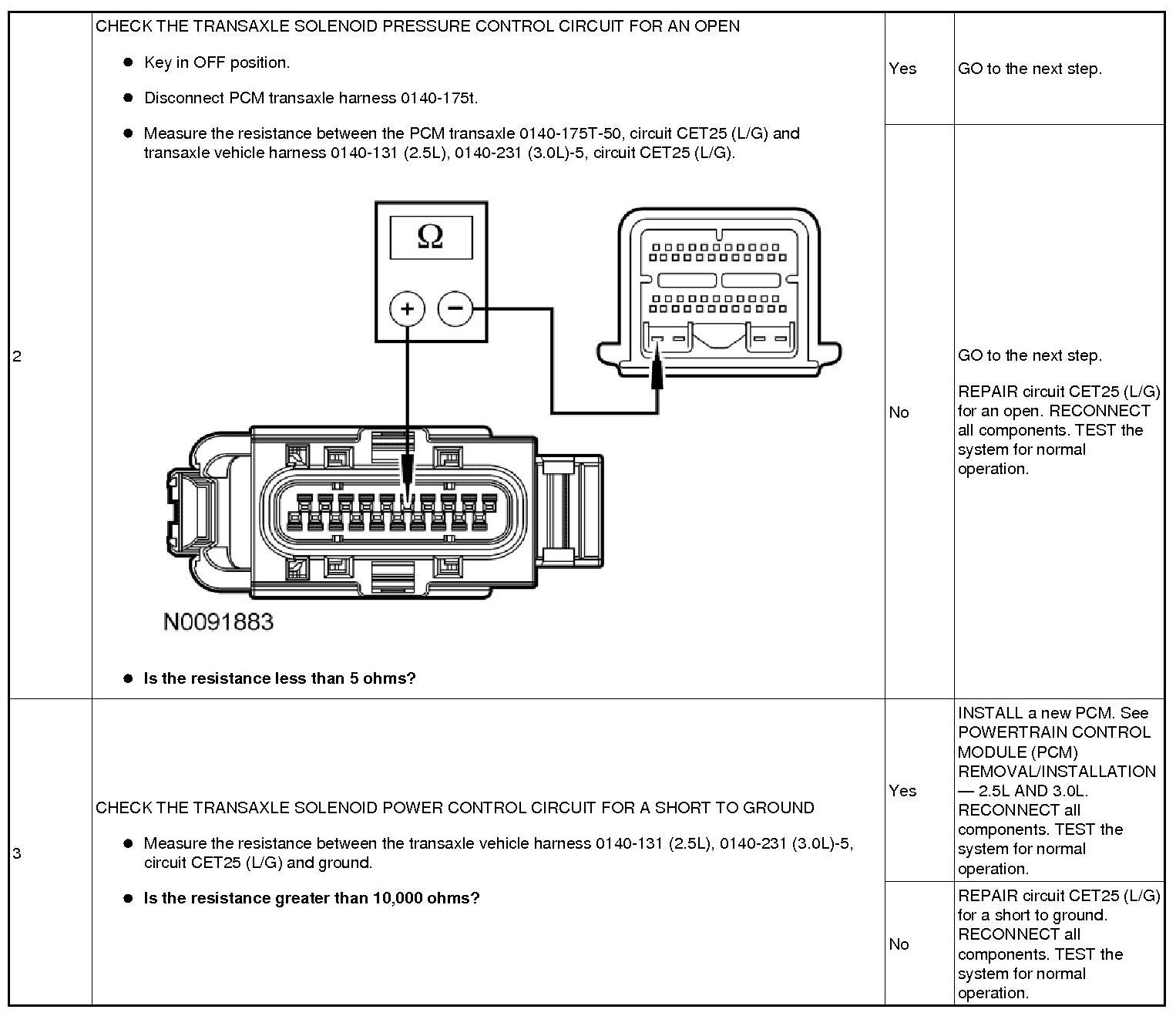

PINPOINT TEST 5: TRANSAXLE SOLENOID PRESSURE CONTROL CIRCUIT

NOTE:Refer to the transaxle connector illustrations and solenoid body leadframe internal wiring diagrams preceding these pinpoint tests. See [1][2]Automatic Transmission/Transaxle.
