Pinpoint Test 2: Transaxle Fluid Temperature (TFT) Sensor

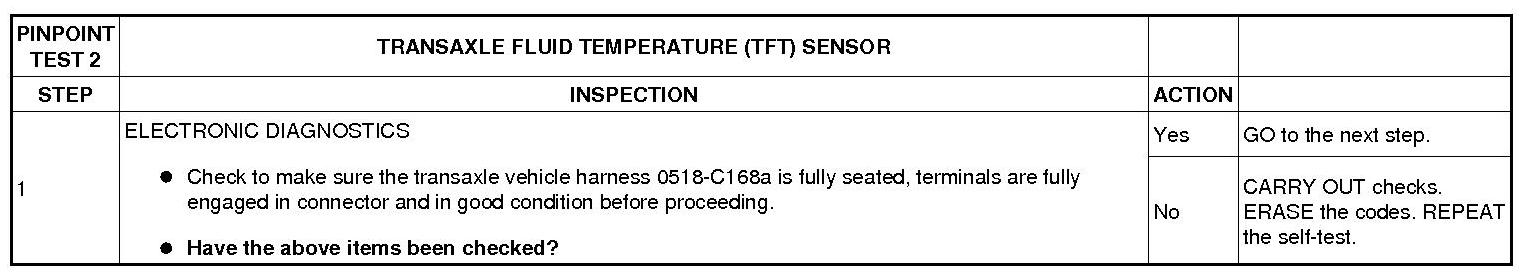

PINPOINT TEST 2: TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR

NOTE:Refer to the transaxle connector illustrations and solenoid body leadframe internal wiring diagram preceding these pinpoint tests. See [1][2]Automatic Transmission/Transaxle.
