Rear Safety Belt Retractor Removal/Installation

REAR SAFETY BELT RETRACTOR REMOVAL/INSTALLATION

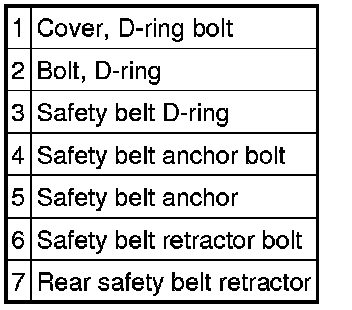

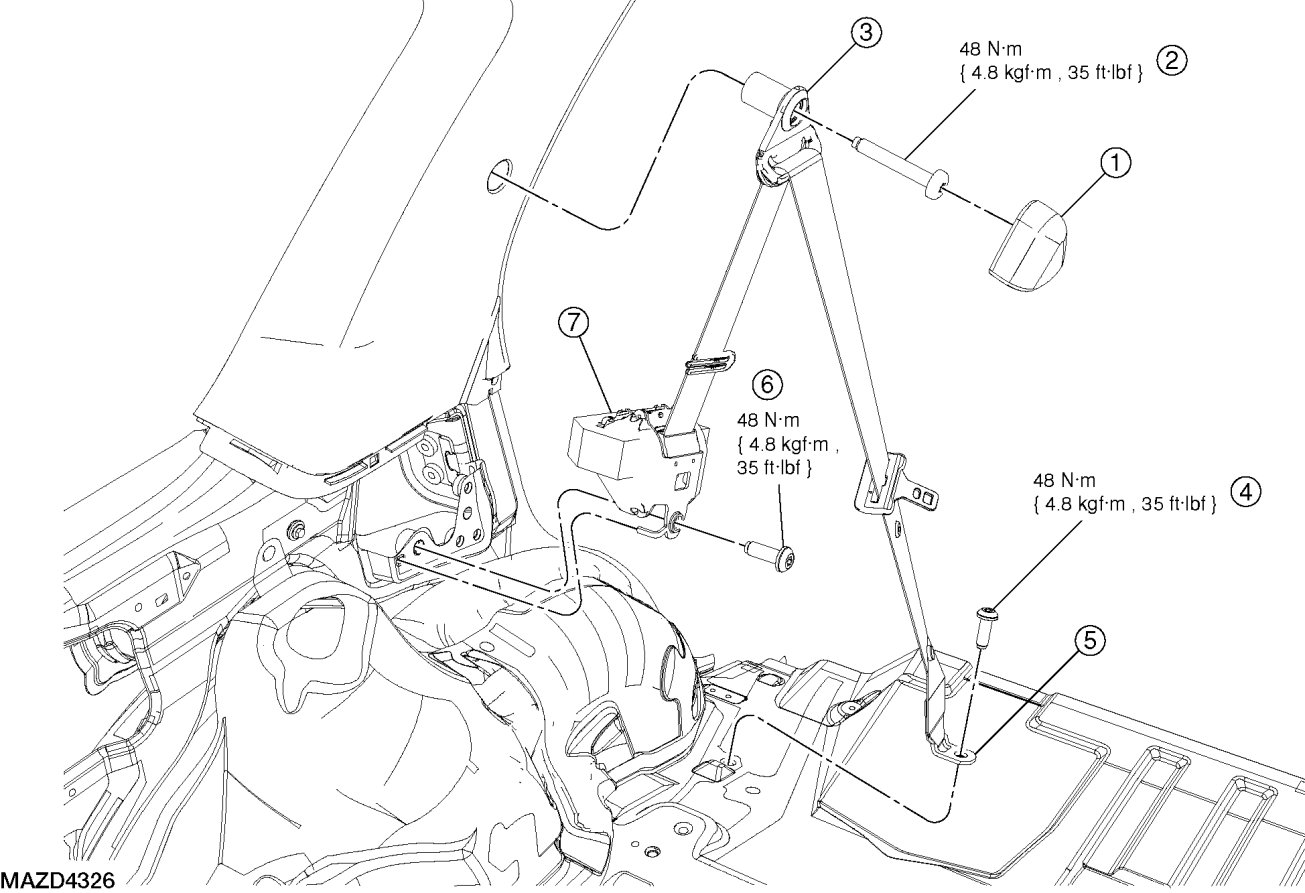

NOTE:RH rear safety belt retractor shown, LH side similar.










WARNING:All safety belt assemblies including retractors, buckles, belt tension sensor (BTS), if equipped, front seat belt buckle support assemblies (slide bar), if equipped, shoulder belt height adjusters, if equipped, child safety seat tether bracket assemblies, if equipped, and attaching hardware should be inspected after any collision. Mazda recommends new safety belt assemblies be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Safety belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.The Automatic Locking Retractor (ALR) feature of the safety belt retractor must be checked by a qualified technician to verify that the ALR feature for a child seat is functioning properly, in addition to other checks for proper safety belt system function. A belt and retractor assembly must be replaced if the safety belt assembly's "automatic locking retractor" feature or any other safety belt function is not operating properly when inspected according to the functional inspection procedures in the service information. Failure to replace the belt and retractor assembly could increase the risk of injury in collisions.
1. Remove the rear quarter trim panel. See - Locations.

2. Remove the D-ring cover.

NOTE:Inspect the D-ring cover for damage. If the cover is damaged or does not remain closed, install a new D-ring cover and bolt.
3. Remove the D-ring bolt.

- To install, tighten to 48 Nm {4.8 kgf-m, 35 ft-lbf}.

4. Remove the safety belt anchor bolt.

- To install, tighten to 48 Nm {4.8 kgf-m, 35 ft-lbf}.

5. Remove the bolt and the rear safety belt retractor.

- To install, tighten to 48 Nm {4.8 kgf-m, 35 ft-lbf}.

6. To install, reverse the removal procedure.

7. Check the active restraint system for correct operation.

- Make sure that after the rear safety belt retractor is installed, the retractor is not in the automatic locking retractor (ALR) mode.
