Mazda Truck
>>
2011
>>
Tribute 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector End Views - Restraints
Connector End Views - Restraints

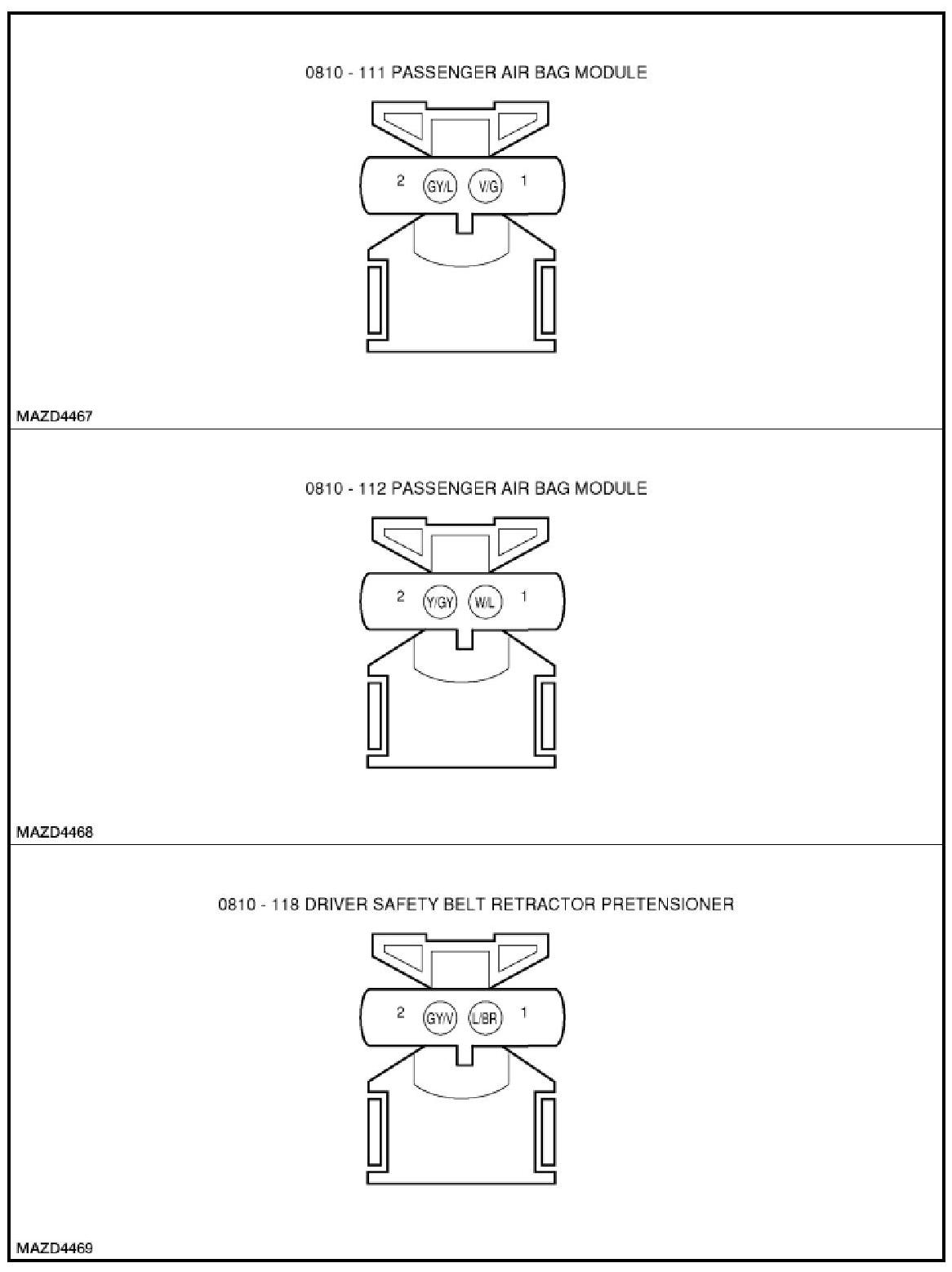

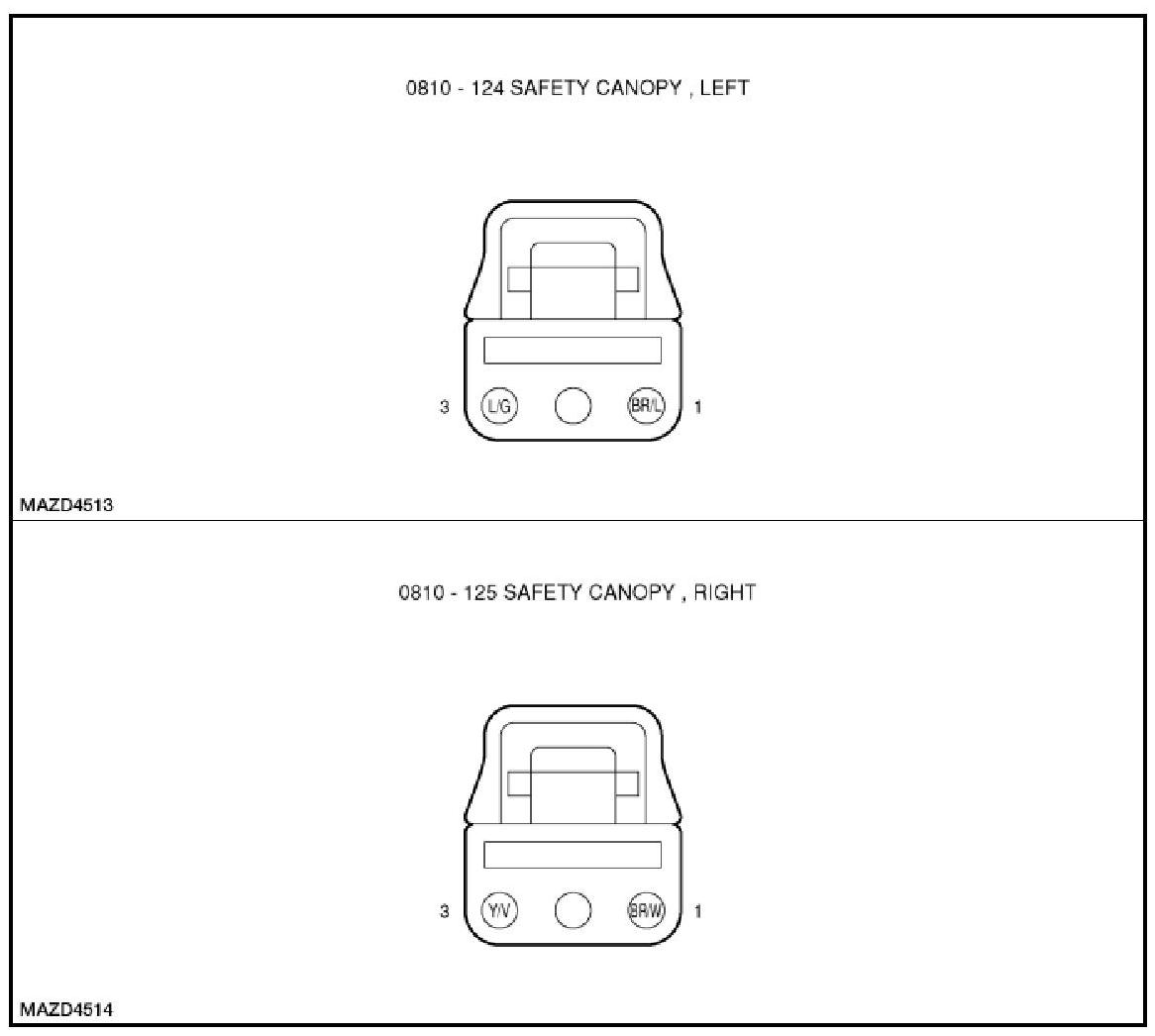

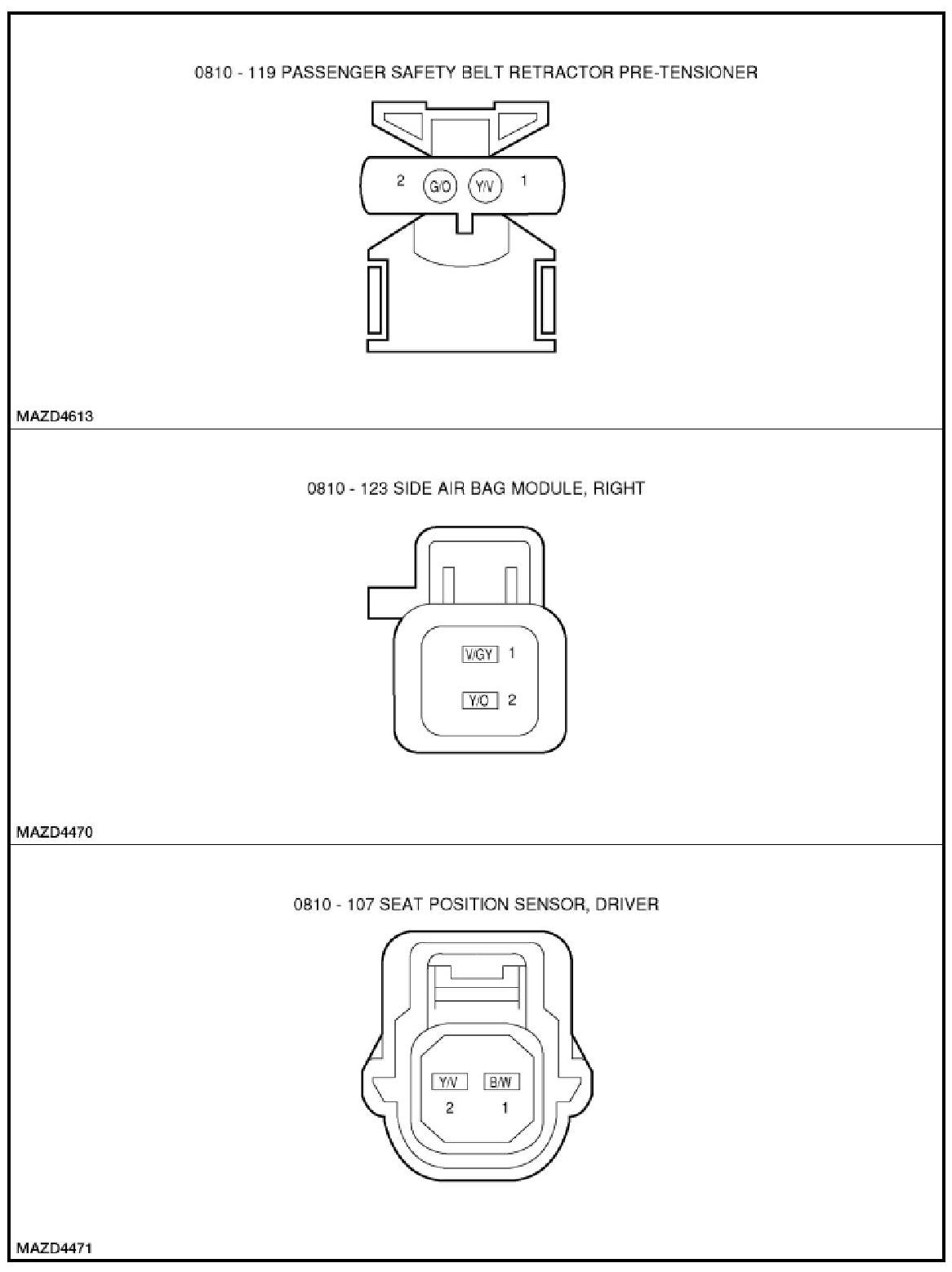

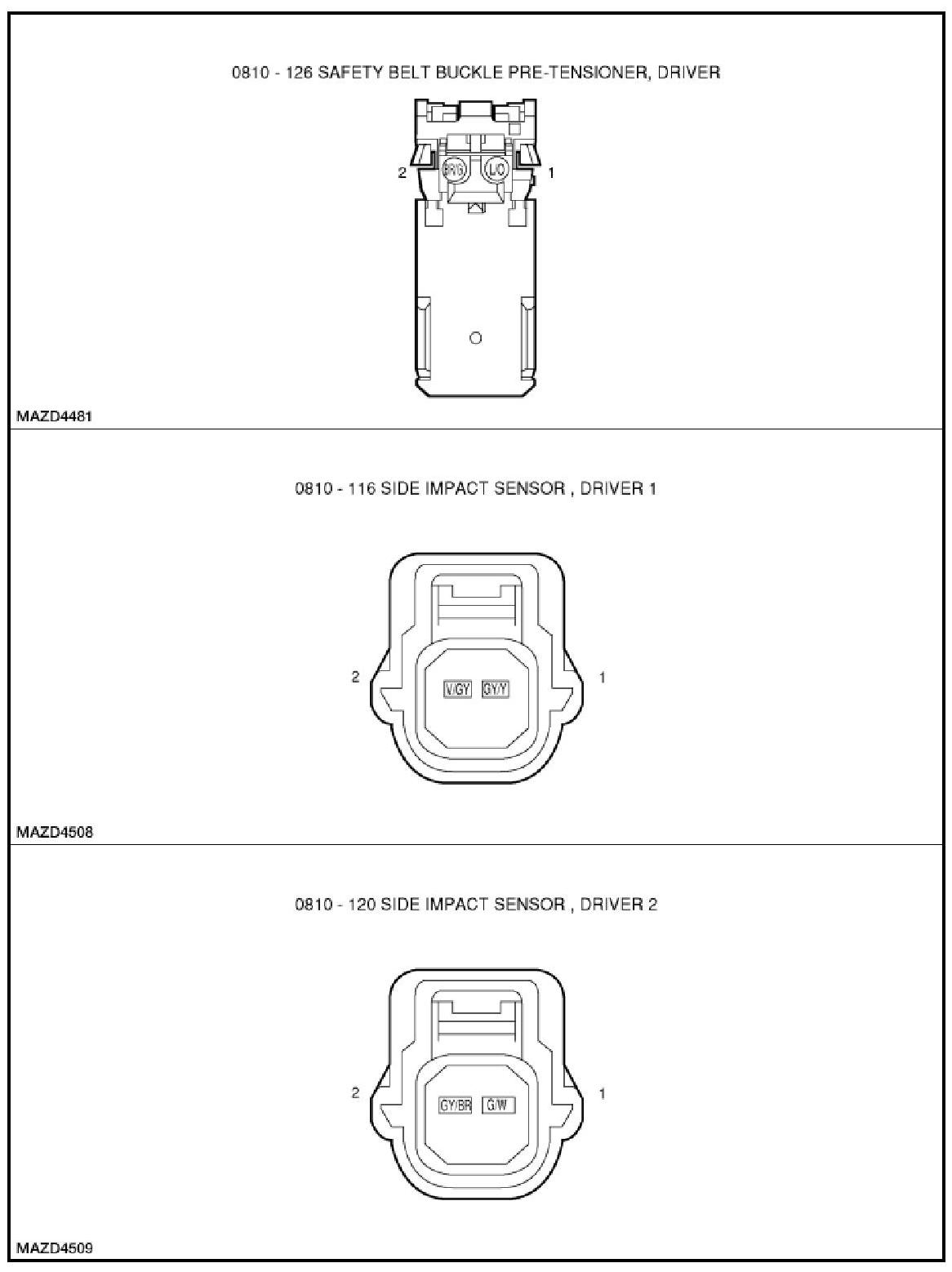

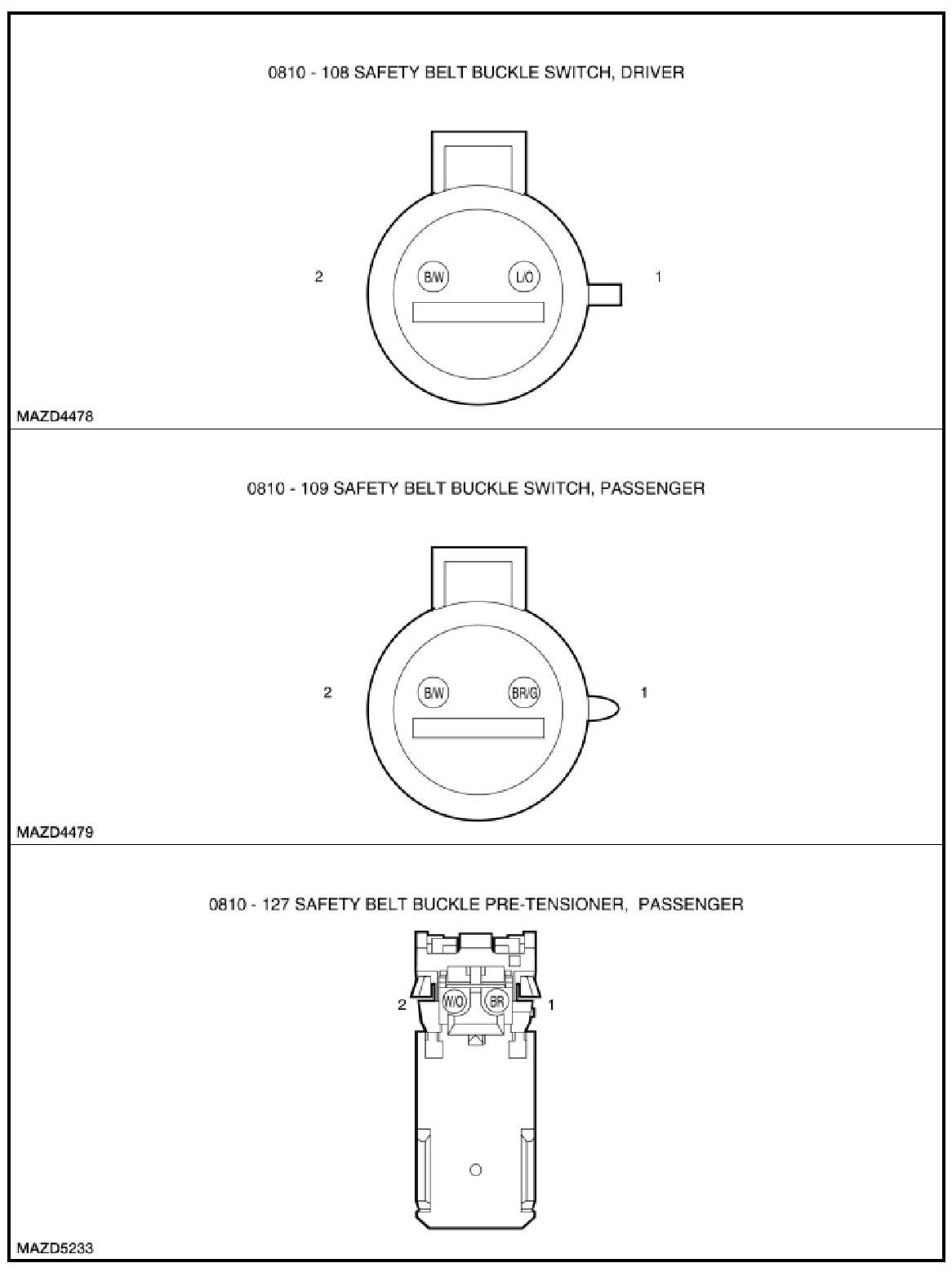

CONNECTOR END VIEWS - RESTRAINTS
