Fuel Tank: Locations

FUEL TANK AND FUEL FILLER PIPE - EXPLODED VIEW

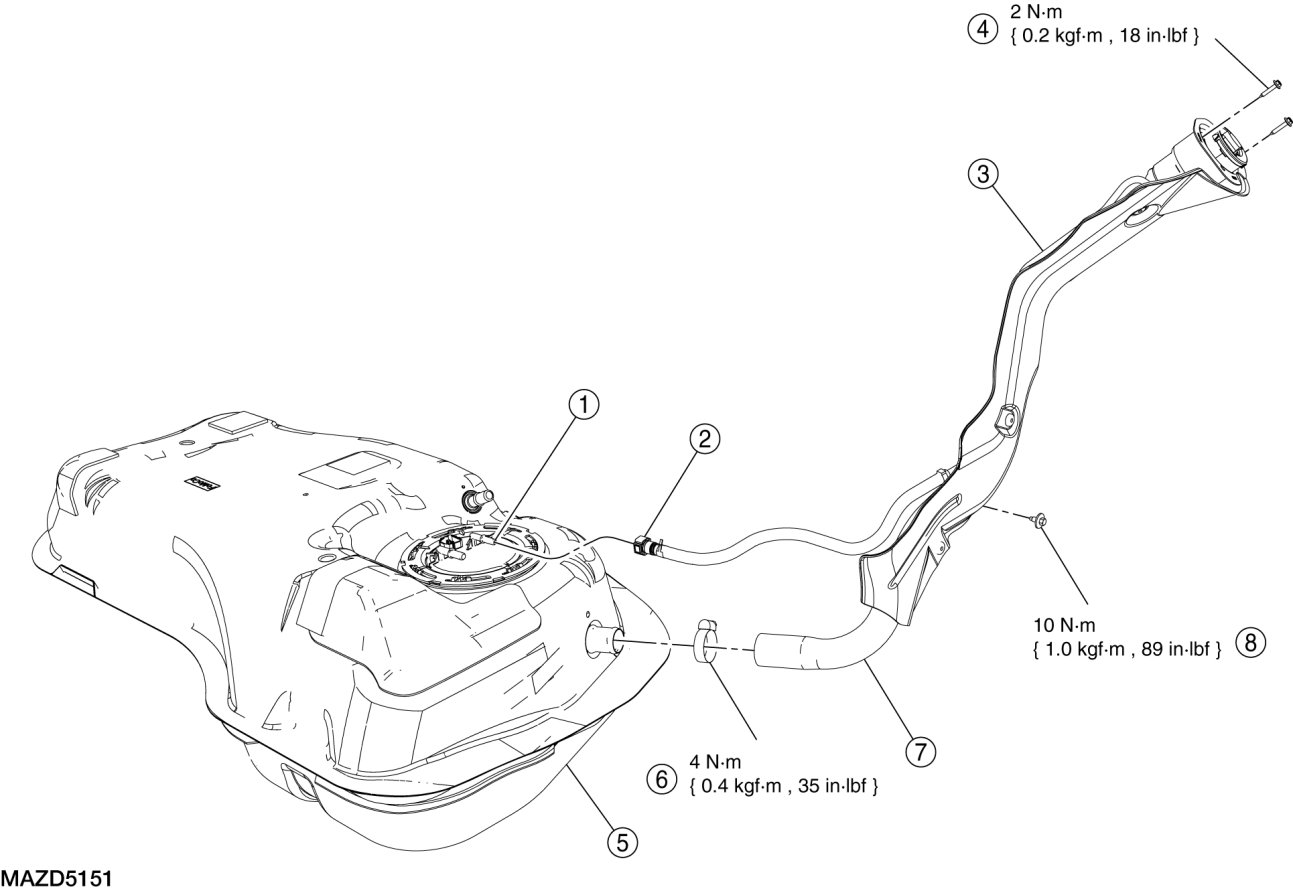

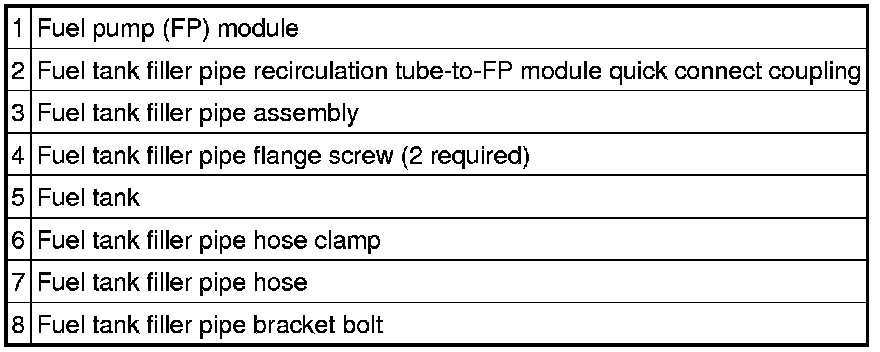

Fuel Tank Filler Pipe Assembly

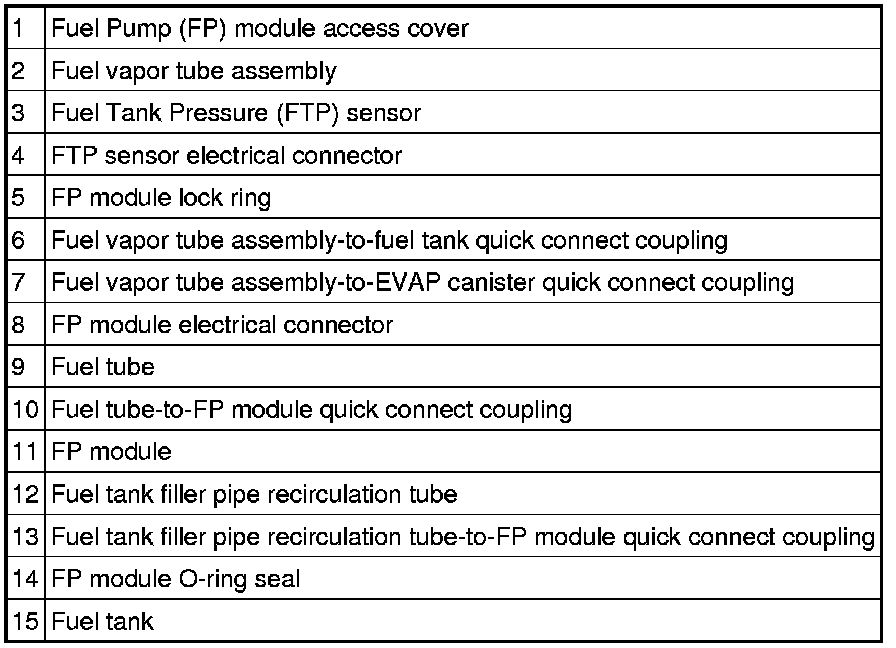

Fuel Tank and Fuel Pump (FP) Module

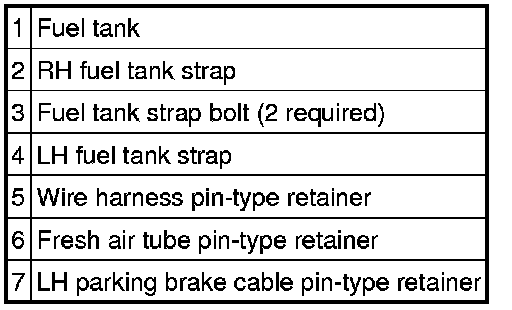

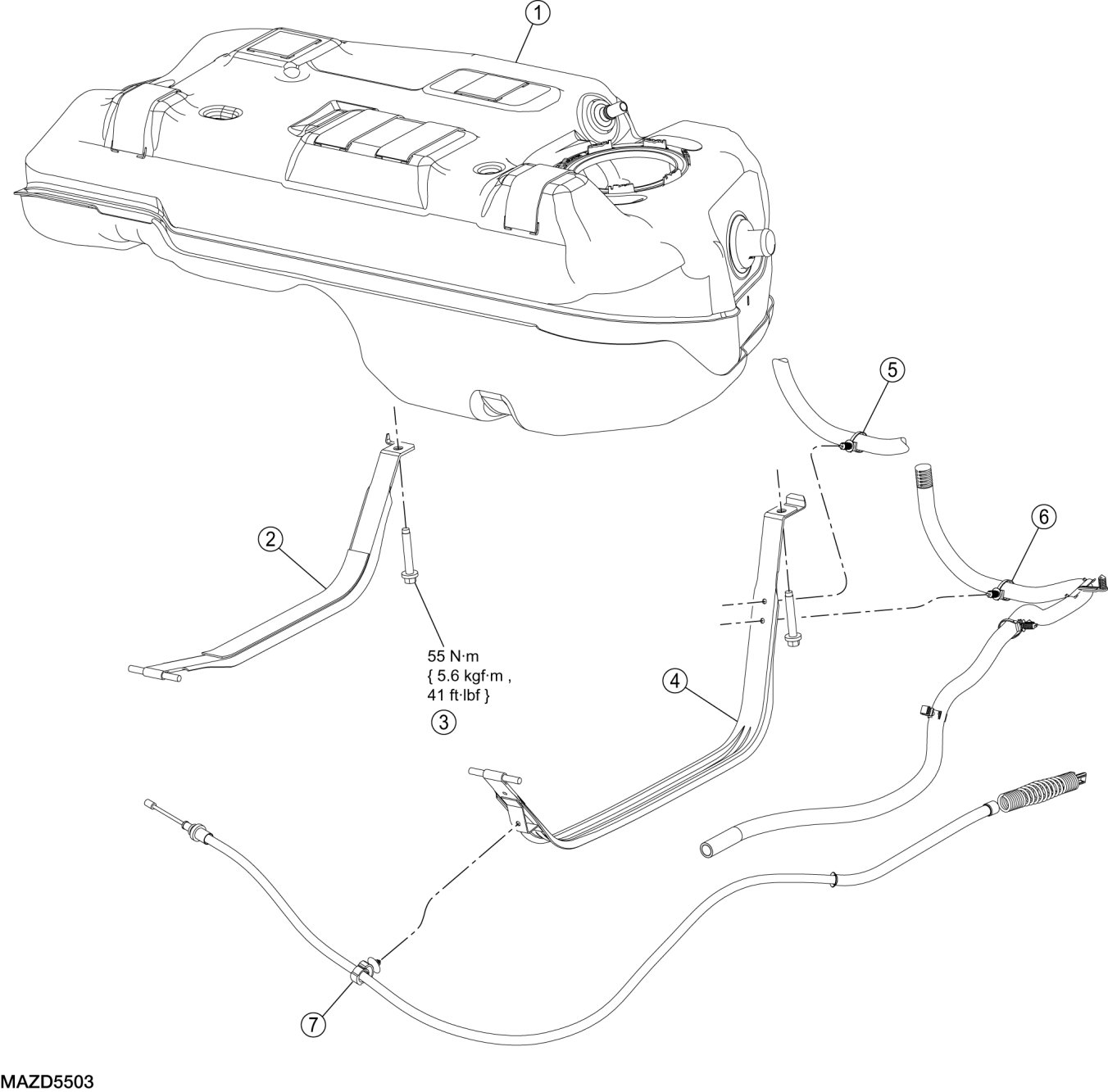

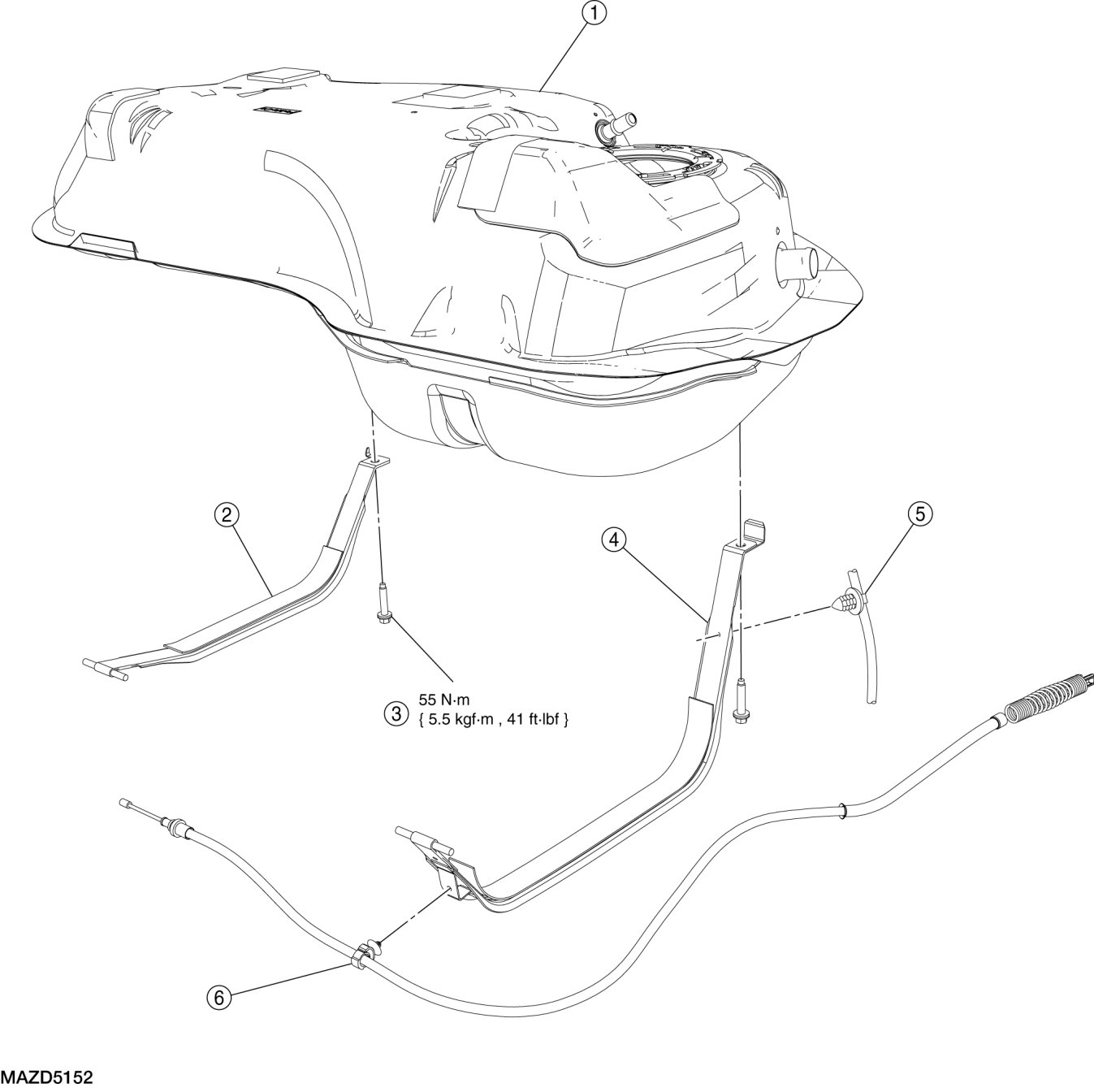

Fuel Tank Supports










1. For additional information, see Service and Repair, Removal and Replacement or Service and Repair.
