Fuel Supply Line: Locations

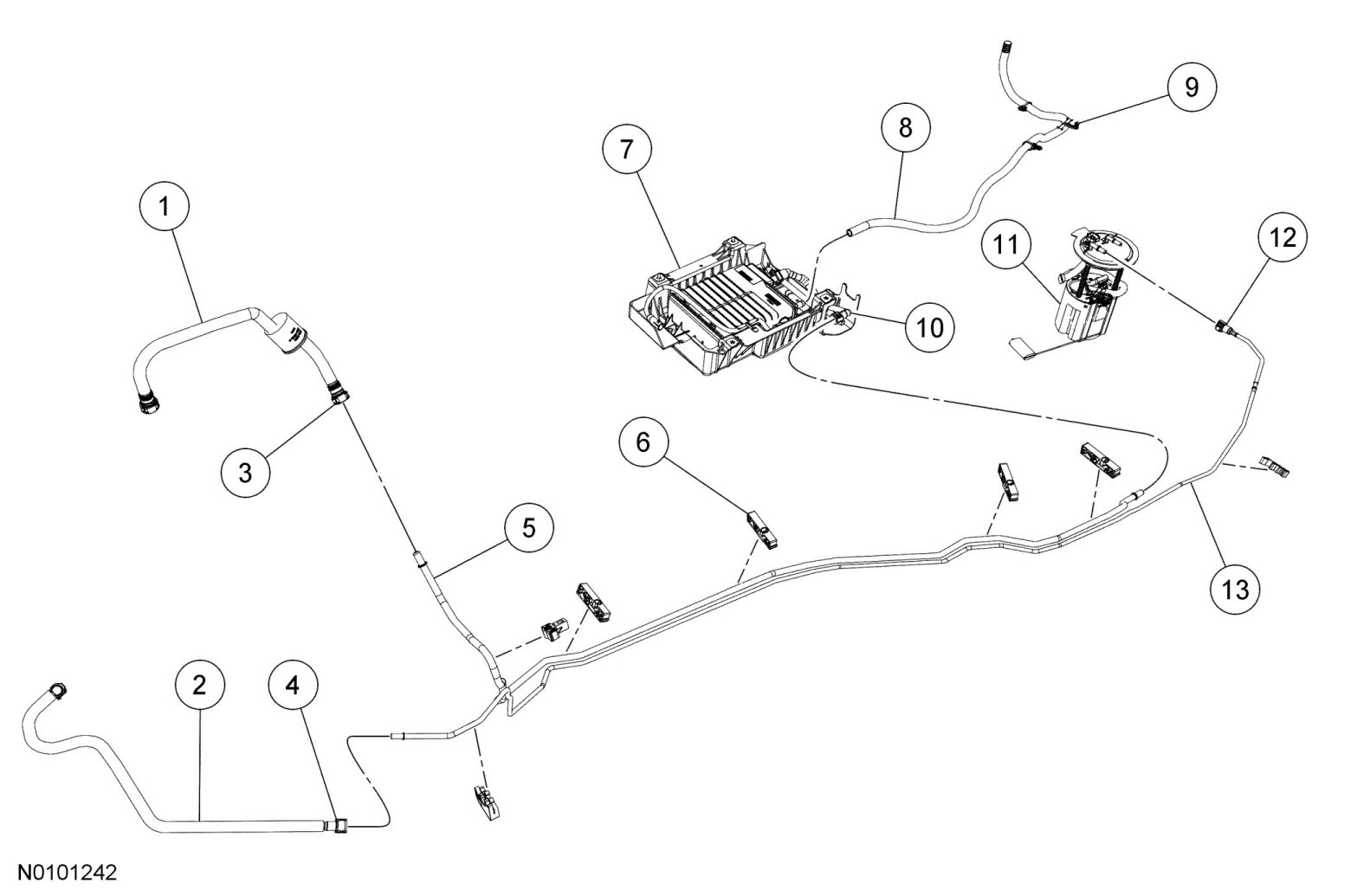

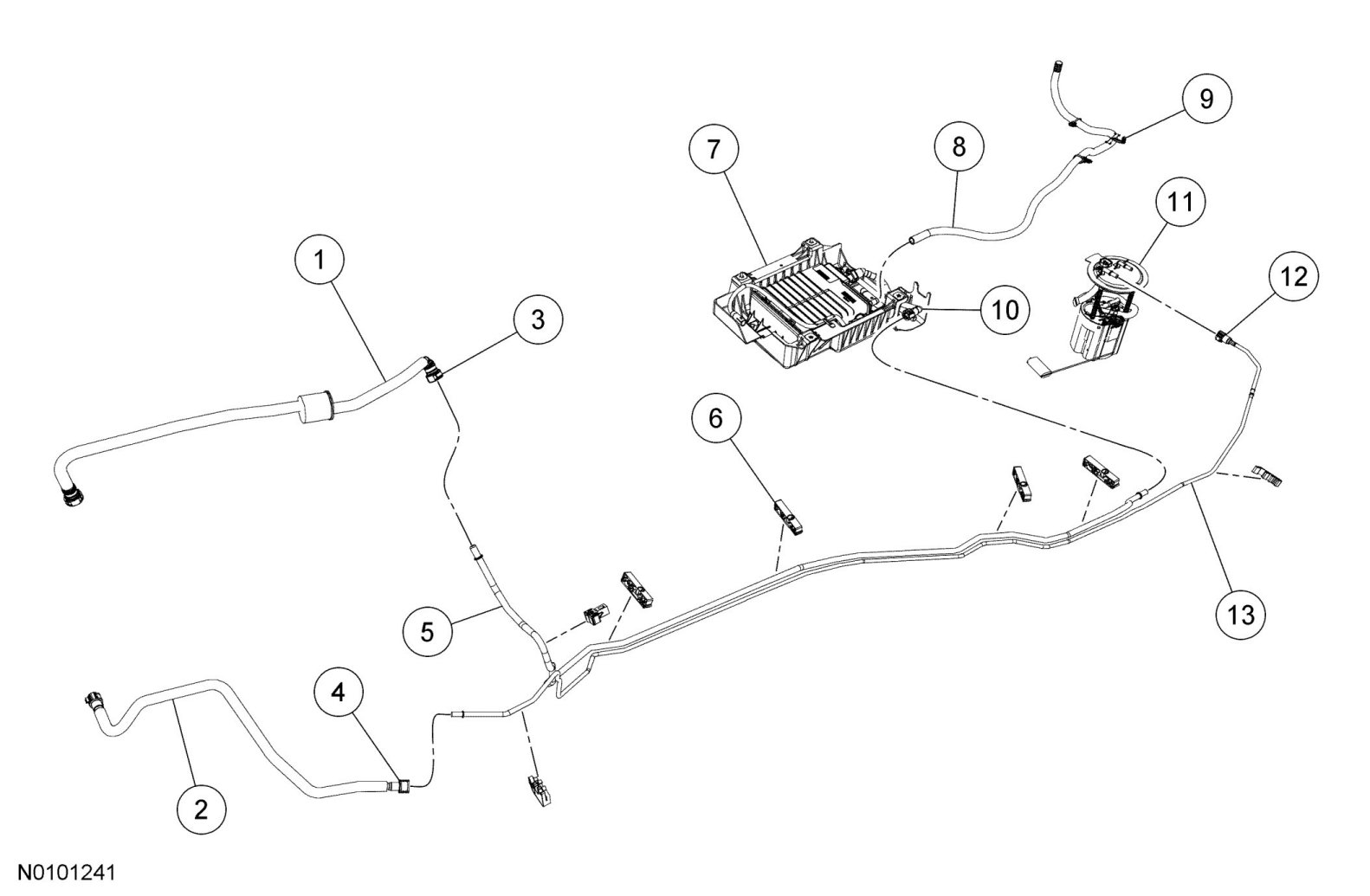

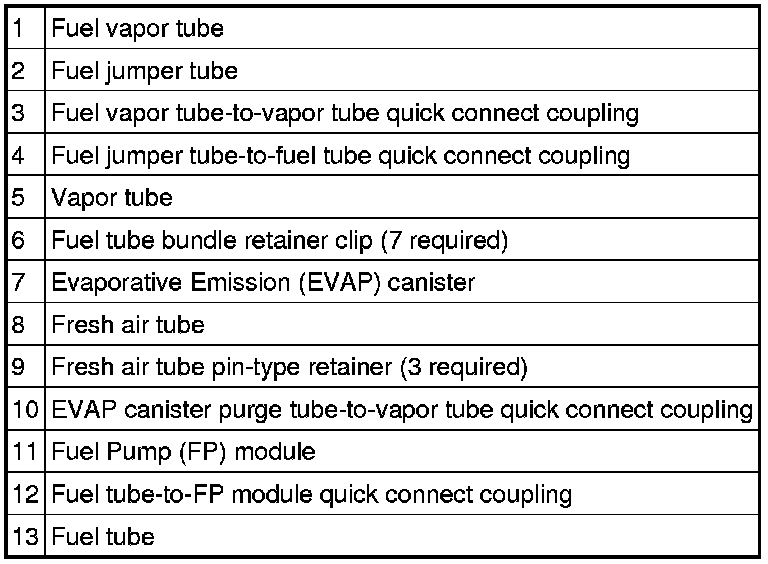

FUEL LINES - EXPLODED VIEW

















1. For additional information, see Service and Repair.
