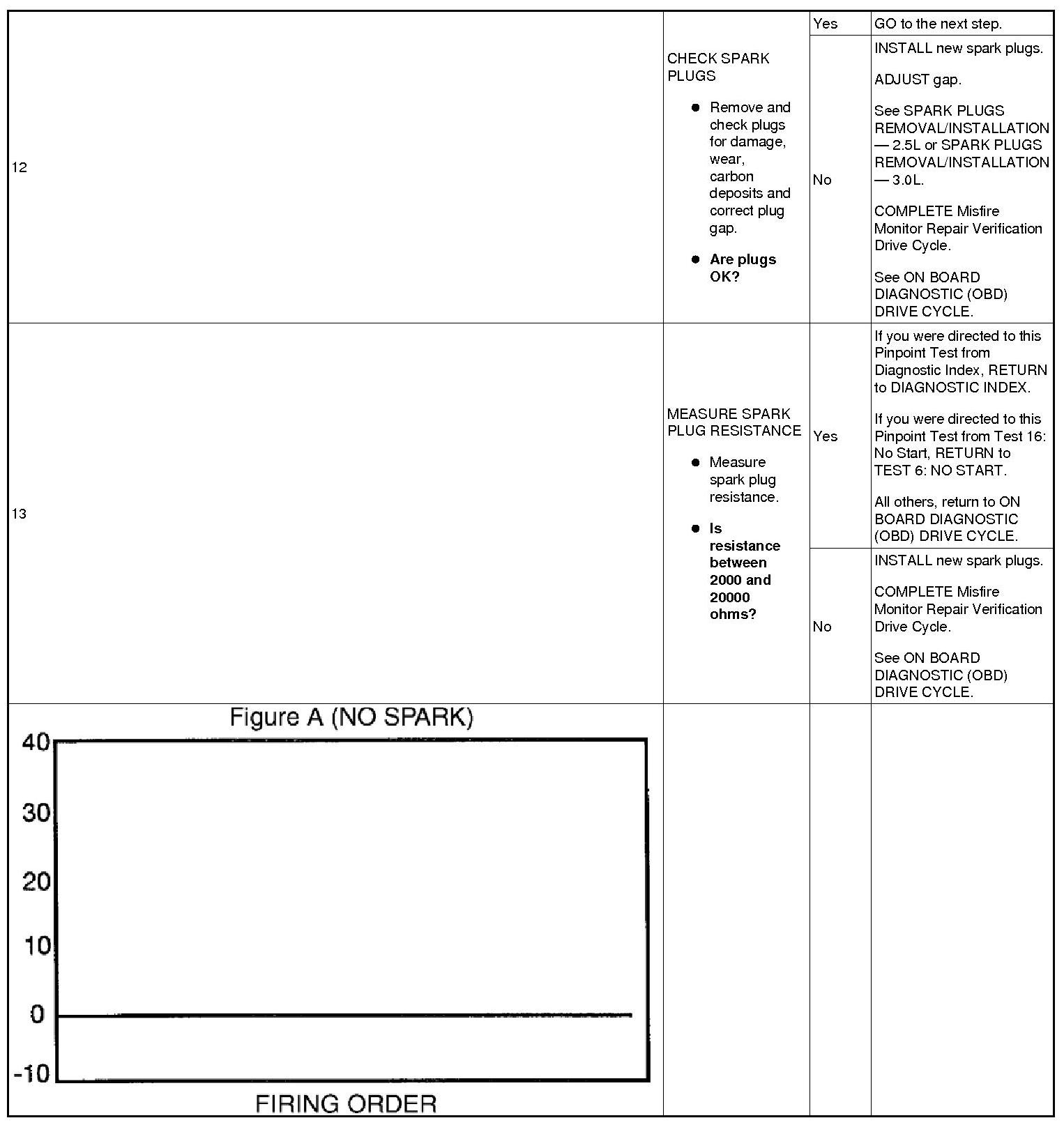

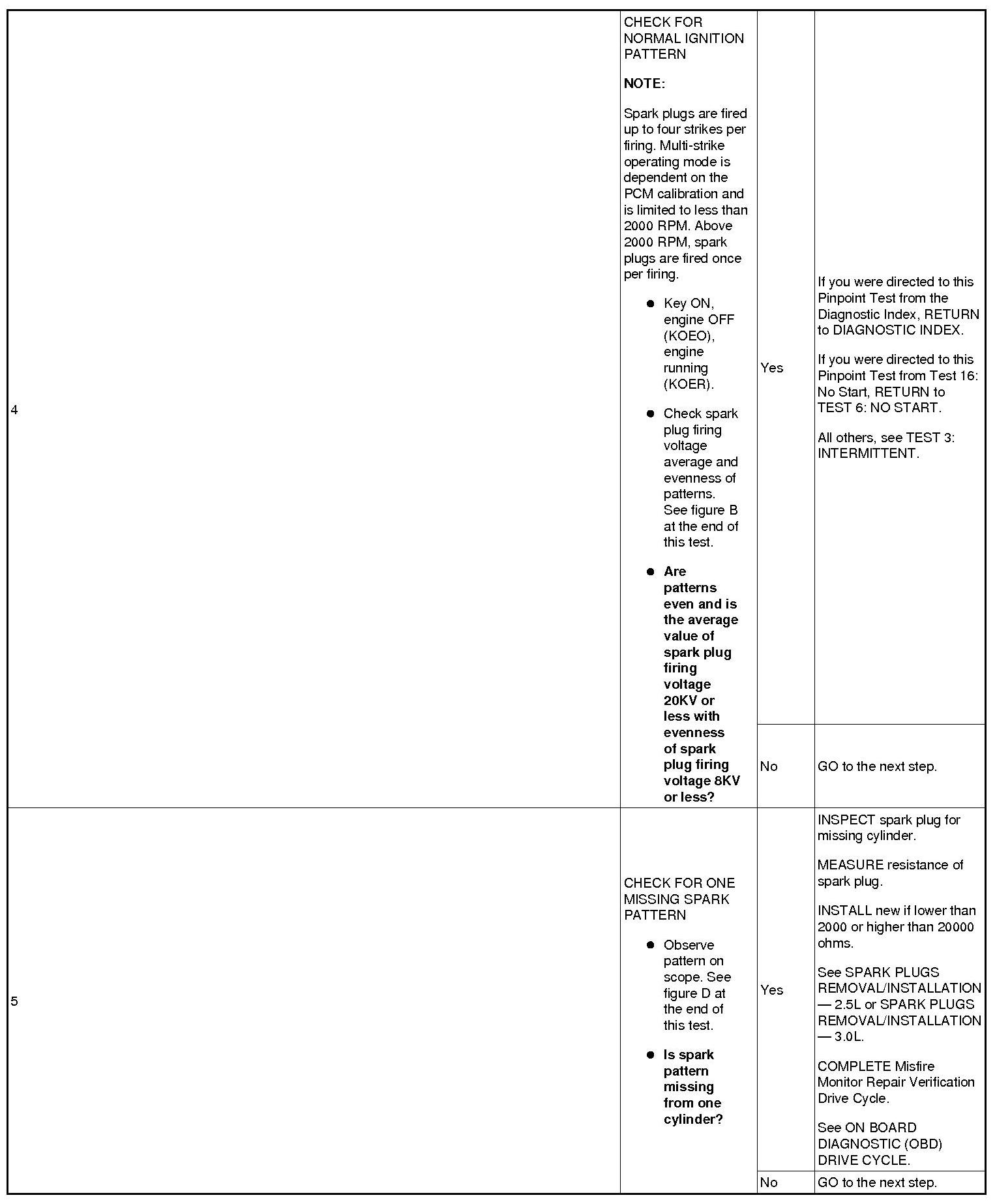

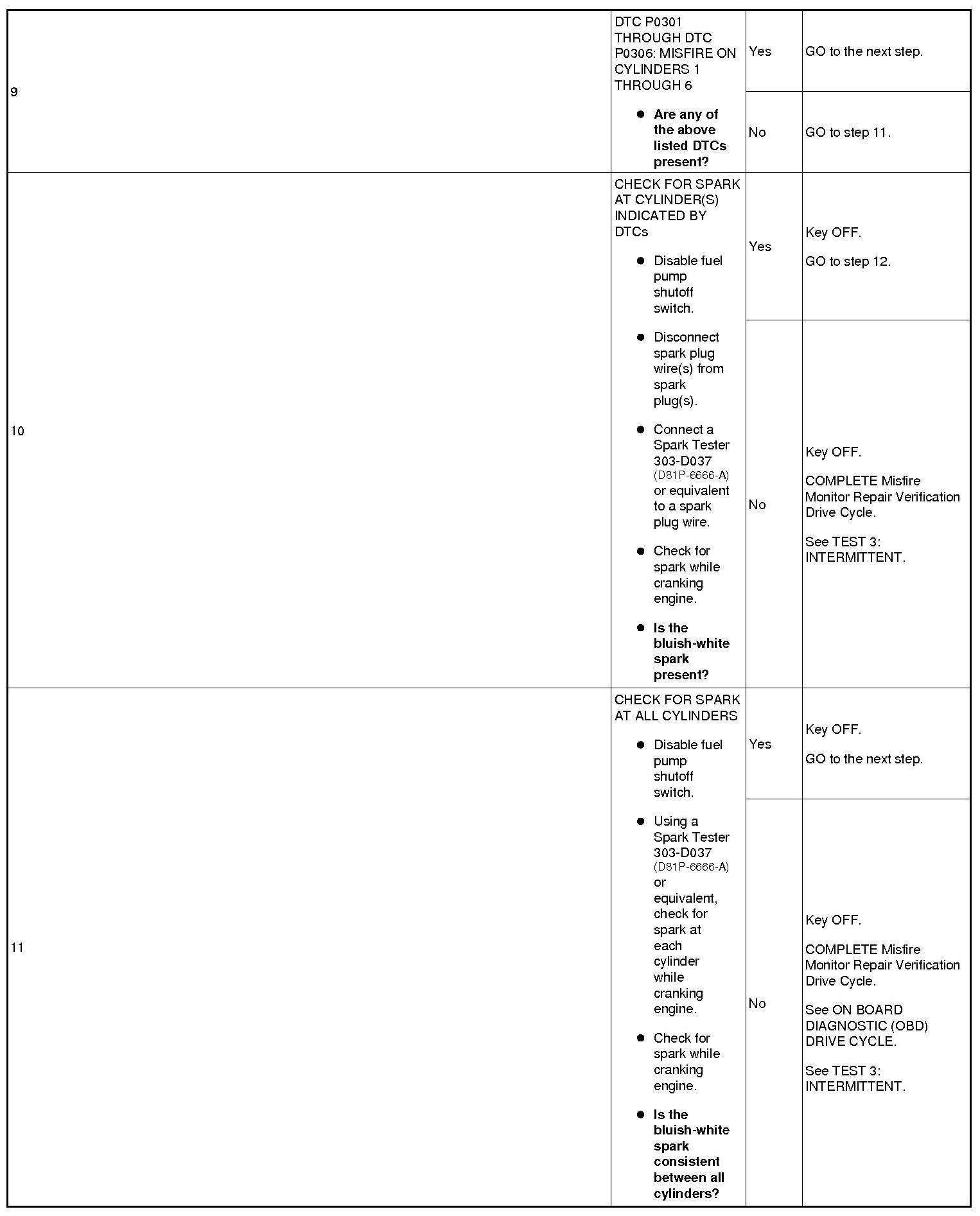

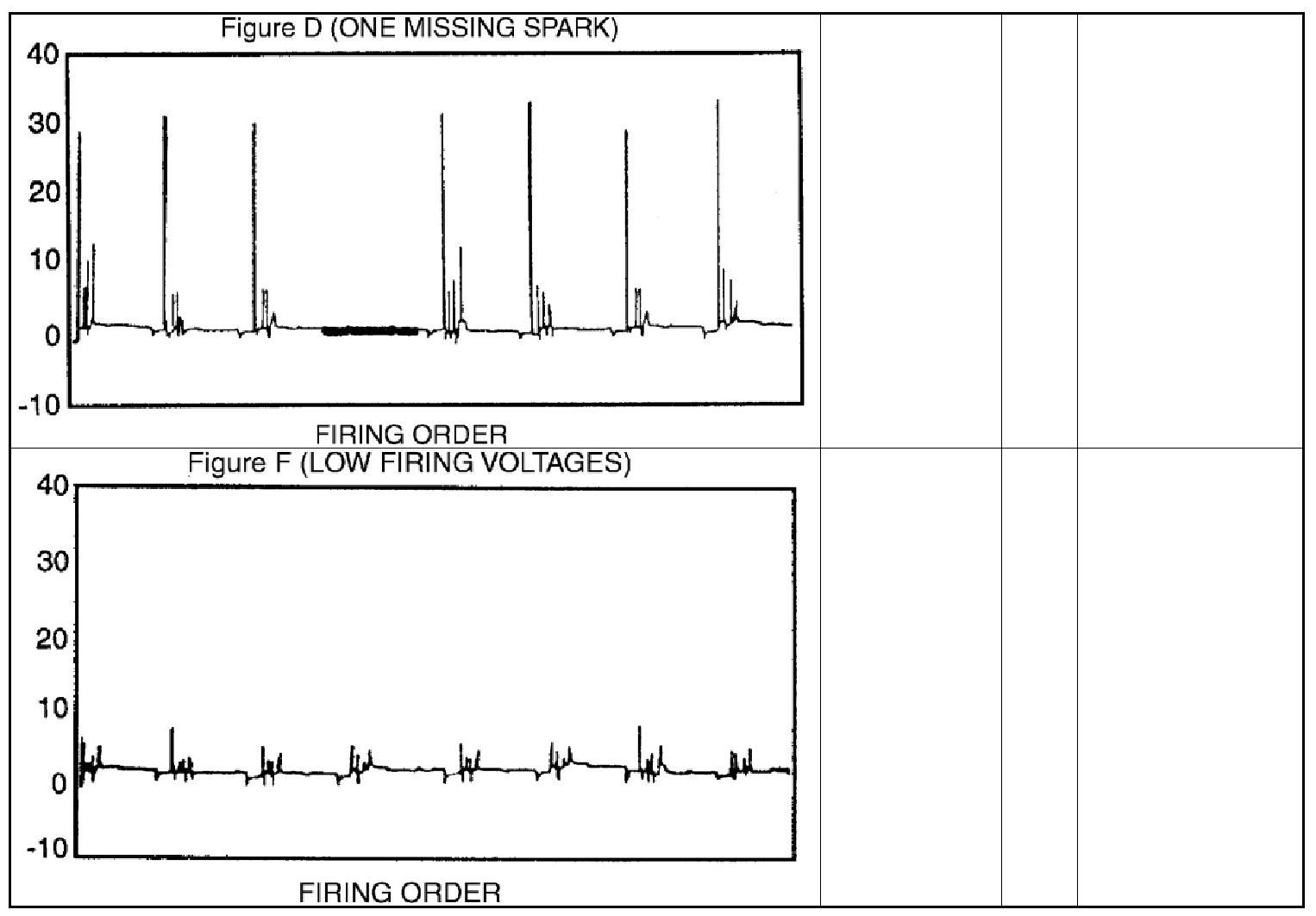

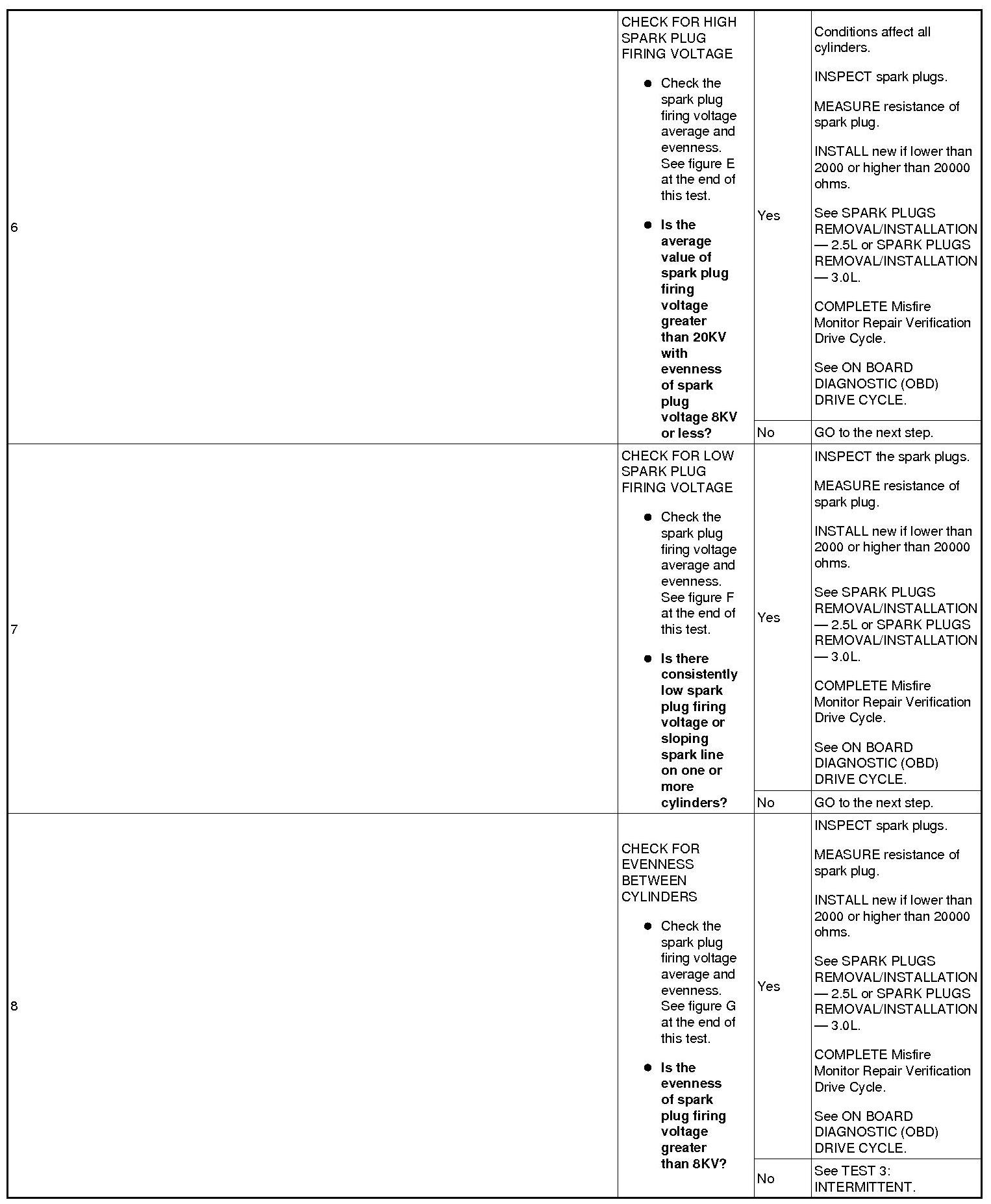

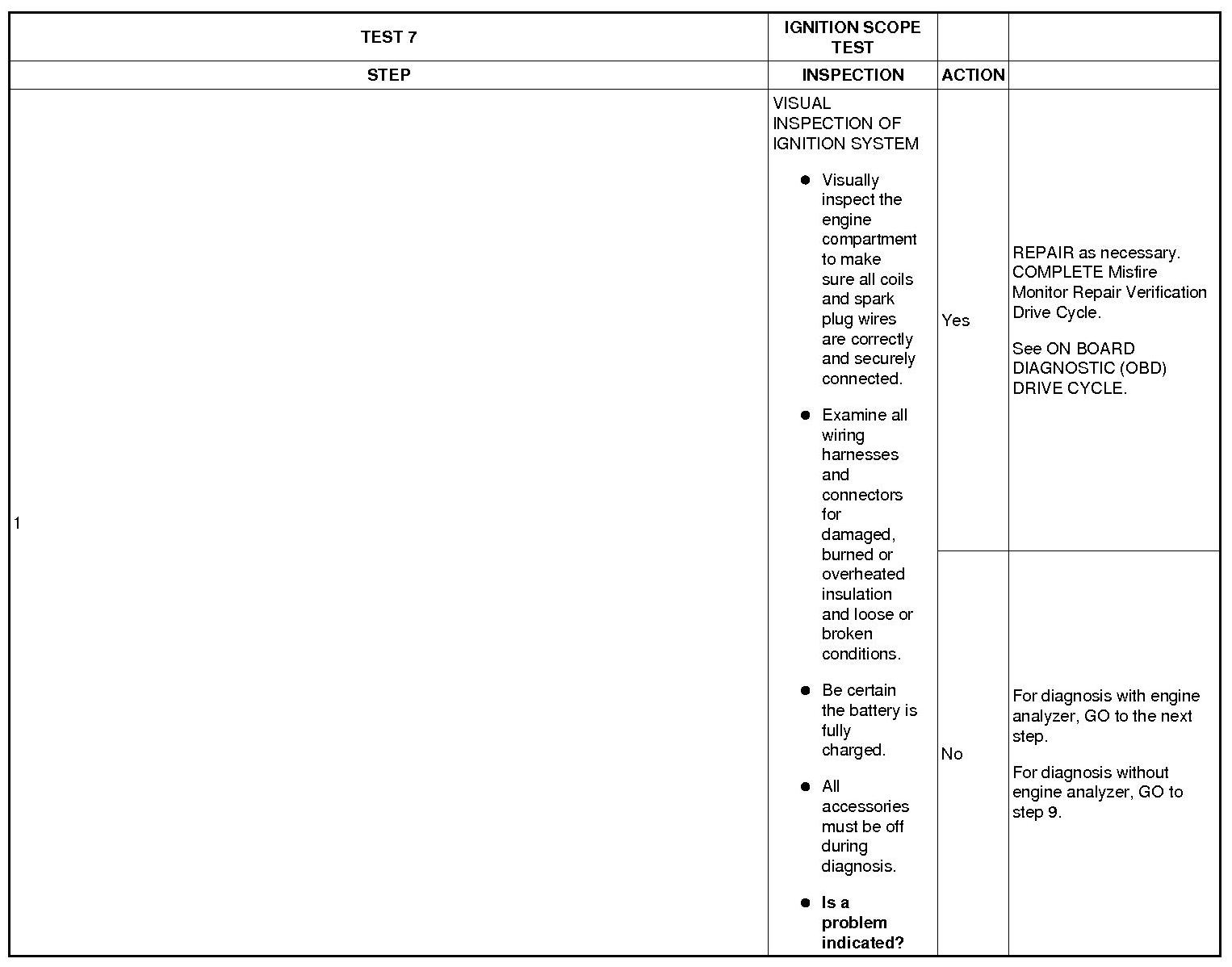

Test 7: Ignition Scope Test
Test 7: Ignition Scope Test
TEST 7: IGNITION SCOPE TEST
CAUTION:
Fouled plugs or a damaged ignition may cause high catalyst temperatures. Check components next to the catalyst and muffler for heat damage.
2.5L
3.0L
