Electronic Throttle Actuator: Testing and Inspection

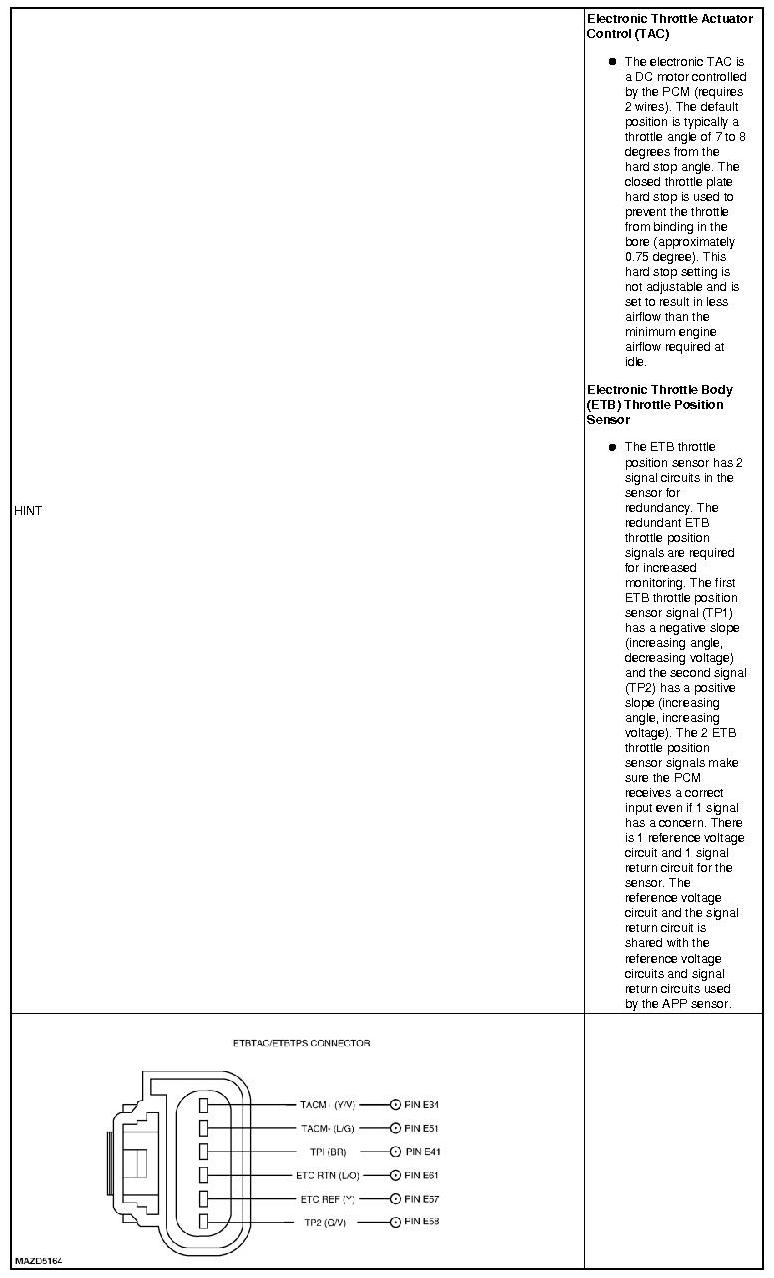

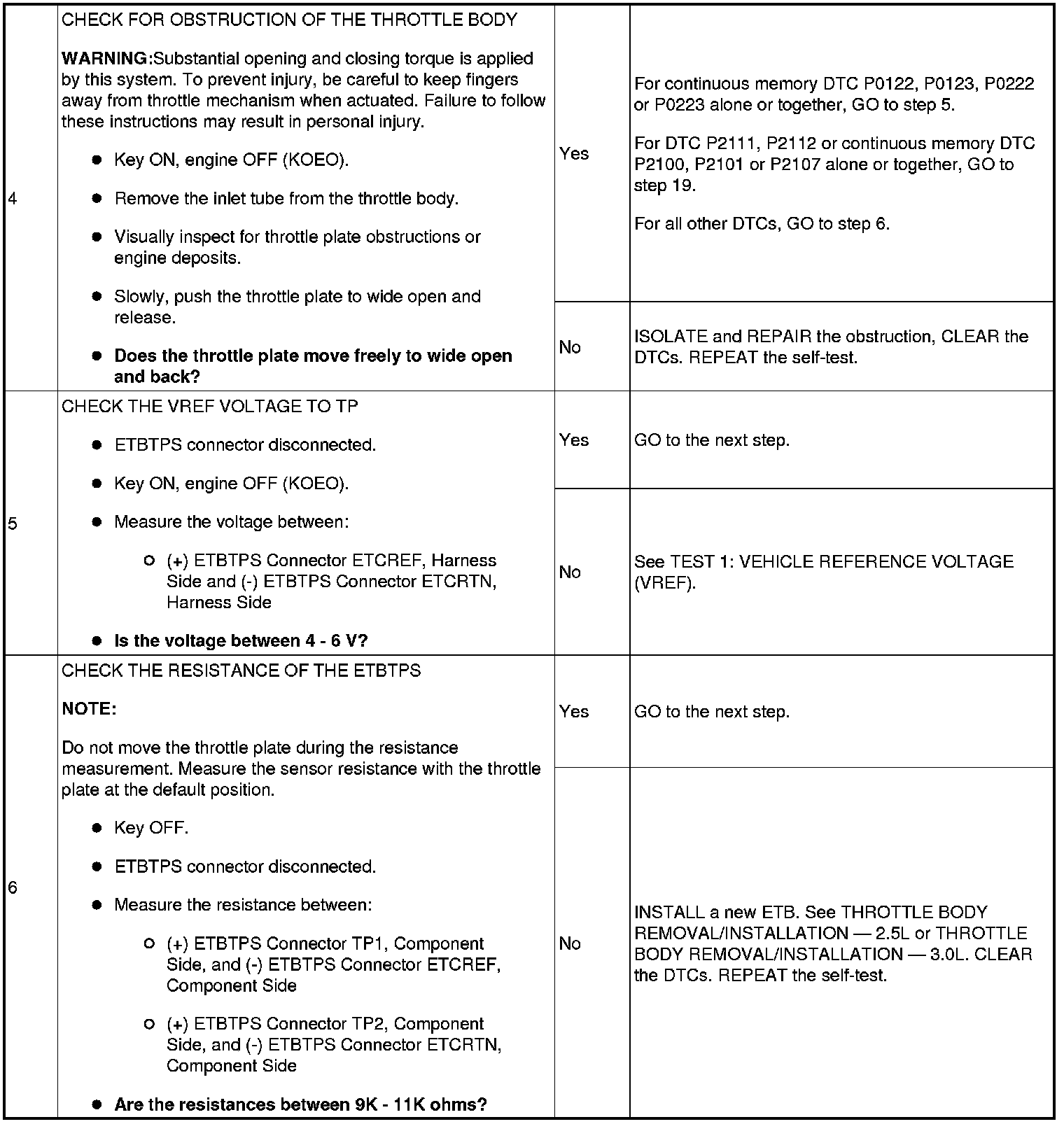

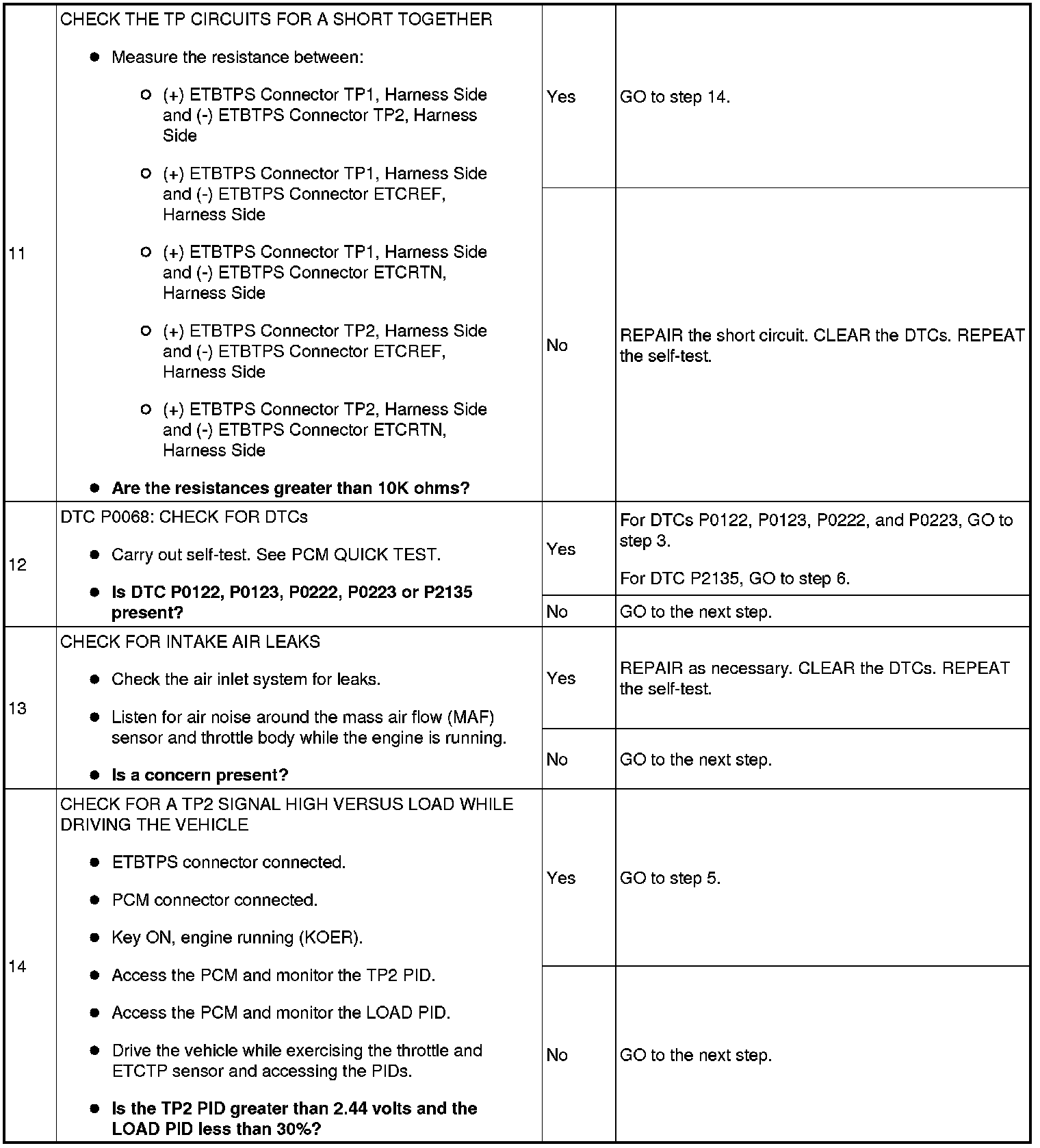

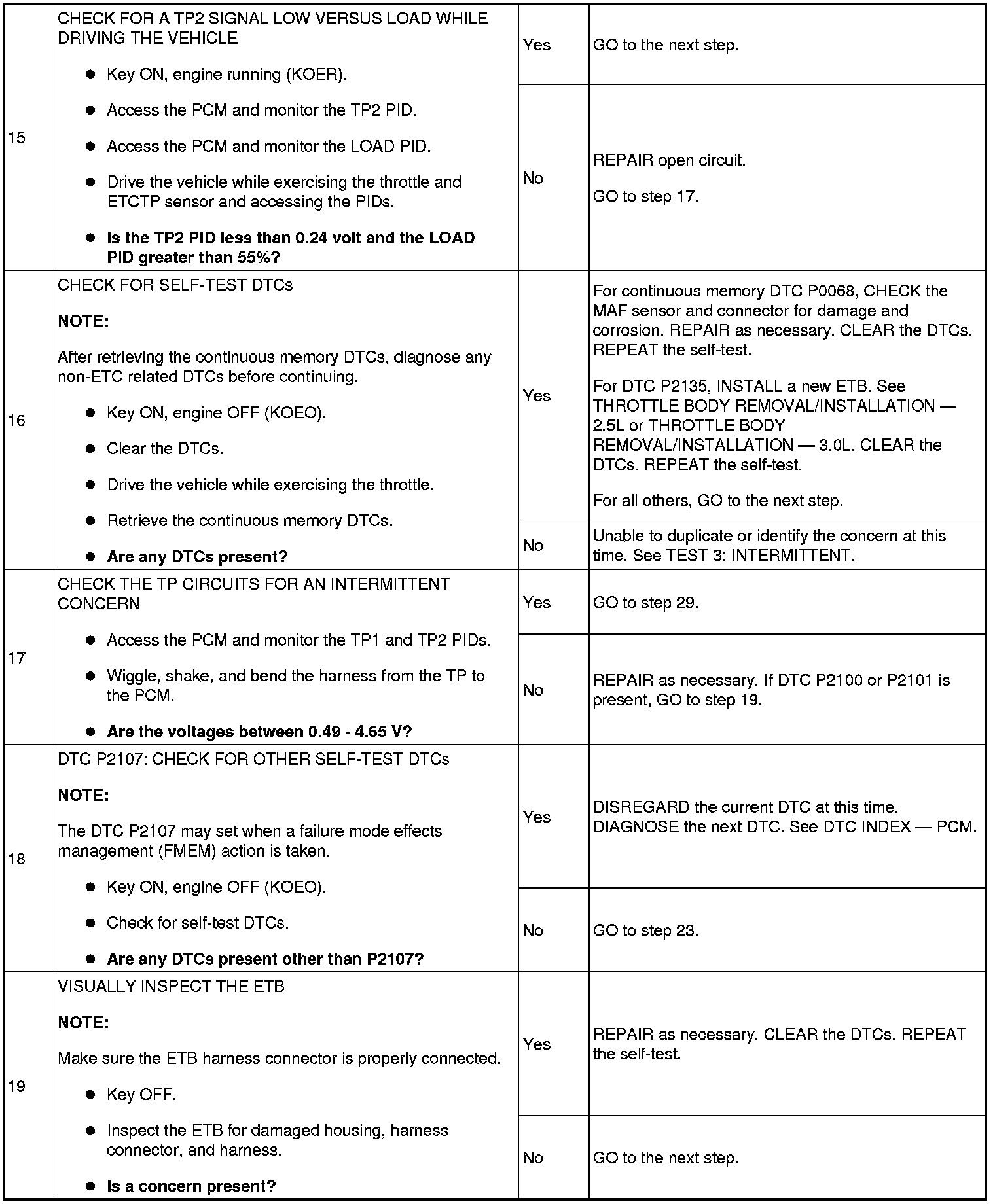

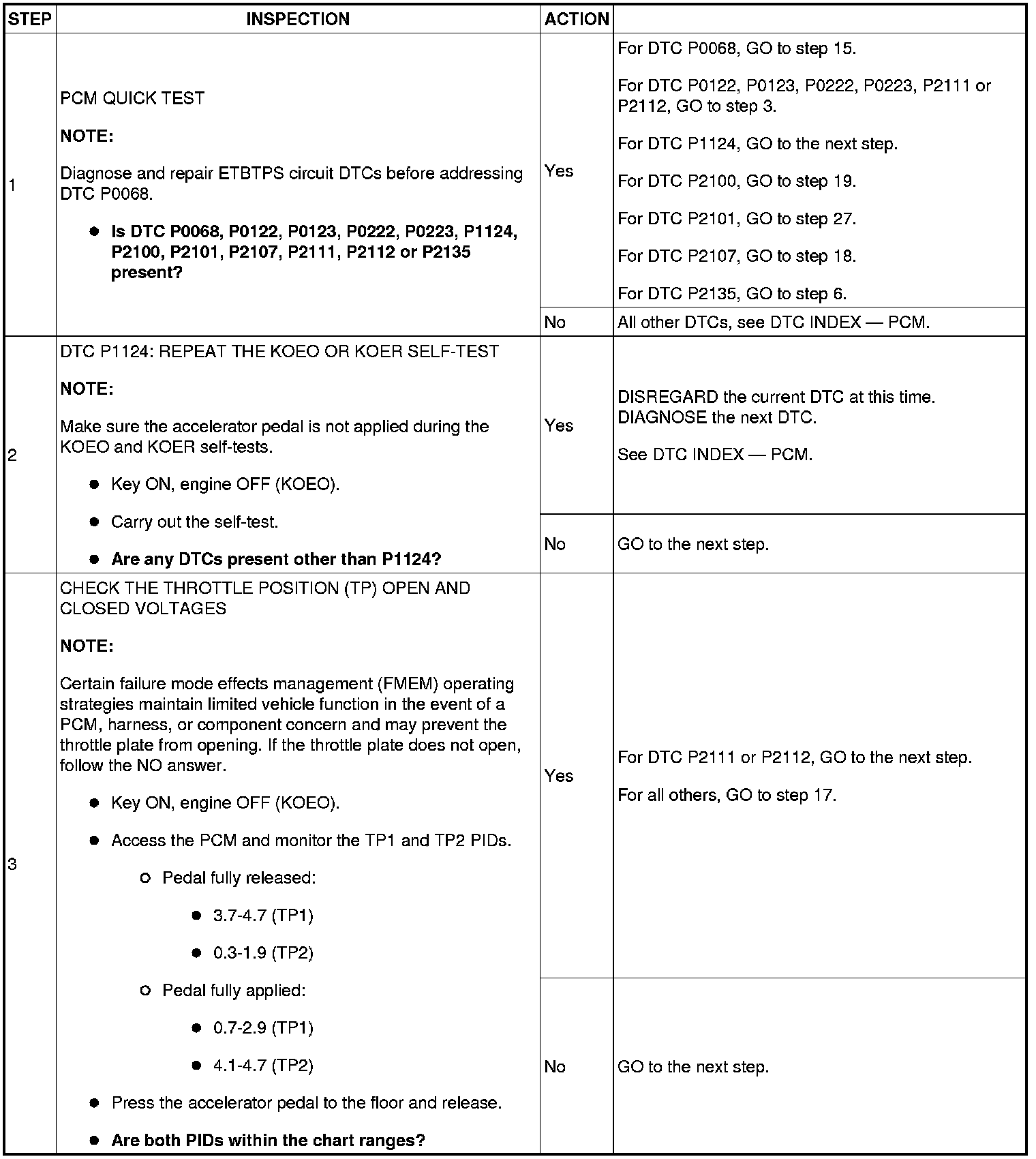

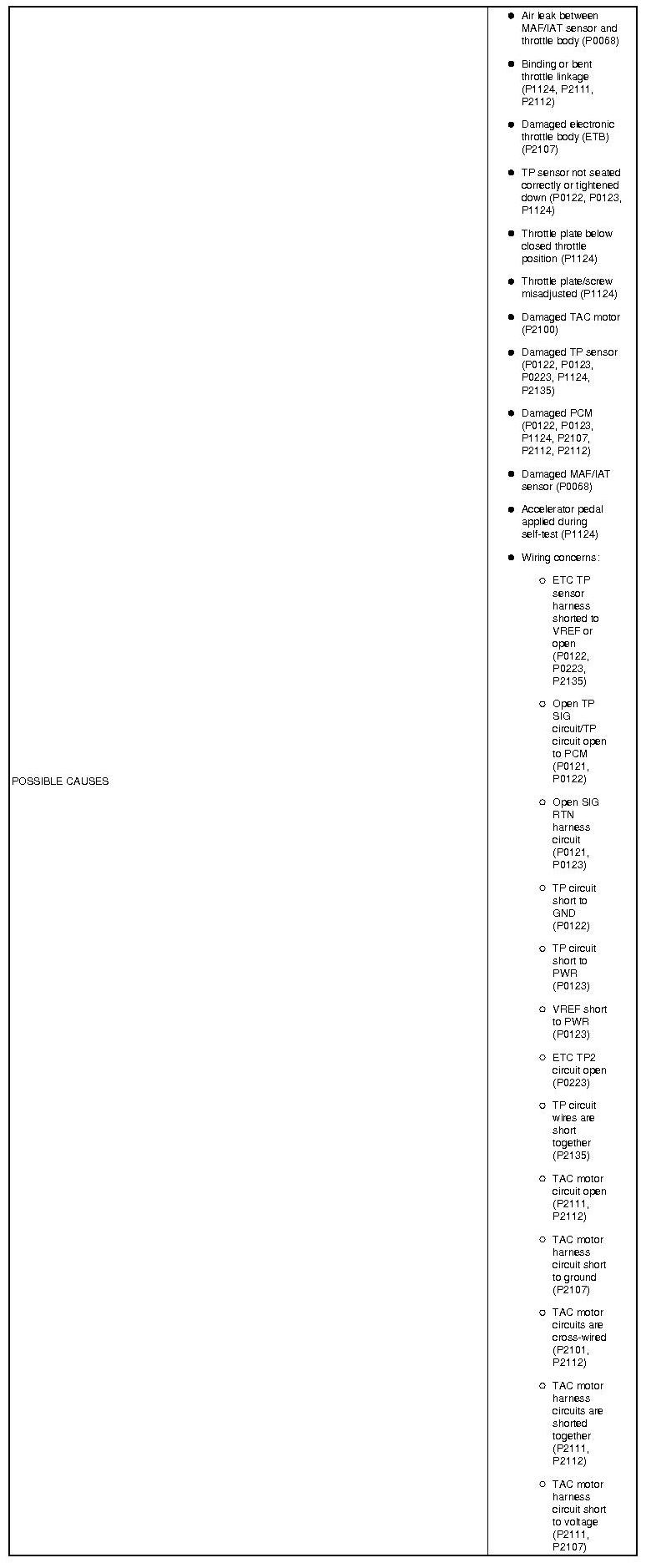

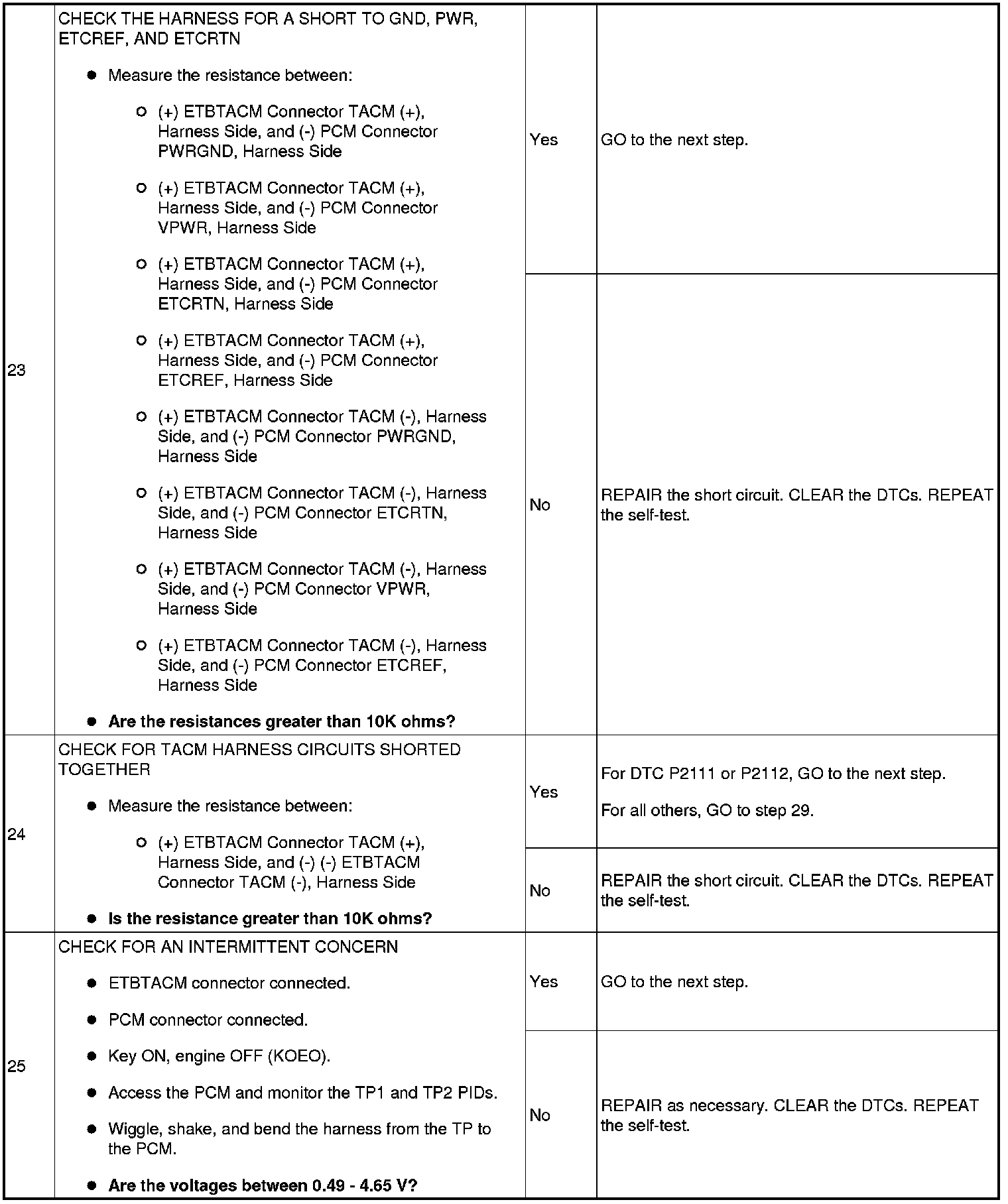

THROTTLE BODY ASSEMBLY ELECTRONIC THROTTLE CONTROL (ETC)
