Tires: Service and Repair

WHEEL AND TIRE DISASSEMBLY/ASSEMBLY









Disassembly

WARNING:The tire pressure monitoring system (TPMS) sensor battery may release hazardous chemicals if exposed to extreme mechanical damage. If these chemicals contact the skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention. If any part of the battery is swallowed, contact a physician immediately. When disposing of TPMS sensors, follow the correct procedures for hazardous material disposal. Failure to follow these instructions may result in serious personal injury.

CAUTION:Failure to follow the instructions below may result in damage to the Tire Pressure Monitoring System (TPMS) sensor.

CAUTION:The TPMS sensor is mounted to the valve stem. Removal of the valve stem requires dismounting the tire from the wheel and removal of the TPMS sensor. Failure to follow this instructions may result in damage to the TPMS sensor.
NOTE:Use only a digital tire gauge any time tire pressures are measured to be sure that accurate values are obtained.
1. Remove the wheel and tire. See Service and Repair.

2. Remove the valve stem core and fully deflate all air from the tire.

- If a new TPMS sensor is being installed, discard the sensor.

CAUTION:Do not allow the tire beads to move beyond the wheel mid-plane (middle of the wheel) when separating the beads from the wheels, damage to the TPMS sensor may occur.

CAUTION:The valve stem is connected to the TPMS sensor. Do not pull the valve stem from the wheel, or damage to the sensor will occur.











3. Position the wheel and tire assembly on a suitable tire machine and separate both beads of the tire from the wheel.

- For a paddle-type tire machine, position the valve stem at the 12 o'clock or 6 o'clock position and the paddle at the 3 o'clock position.
- For a roller-type tire machine, position the valve stem with the roller at any position.

CAUTION:Tire and valve stem position is critical to prevent damage to the sensor when using a paddle-type bead separator.
NOTE:Some machines may have a nylon roller bead separator at the 12 o'clock position instead of the paddle-type bead separator at the 3 o'clock position.

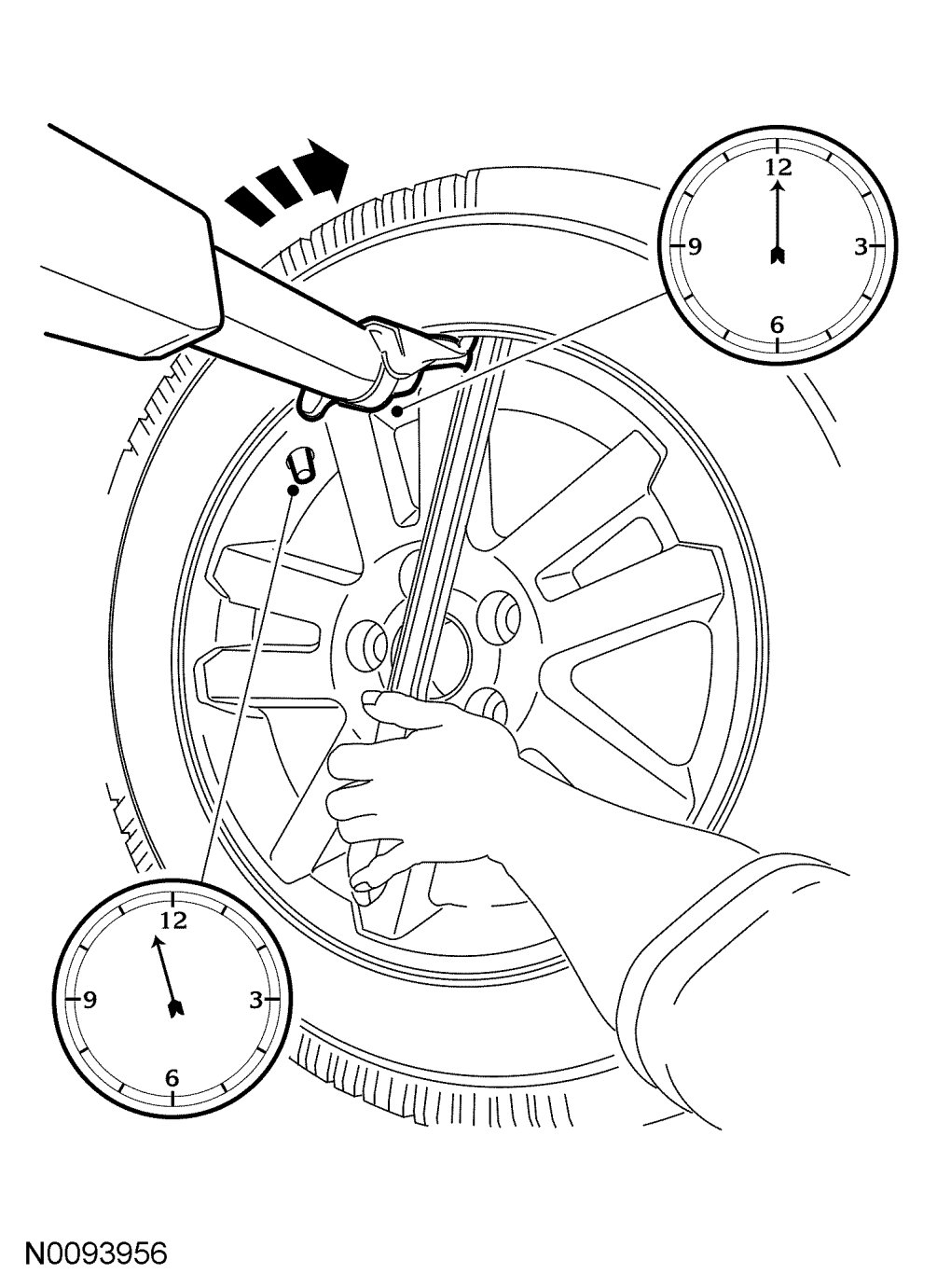

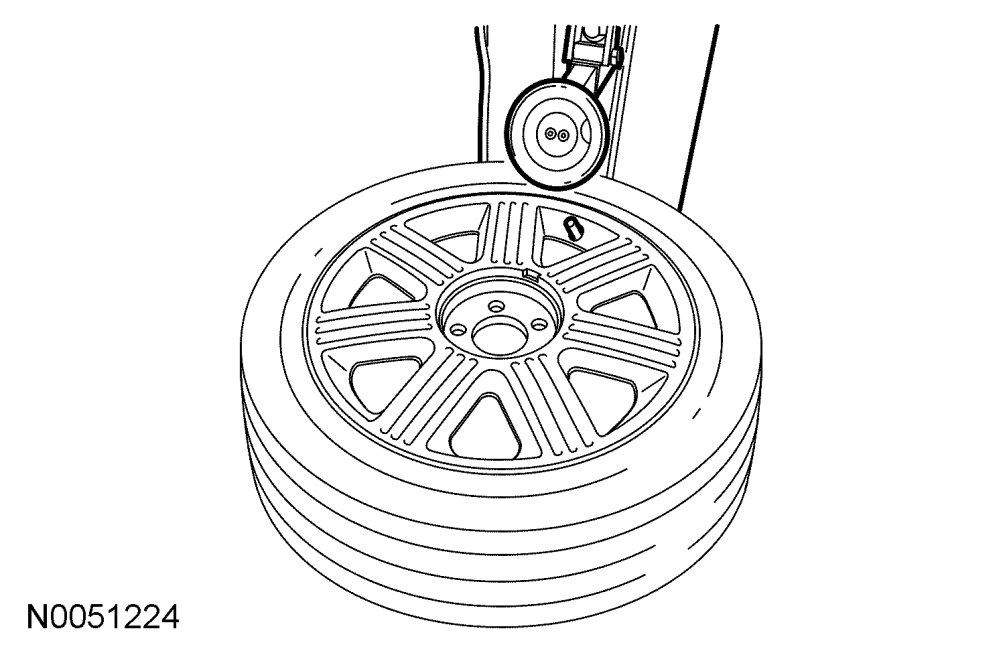

4. Place the wheel and tire assembly on the turntable of the tire machine with the valve stem between the 11:30 position and the machine arm at the 12 o'clock position and dismount the outer bead from the wheel.

NOTE:Index-mark the valve stem and wheel weight positions on the tire.

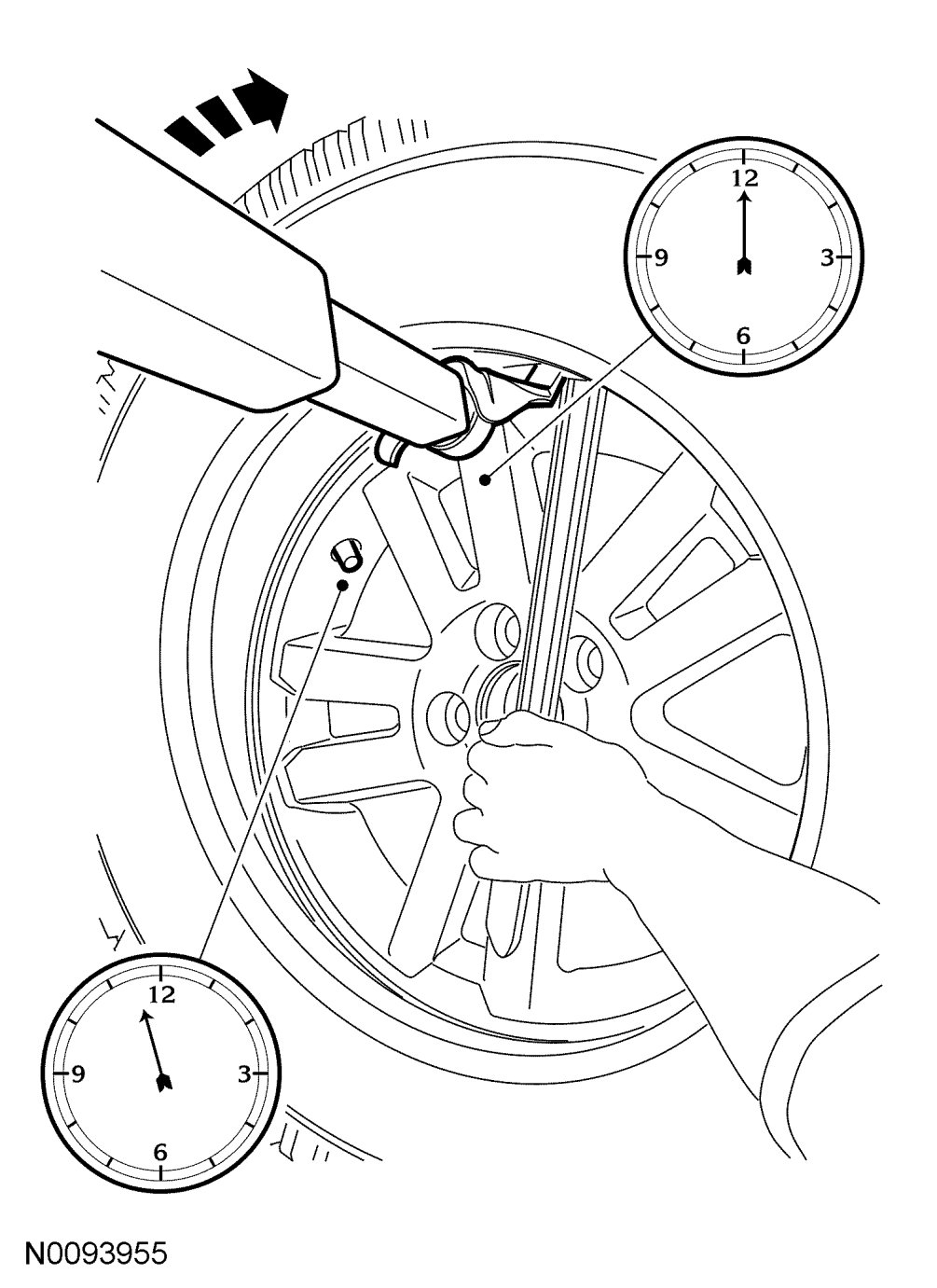

5. Reset the wheel and tire assembly on the turntable of the tire machine with the valve stem at the 11:30 position and the machine arm at the 12 o'clock position and dismount the inner bead from the wheel.





6. Remove the TPMS sensor in the following sequence.
a. Using a T10 Torx, remove the valve stem-to-TPMS sensor screw.

b. Carefully and firmly, pull the sensor straight down and separate it from the valve stem.

CAUTION:A new valve stem must be installed whenever the tire is dismounted or incorrect valve stem sealing may occur.

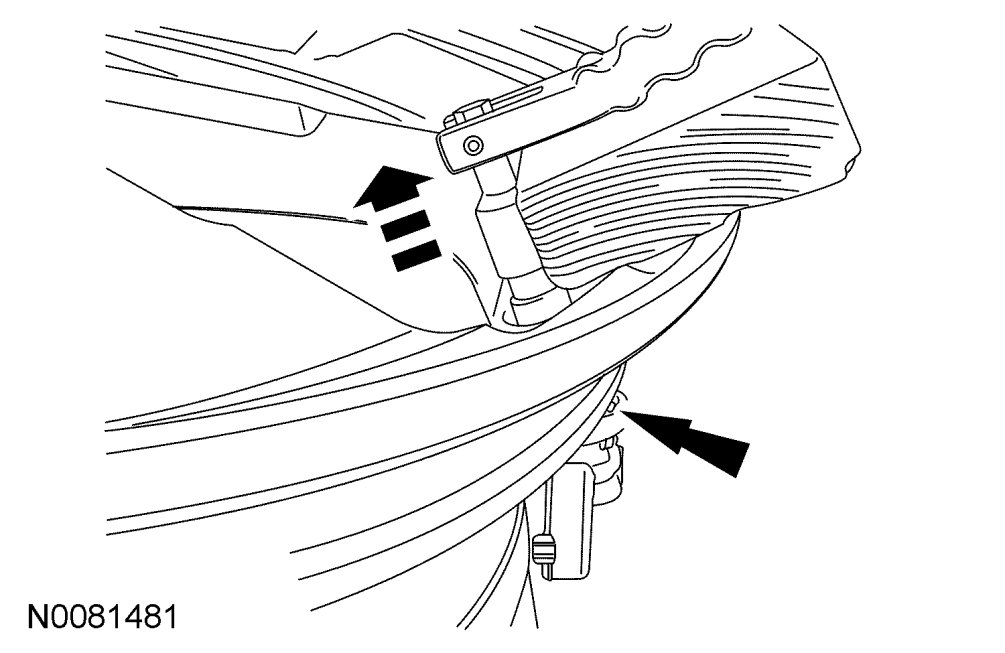

7. Using a suitable valve stem puller and a wood block, remove the valve stem.

CAUTION:Use care not to damage the wheel surface when removing the valve stem.
8. If the TPMS sensor is being reused, inspect the TPMS sensor for damage and install new parts as necessary.

NOTE:When installing a new wheel, always install a new valve stem and reuse the TPMS sensor from the previous wheel if possible. The TPMS will not have to be trained if the sensor is reused.

Assembly

CAUTION:Damage to the tire pressure monitoring system (TPMS) sensor may result if the tire mounting is not carried out as instructed.

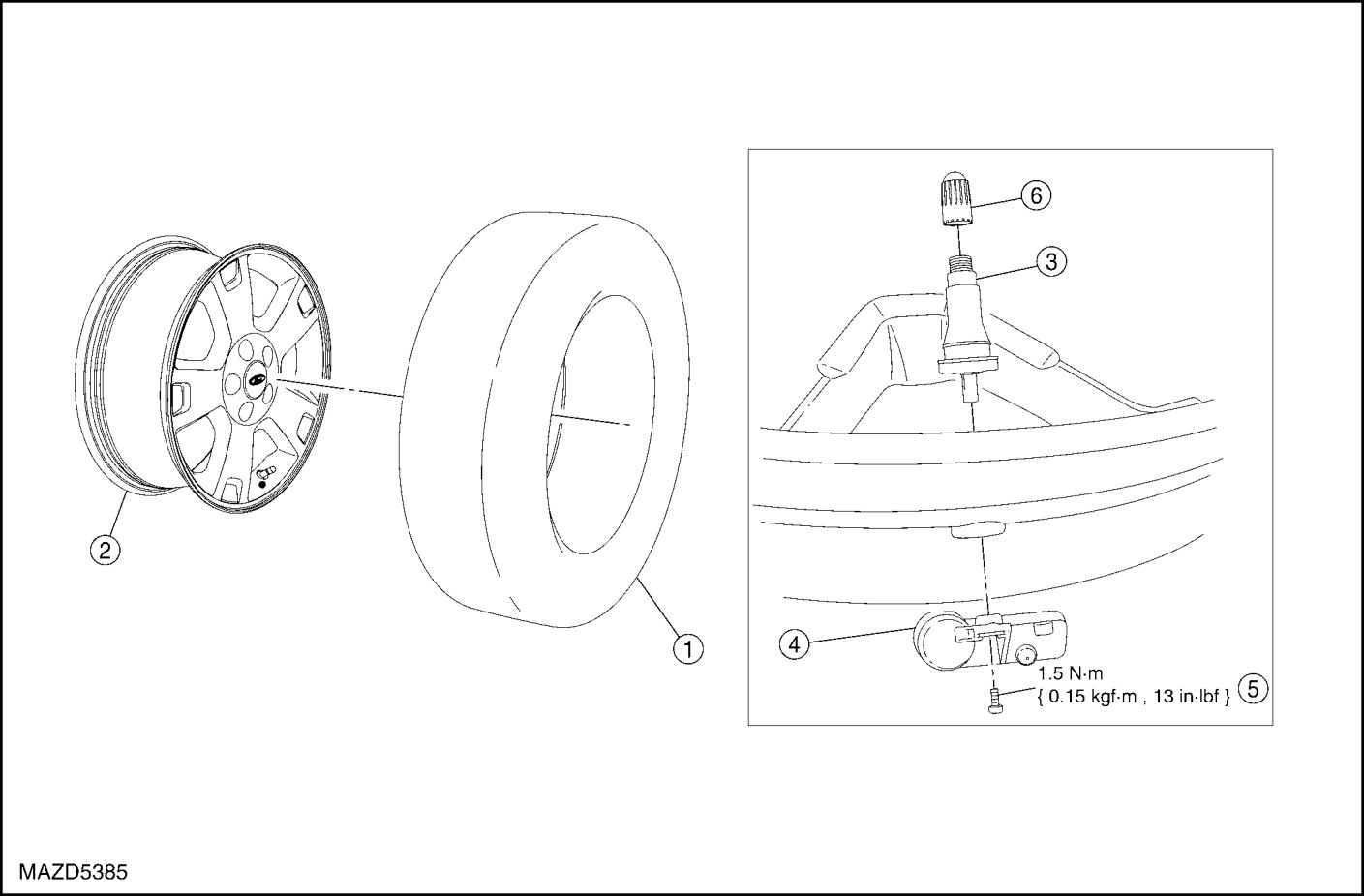

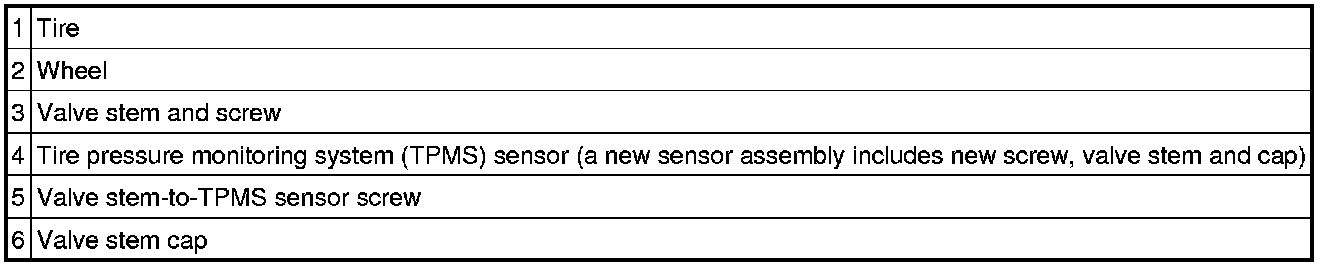

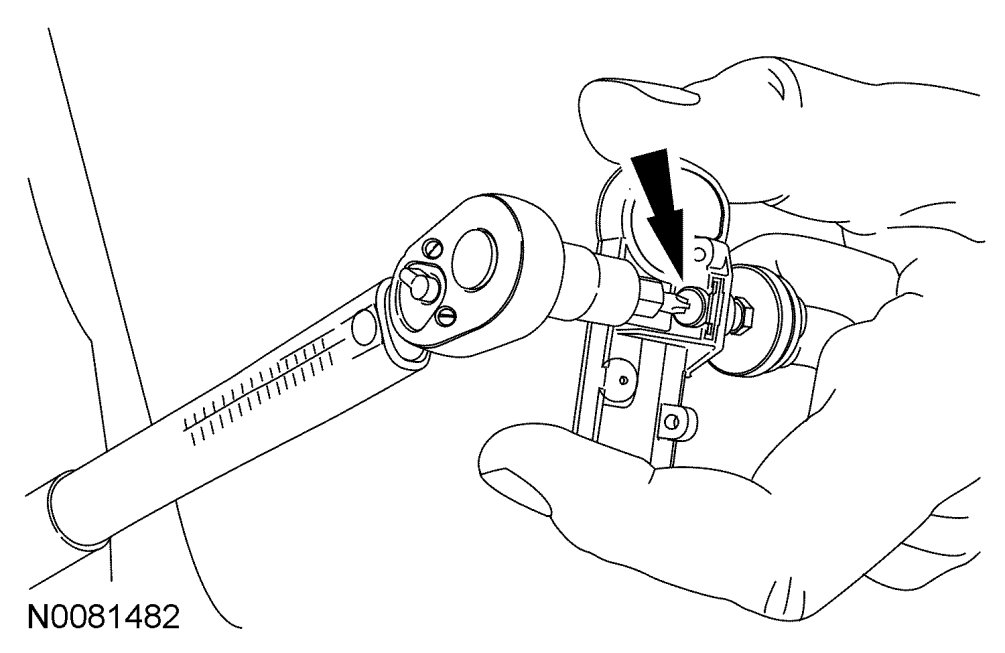

1. Install a new valve stem onto the TPMS sensor.

- Tighten the valve stem-to-TPMS sensor screw to 2 Nm {0.2 kgf-m, 18 in-lbf}.

CAUTION:To prevent TPMS sensor and valve stem damage, the valve stem must be installed onto the TPMS sensor and then installed into the wheel as an assembly.

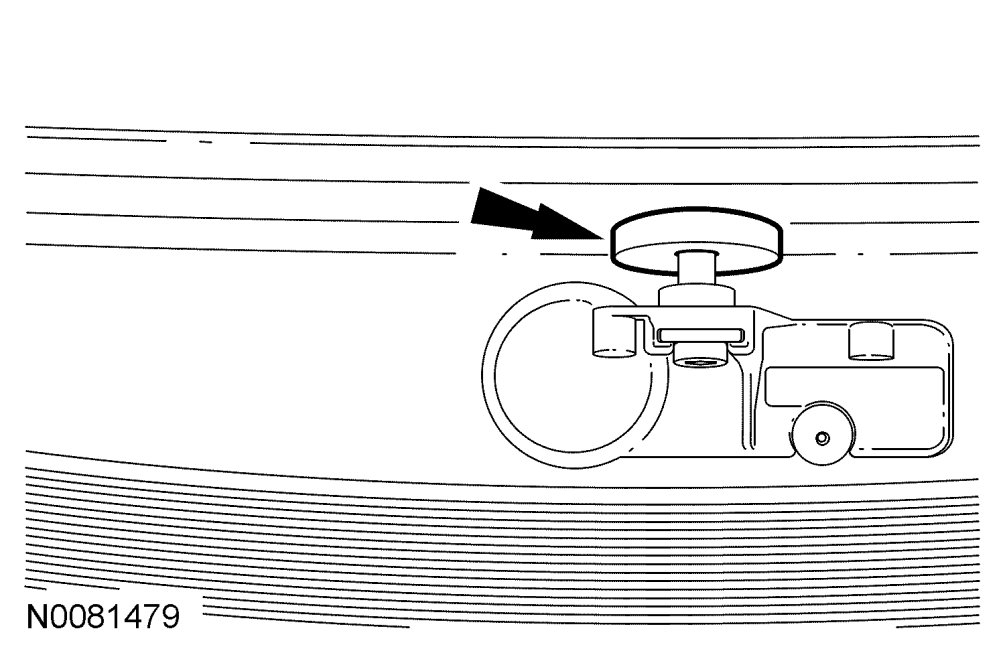

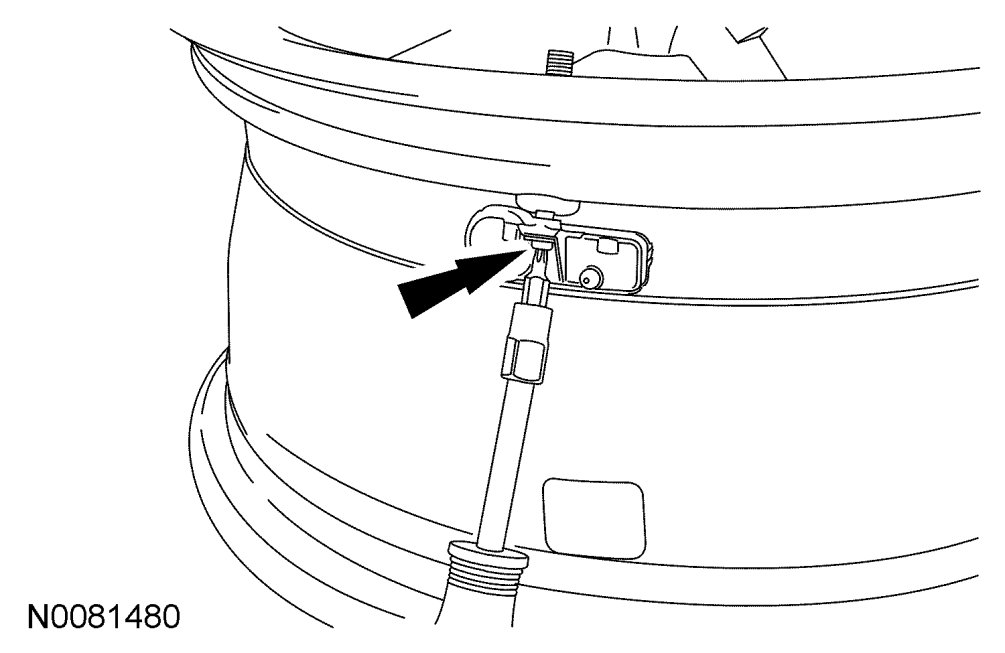

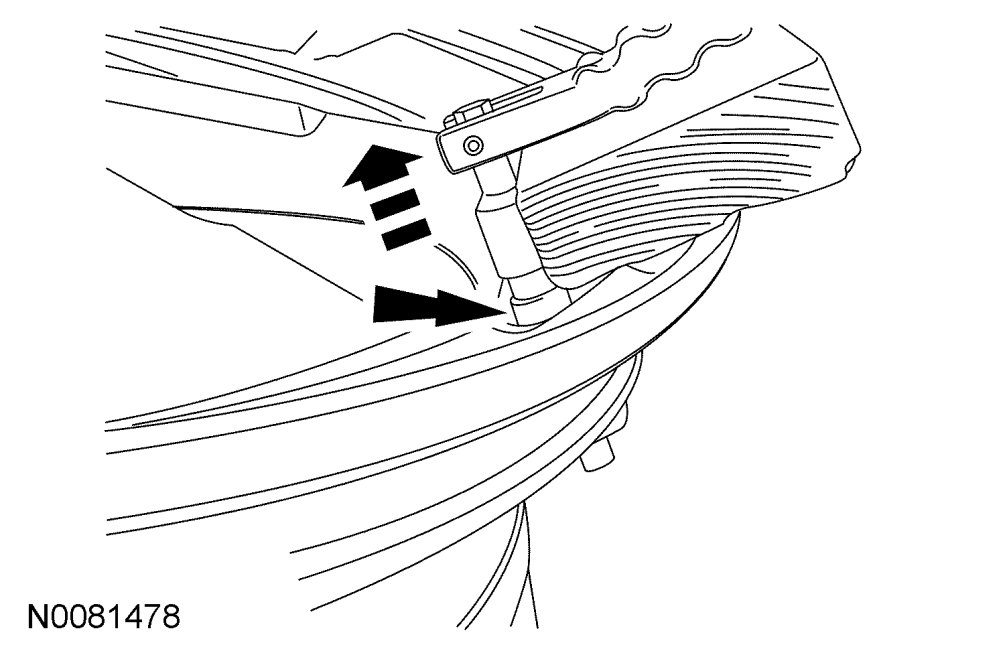

2. Lubricate the valve stem with soapy water and install the valve stem and TPMS sensor assembly into the wheel using a block of wood and a suitable valve stem installer.

CAUTION:It is important to pull the valve stem and TPMS sensor assembly through the wheel rim hole in a direction parallel to the valve stem hole axis. If the assembly is pulled through at an angle, damage to the valve stem and sensor assembly may occur.

CAUTION:Use care not to damage the wheel surface when installing the valve stem and TPMS sensor assembly.






3. Make sure the valve stem rubber if fully seated against the wheel.

4. Position the wheel on the turntable of the tire machine, then lubricate and position the bottom bead of the tire on the wheel.

CAUTION:Use only a soap and water solution to lubricate the tire. Use of anything other than soap and water may result in damage to the TPMS sensor.
NOTE:Do not mount the tire at this time.

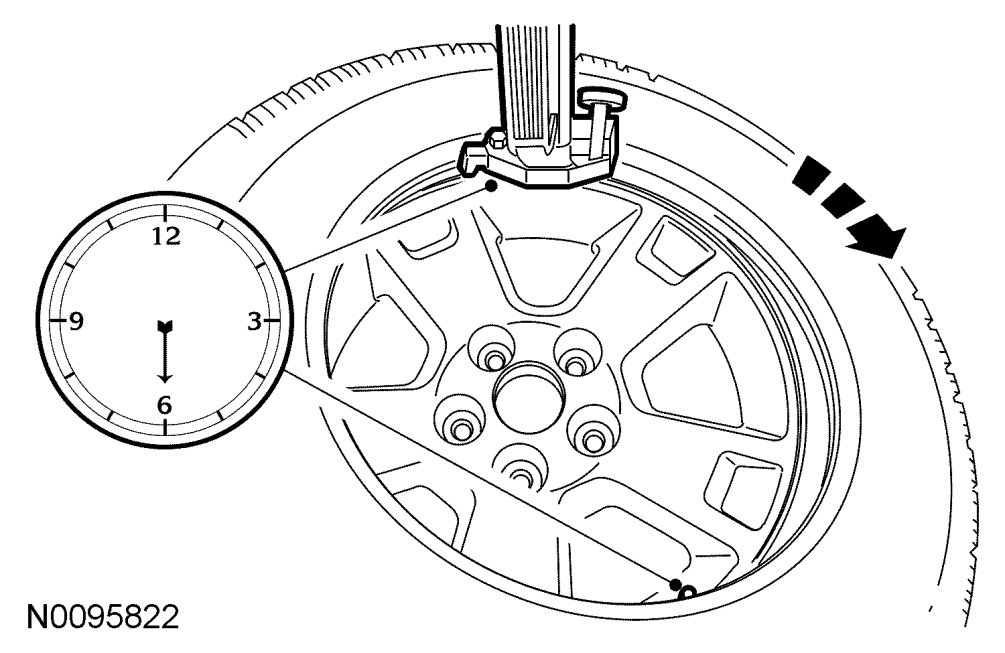

5. Position the wheel to align the valve stem with the machine arm, at the 6 o'clock position, and mount the bottom bead of the tire.

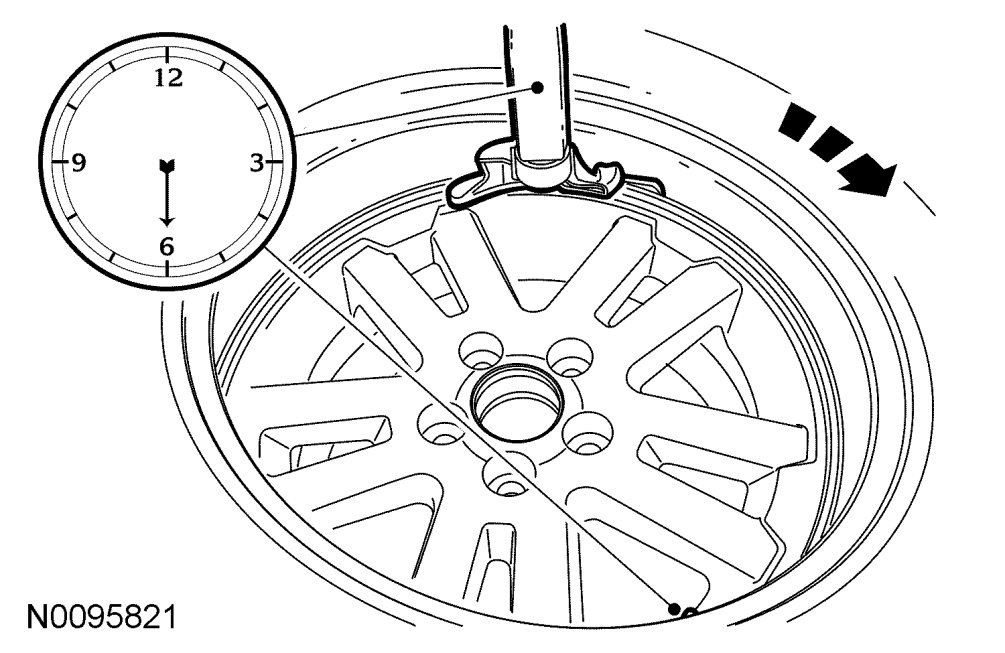

6. Reposition the wheel to align the valve stem with the machine arm, at the 6 o'clock position, and mount the top bead of the tire.

7. Inflate the tire to the pressure specified on the vehicle certification (VC) label located on the driver door or door pillar.

- Proceed to step 8 if the tire beads do not seat at the specified inflation pressure.

NOTE:Use only a digital tire gauge any time tire pressures are measured to make sure that accurate values are obtained.
8. The following steps should only be carried out if the tire beads cannot be seated by inflating the tire up to the maximum inflation pressure listed on the tire sidewall.

a. Relubricate the tire bead and wheel bead seat area.

b. Install a remote valve and pressure gauge.

c. Wear eye and ear protection and stand at a minimum of 3.65 m (12 ft) away from the wheel and tire assembly.

d. Inflate tire using the remote valve and tire gauge until the beads have seated or until the pressure gauge is 138 kPa (20 psi) more than maximum inflation pressure on tire sidewall. If beads have not seated, deflate the tire and proceed to the next step.

e. Place the wheel and tire assembly in an OSHA approved tire safety cage.

f. Inflate the tire using the remote valve and pressure gauge until the beads have seated or until the pressure gauge is 276 kPa (40 psi) more than maximum inflation pressure on the tire sidewall. Do not exceed 276 kPa (40 psi) above the maximum pressure on the tire sidewall. Install a new tire if the beads do not seat at this pressure.

WARNING:If there is a need to exceed the maximum pressure indicated on the sidewall of the tire, in order to seat the beads, follow ALL the steps listed above. Failure to follow these steps may result in serious personal injury.
9. Install the wheel and tire. See Service and Repair.
