Pinpoint Test 3: Diagonal Wear

PINPOINT TEST 3: DIAGONAL WEAR

Possible Causes

- Incorrect wheel and tire rotation
- Excessive toe-in/out
- Incorrect tire inflation
- Loose, worn or damaged suspension components

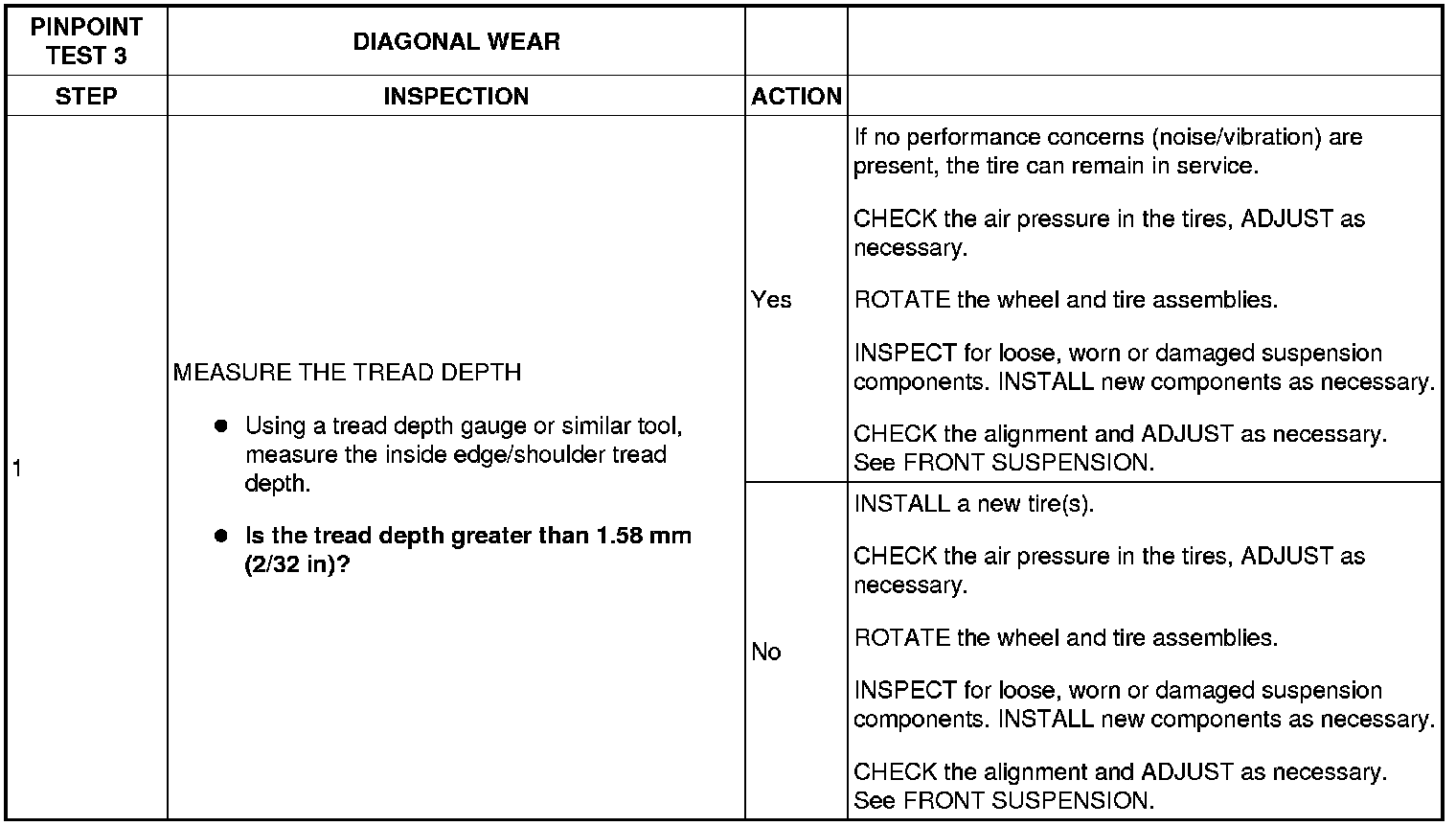

Diagnostic Procedure
