Fluid - M/T: Service and Repair

TRANSAXLE DRAINING AND FILLING

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

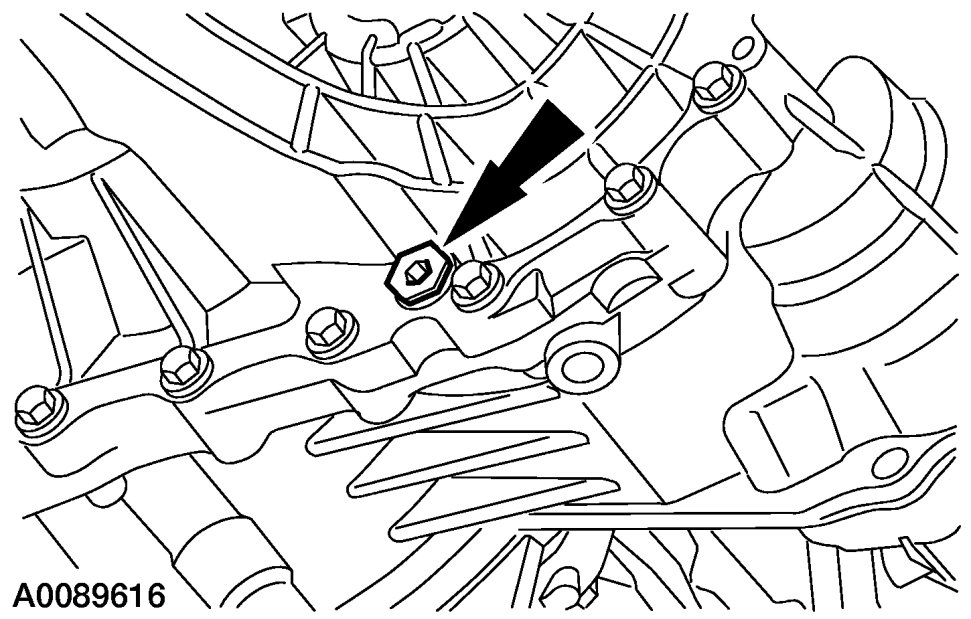

2. Remove the drain plug and drain the fluid.





NOTE:Use a new gasket and apply sealant on the drain plug.
3. Install the drain plug.

- Tighten to 35 Nm {3.5 kgf-m, 26 ft-lbf}.

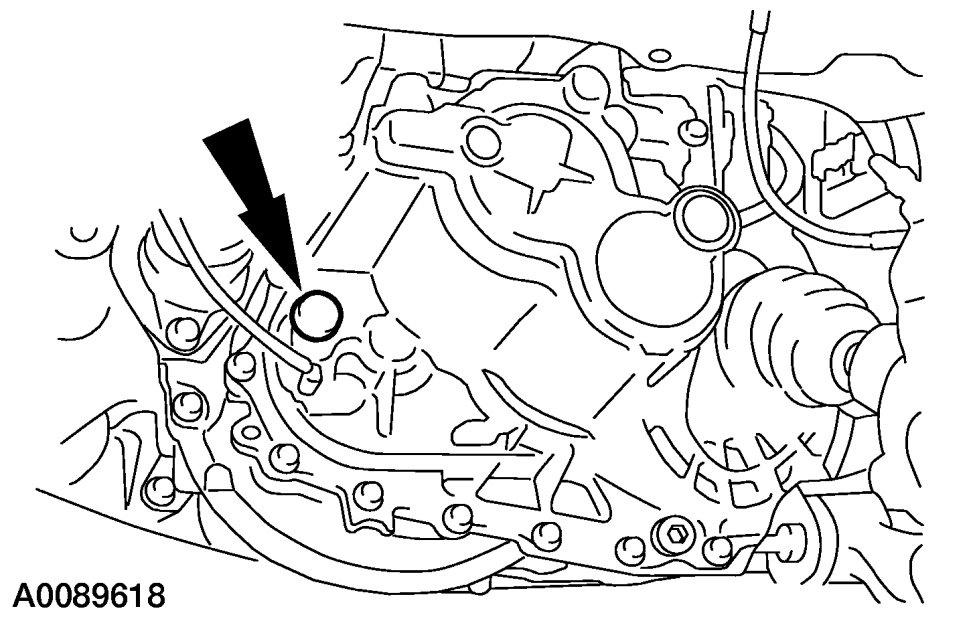

4. Remove the fill level inspection plug.





5. Remove the transaxle fill plug.

6. Fill the transaxle with gear oil until level with the fill level inspection plug hole.





NOTE:Use a new gasket and apply sealant on the fill plug.
7. Install the transaxle fill plug.

- Tighten to 35 Nm {3.5 kgf-m, 26 ft-lbf}.





NOTE:Use a new gasket and apply sealant on the fill level inspection plug.
8. Install the fill level inspection plug.

- Tighten to 35 Nm {3.5 kgf-m, 26 ft-lbf}.
