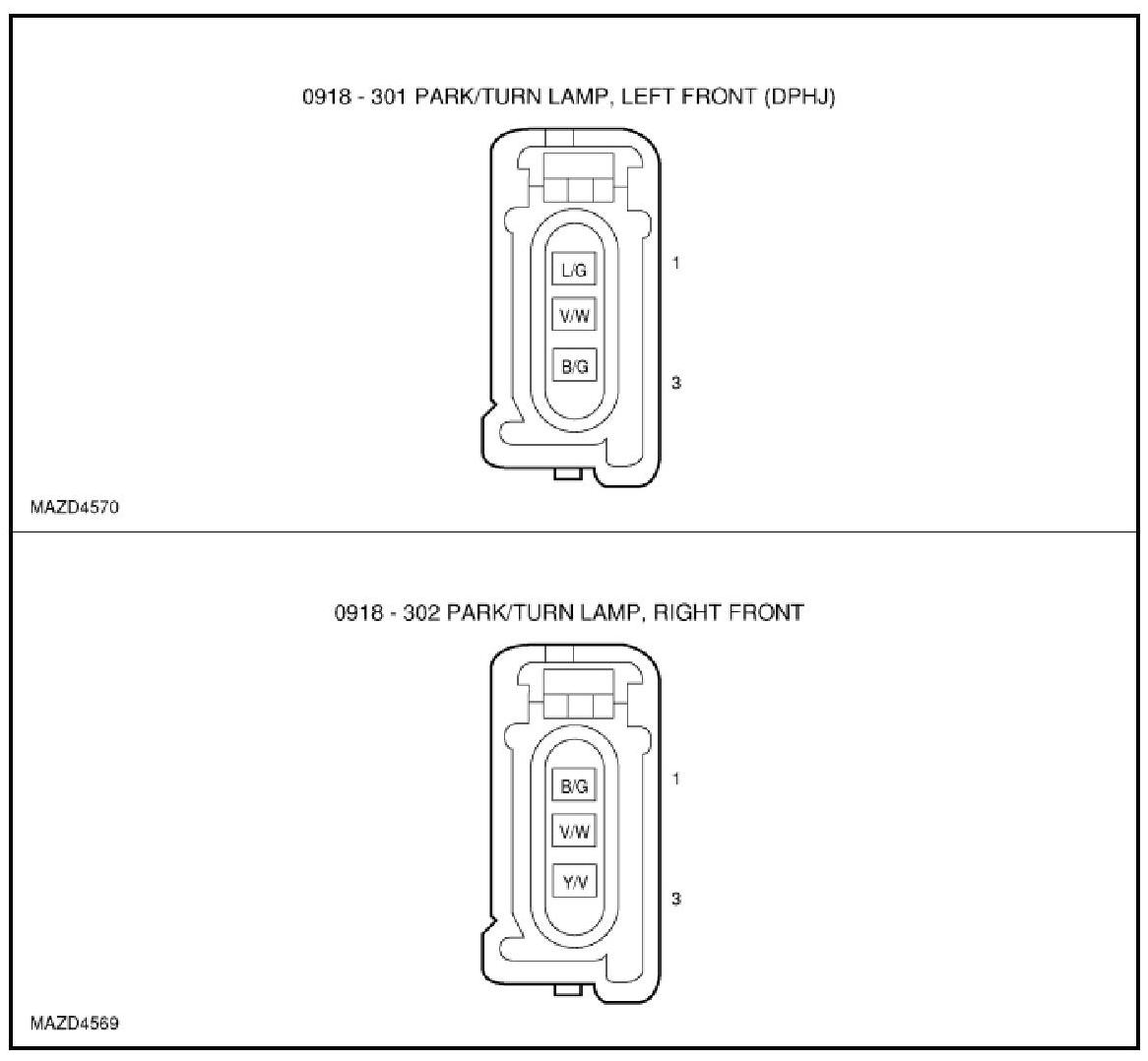

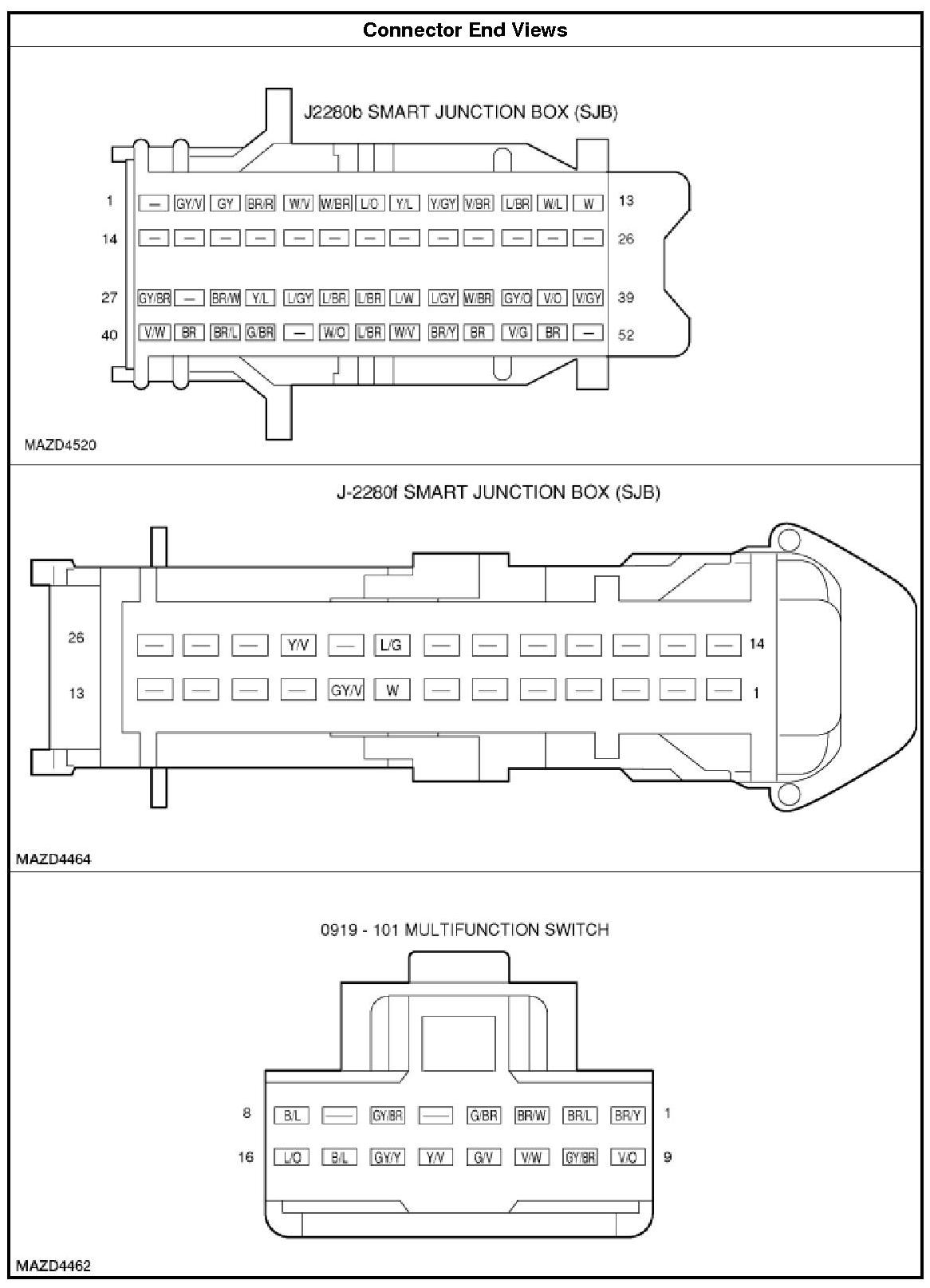

Connector End Views - Turn Signal And Hazard Lamps
Connector End Views - Turn Signal And Hazard Lamps
CONNECTOR END VIEWS - TURN SIGNAL AND HAZARD LAMPS
