Headlight Switch Removal/Installation

HEADLIGHT SWITCH REMOVAL/INSTALLATION

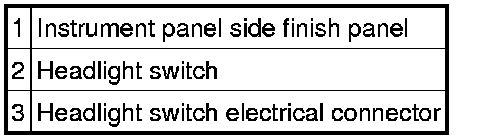

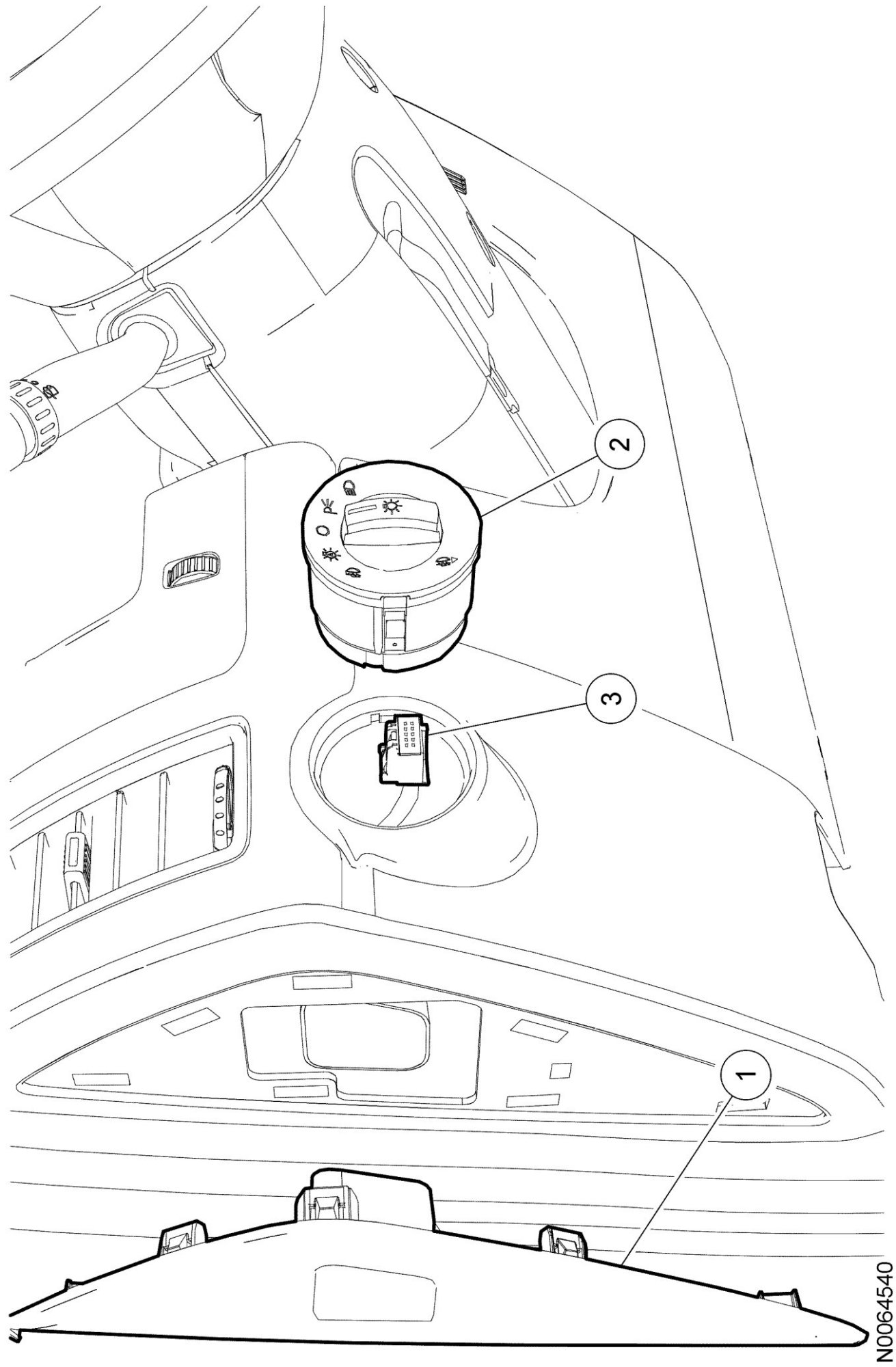

1. Remove the instrument panel side finish panel.

2. Release the tabs and remove the headlight switch.

- Disconnect the electrical connectors.

NOTE:The headlight switch is removed by pushing from behind.
3. To install, reverse the removal procedure.
