Connector End Views - Reversing Lamps
Connector End Views - Reversing Lamps

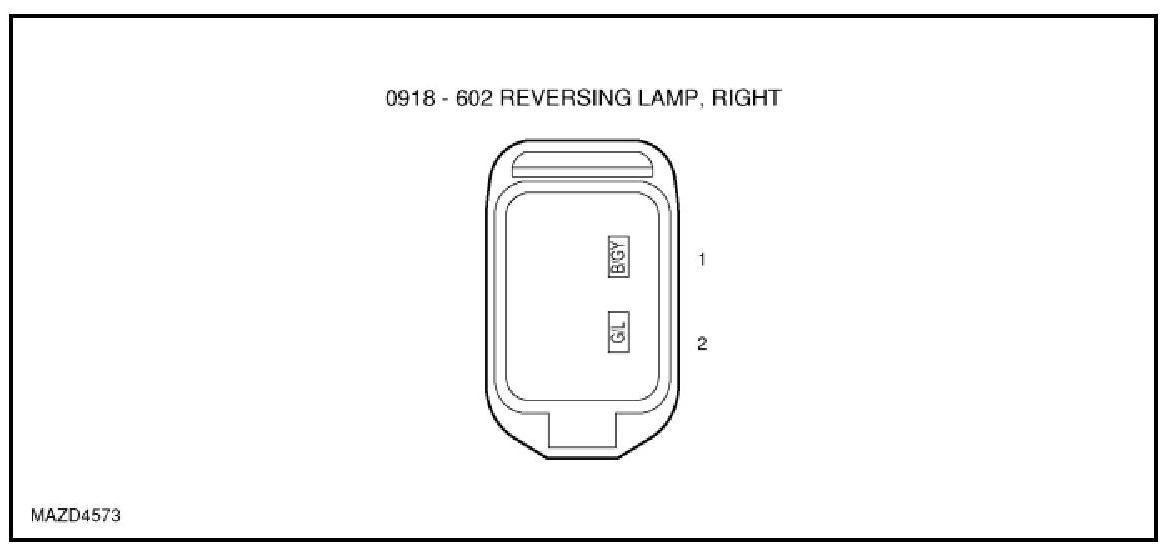

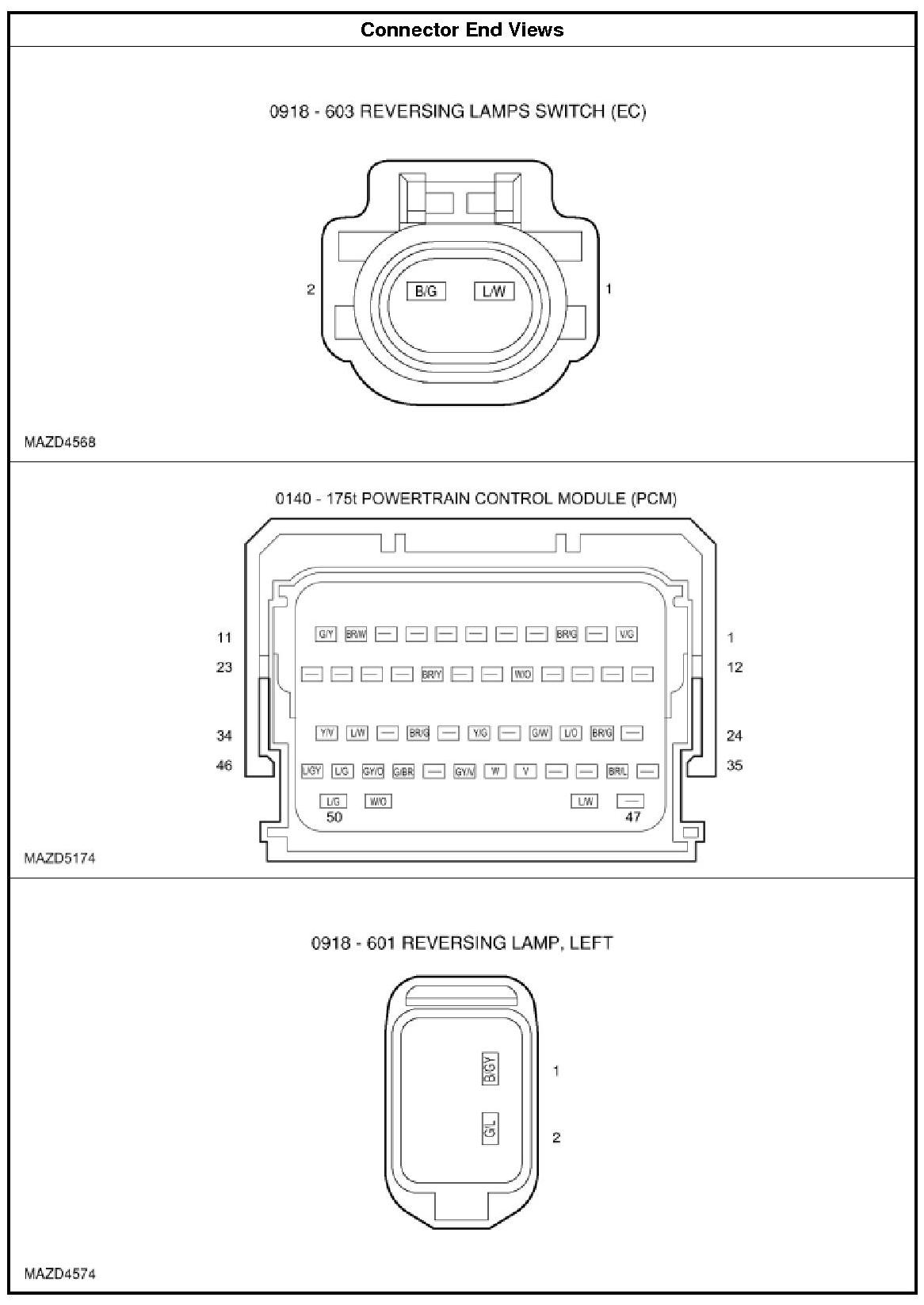

CONNECTOR END VIEWS - REVERSING LAMPS
